Toyota HILUX Extended shell (MTM) — Figure 3303

Toyota HILUX EPC diagram 3303, Extended shell (MTM), with 5 images and 11 PNC and OE references.

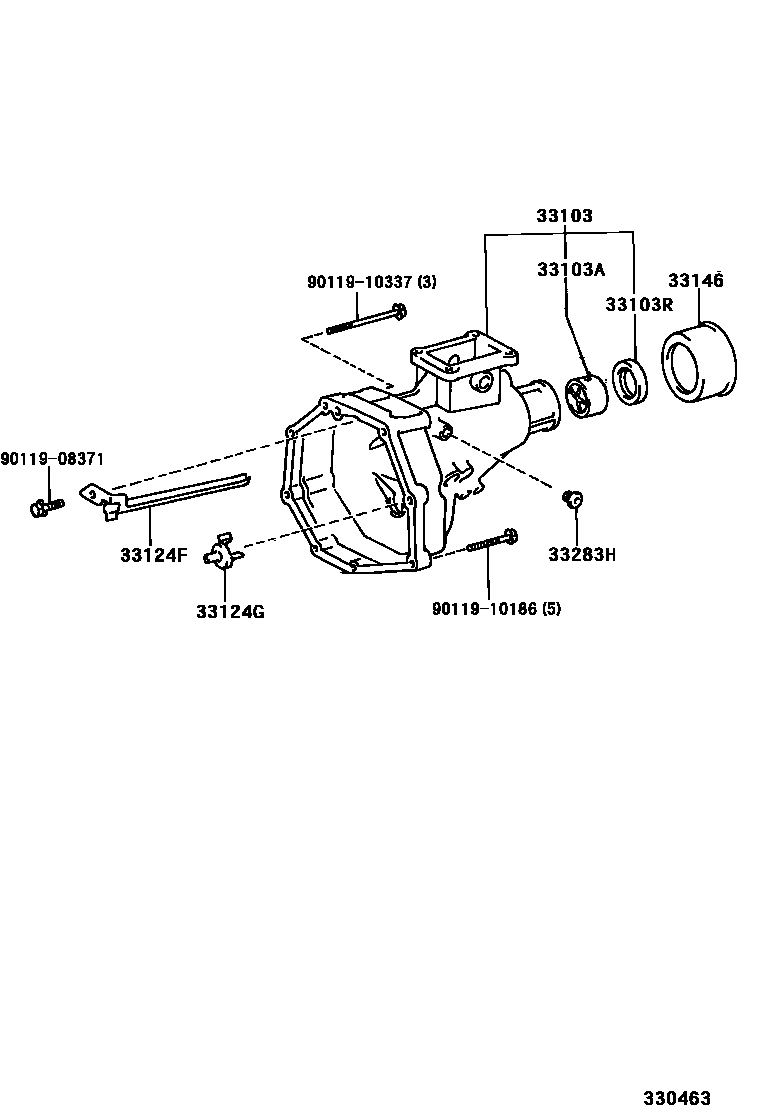

Toyota HILUX Extended shell (MTM) EPC diagram — 330463
Extended shell (MTM) — 330463 (198808 – 200106)

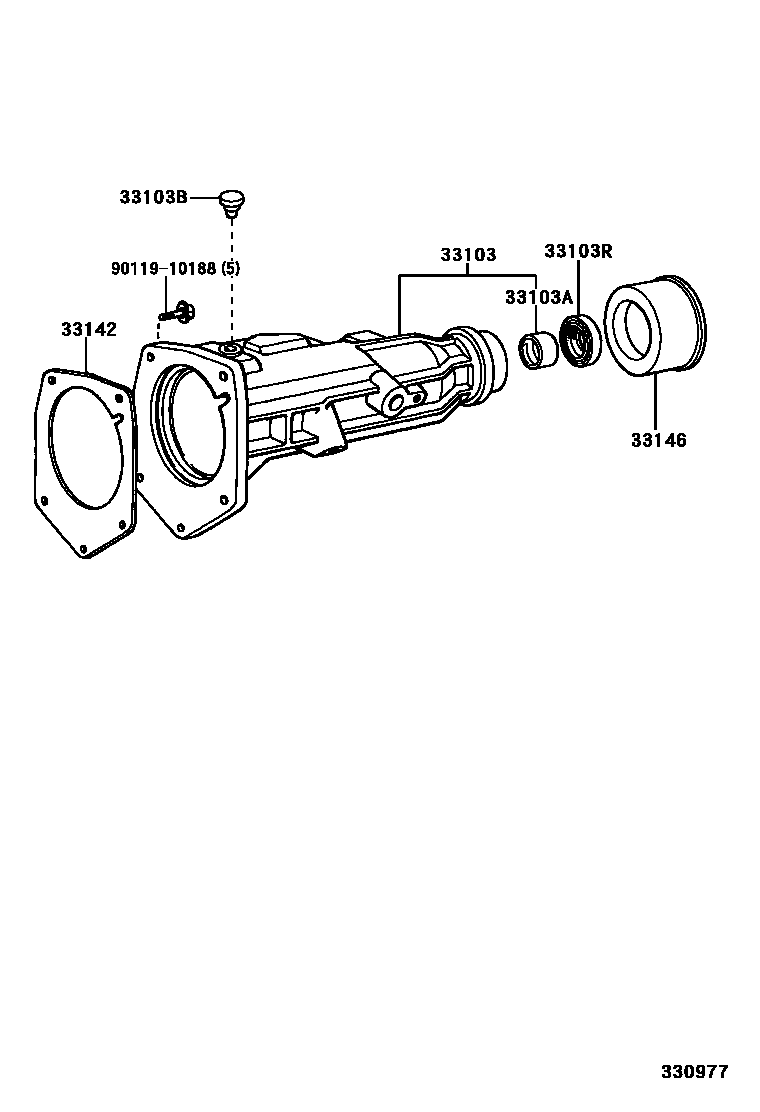

Toyota HILUX Extended shell (MTM) EPC diagram — 330977
Extended shell (MTM) — 330977 (198808 – 199408)

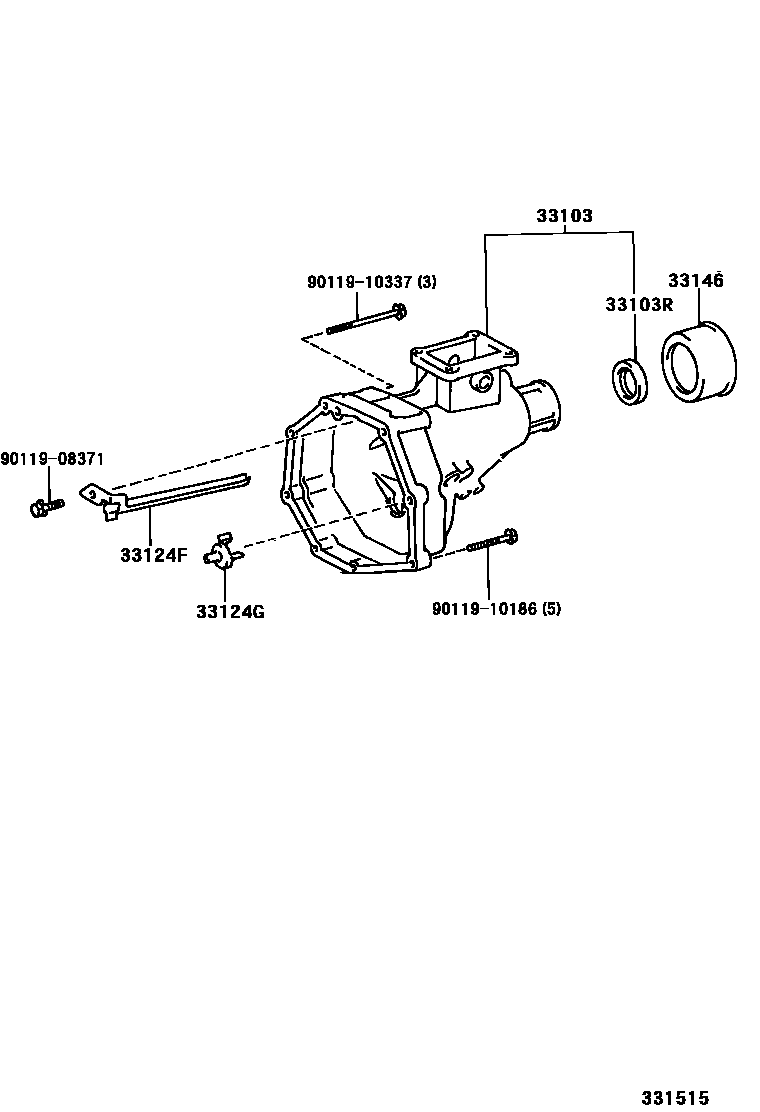

Toyota HILUX Extended shell (MTM) EPC diagram — 331515
Extended shell (MTM) — 331515 (200106 – 999999)

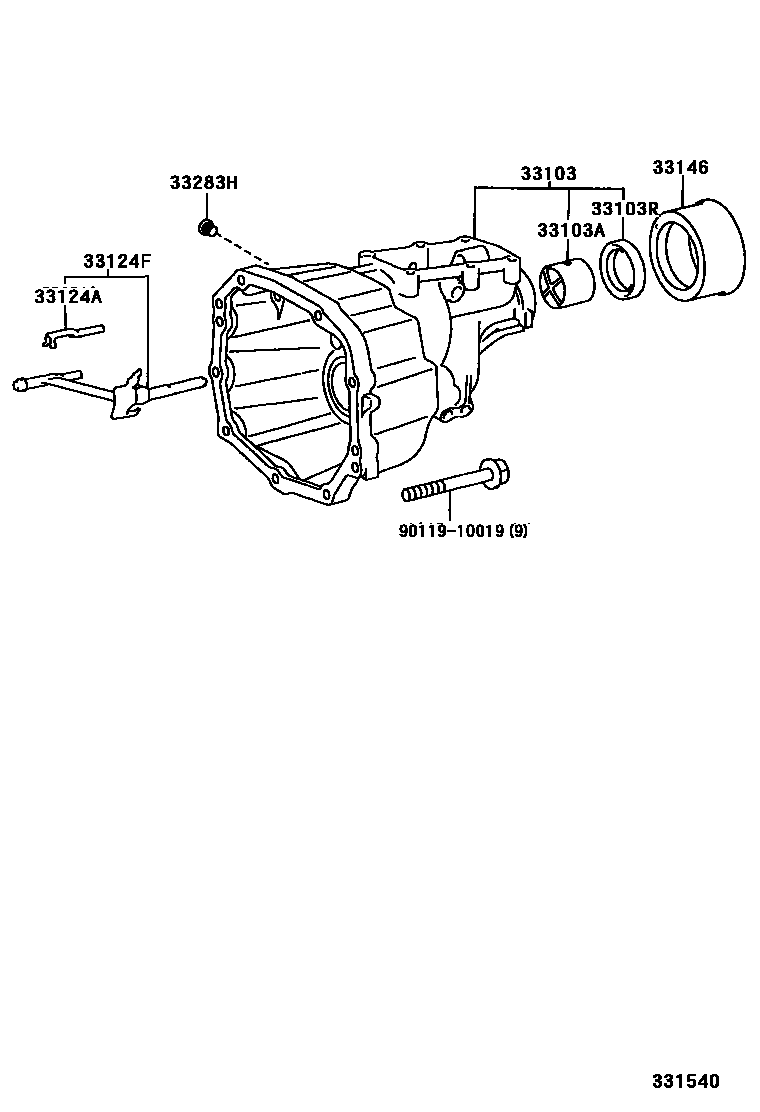

Toyota HILUX Extended shell (MTM) EPC diagram — 331540
Extended shell (MTM) — 331540 (200106 – 999999)

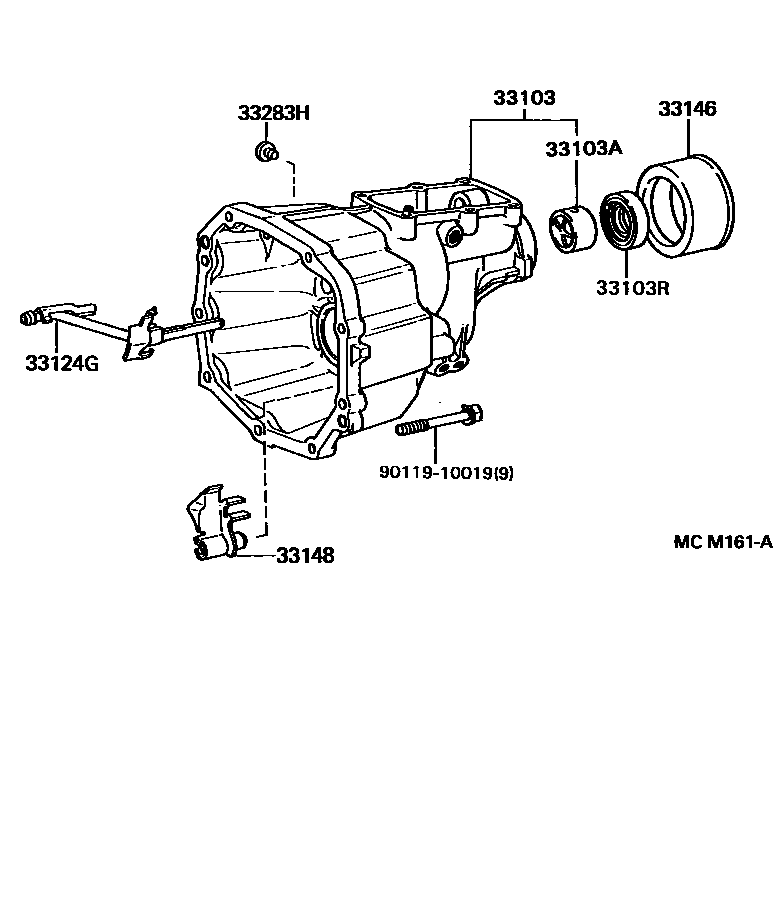

Toyota HILUX Extended shell (MTM) EPC diagram — MCM161A
Extended shell (MTM) — MCM161A (199108 – 199708)

PNC and OE references

PNCPart nameOE numbers
33103Extended shell sub-assembly (MTM)33103-22091 · 33103-30200 · 33103-30201 · 33103-35060 · 33103-35061 · 33103-35141
33103ABushing (for manual transmission extension housing)90999-72023 · 90999-73105 · 90999-73120
33103BBreather plug (for transmission extension housing)90930-03001
33103ROil seal (for manual transmission extension housing)90311-38032 · 90311-38040 · 90311-38140
33124AClamp (for transmission oil collection pipe)90463-08260
33124FNo. 1 oil collection pipe (for extension housing)33106-30040 · 33124-35010 · 33124-35011
33124GNo. 2 oil collection pipe (for extension housing)33106-22010 · 33106-30040 · 33124-36010
33142Extended shell liner (MTM)33142-26010
33146Extension housing dust cover (MTM)33146-30010 · 33146-30020
33148No. 1 gear cover33148-22010
33283HHeaded straight thread plug90341-10065 · 90341-12008
