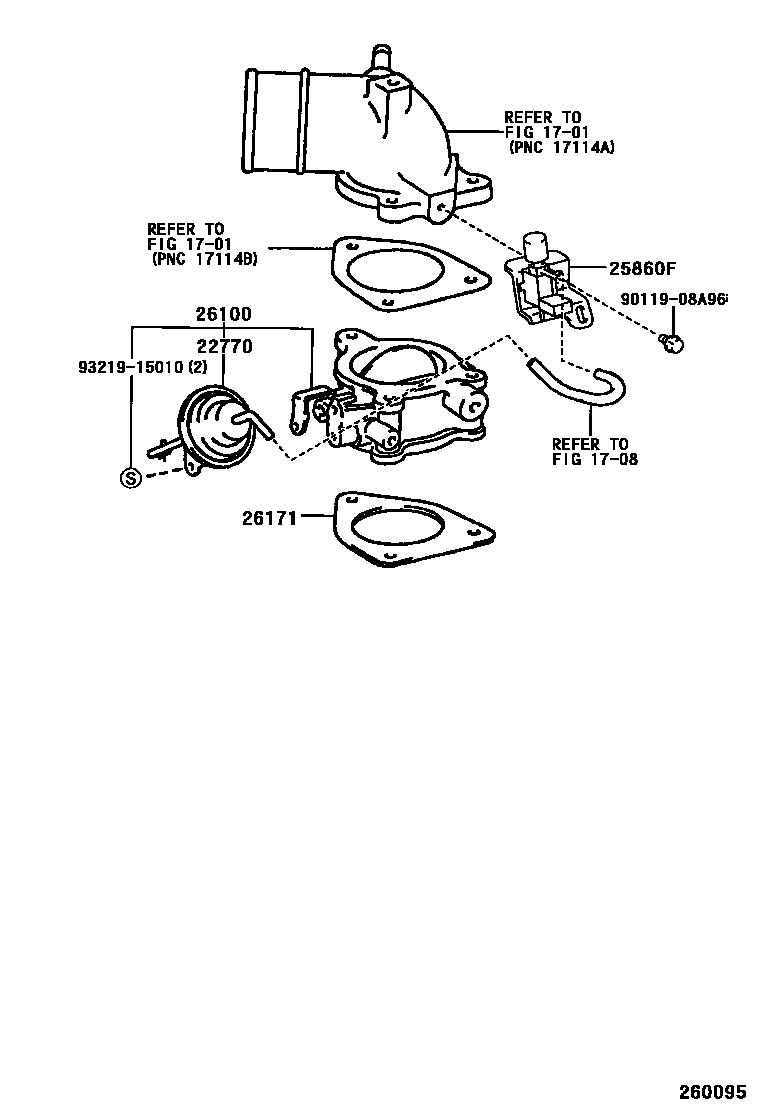

Toyota HILUX 文氏管 — Figure 2606
Toyota HILUX EPC diagram 2606, 文氏管, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22770 | Idle speed boost actuator | 26133-54280 |
| 25860F | Vacuum switch valve assembly | 25860-54320 |
| 26100 | Venturi assembly | 26100-54280 |
| 26171 | Venturi gasket | 17116-54030 |
