Toyota HILUX 燃油喷射系统 — Figure 2211

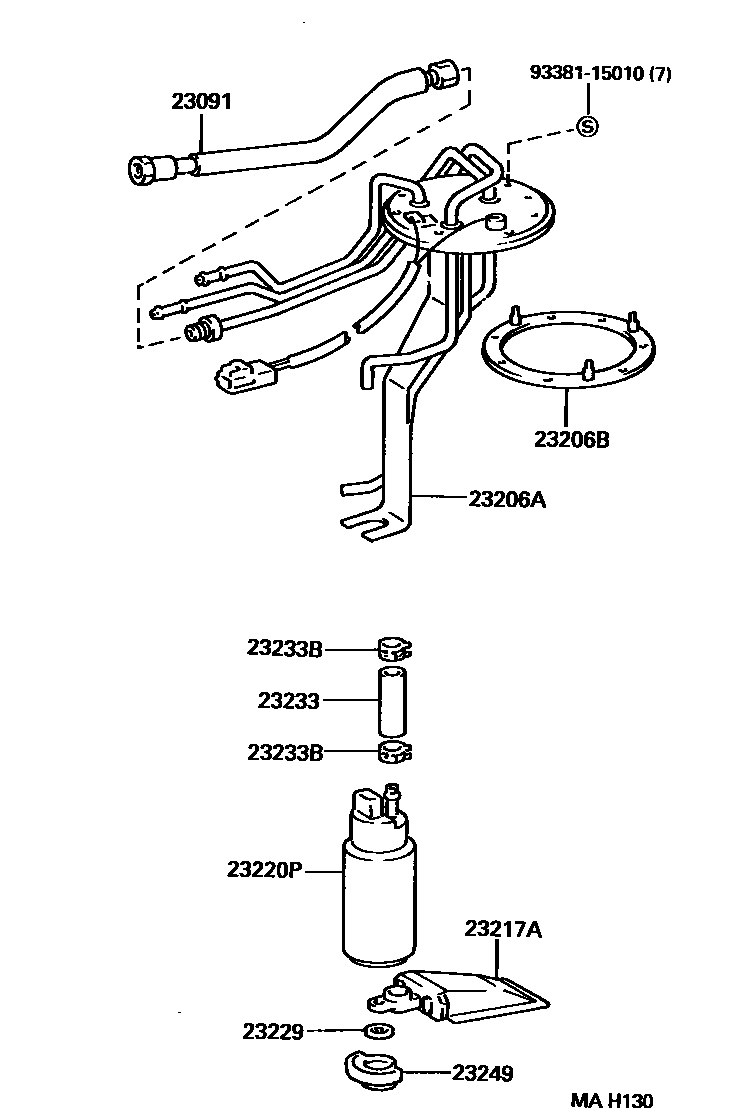

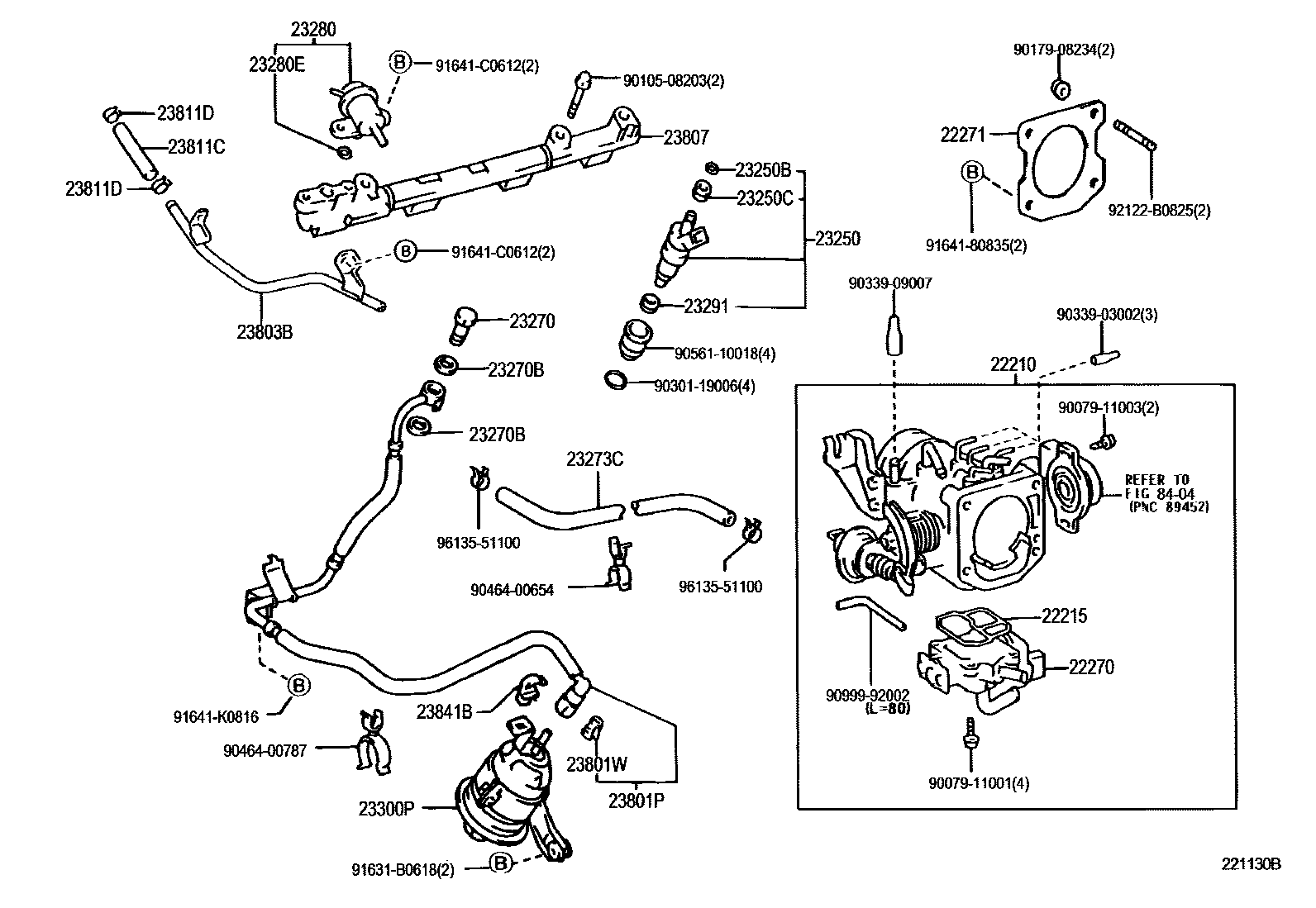

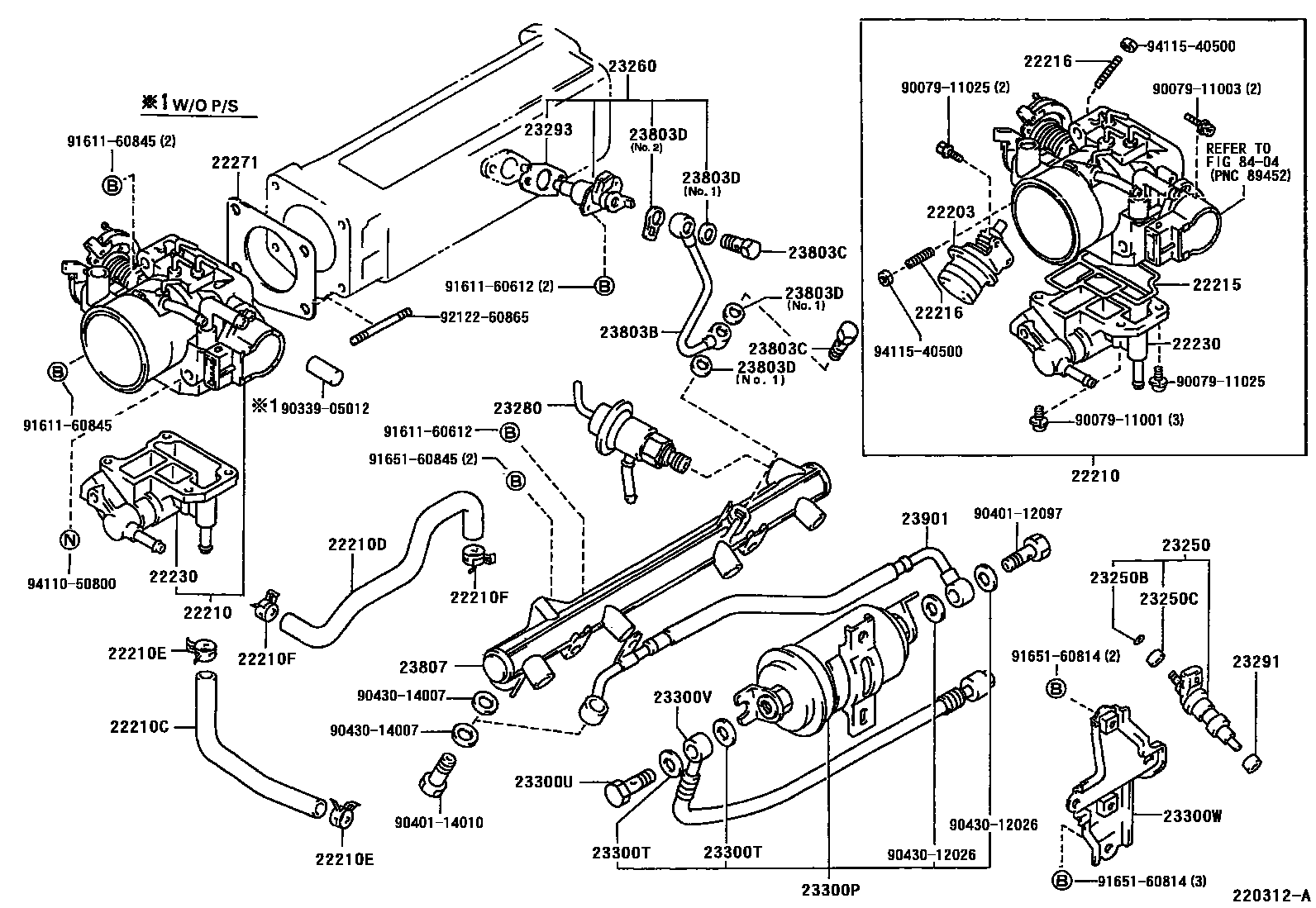

Toyota HILUX EPC diagram 2211, 燃油喷射系统, with 4 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22203 | Deceleration buffer sub-assembly (for throttle body) | 22202-35300 |
| 22210 | Throttle body assembly | 22210-35300 · 22210-35301 · 22210-75210 |
| 22210C | HOSE, WATER BY-PASS, NO.1 | 16267-35030 |
| 22210D | HOSE, WATER BY-PASS, NO.2 | 16264-35030 |
| 22210E | Hose clamp or clip (for water bypass hose No. 1) | 90467-13001 |
| 22210F | Hose clamp or clip (for No. 2 water bypass hose) | 90467-13001 |
| 22215 | Throttle body cover gasket | 22215-35270 · 22215-75050 |
| 22216 | Deceleration buffer adjustment screw | 22216-35300 |
| 22230 | Auxiliary air valve assembly | 22230-35030 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-75040 |
| 22271 | Throttle body gasket | 22271-35020 · 22271-75020 |
| 23091 | Fuel pump pipe sub-assembly | 23091-35060 |
| 23206A | fuel pump bracket | 23206-35300 |
| 23206B | fuel pump bracket gasket | 77169-14010 |
| 23217A | fuel pump filter | 23217-46100 · 23217-74021 |
| 23220P | fuel pump assembly | 23221-16490 · 23221-76030 |
| 23229 | Clip (for fuel pump filter) | 23229-16010 |
| 23233 | fuel pump hose | 23239-11010 · 23239-63010 |
| 23233B | Clamp (for fuel pump hose) | 90467-12067 · 90467-13054 |
| 23249 | Rubber gasket (for fuel pump) | 23249-74610 |
| 23250 | Fuel injector assembly | 23209-35040 · 23209-79095 |
| 23250B | O-ring (for fuel injector) | 90301-07001 · 90301-07024 |
| 23250C | Gasket (for injector) | 90480-13005 |
| 23260 | Cold start injector assembly | 23260-39075 |
| 23270 | Fuel pressure pulsation damper assembly | 23207-46010 |
| 23270B | Gasket (for pulsation damper hose) | 23279-74010 |
| 23273C | No. 2 fuel hose | 23273-75090 |
| 23280 | Fuel pressure regulator assembly | 23280-35030 · 23280-75020 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07024 |
| 23291 | Injector vibration isolation pad | 23291-41010 · 23291-73010 |
| 23293 | Cold start injector gasket | 23293-35020 |
| 23300P | Fuel filter (for EFI) | 23300-39065 · 23300-75120 |
| 23300T | Gasket (for fuel filter) | 90430-12026 |
| 23300U | Connector bolt (for fuel filter) | 90401-12029 · 90401-12097 |
| 23300V | Fuel hose (for fuel inlet) | 23906-35040 |
| 23300W | fuel filter bracket | 23264-35020 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-75100 |
| 23801W | Fuel pipe connector clip | 90923-07010 |
| 23803B | No. 3 fuel pipe sub-assembly | 23801-35010 · 23803-75040 |
| 23803C | Gasket (No. 3 injector overflow pipe) | 90401-08003 |
| 23803D | Joint bolt (for No. 3 injector overflow pipe) | 90430-08014 · 90430-08015 |
| 23807 | Oil pipe sub-assembly | 23807-35020 · 23807-75021 · 23807-75022 |
| 23811C | Fuel hose (for fuel line to pressure regulator) | 90445-12290 |
| 23811D | Hose clip (for fuel hose) | 96135-51100 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 90469-12012 |
| 23901 | Fuel pipe sub-assembly | 23901-35010 |
