Toyota HILUX 喷油泵总成 — Figure 2202

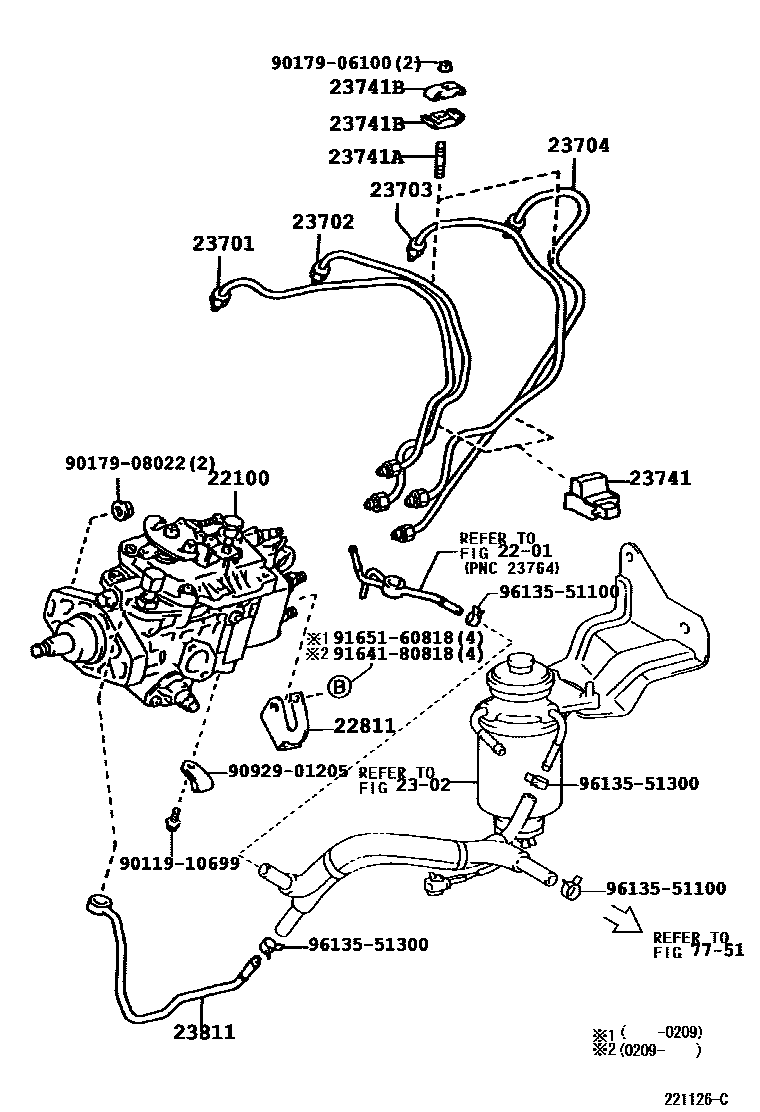

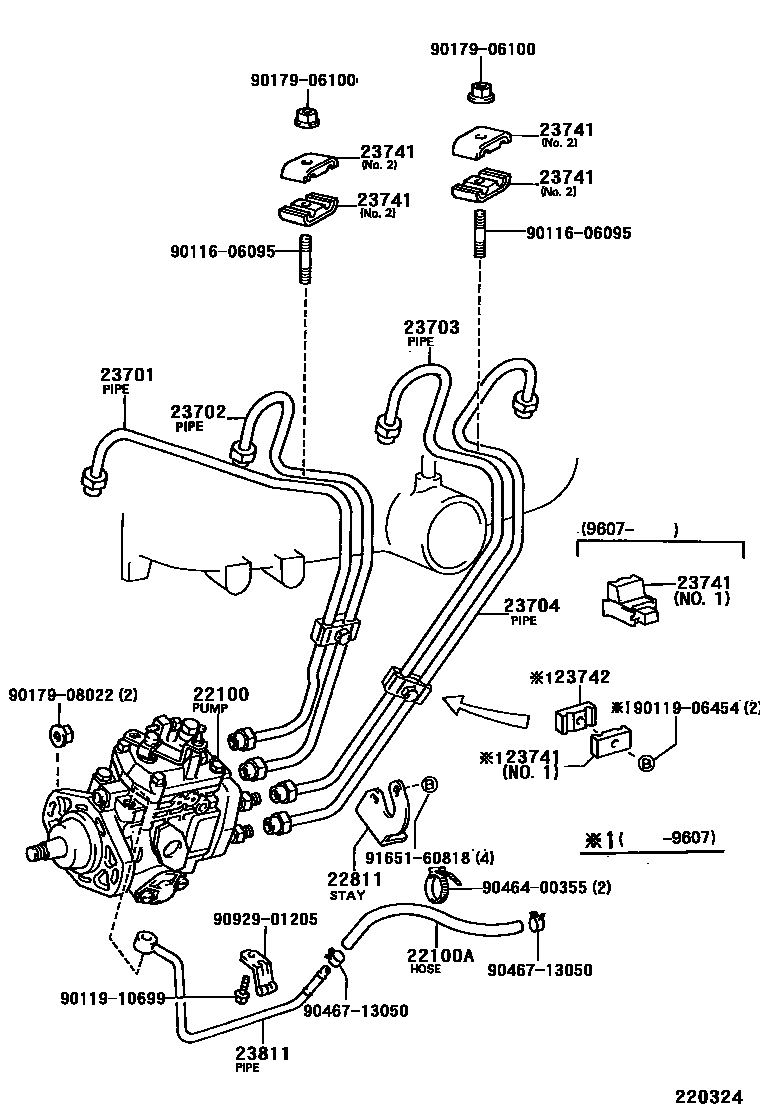

Toyota HILUX EPC diagram 2202, 喷油泵总成, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-54710 · 22100-54770 · 22100-54780 · 22100-54790 · 22100-54800 · 22100-54810 · 22100-54820 · 22100-54860 · 22100-54880 · 22100-5B030 · 22100-5B060 · 22100-5B120 · 22100-5B121 · 22100-5B430 · 22100-5B500 · 22100-5B510 · 22100-5B530 · 22100-5B590 · 22100-5B610 · 22100-5B770 · 22100-5B790 · 22100-5B800 · 22100-5D130 · 22100-5D160 · 22100-5D170 · 22100-5D200 · 22100-5D220 |
| 22100A | Fuel hose or fuel line (for injection pump to fuel filter) | 90447-14062 · 90447-14063 |
| 22811 | No. 1 fuel injection pump bracket | 22811-54041 · 22811-54042 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-54110 · 23701-54140 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23702-54110 · 23702-54140 |
| 23703 | No. 3 fuel injection pipe sub-assembly | 23703-54090 · 23703-54091 · 23703-54100 |
| 23704 | No. 4 fuel injection pipe sub-assembly | 23704-54090 · 23704-54100 |
| 23741 | No. 1 fuel injection pipe clamp | 23741-54010 · 23741-54030 · 23741-56010 |
| 23741A | Stud bolts (for fuel injection pipe clamp) | 90116-06095 |
| 23741B | Fuel injection pipe clamp | 23741-56010 |
| 23742 | No. 2 fuel injection pipe clamp | 23742-54010 |
| 23811 | Fuel pipe (for fuel filter to injection pump) | 23811-54150 · 23811-54151 |
