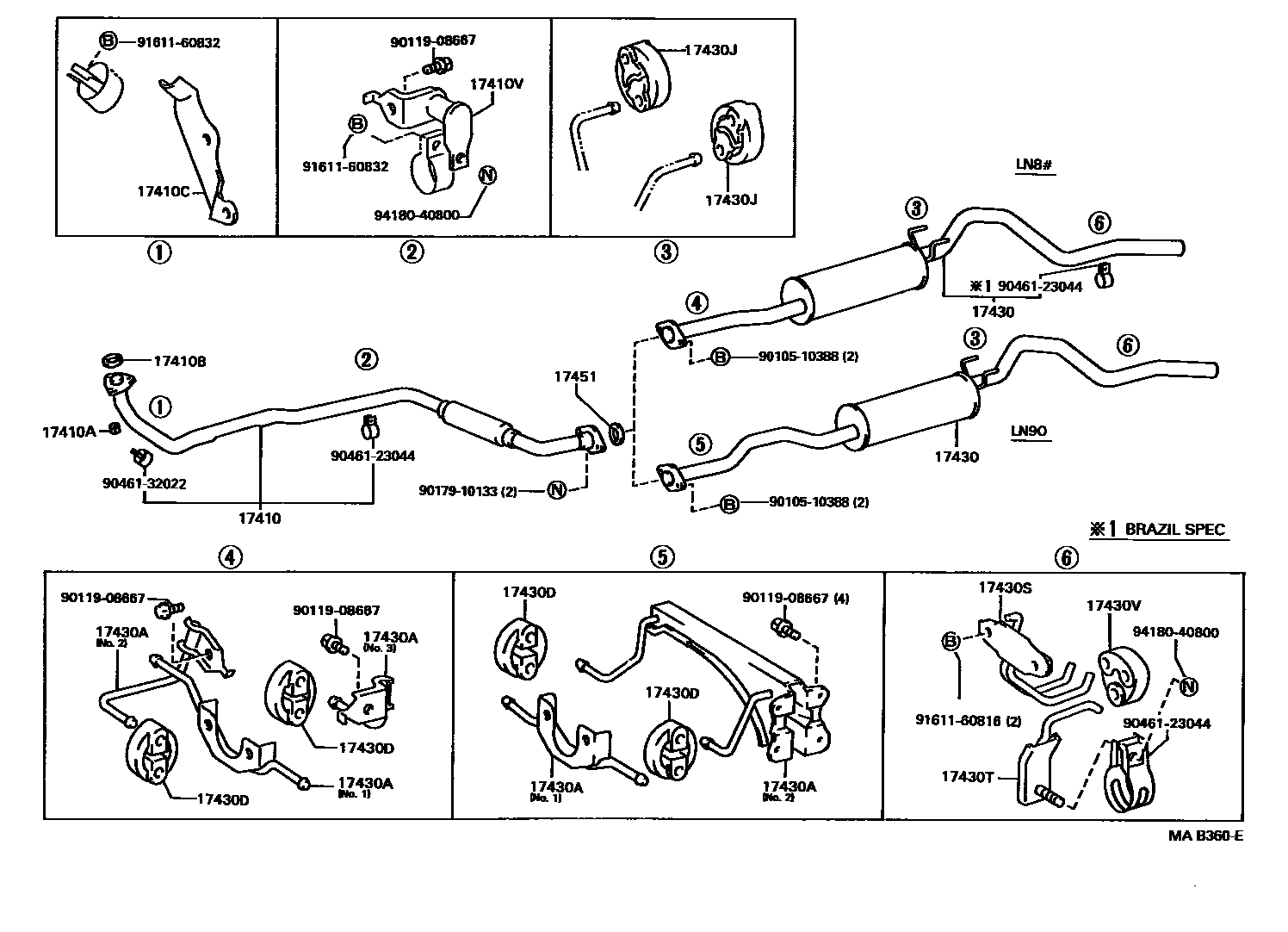

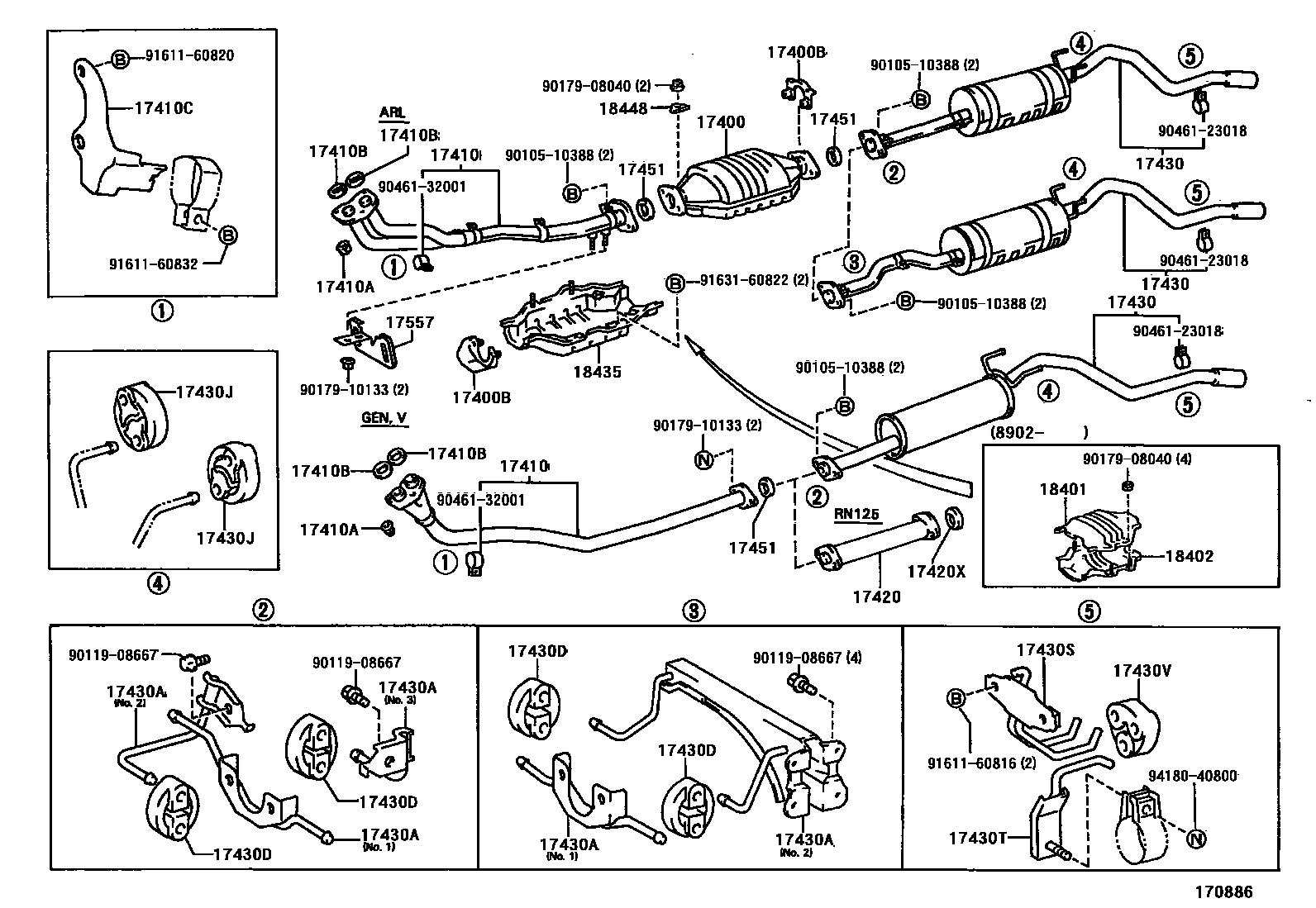

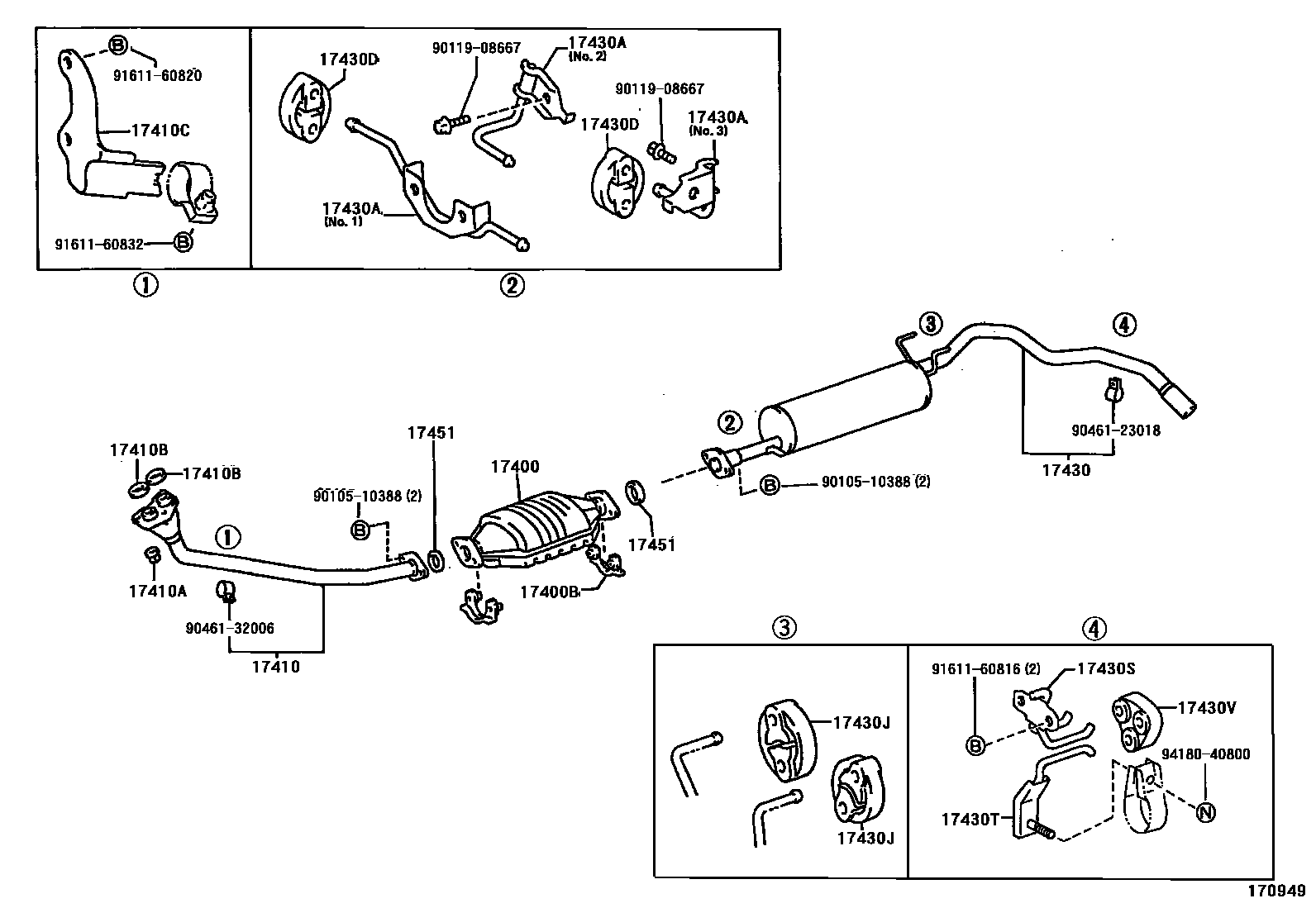

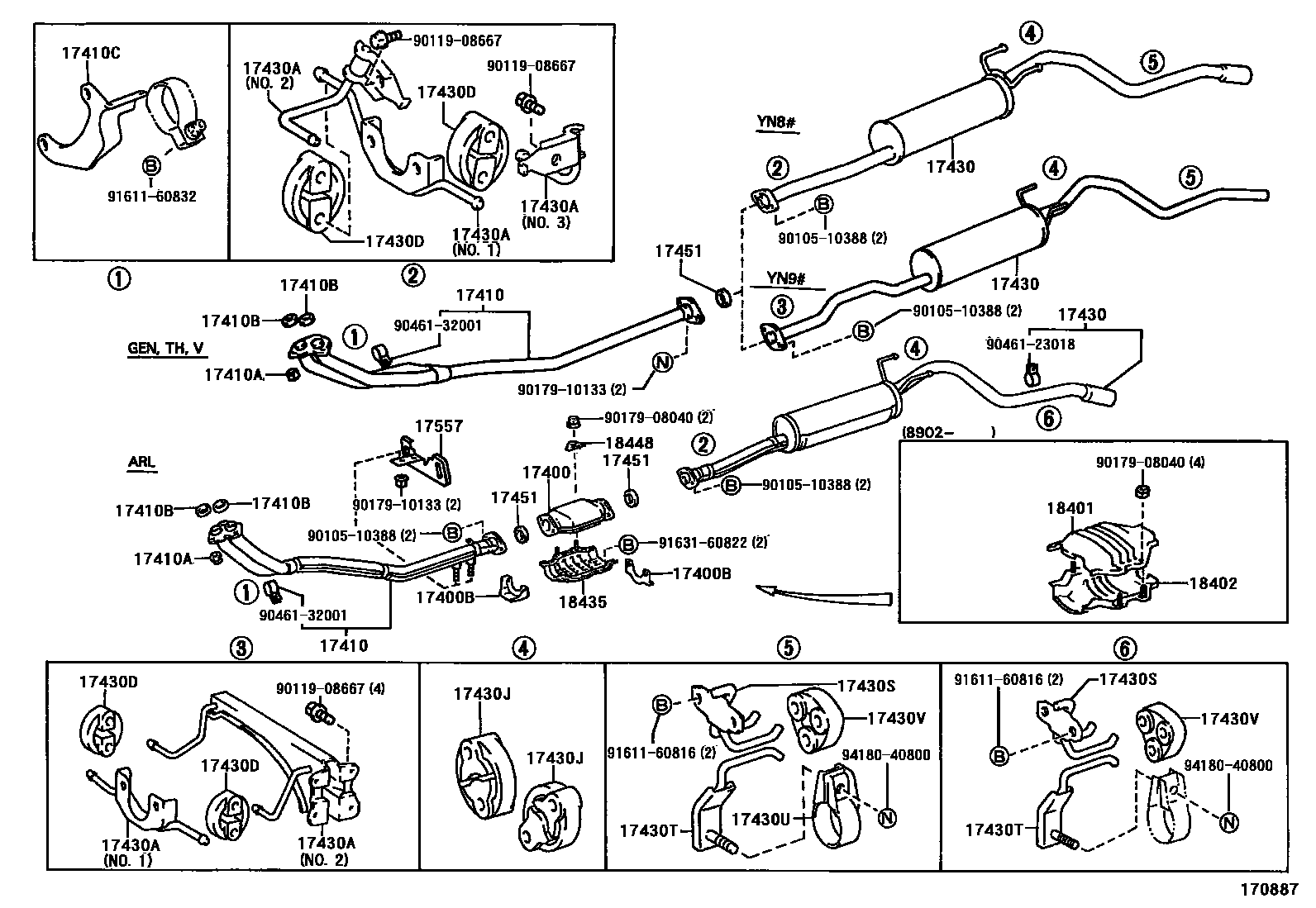

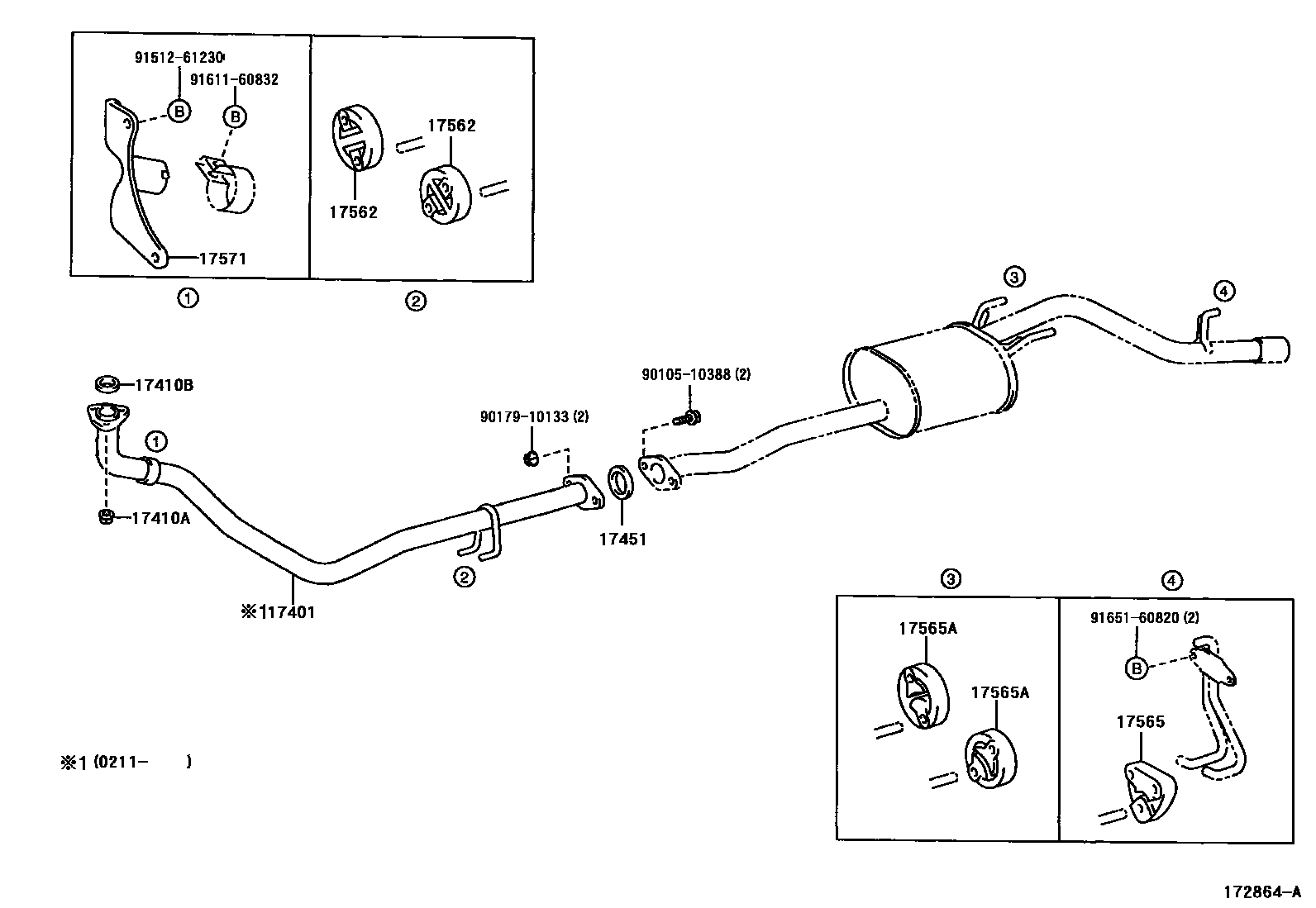

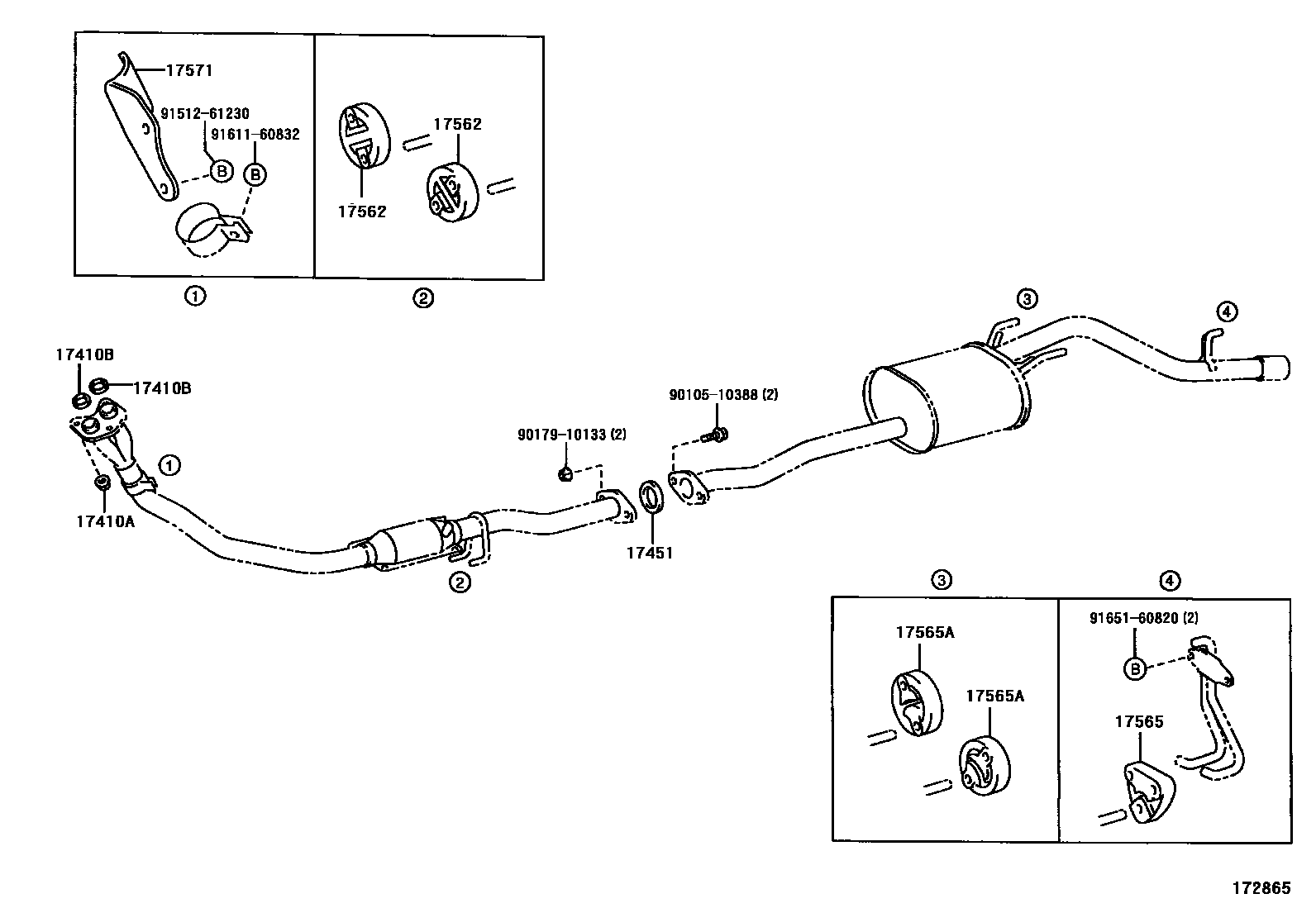

Toyota HILUX Exhaust Pipe — Figure 1702
Toyota HILUX EPC diagram 1702, Exhaust Pipe, with 6 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-08040 · 18450-35080 · 18450-35150 · 18450-74071 |
| 17400B | exhaust pipe fixings | 17582-70020 · 18495-35030 · 18495-35031 · 18495-35060 · 18495-35061 · 18495-38020 |
| 17401 | Front exhaust pipe sub-assembly | 17401-05091 · 17401-05092 |
| 17410 | Front exhaust pipe assembly | 17410-35081 · 17410-35082 · 17410-35220 · 17410-35221 · 17410-35222 · 17410-35380 · 17410-35381 · 17410-35382 · 17410-35383 · 17410-35490 · 17410-35491 · 17410-35660 · 17410-54672 · 17410-54690 · 17410-54700 · 17410-5B050 · 17410-5B110 · 17410-71130 · 17410-72170 · 17410-72171 · 17410-72172 · 17410-72173 · 17410-73160 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06038 · 90917-06042 · 90917-06061 · 90917-06064 · 90917-06066 |
| 17410C | Front exhaust pipe bracket (for front) | 17571-08010 · 17571-35070 · 17571-35100 · 17571-38090 · 17571-54330 · 17571-71050 |
| 17410V | Front exhaust pipe bracket (for rear) | 17572-54080 · 17572-54081 |
| 17420 | Central exhaust pipe assembly | 17420-35030 |
| 17420X | Center exhaust pipe liner | 90917-06044 |
| 17430 | Exhaust tailpipe assembly | 17430-35610 · 17430-35611 · 17430-35612 · 17430-35660 · 17430-35661 · 17430-35662 · 17430-35663 · 17430-3D030 · 17430-3D031 · 17430-3D040 · 17430-3D041 · 17430-3D140 · 17430-3D361 · 17430-3D430 · 17430-3D431 · 17430-5B040 · 17430-5B041 · 17430-5B050 · 17430-5B060 · 17430-5B070 · 17430-5B081 · 17430-5B220 · 17430-5B560 · 17430-5B561 · 17430-5B830 · 17430-71150 · 17430-71160 · 17430-72161 · 17430-72260 · 17430-72261 · 17430-72262 · 17430-73300 |
| 17430A | Exhaust tailpipe bracket (for front) | 17503-35060 · 17503-35100 · 17503-71010 · 17503-72090 · 17504-35060 · 17504-35061 · 17564-35150 · 17587-35010 · 17587-35020 · 17587-71020 · 17588-35010 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 17563-35020 |
| 17430J | Exhaust tailpipe bolt or ring (for center) | 17565-35010 |
| 17430S | Exhaust tailpipe bracket (for rear) | 17575-35060 · 17575-71030 |
| 17430T | Exhaust tailpipe cushion (for rear) | 17585-71010 |
| 17430U | No. 1 exhaust tailpipe clamp (for rear) | 90949-01102 |
| 17430V | Exhaust tailpipe bolts or rings (for rear) | 17566-35010 · 17566-35030 |
| 17451 | Exhaust pipe gasket | 90917-06004 · 90917-06025 · 90917-06039 · 90917-06042 · 90917-06044 · 90917-06045 · 90917-06046 · 90917-06047 |
| 17557 | No. 7 exhaust pipe insulation pad | 17557-35010 |
| 17562 | No. 2 exhaust pipe lifting lug | 17565-74290 |
| 17565 | No. 5 exhaust pipe lifting lug | 17566-35030 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-35010 |
| 17571 | No. 1 exhaust pipe bracket | 17571-54560 · 17571-75140 |
| 18401 | Three-way catalytic converter upper heat insulation pad sub-assembly | 18401-35010 |
| 18402 | Three-way catalytic converter lower heat insulation pad sub-assembly | 18402-35010 · 18402-35040 |
| 18435 | Three-way catalytic converter protection device | 18407-35010 |
| 18448 | Three-way catalytic converter protection device central bracket | 18439-35010 |
