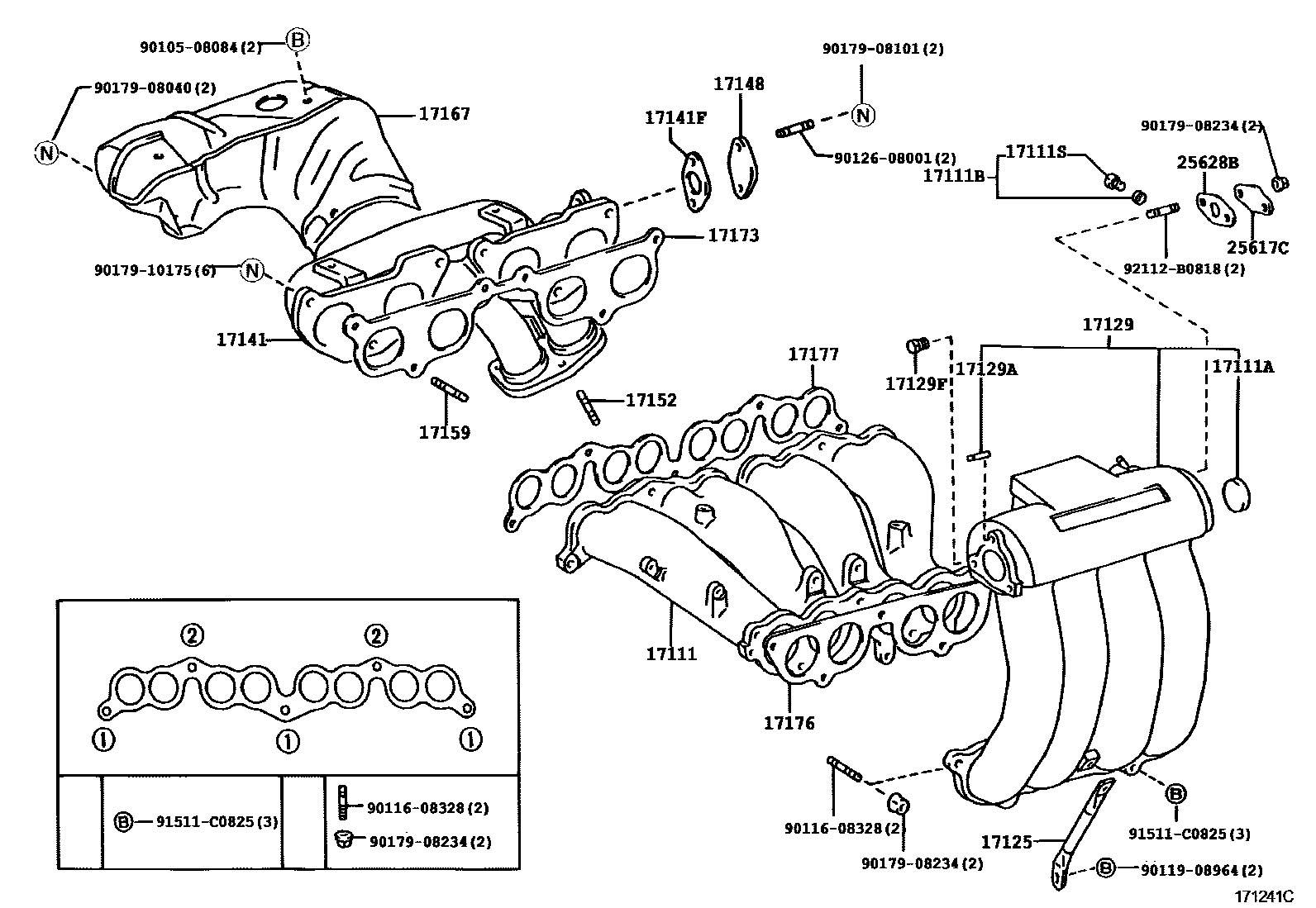

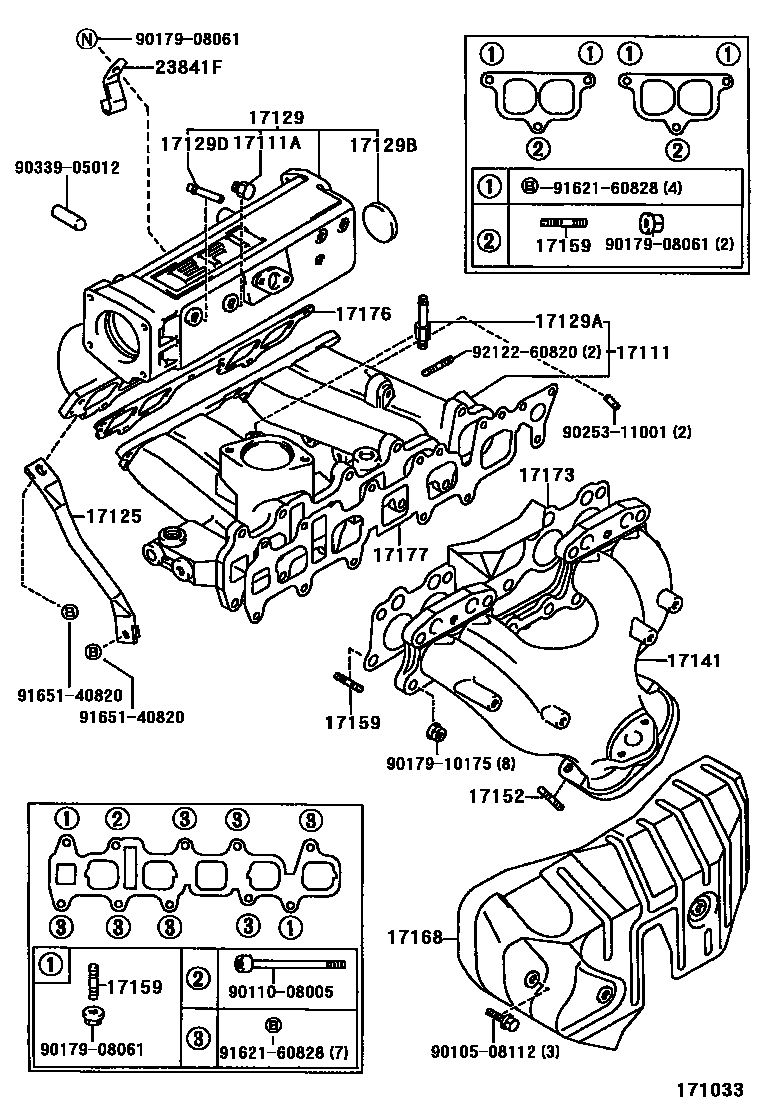

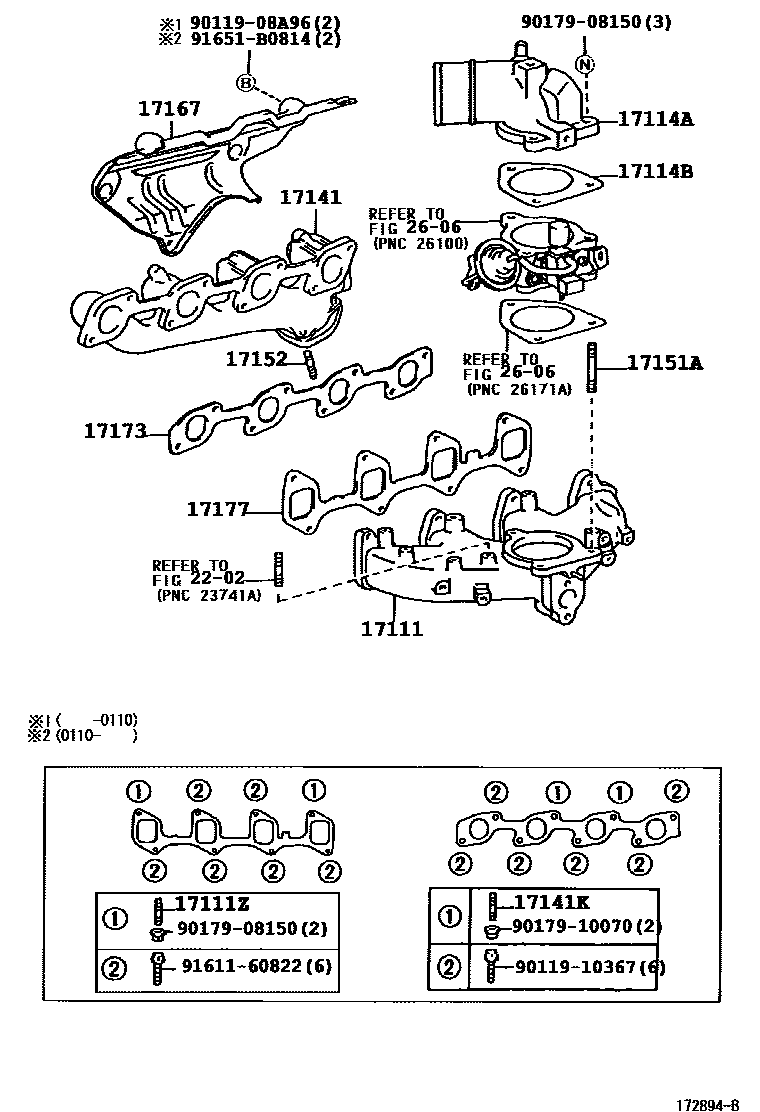

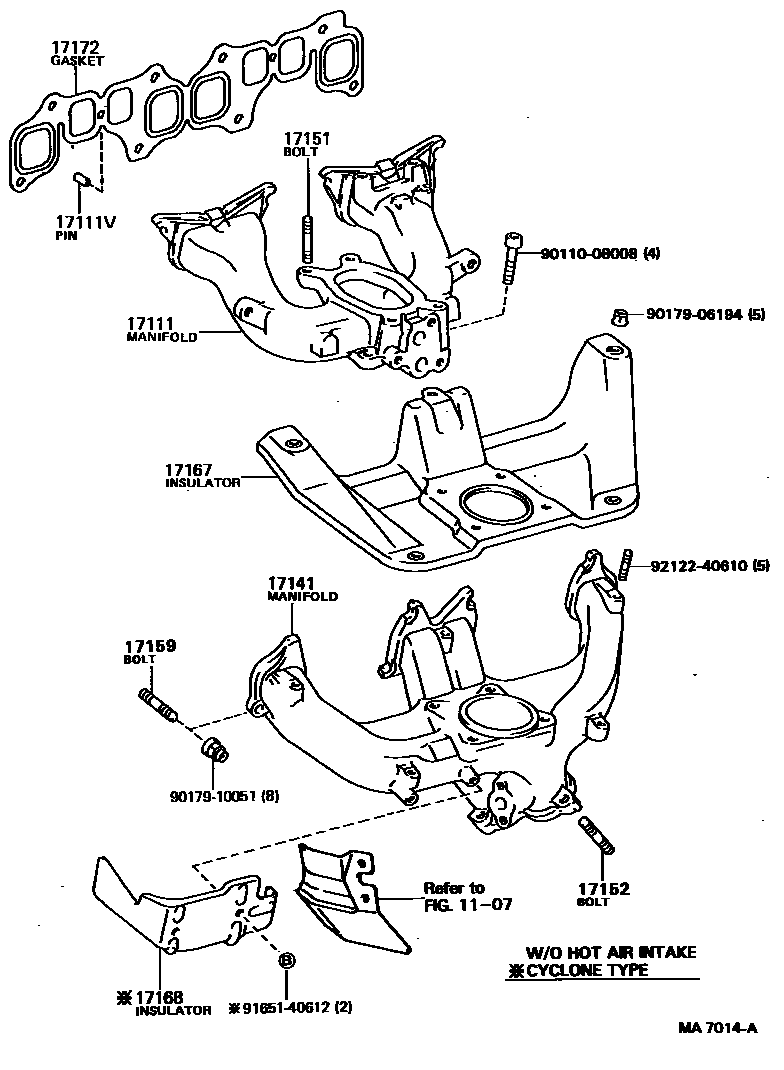

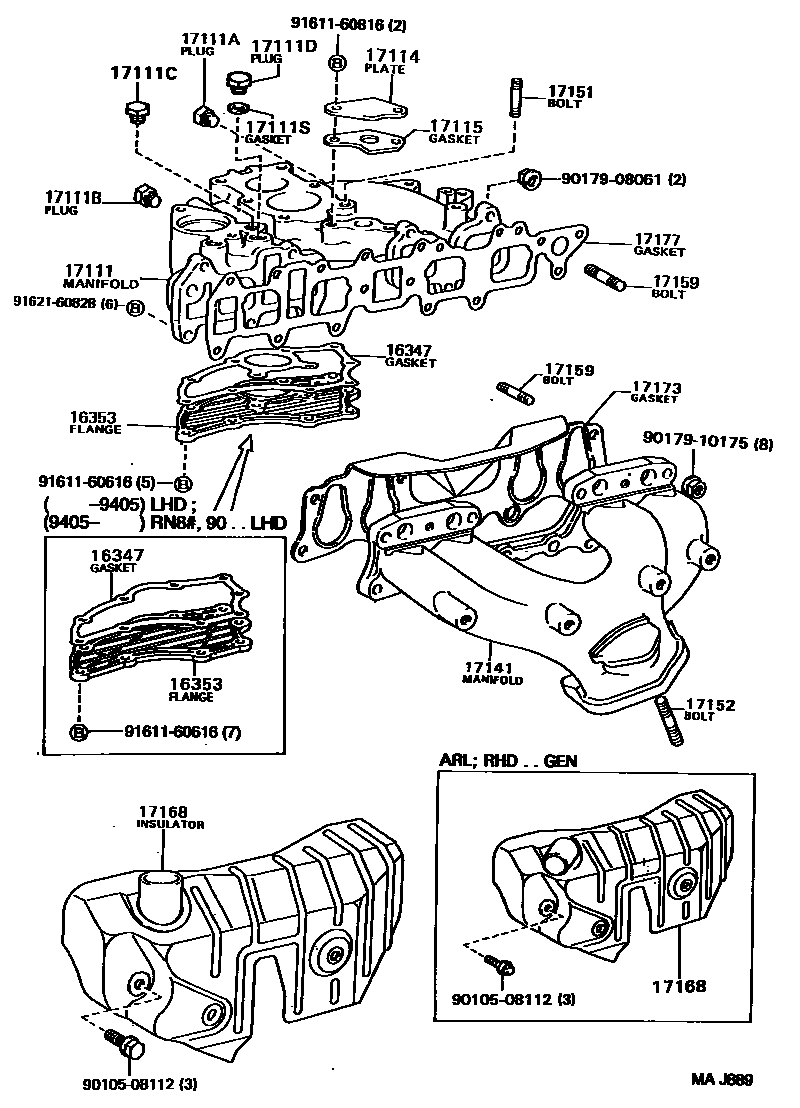

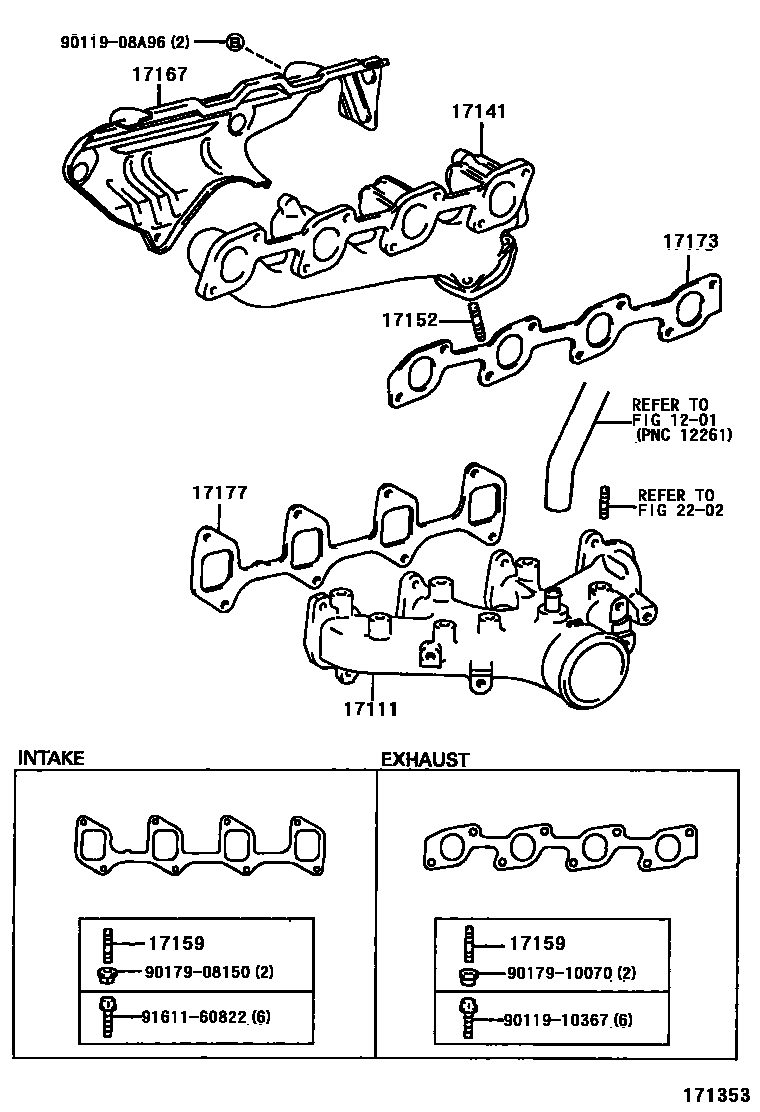

Toyota HILUX Manifold — Figure 1701
Toyota HILUX EPC diagram 1701, Manifold, with 6 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16347 | water bypass liner | 16347-35040 · 16347-35050 |
| 16353 | water bypass flange | 16353-35020 · 16353-35030 |
| 17111 | Intake Manifold | 17101-35050 · 17101-54110 · 17111-35090 · 17111-35091 · 17111-35100 · 17111-35110 · 17111-54112 · 17111-54113 · 17111-71010 · 17111-71020 · 17111-75031 |
| 17111A | No. 1 screw plug | 90345-51006 · 90345-51025 · 96411-43500 |
| 17111B | No. 2 screw plug | 90341-10009 · 90345-53006 · 90345-53007 |
| 17111C | No. 3 screw plug | 90340-16004 |
| 17111D | No. 4 screw plug | 90341-12007 · 90341-12025 |
| 17111S | Gasket (for manifold plug) | 90430-09005 · 90430-12005 · 90430-12022 |
| 17111V | Direct pin (for fixing the intake manifold) | 90250-08120 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 90116-08220 |
| 17114 | Intake manifold hole cover | 25617-38010 |
| 17114A | Intake flange | 17114-54120 |
| 17114B | Intake flange gasket | 17116-54030 |
| 17115 | Intake manifold hole cover gasket | 25628-35030 · 25628-38010 |
| 17125 | No. 1 pressure tank stay | 17125-35030 · 17125-75030 |
| 17129 | Intake pressure tank | 17109-35040 · 17109-75030 |
| 17129A | Connector No. 1 | 90404-51060 · 90406-06002 |
| 17129B | Screw plug | 96411-44000 |
| 17129D | Connector No. 2 | 90406-06001 |
| 17129F | Intake manifold intake hole plug | 90345-51025 |
| 17141 | exhaust manifold | 17141-35100 · 17141-35130 · 17141-35150 · 17141-54110 · 17141-54111 · 17141-71020 · 17141-75080 |
| 17141F | Gasket (for exhaust manifold plate) | 25634-75010 · 89466-20020 |
| 17141K | Stud bolts (for exhaust manifold to cylinder head) | 90116-10141 |
| 17148 | Exhaust manifold plate (for EGR intake) | 17148-41010 |
| 17151 | Studs (for manifold to carburetor) | 90116-08051 · 92122-40835 |
| 17151A | Studs (for manifold to venturi) | 90116-08292 |
| 17152 | Studs (for manifold to exhaust) | 90116-10058 · 90116-10087 · 90116-10088 · 90116-10146 · 90116-10148 · 90116-10149 |
| 17159 | Studs (for manifold to cylinder head) | 90116-08172 · 90116-08220 · 90116-10063 · 90116-10064 · 90116-10067 · 90116-10141 · 90116-10163 · 92122-60825 · 92132-60820 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-54090 · 17167-54120 · 17167-71020 · 17167-75100 |
| 17168 | Exhaust manifold No.2 insulation pad | 12521-72010 · 17167-35180 · 17167-35190 |
| 17172 | Gasket (manifold to cylinder head) | 17172-71011 · 17172-73010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-35120 · 17173-54030 · 17173-75020 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-35020 · 17176-75010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-35040 · 17177-35050 · 17177-35060 · 17177-54020 · 17177-54021 · 17177-75020 |
| 23841F | fuel hose clamp | 23841-35040 |
| 25617C | EGR hole cover plate | 25617-74020 |
| 25628B | EGR air intake gasket | 25628-75010 |
