Toyota HILUX Water Pump — Figure 1601

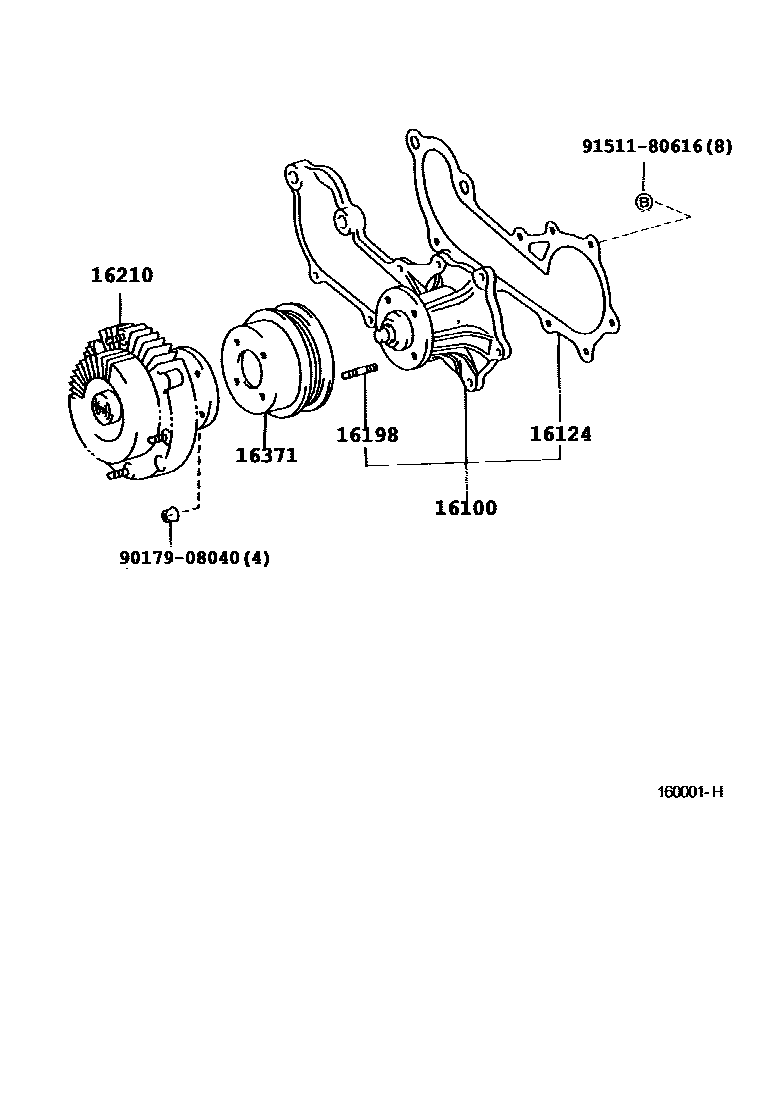

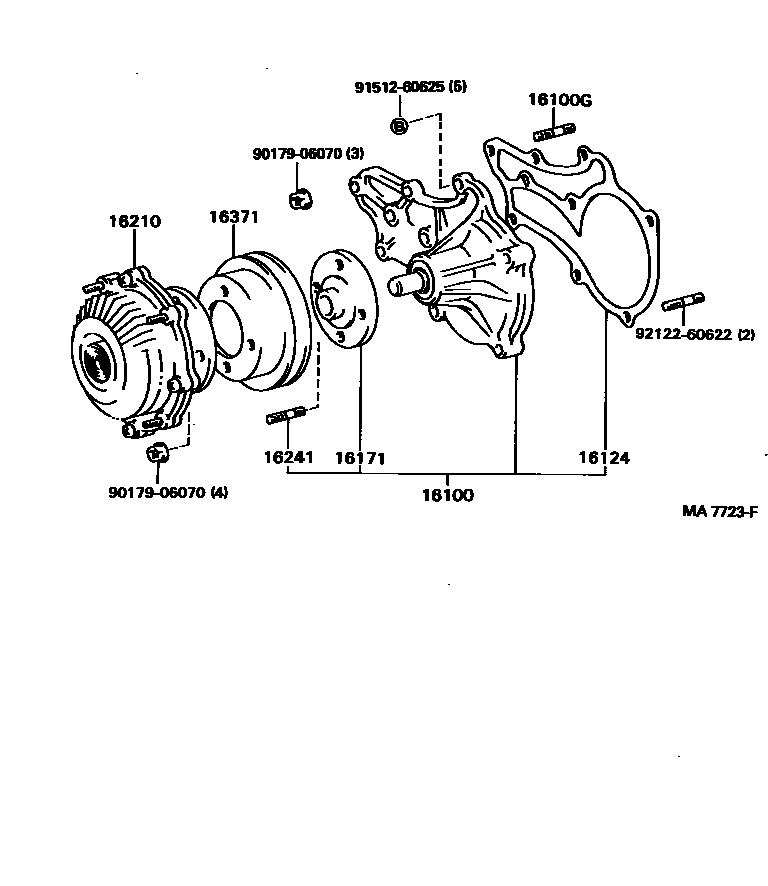

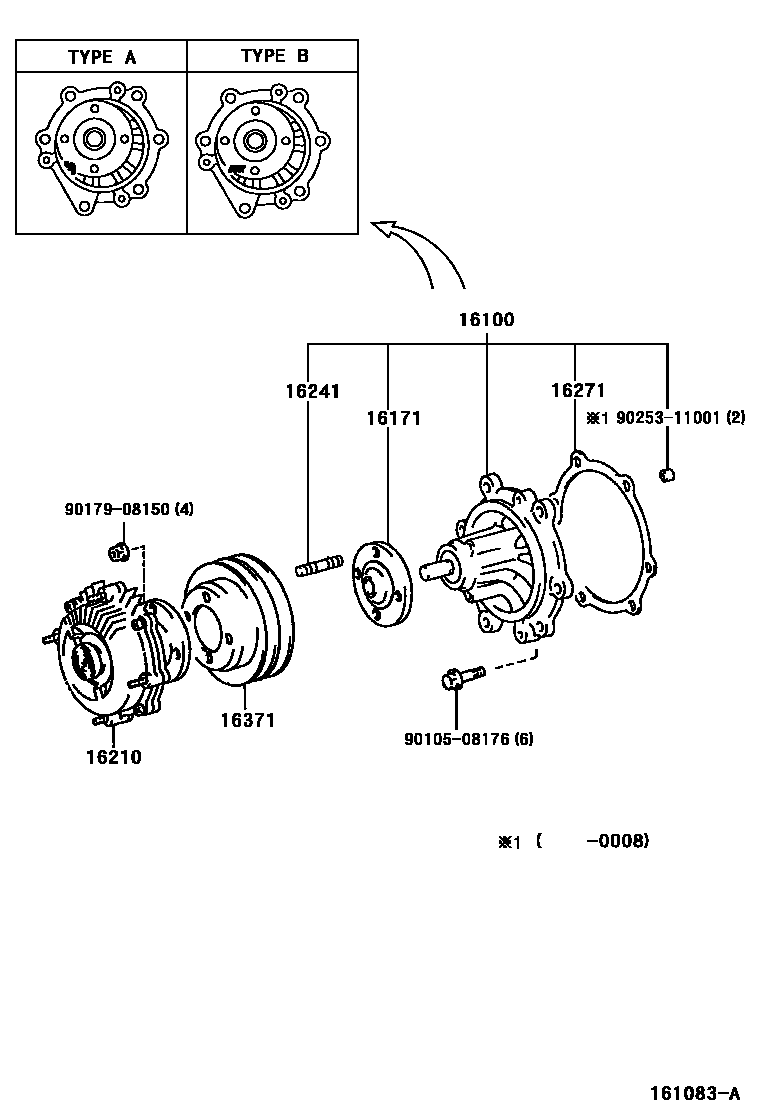

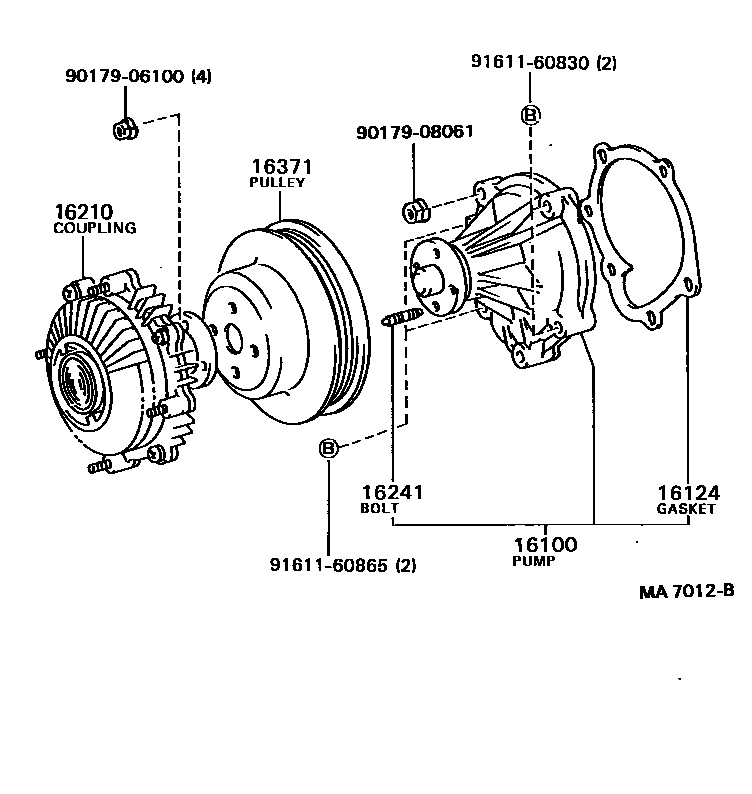

Toyota HILUX EPC diagram 1601, Water Pump, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-09092 · 16100-09102 · 16100-39346 · 16100-59155 · 16100-59255 · 16100-59257 · 16100-79036 · 16100-79037 · 16100-79255 · 16100-79445 |
| 16100G | Studs (for water pump assembly) | 16193-38030 |
| 16124 | water pump cover gasket | 16124-35010 · 16124-71010 · 16124-71011 · 16124-75030 |
| 16171 | water pump pulley seat | 16171-35010 · 16171-41170 · 16171-75020 |
| 16198 | Stud bolts (for water pump pulley seat) | 92122-60818 |
| 16210 | Hydraulic coupler assembly | 16210-31010 · 16210-35020 · 16210-38060 · 16210-54140 · 16210-54150 · 16210-54250 · 16210-75060 |
| 16241 | Stud bolts (for water pump coupling) | 16193-71010 · 16198-70010 · 16241-28020 · 92122-40816 · 92122-60818 |
| 16271 | water pump gasket | 16271-54020 · 16271-54030 |
| 16371 | fan pulley | 16173-35020 · 16371-05010 · 16371-54030 · 16371-71010 · 16371-73011 · 16371-75030 |
