Toyota HILUX Engine Oil Pump — Figure 1501

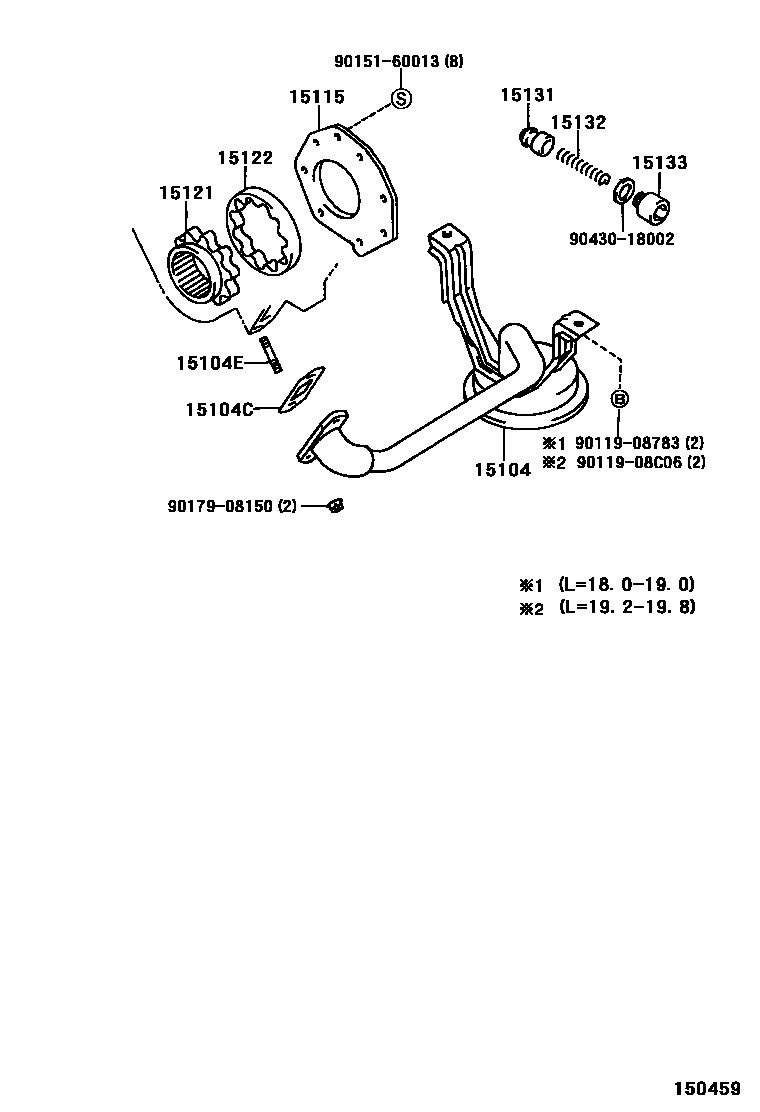

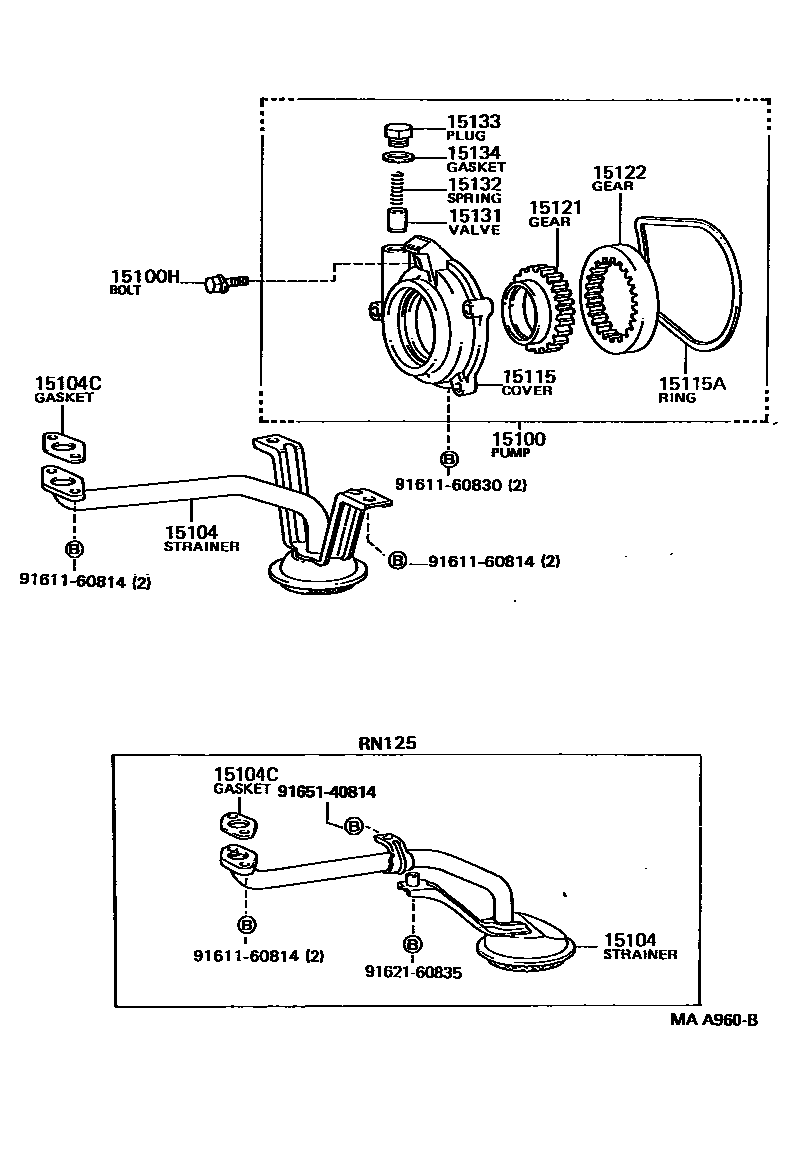

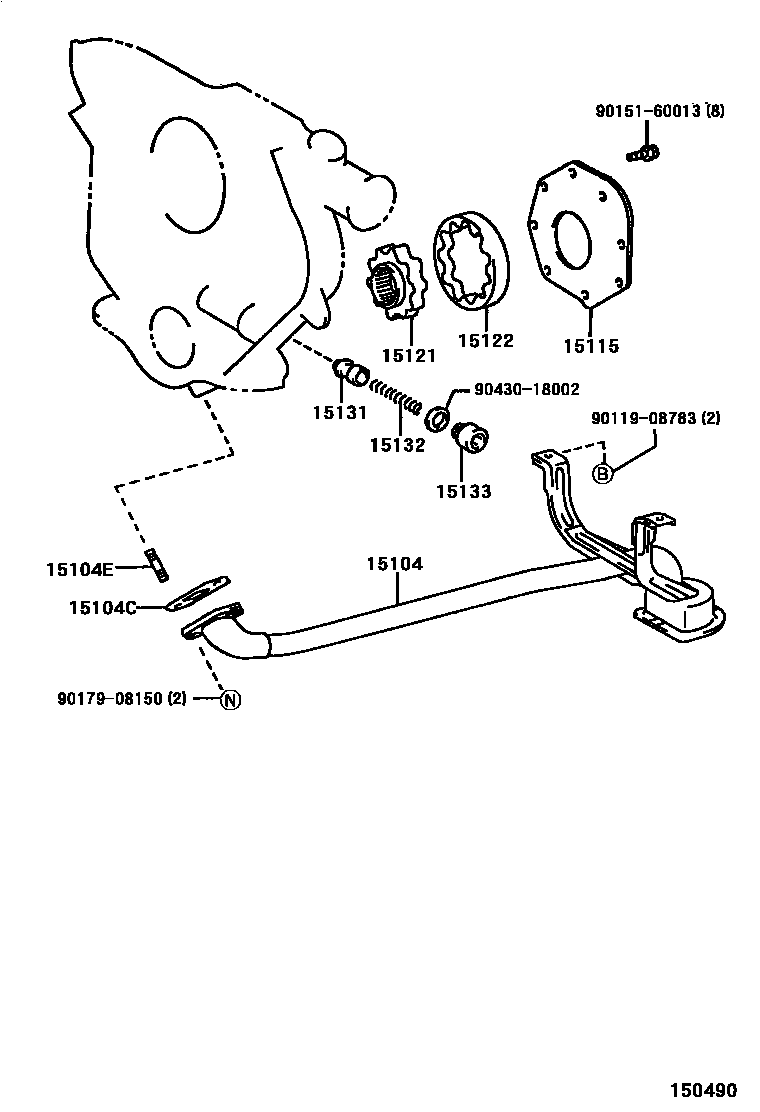

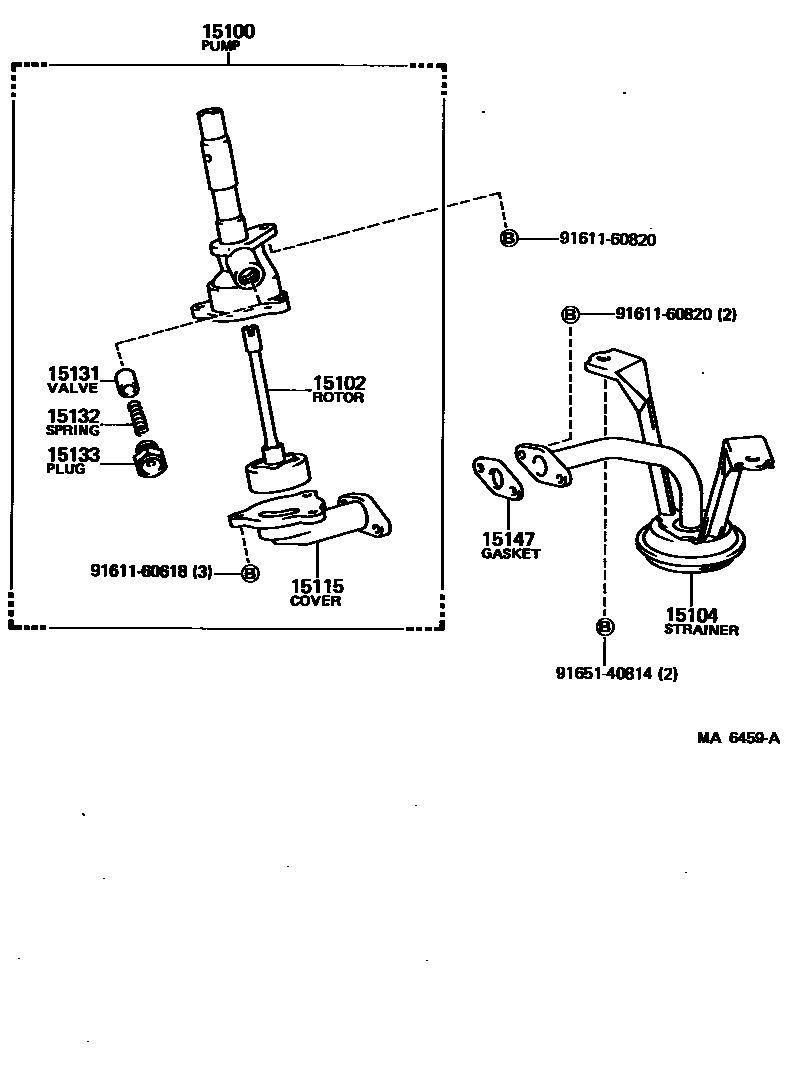

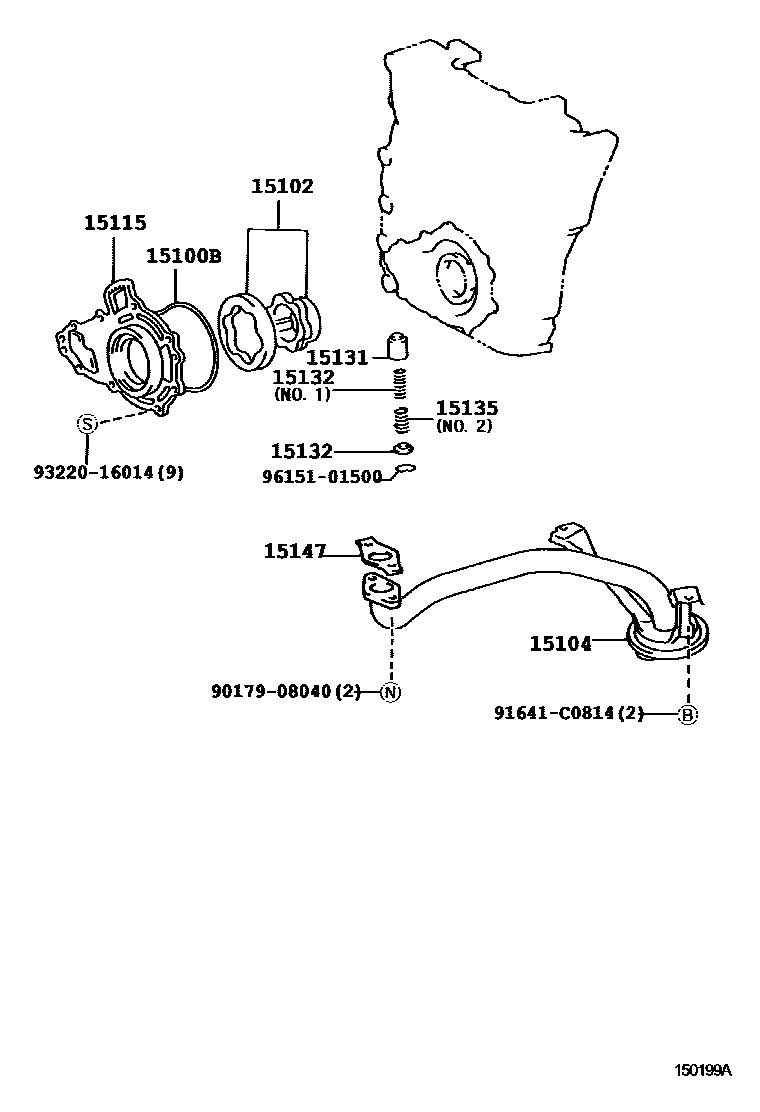

Toyota HILUX EPC diagram 1501, Engine Oil Pump, with 5 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15100 | Oil pump assembly | 15100-35020 · 15110-71010 |
| 15100B | O-ring (for oil pump) | 15188-75021 |
| 15100H | Sealing bolt | 15189-38020 |
| 15102 | Oil pump rotor assembly | 15102-71010 · 15103-75020 |
| 15104 | Oil filter sub-assembly | 15104-35010 · 15104-38040 · 15104-54044 · 15104-54170 · 15104-54180 · 15104-54181 · 15104-54220 · 15104-71010 · 15104-75080 |
| 15104C | Gasket (for oil filter) | 15147-38020 · 15149-54012 · 15149-54030 |
| 15104E | Stud bolts (for oil filter) | 92122-40816 · 92122-80816 |
| 15115 | oil pump cover | 15115-35020 · 15115-54020 · 15115-54021 · 15115-54022 · 15115-71015 · 15115-75020 |
| 15115A | O-ring (for oil pump cover) | 15188-38030 |
| 15121 | Oil pump driving gear | 15121-38020 · 15121-54020 · 15121-54030 |
| 15122 | Oil pump driven gear | 15122-38020 · 15122-54020 · 15122-54030 |
| 15131 | Oil pump pressure reducing valve | 15131-24010 · 15131-38030 · 15131-54010 |
| 15132 | Oil pump pressure reducing valve spring | 15132-40010 · 15132-46010 · 15132-54010 · 15132-75020 · 15132-75021 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-20010 · 15133-24010 · 15133-54010 |
| 15134 | Oil pump pressure reducing valve gasket | 15134-20010 |
| 15135 | Oil pump pressure reducing valve retaining ring | 15135-75040 |
| 15147 | Oil filter gasket | 15147-38020 · 15147-75020 |
