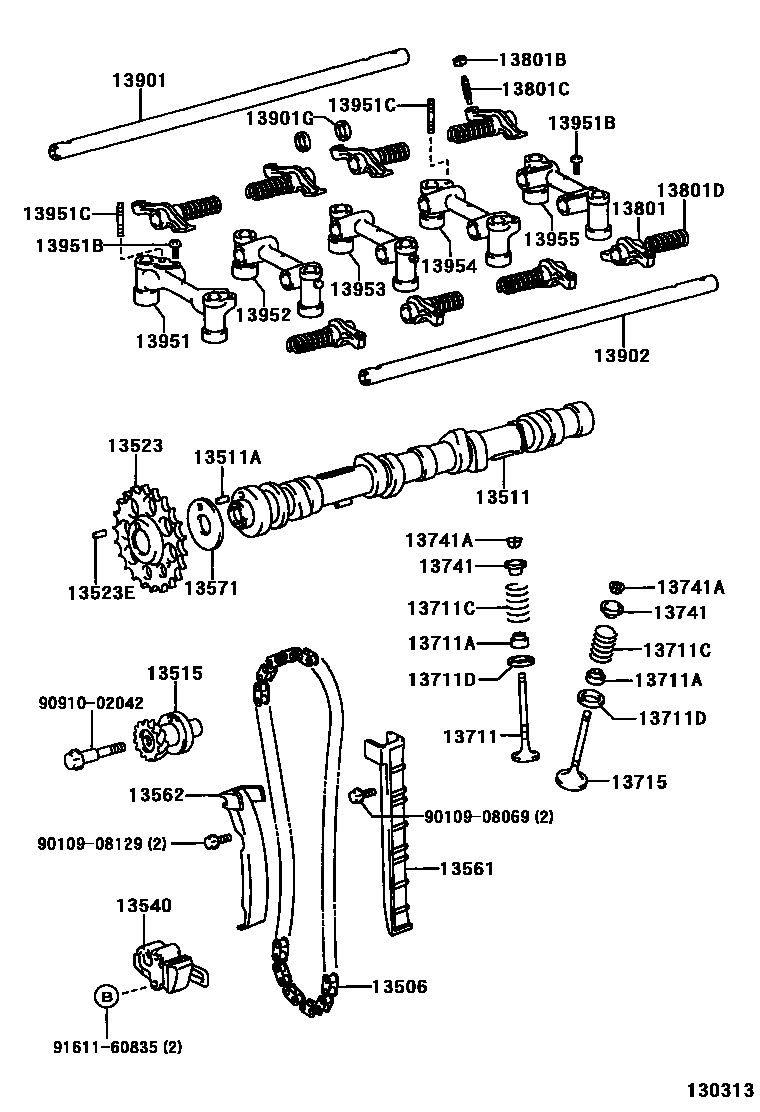

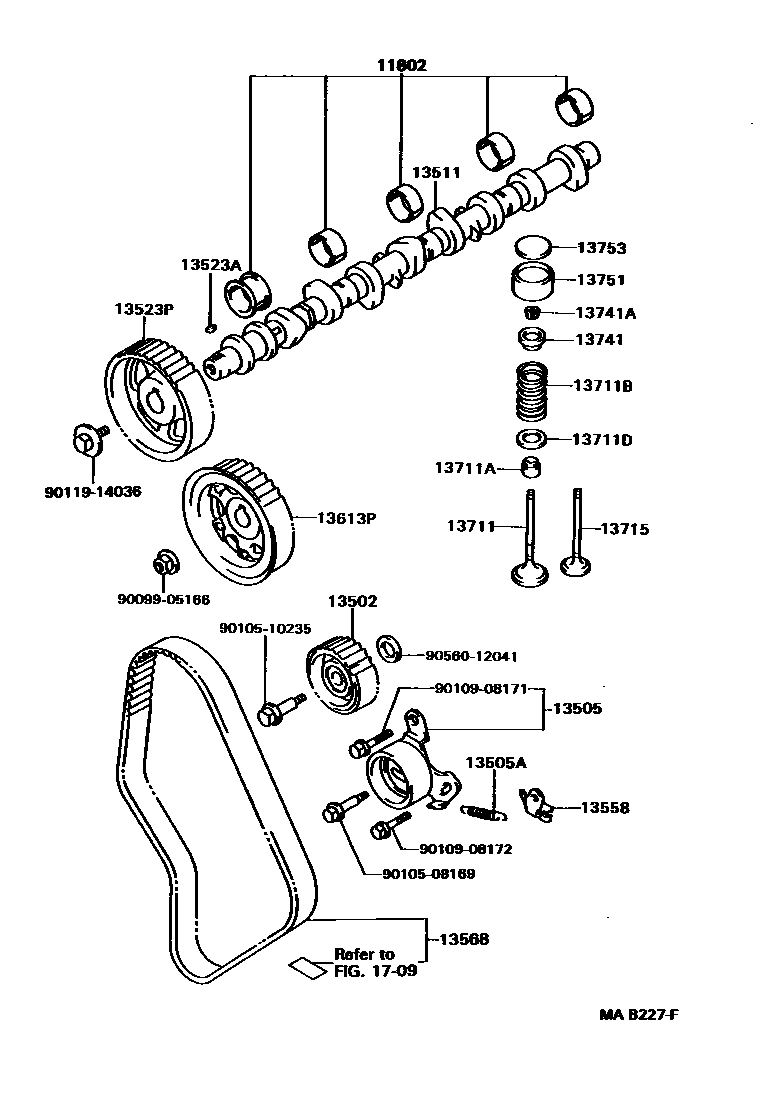

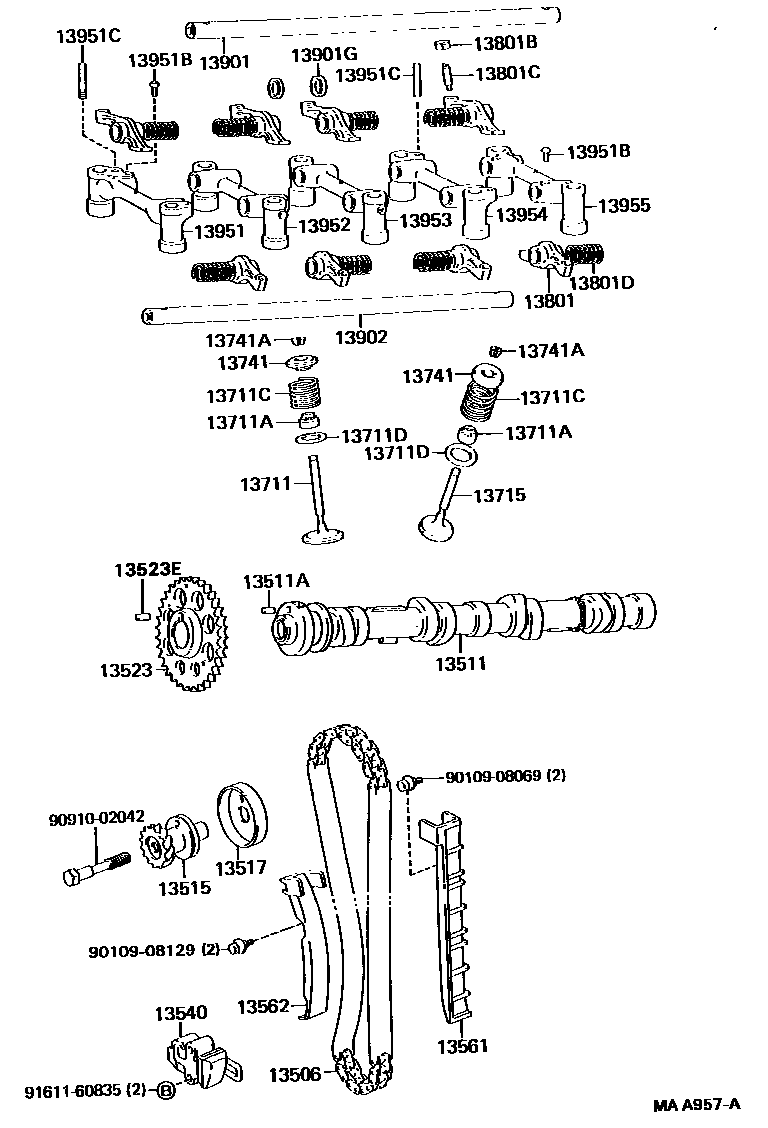

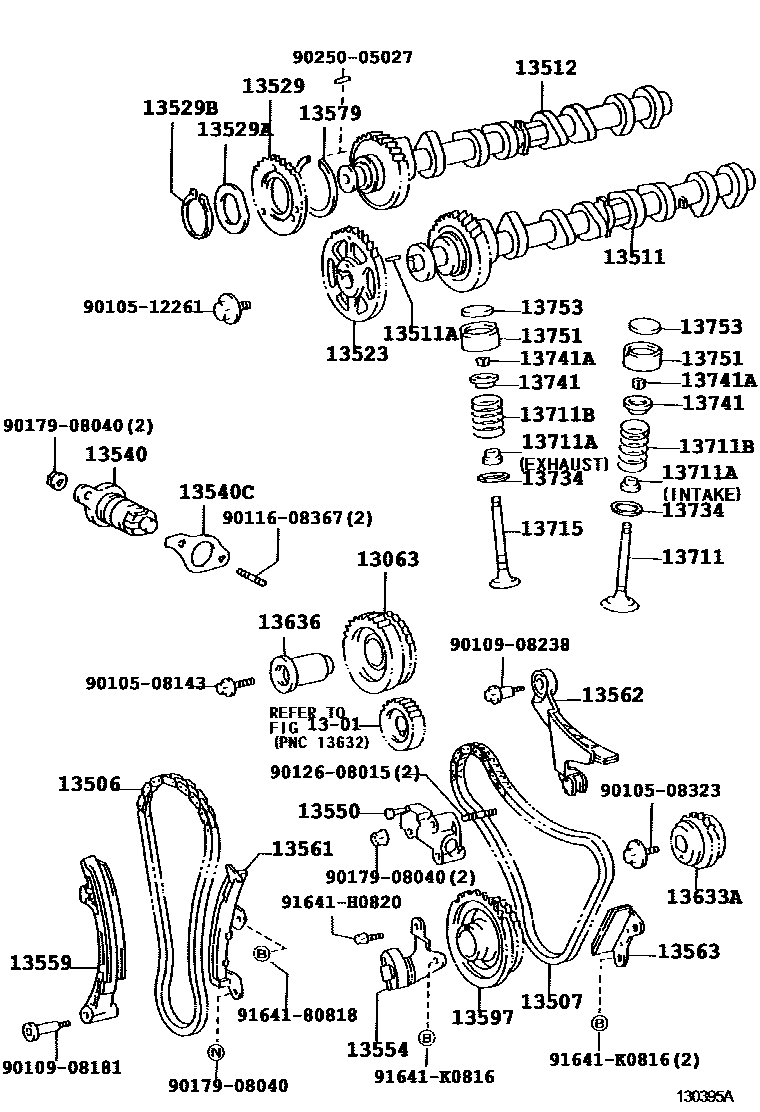

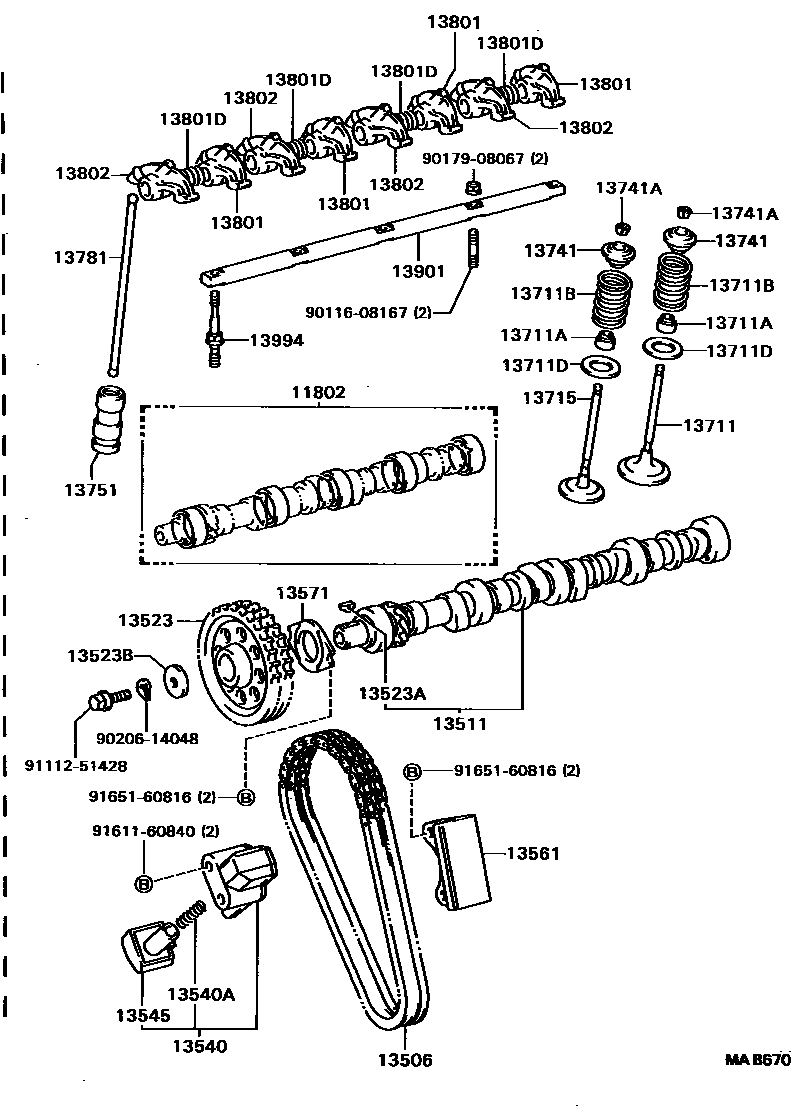

Toyota HILUX Camshaft & Valve — Figure 1302
Toyota HILUX EPC diagram 1302, Camshaft & Valve, with 5 images and 66 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11802 | Camshaft bearing assembly | 11802-54020 · 11802-71010 · 11803-54020 · 11804-54020 |
| 13063 | Balance shaft driving gear sub-assembly | 13063-75010 |
| 13502 | No. 2 timing belt idler pulley sub-assembly | 13503-54030 |
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-54020 · 13505-54021 |
| 13505A | Tension spring (for idler pulley) | 90506-18060 |
| 13506 | Chain sub-assembly | 13506-25010 · 13506-35030 · 13506-73010 · 13506-75020 |
| 13507 | No. 2 chain sub-assembly | 13507-75010 |
| 13511 | camshaft | 13501-54050 · 13501-54070 · 13501-75030 · 13511-35010 · 13511-38011 · 13511-73902 |
| 13511A | Direct pin (for camshaft locking pin) | 90250-06001 · 90250-06068 |
| 13512 | Camshaft No. 2 | 13502-75010 |
| 13515 | Distributor drive gear | 13515-37010 · 13515-37900 |
| 13517 | Fuel pump active cam | 13517-37010 |
| 13523 | Camshaft timing gear or sprocket | 13522-33010 · 13523-35020 · 13523-75010 |
| 13523A | Half-moon pin (for timing gear) | 90280-05004 · 90280-05005 · 90280-05010 |
| 13523B | Flat washer (for timing gear) | 90201-14293 |
| 13523E | Direct sales (for timing gears) | 90250-06001 |
| 13523P | Camshaft timing pulley | 13523-54040 |
| 13529 | Camshaft counter gear | 13529-74900 |
| 13529A | Wave Washer (for Camshaft Counter Gear) | 90206-42001 |
| 13529B | Shaft snap ring (for camshaft counter gear) | 90520-41004 |
| 13540 | No. 1 chain tensioner assembly | 13540-25010 · 13540-35011 · 13540-75020 |
| 13540A | Compression spring (for chain tensioner) | 90501-10595 |
| 13540C | Pad (for chain tensioner) | 13552-75010 |
| 13545 | chain tensioner plunger | 13545-25010 |
| 13550 | No. 2 chain tensioner assembly | 13550-75010 |
| 13554 | No. 4 chain shock absorber | 13554-75010 |
| 13558 | Spring bracket (for idler pulley) | 13558-54020 |
| 13559 | chain tensioner guide plate | 13559-75020 |
| 13561 | No. 1 chain shock absorber | 13561-25010 · 13561-35020 · 13561-75020 |
| 13562 | No. 2 chain shock absorber | 13562-35020 · 13562-75010 |
| 13563 | No. 3 chain shock absorber | 13563-75010 |
| 13568 | timing belt | 13568-54070 · 13568-59065 · 13568-59066 · 13568-59105 · 13568-59106 |
| 13571 | Camshaft thrust plate | 13571-35010 · 13571-71010 |
| 13579 | Camshaft timing gear bolt washer | 13579-74010 |
| 13597 | No. 2 crankshaft timing sprocket | 13597-75010 |
| 13613P | Fuel injection pump drive pulley | 13603-54030 |
| 13633A | No. 2 balance shaft driven gear | 13633-75010 |
| 13636 | Balance shaft driving gear shaft | 13636-75010 |
| 13711 | intake valve | 13711-17010 · 13711-35010 · 13711-35051 · 13711-54020 · 13711-54030 · 13711-71010 · 13711-75060 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02053 · 90913-02072 · 90913-02073 · 90913-02080 · 90913-02090 · 90913-02094 · 90913-02098 · 90913-02102 · 90913-02103 · 90913-02110 · 90913-02117 |
| 13711B | Compression spring (for inner side) | 90501-31017 · 90501-46001 · 90501-47005 · 90504-49001 |
| 13711C | Compression spring (for outside) | 90501-45025 |
| 13711D | Flat washer (for valve spring seat) | 90201-20579 · 90201-21002 · 90201-23003 |
| 13715 | exhaust valve | 13715-17010 · 13715-35020 · 13715-35040 · 13715-54040 · 13715-54050 · 13715-71010 · 13715-75050 |
| 13734 | Valve spring seat | 90201-18015 |
| 13741 | Valve spring seat ring | 13740-43010 · 13741-38010 · 13741-46020 · 13741-54020 · 13741-63010 |
| 13741A | Valve spring seat lock plate | 90913-03005 · 90913-03014 · 90913-03021 |
| 13751 | valve lifter | 13750-71010 · 13750-71020 · 13751-54010 · 13751-74020 |
| 13753 | valve adjustment gasket | 13753-54010 · 13753-54060 · 13753-54110 · 13753-54160 · 13753-54210 · 13753-54260 · 13753-54310 · 13753-54360 · 13753-54410 · 13753-54420 · 13753-54430 · 13753-54440 · 13753-54450 · 13753-54460 · 13753-54470 · 13753-54480 · 13753-54490 · 13753-74010 · 13753-74030 · 13753-74050 · 13753-74070 · 13753-74090 · 13753-74110 · 13753-74130 · 13753-74150 · 13753-74170 · 13753-74190 · 13753-74210 · 13753-74230 · 13753-74250 · 13753-74270 · 13753-74290 · 13753-74310 · 13753-74330 |
| 13781 | valve pushrod | 13781-71010 · 13781-73010 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-35010 · 13811-71010 |
| 13801B | Hex nut (for valve adjustment) | 90179-08049 |
| 13801C | valve adjustment screw | 90913-05019 |
| 13801D | Compression spring (for rocker arm) | 90501-14064 · 90501-16068 |
| 13802 | No. 2 valve rocker arm sub-assembly | 13812-71010 |
| 13901 | No. 1 valve rocker arm shaft sub-assembly | 13901-71010 · 13911-35010 |
| 13901G | Rocker shaft washer | 90560-16008 |
| 13902 | No. 2 valve rocker arm shaft sub-assembly | 13912-35010 |
| 13951 | No. 1 valve rocker arm bracket | 13951-35010 · 13951-38012 |
| 13951B | Locking screw or locking bolt (for valve rocker arm shaft) | 93210-16008 |
| 13951C | Stud bolts (for rocker arm bracket) | 90116-08197 · 90116-08382 |
| 13952 | No. 2 valve rocker arm bracket | 13952-38010 |
| 13953 | No. 3 valve rocker arm bracket | 13953-38010 |
| 13954 | No. 4 valve rocker arm bracket | 13954-38011 |
| 13955 | No. 5 valve rocker arm bracket | 13955-38010 |
| 13994 | Rocker arm shaft studs | 13994-71010 |
