Toyota HILUX Engine Overhaul Gasket Kit — Figure 1103
Toyota HILUX EPC diagram 1103, Engine Overhaul Gasket Kit, with 32 images and 2 PNC and OE references.

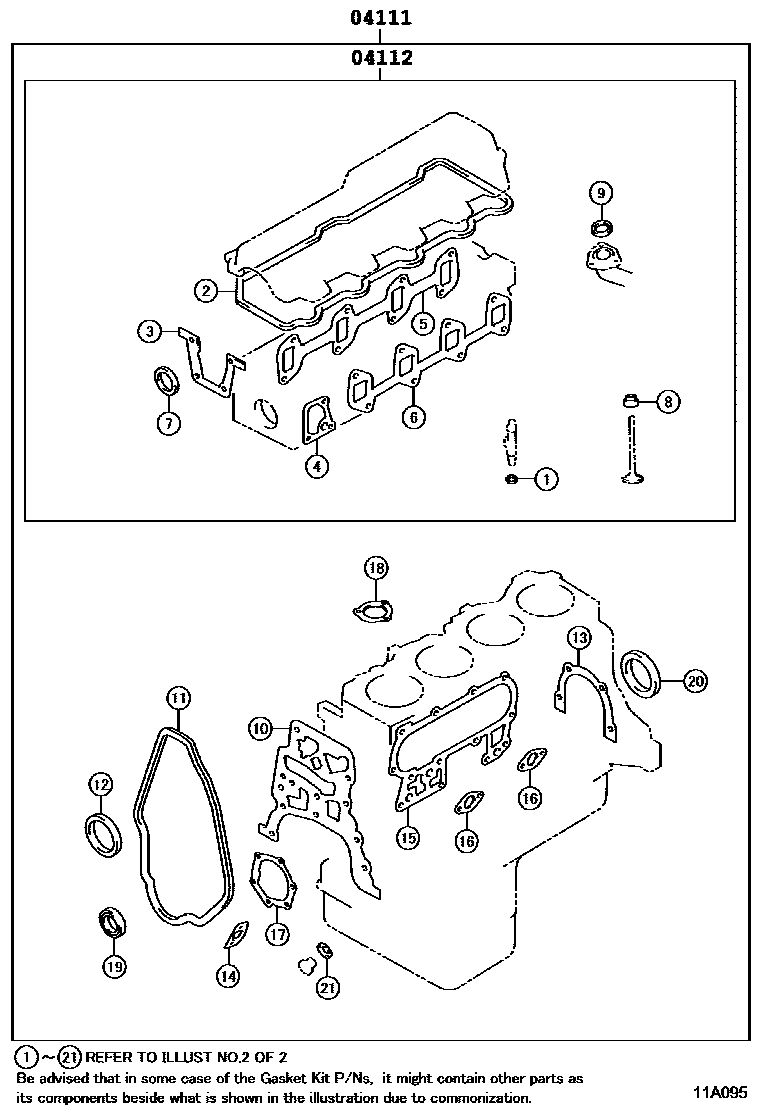

Engine Overhaul Gasket Kit — 11A095 (198808 – 199108)

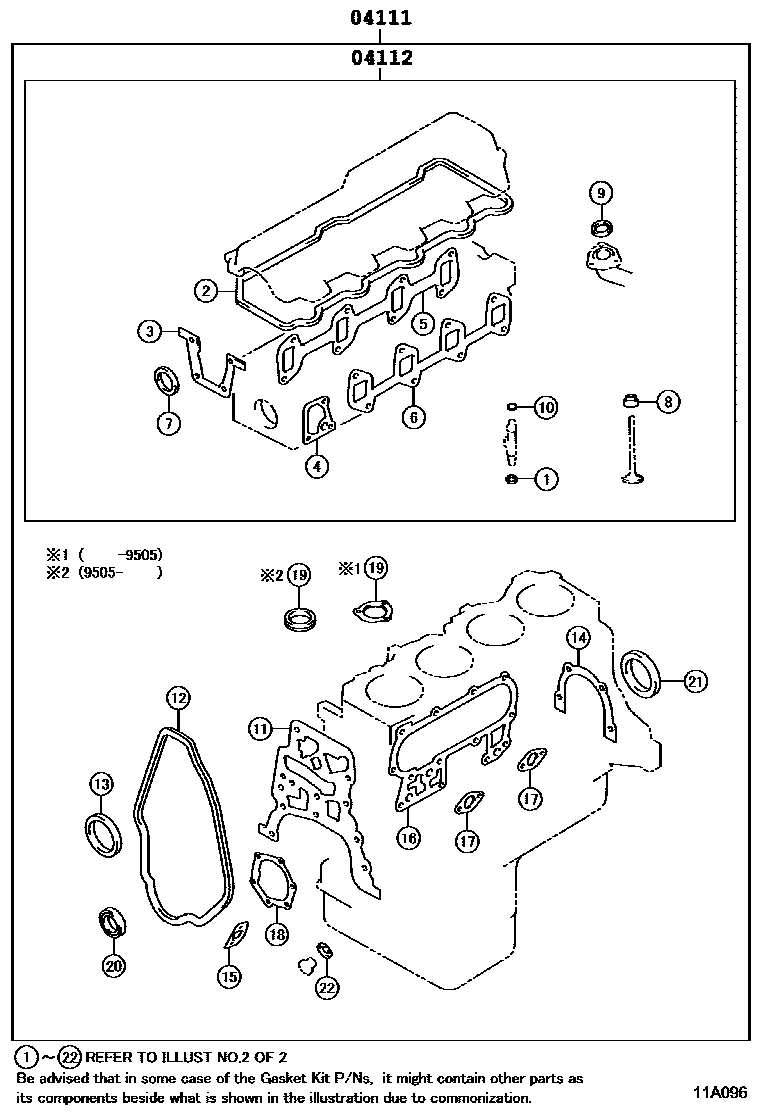

Engine Overhaul Gasket Kit — 11A096 (199108 – 999999)

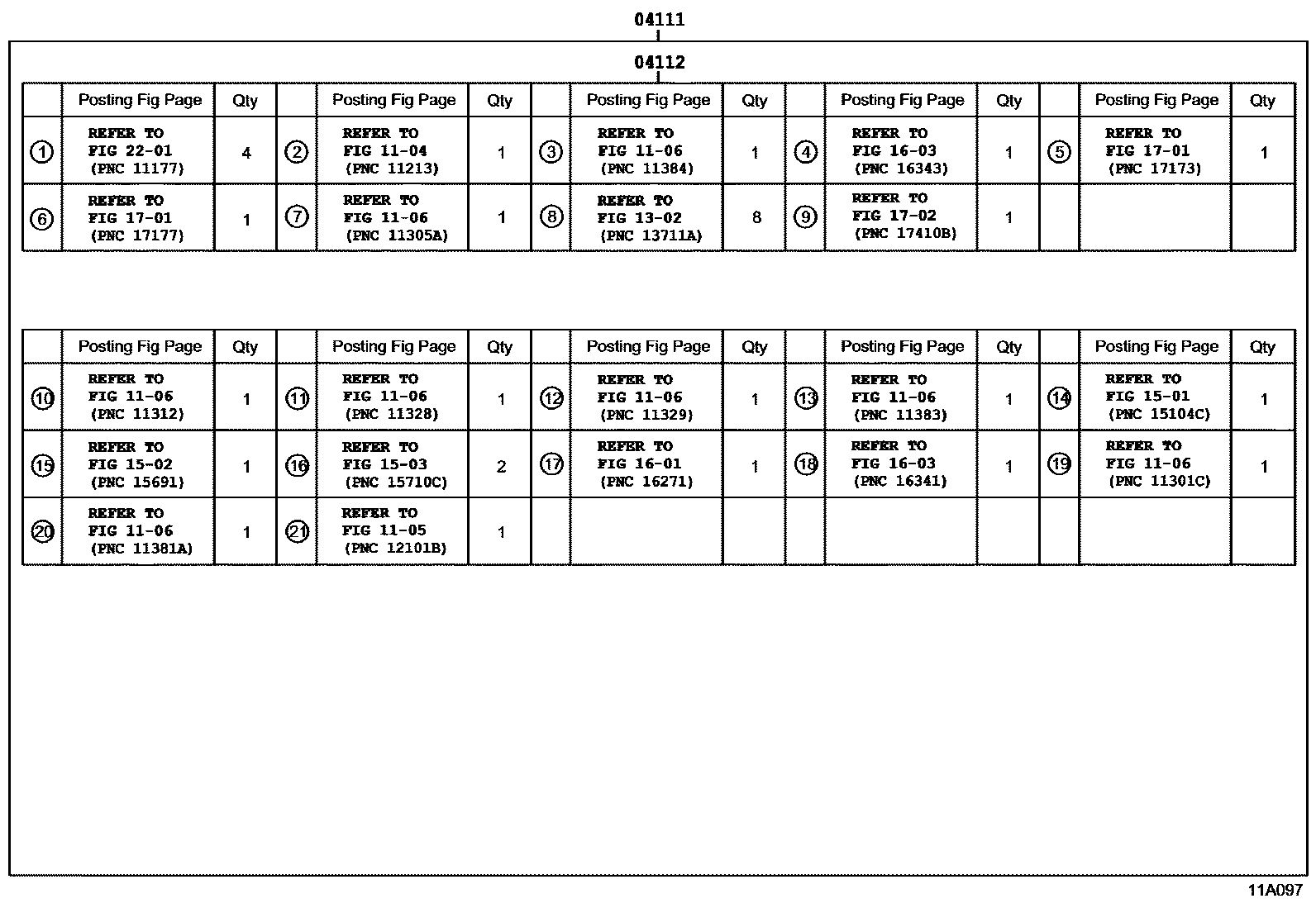

Engine Overhaul Gasket Kit — 11A097 (198808 – 199108)

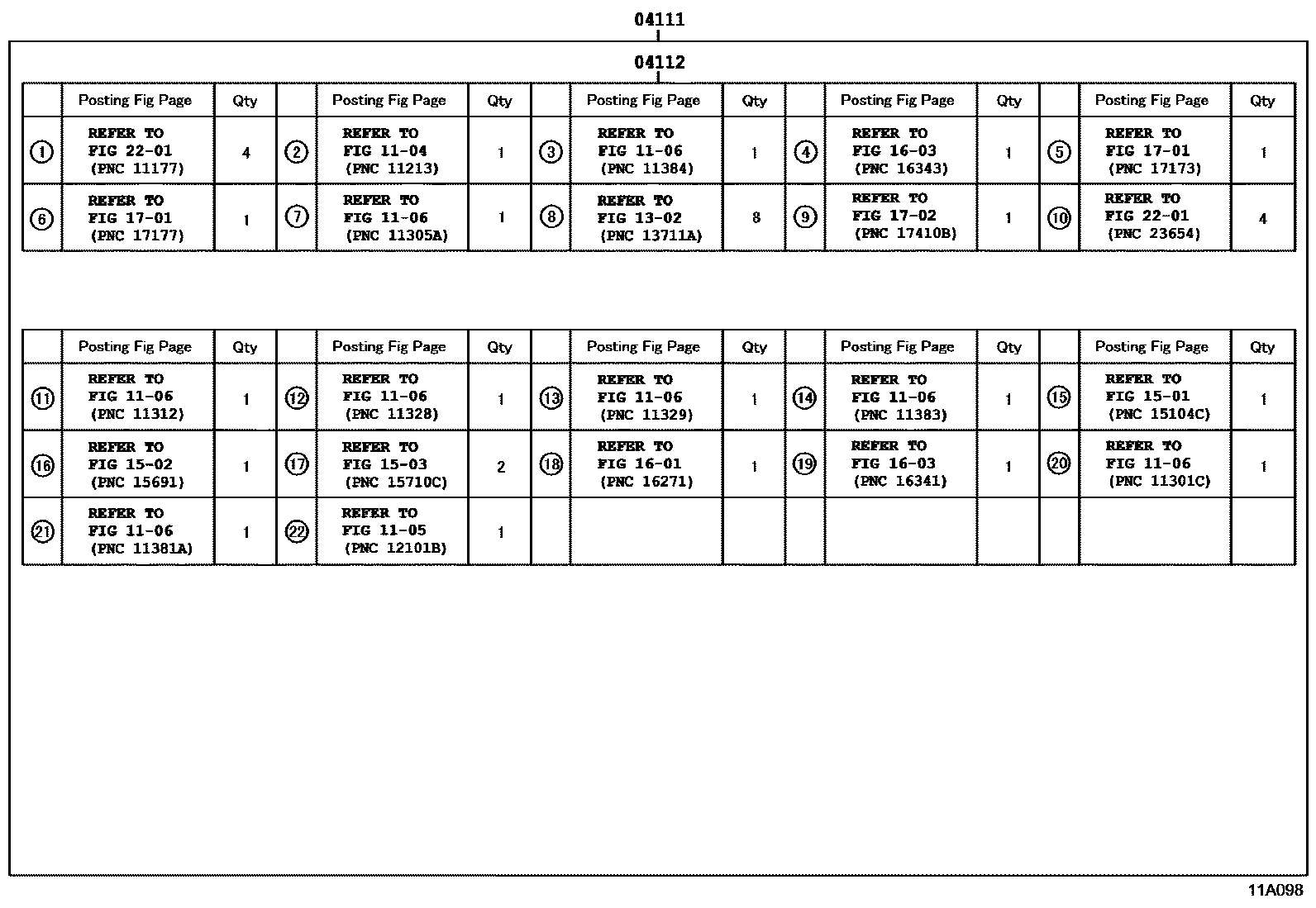

Engine Overhaul Gasket Kit — 11A098 (199108 – 999999)

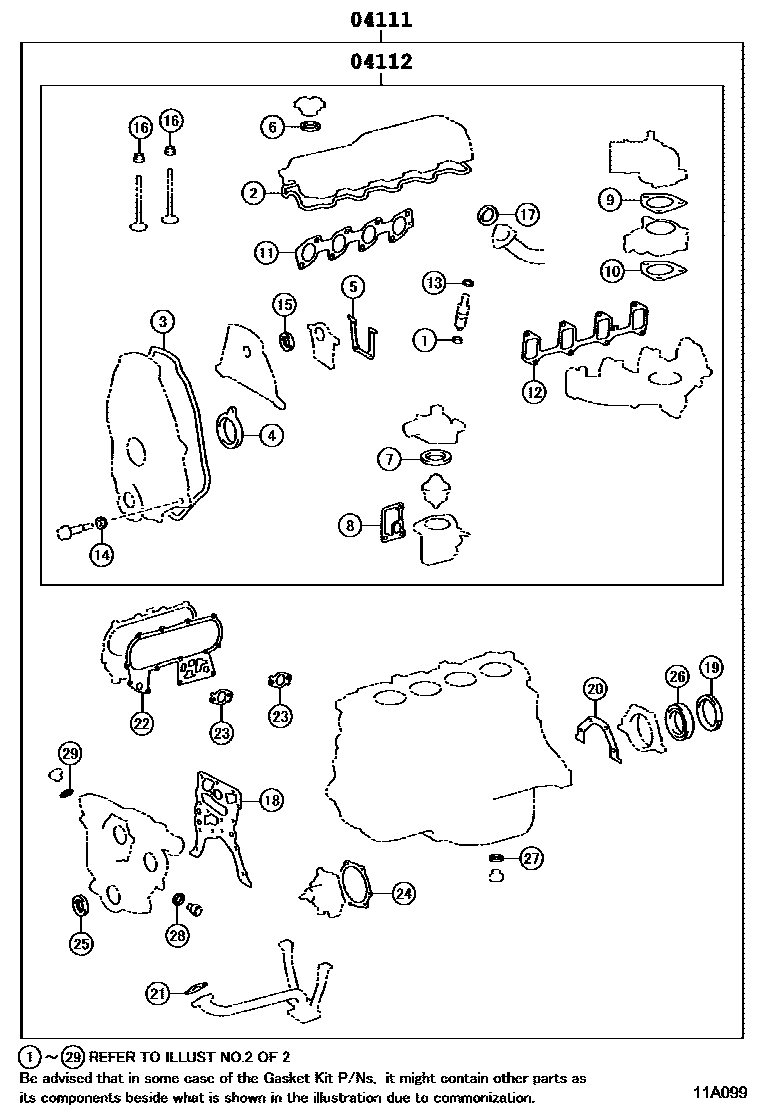

Engine Overhaul Gasket Kit — 11A099 (200106 – 999999)

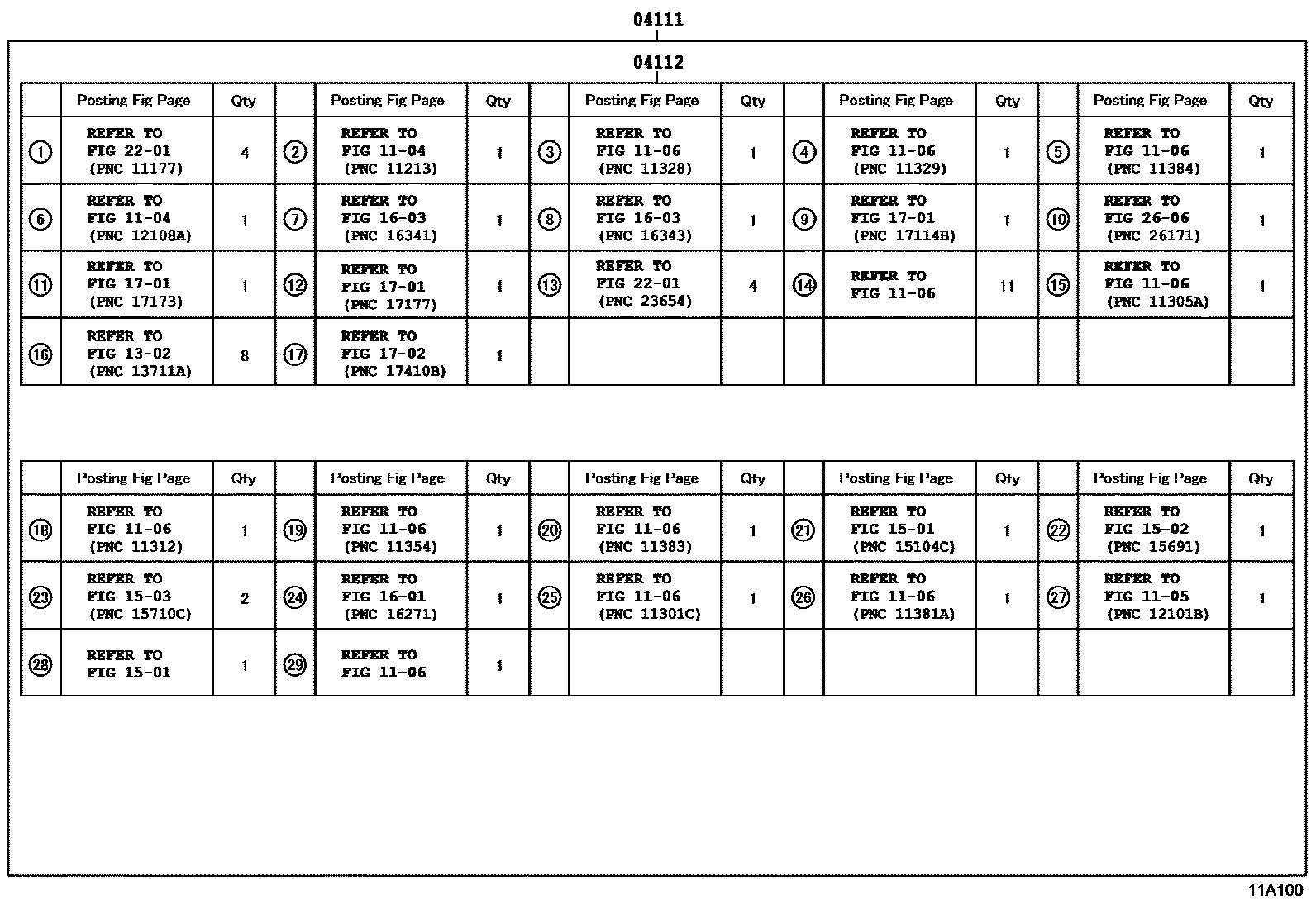

Engine Overhaul Gasket Kit — 11A100 (200106 – 999999)

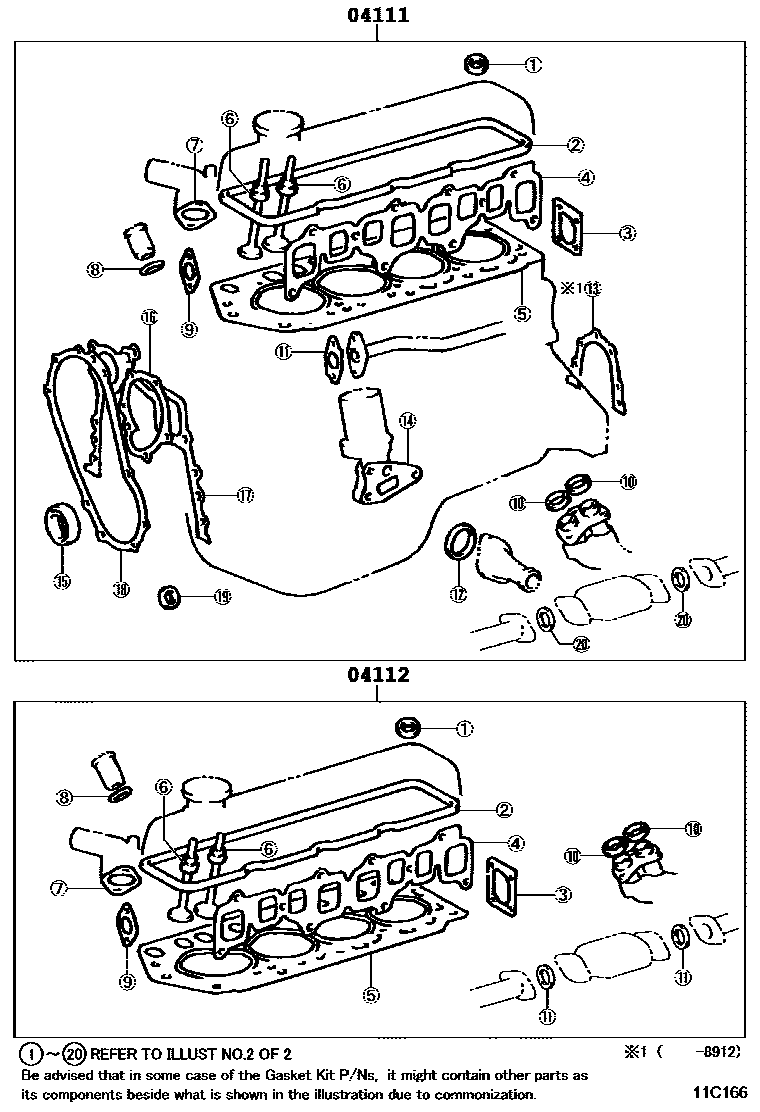

Engine Overhaul Gasket Kit — 11C166 (198808 – 199106)
Engine Overhaul Gasket Kit — 11C167 (198808 – 199106)
Engine Overhaul Gasket Kit — 11C168 (199106 – 199511)

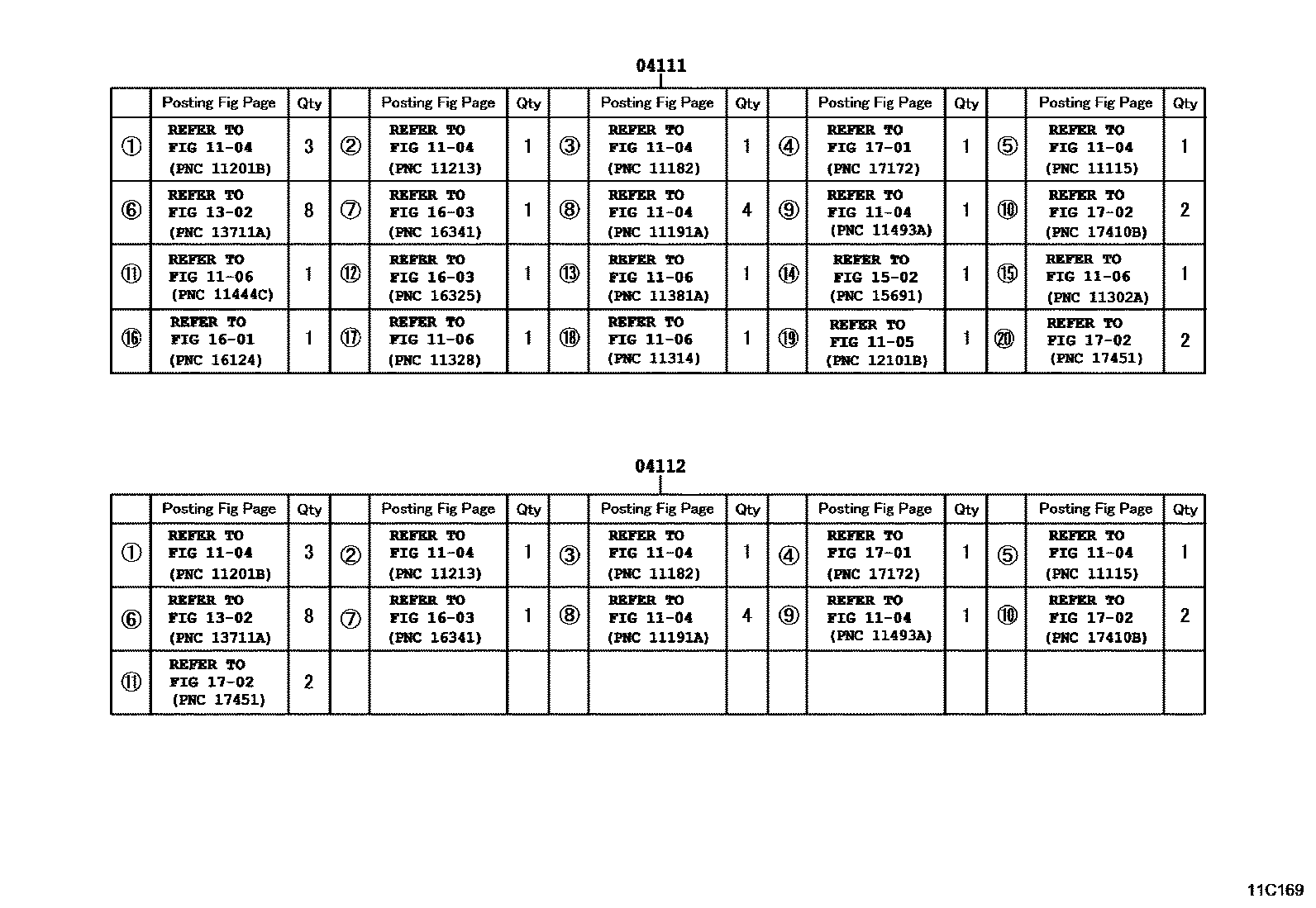

Engine Overhaul Gasket Kit — 11C169 (199106 – 199511)

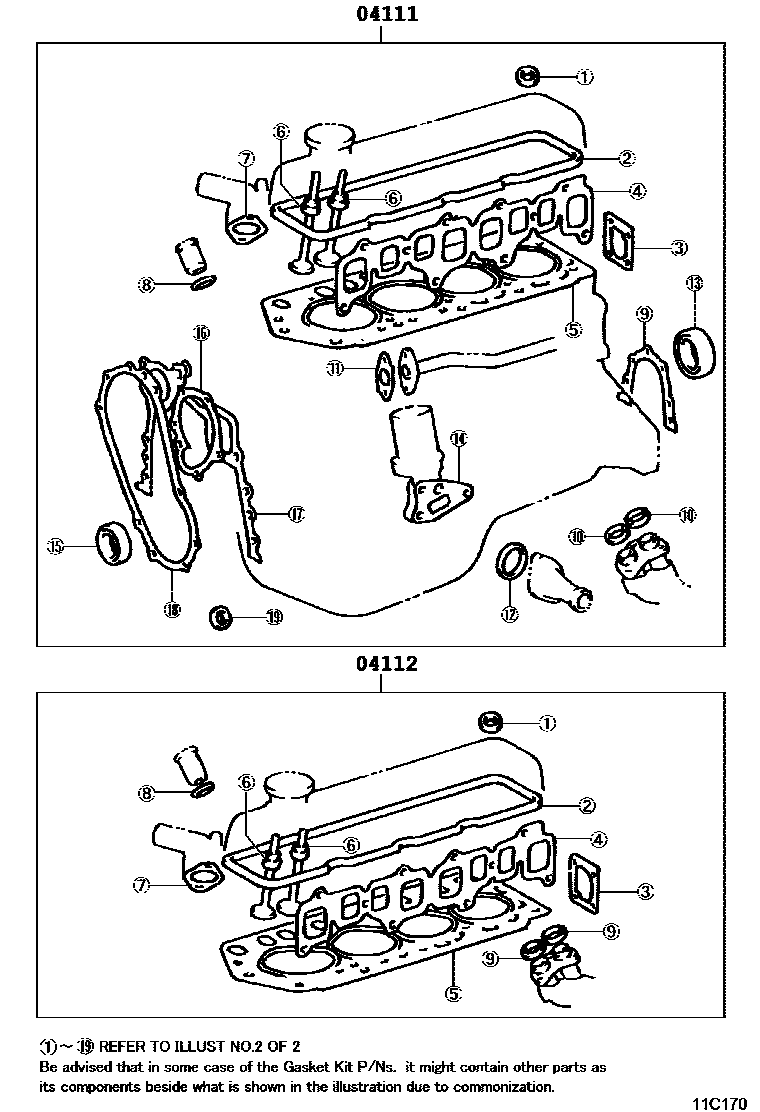

Engine Overhaul Gasket Kit — 11C170 (199511 – 199909)

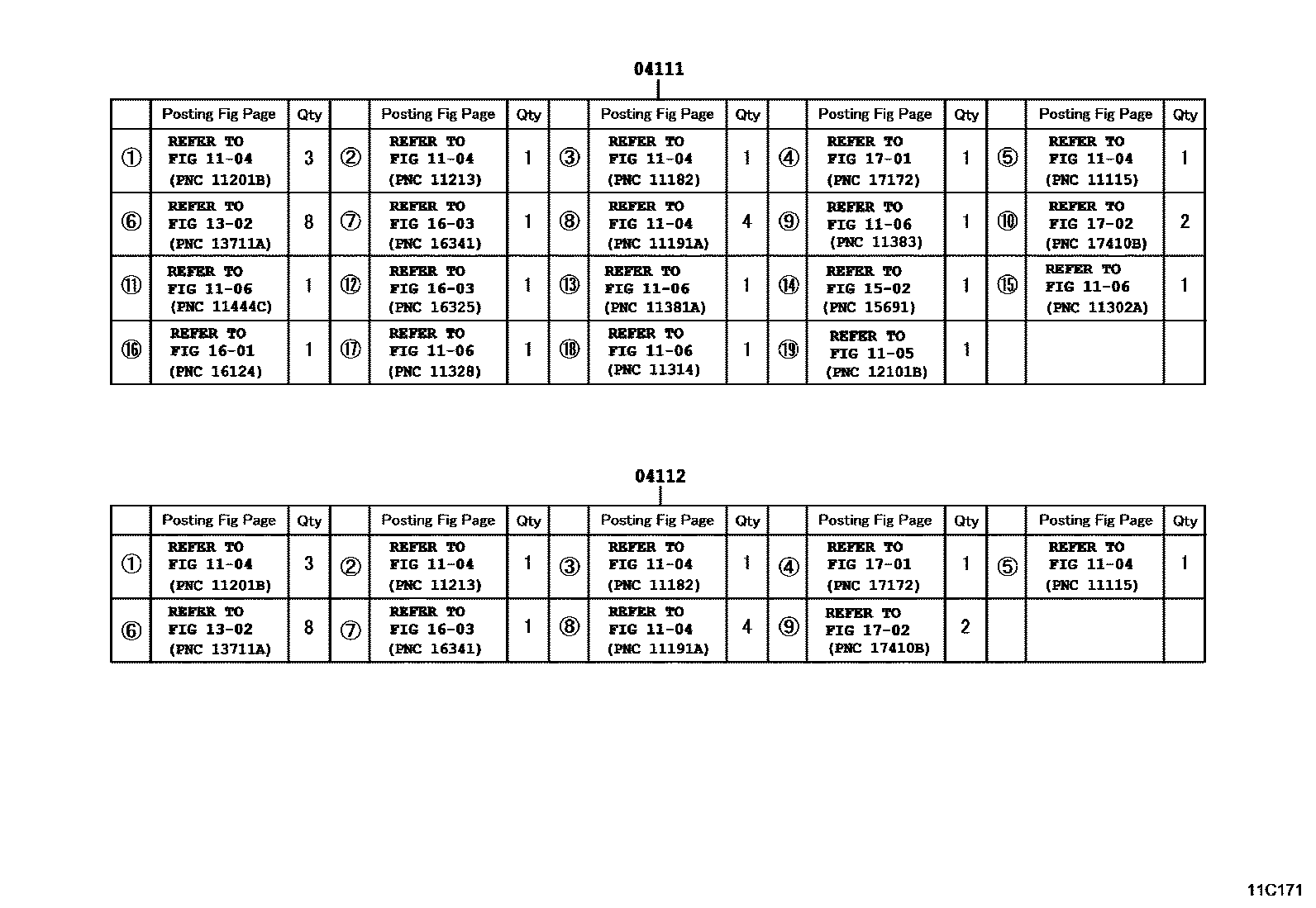

Engine Overhaul Gasket Kit — 11C171 (199511 – 199909)

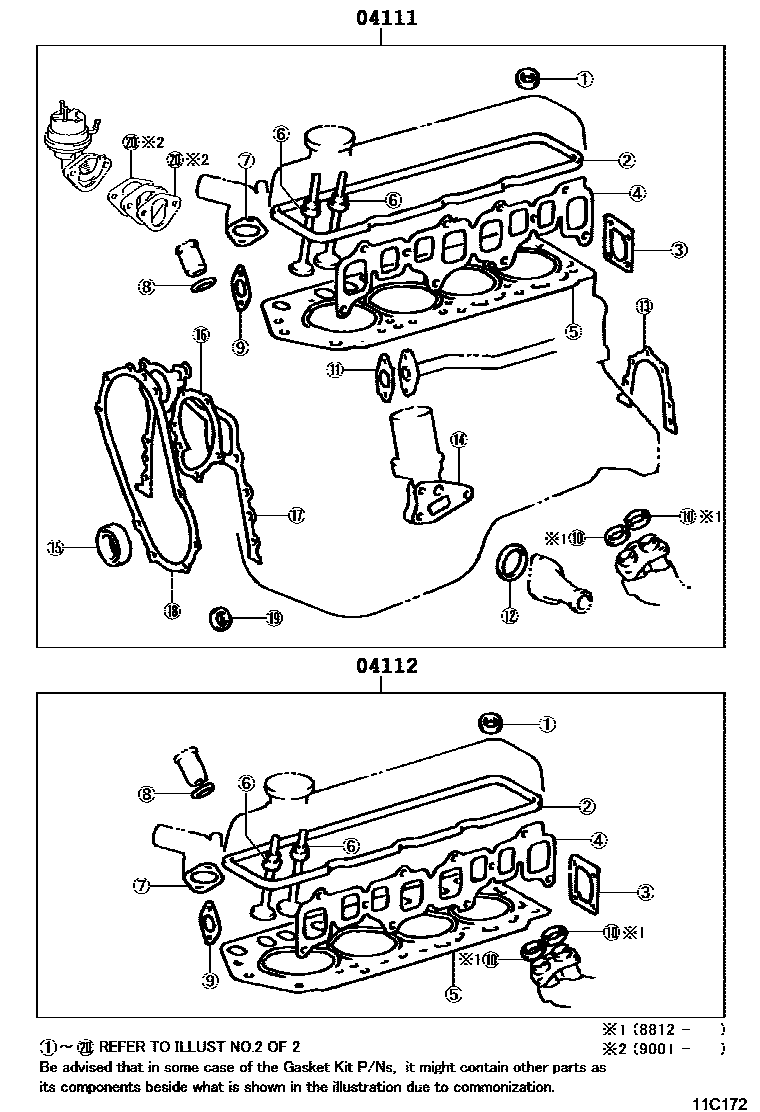

Engine Overhaul Gasket Kit — 11C172 (198808 – 199106)
Engine Overhaul Gasket Kit — 11C173 (198808 – 199106)

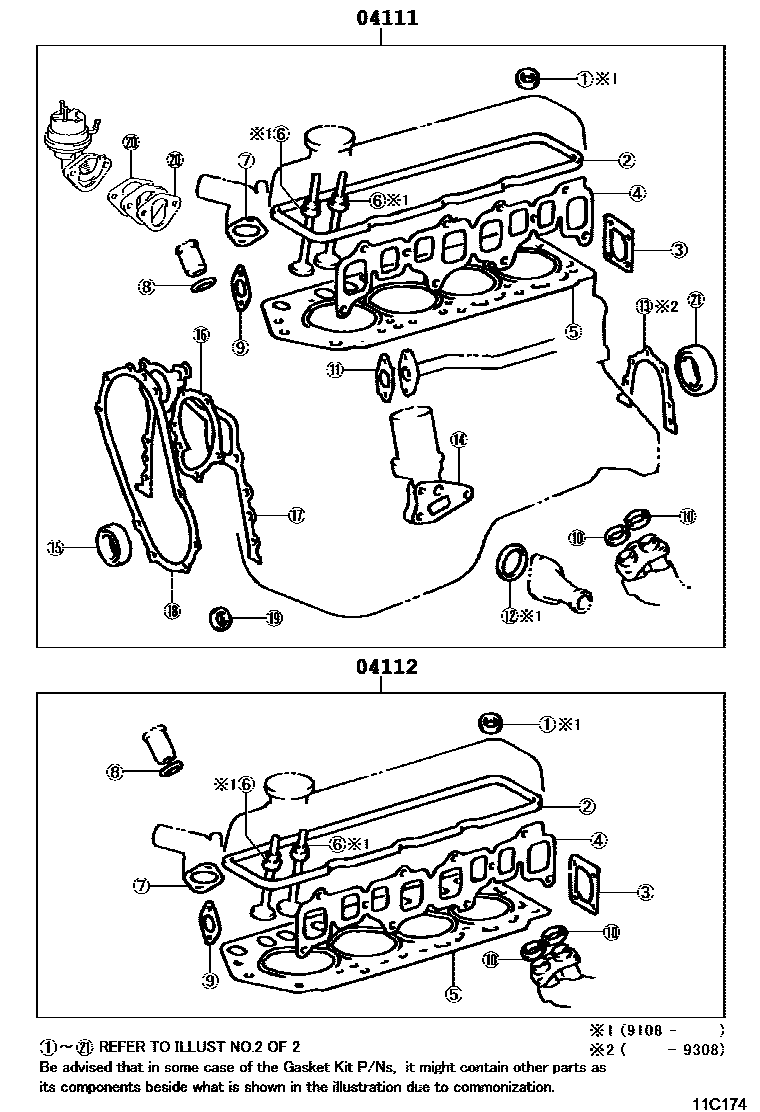

Engine Overhaul Gasket Kit — 11C174 (199106 – 199708)

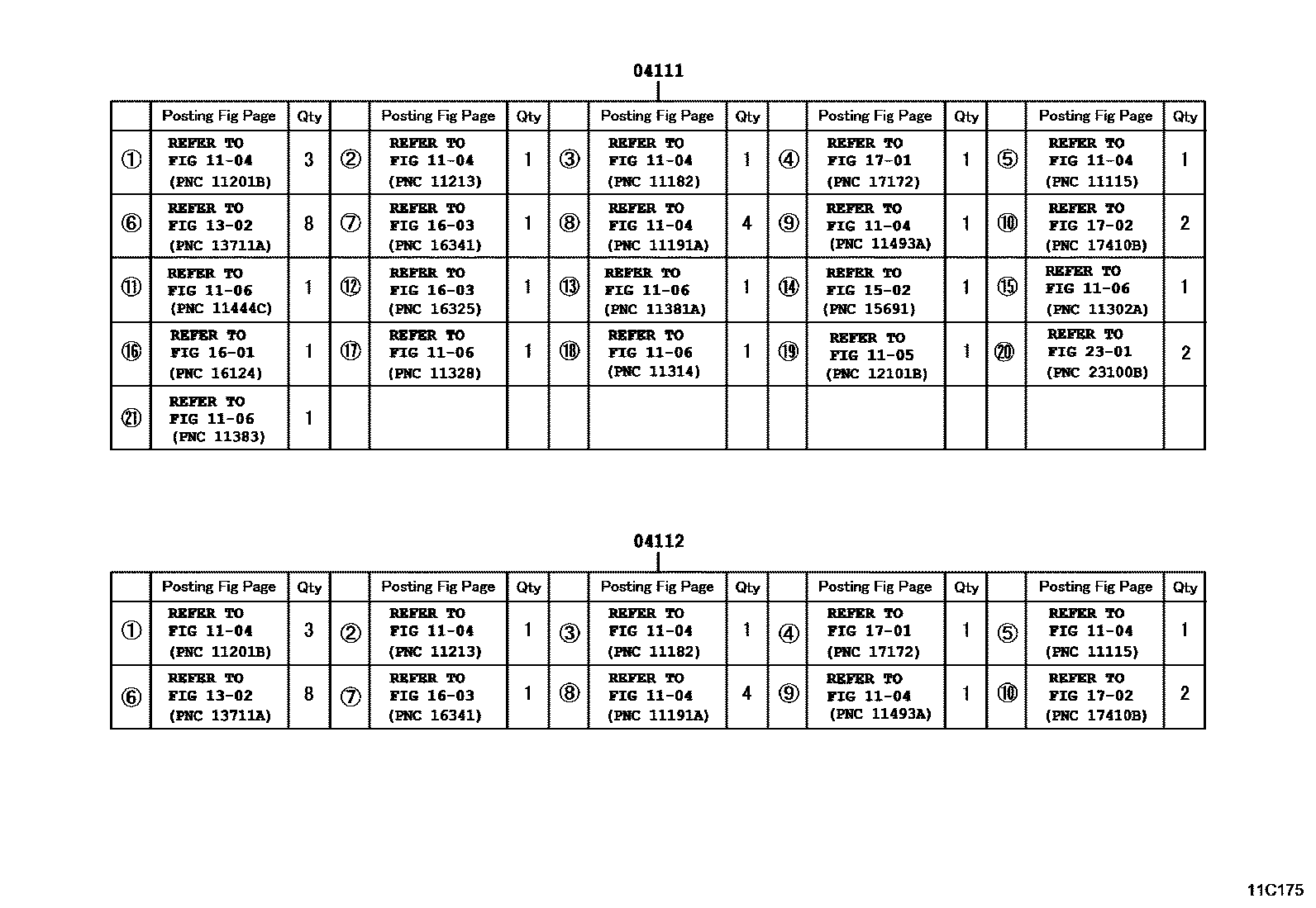

Engine Overhaul Gasket Kit — 11C175 (199106 – 199708)

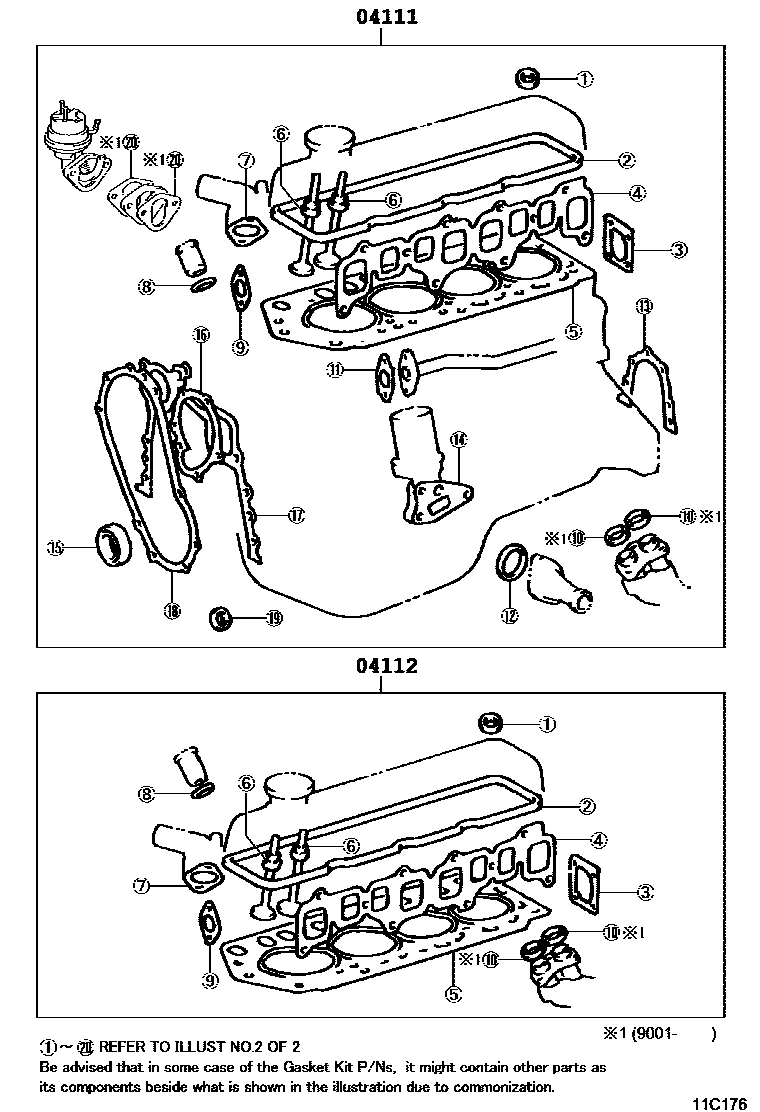

Engine Overhaul Gasket Kit — 11C176 (198808 – 199106)

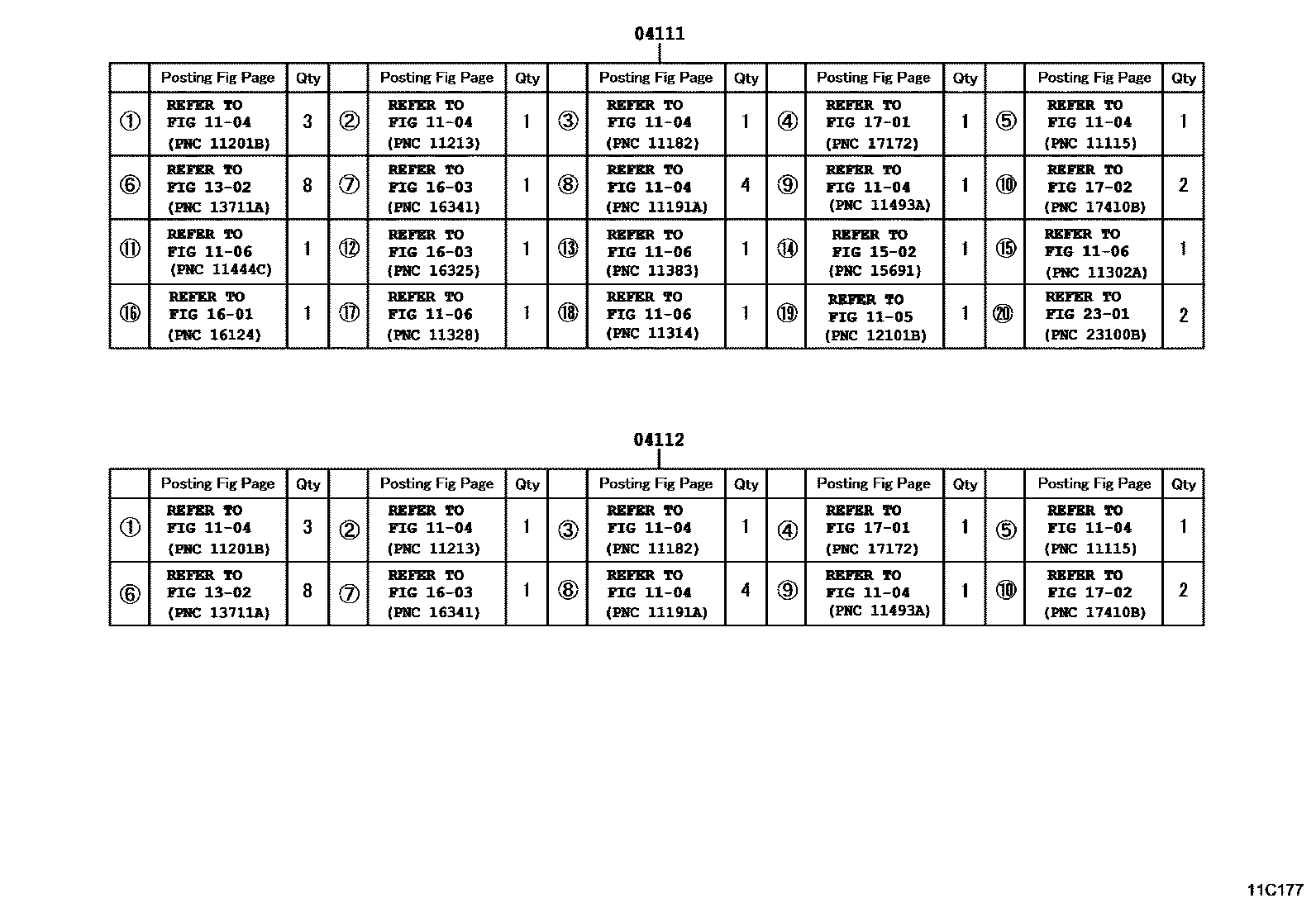

Engine Overhaul Gasket Kit — 11C177 (198808 – 199106)

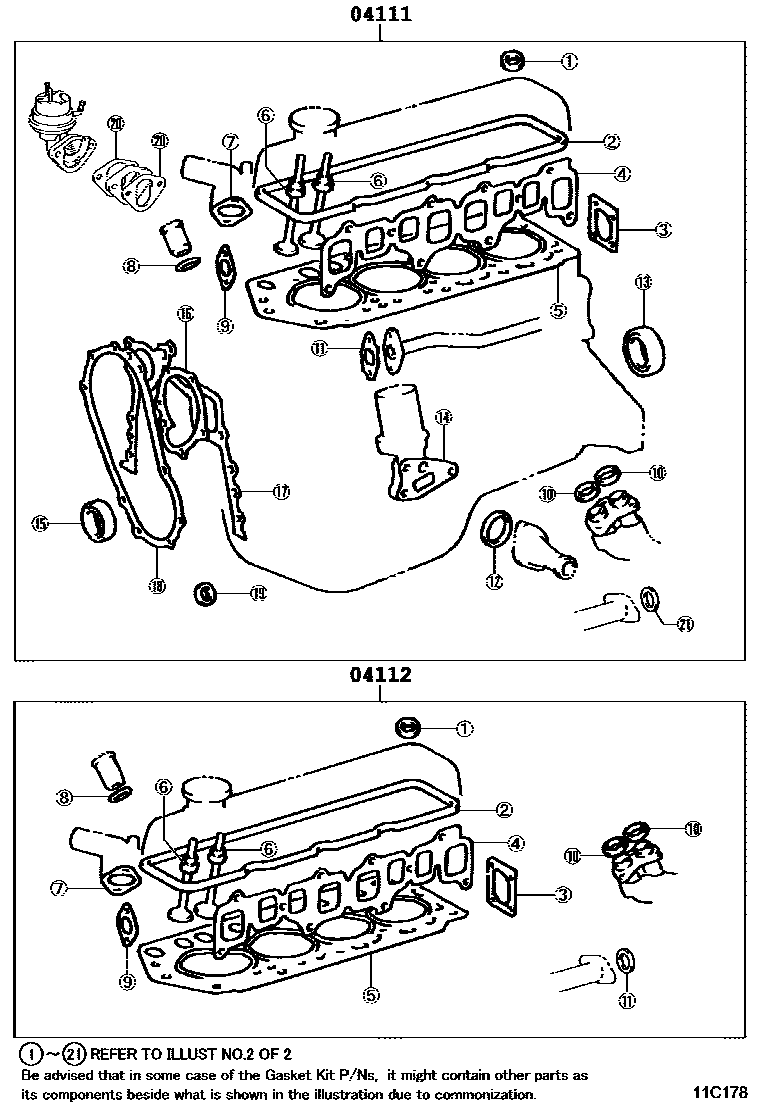

Engine Overhaul Gasket Kit — 11C178 (199106 – 199708)

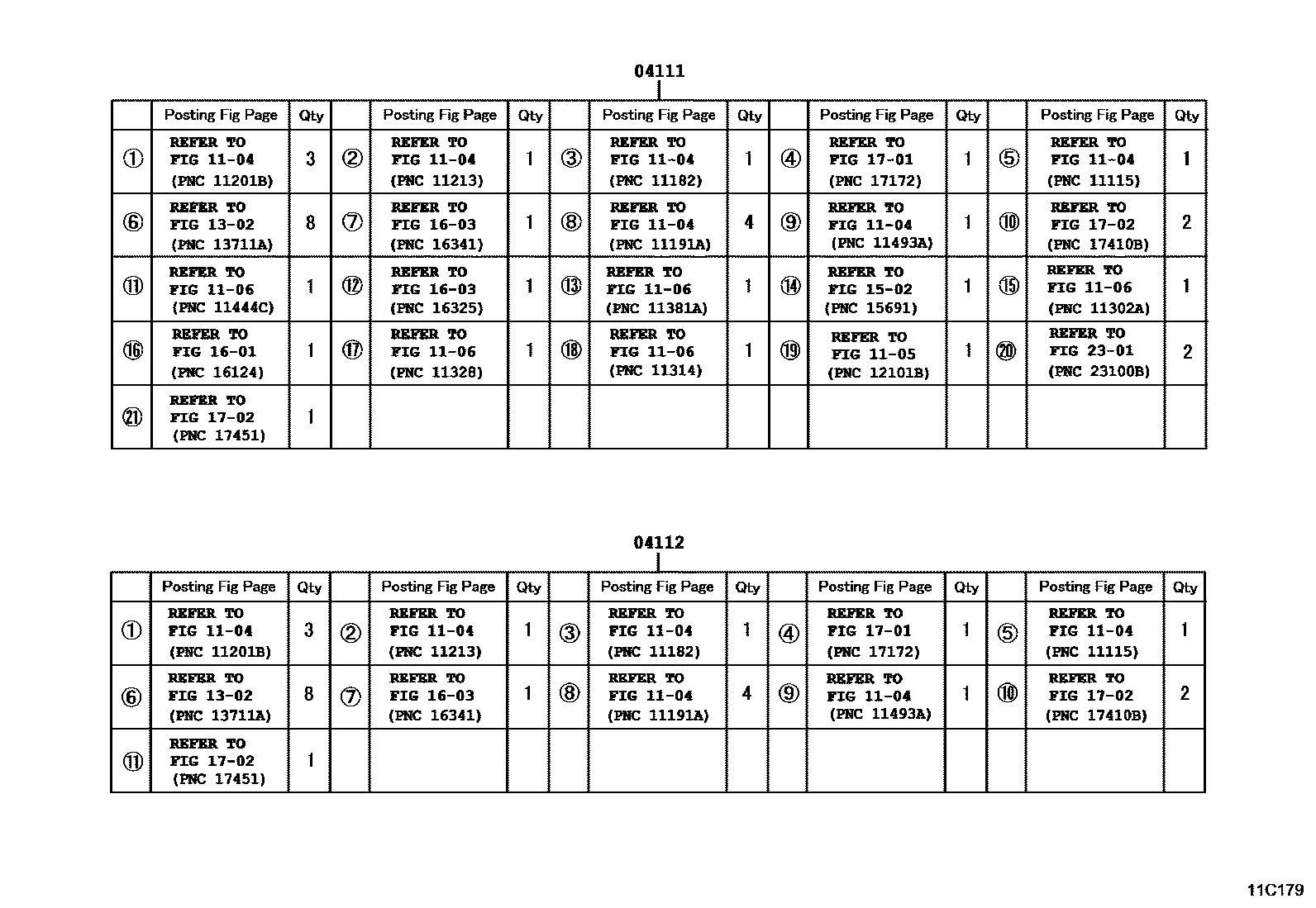

Engine Overhaul Gasket Kit — 11C179 (199106 – 199708)

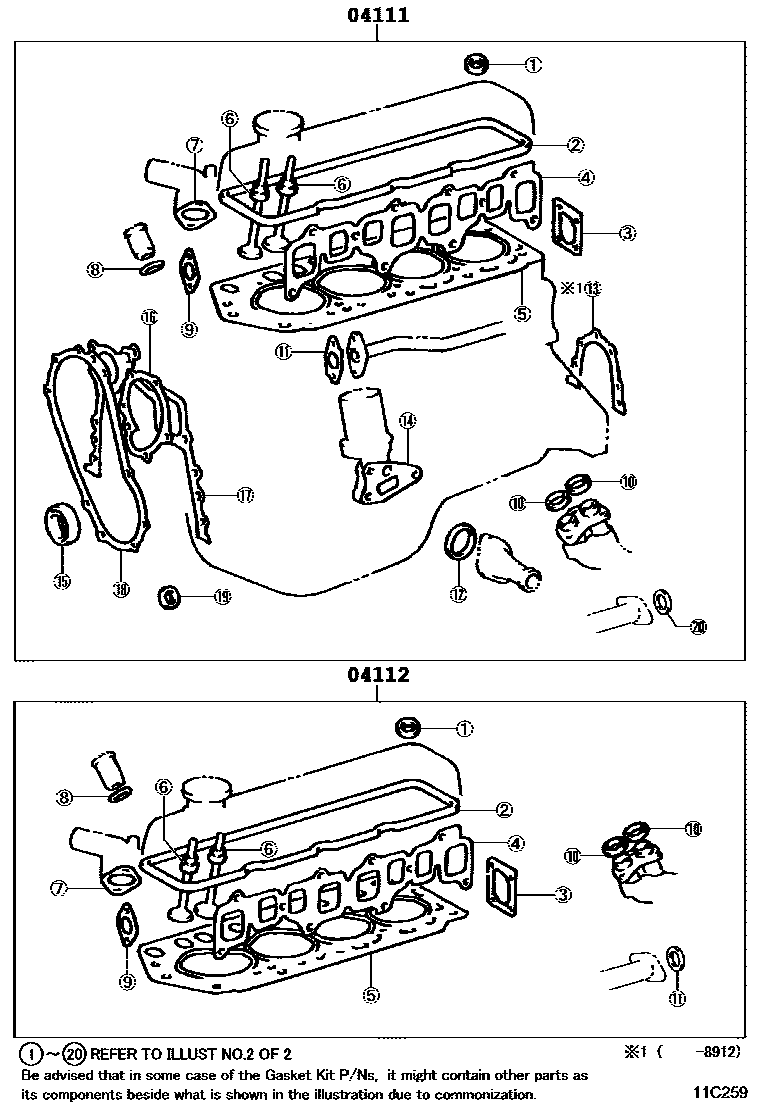

Engine Overhaul Gasket Kit — 11C259 (198808 – 199106)
Engine Overhaul Gasket Kit — 11C260 (198808 – 199106)

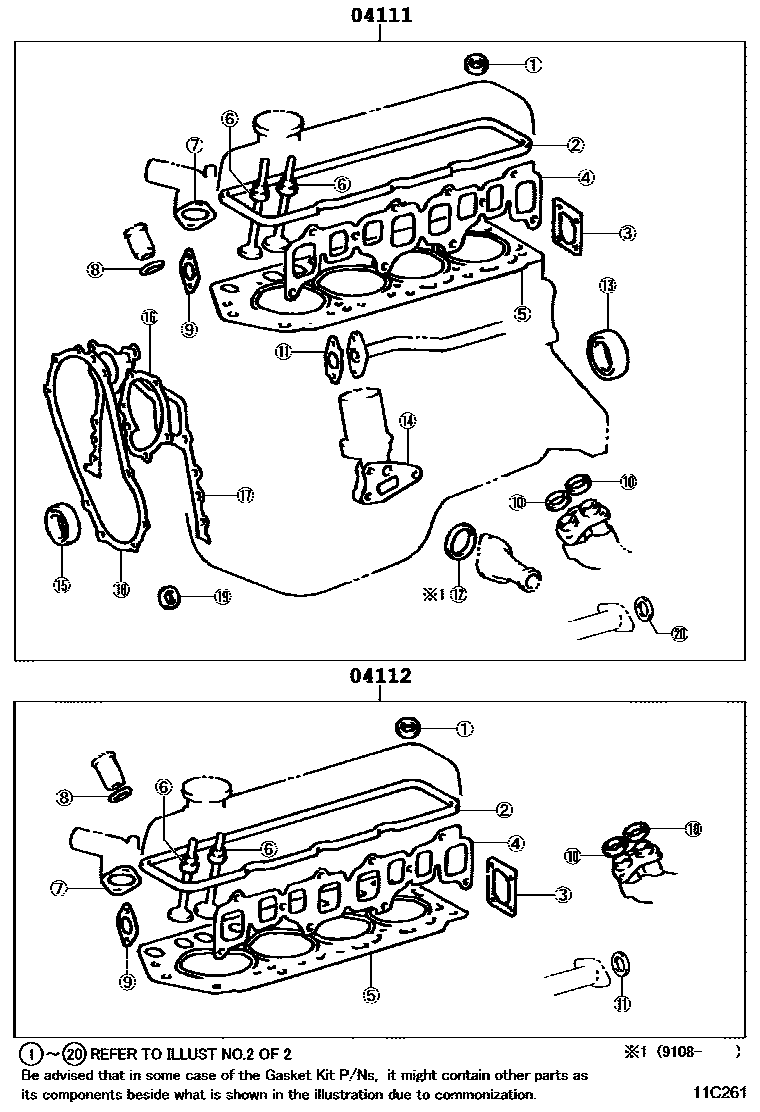

Engine Overhaul Gasket Kit — 11C261 (199106 – 199511)
Engine Overhaul Gasket Kit — 11C262 (199106 – 199511)

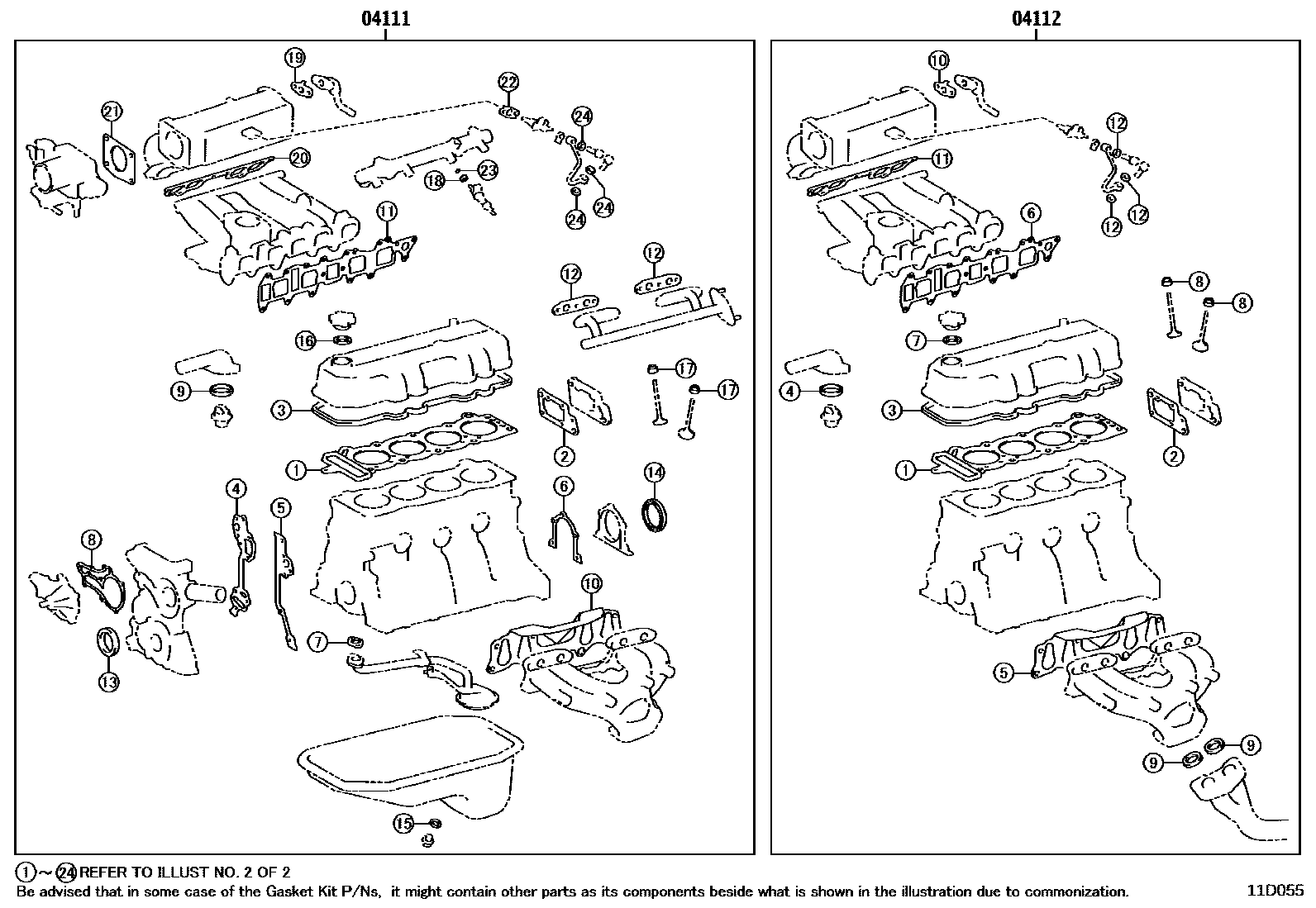

Engine Overhaul Gasket Kit — 11D055 (199401 – 199901)

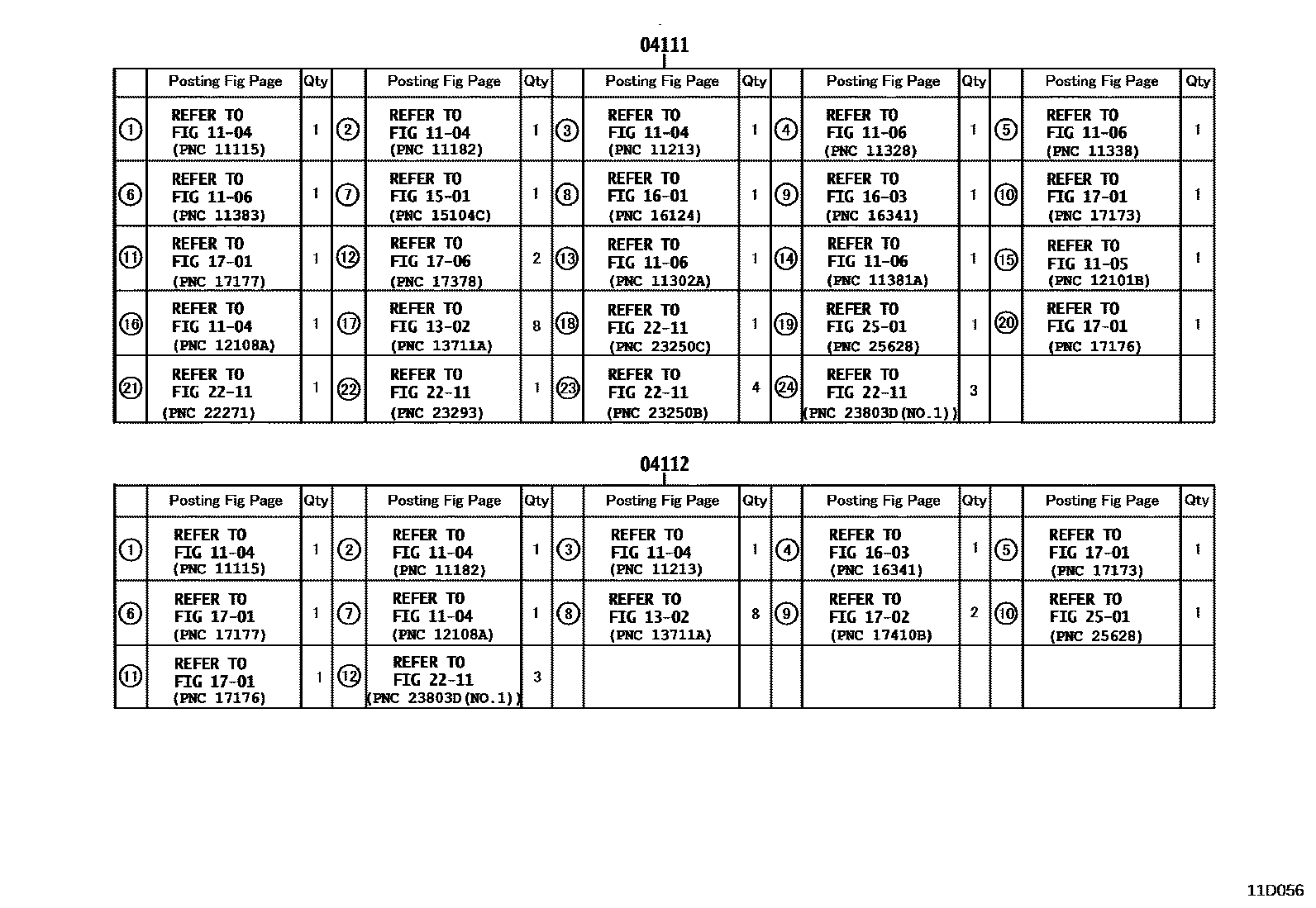

Engine Overhaul Gasket Kit — 11D056 (199401 – 199901)

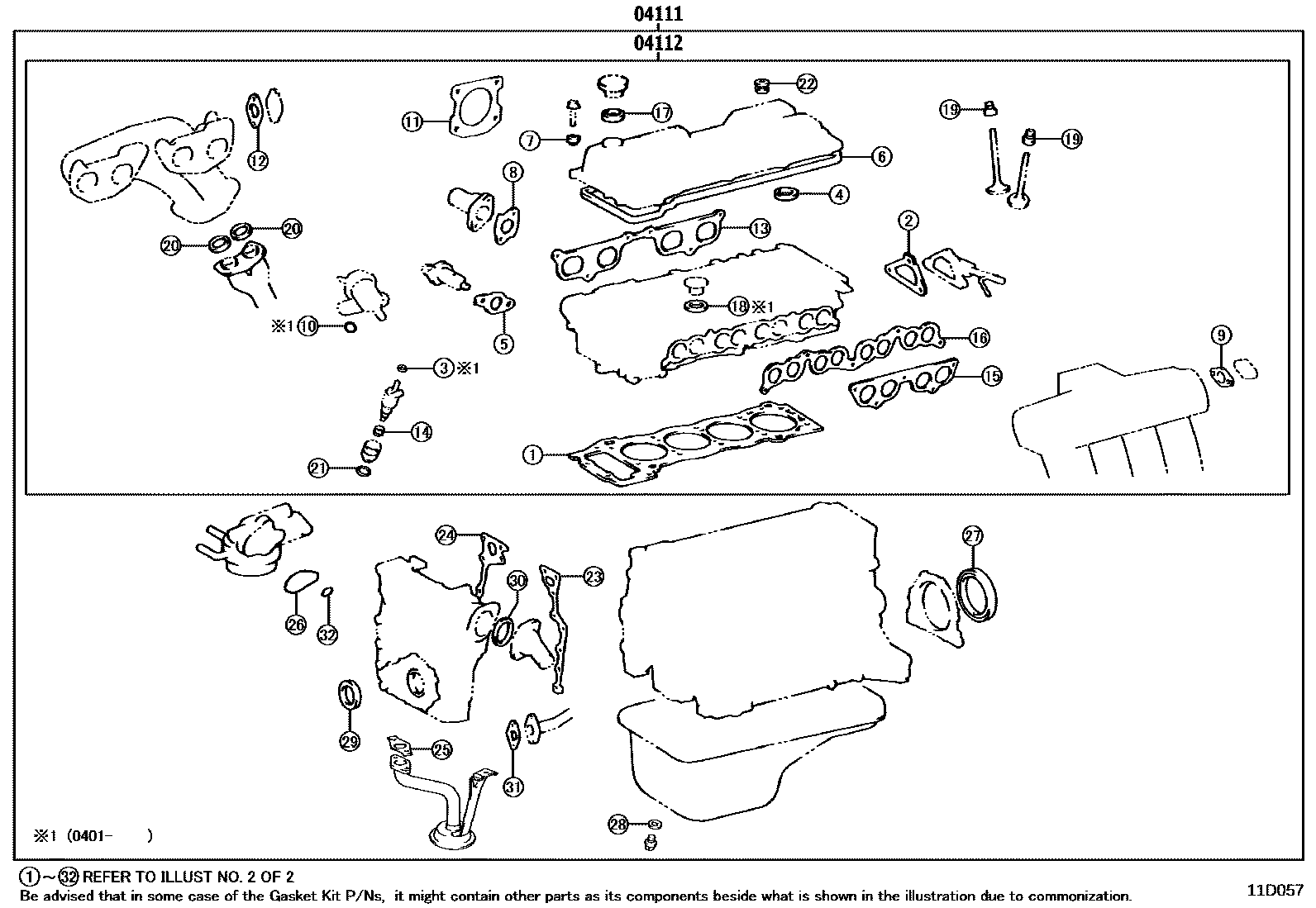

Engine Overhaul Gasket Kit — 11D057 (200106 – 999999)

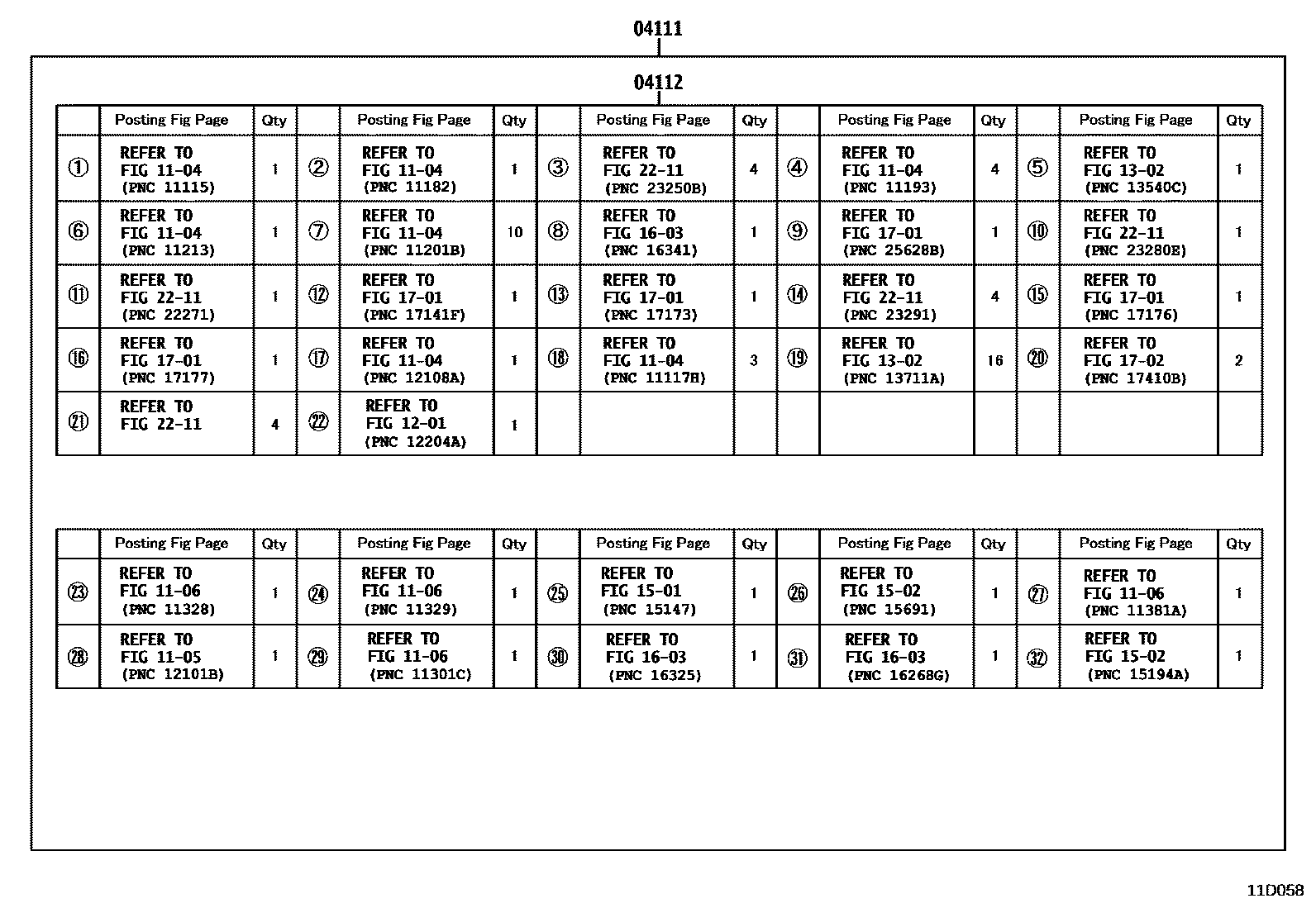

Engine Overhaul Gasket Kit — 11D058 (200106 – 999999)

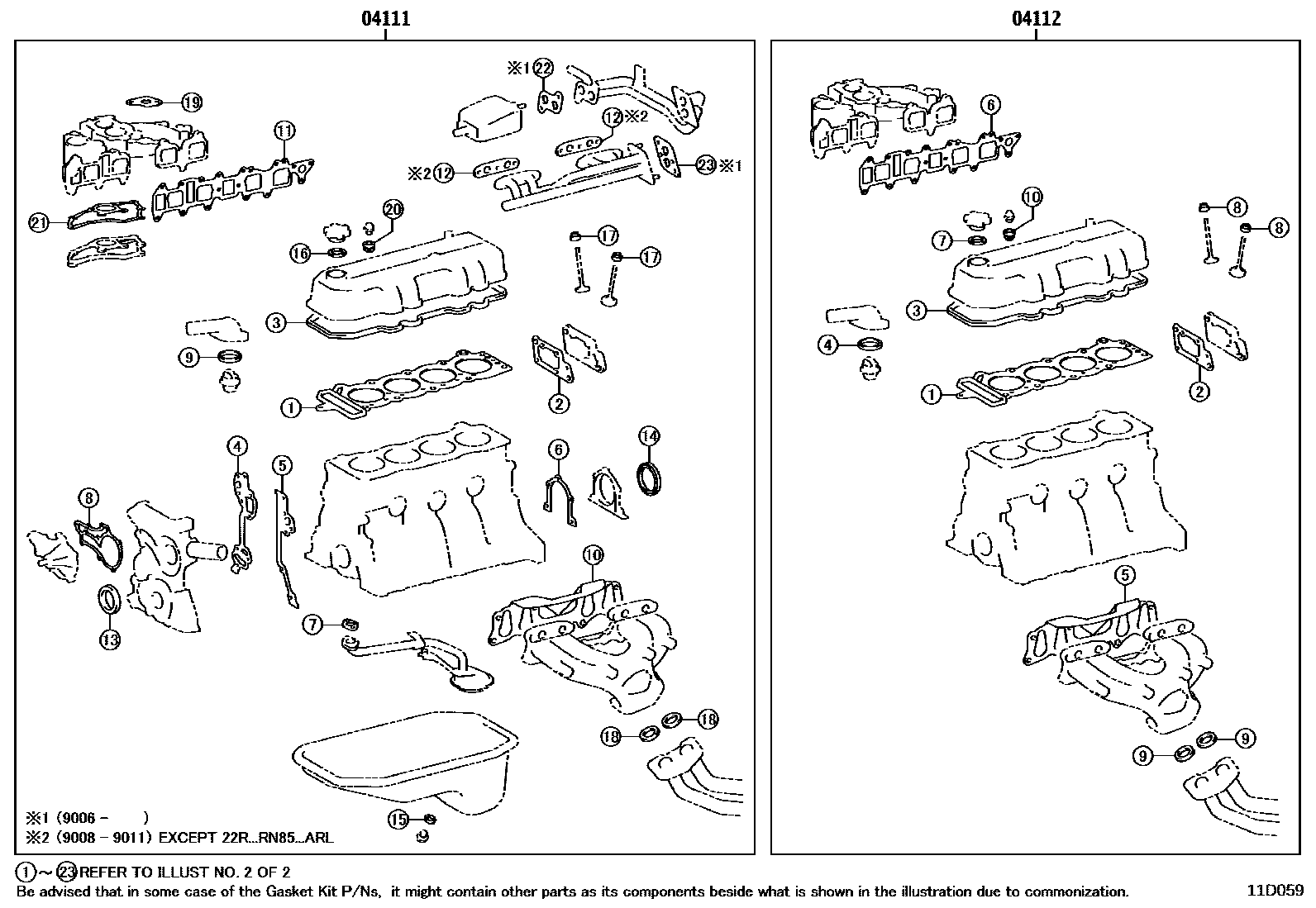

Engine Overhaul Gasket Kit — 11D059 (198808 – 199011)

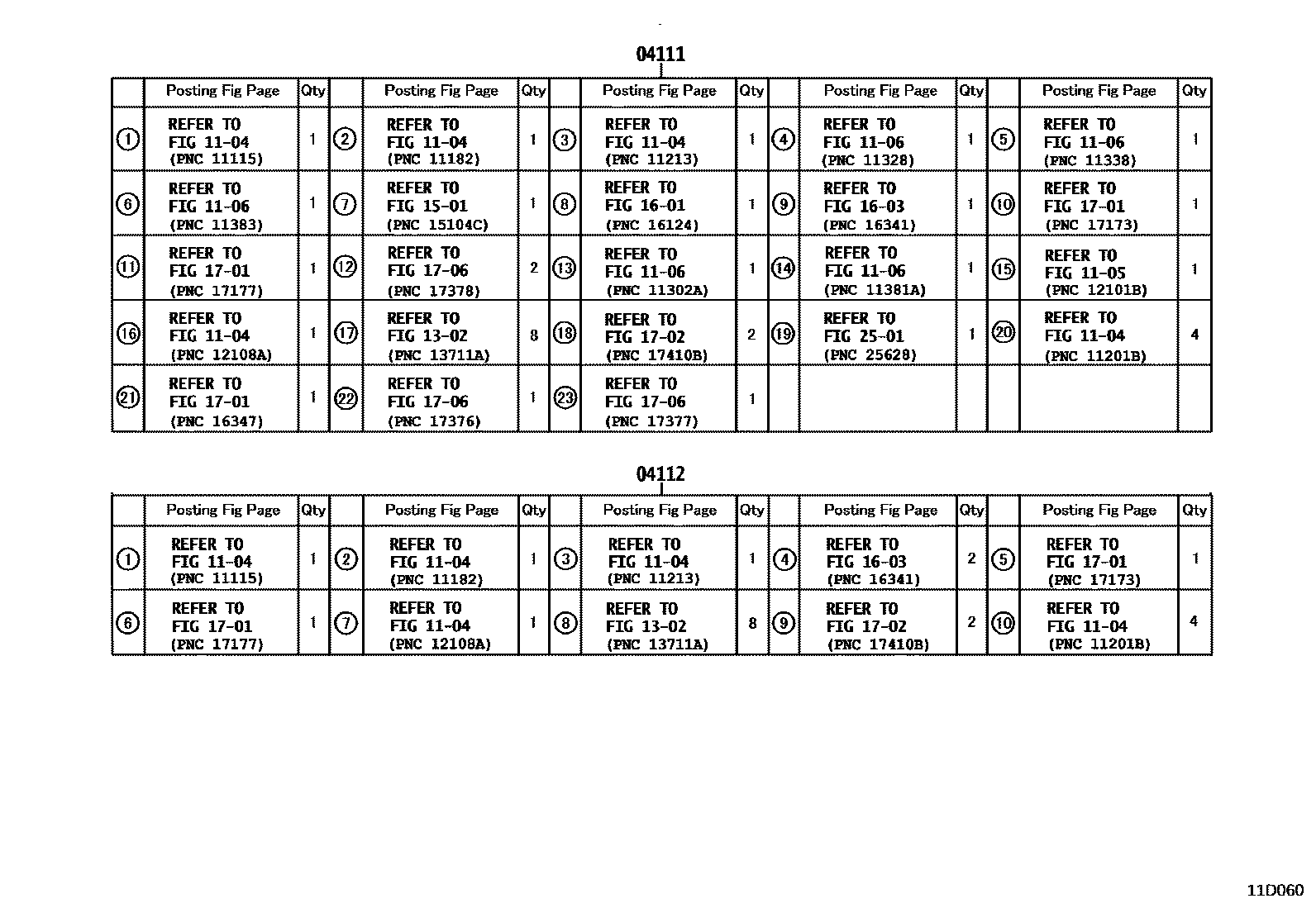

Engine Overhaul Gasket Kit — 11D060 (198808 – 199011)

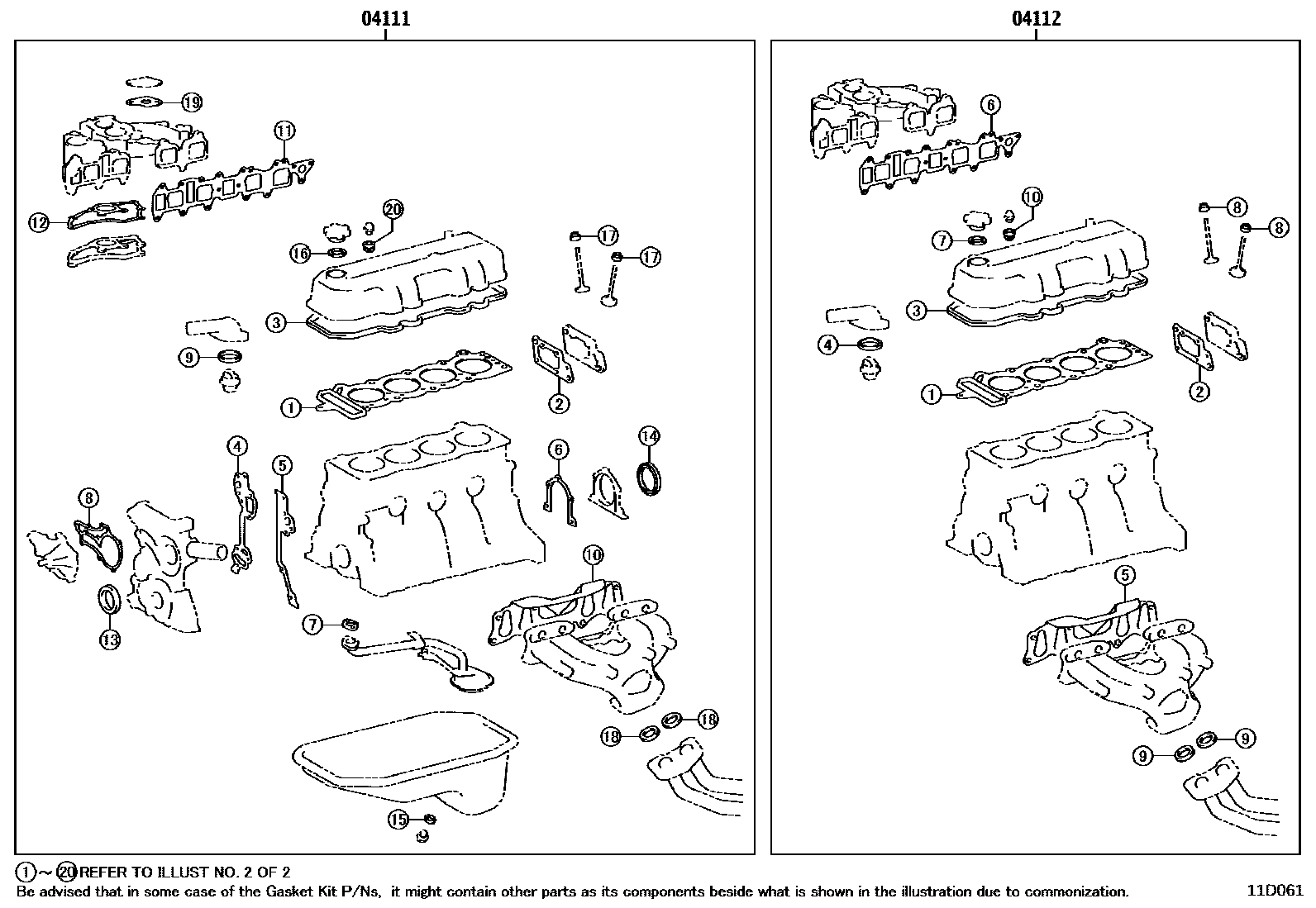

Engine Overhaul Gasket Kit — 11D061 (198808 – 199909)

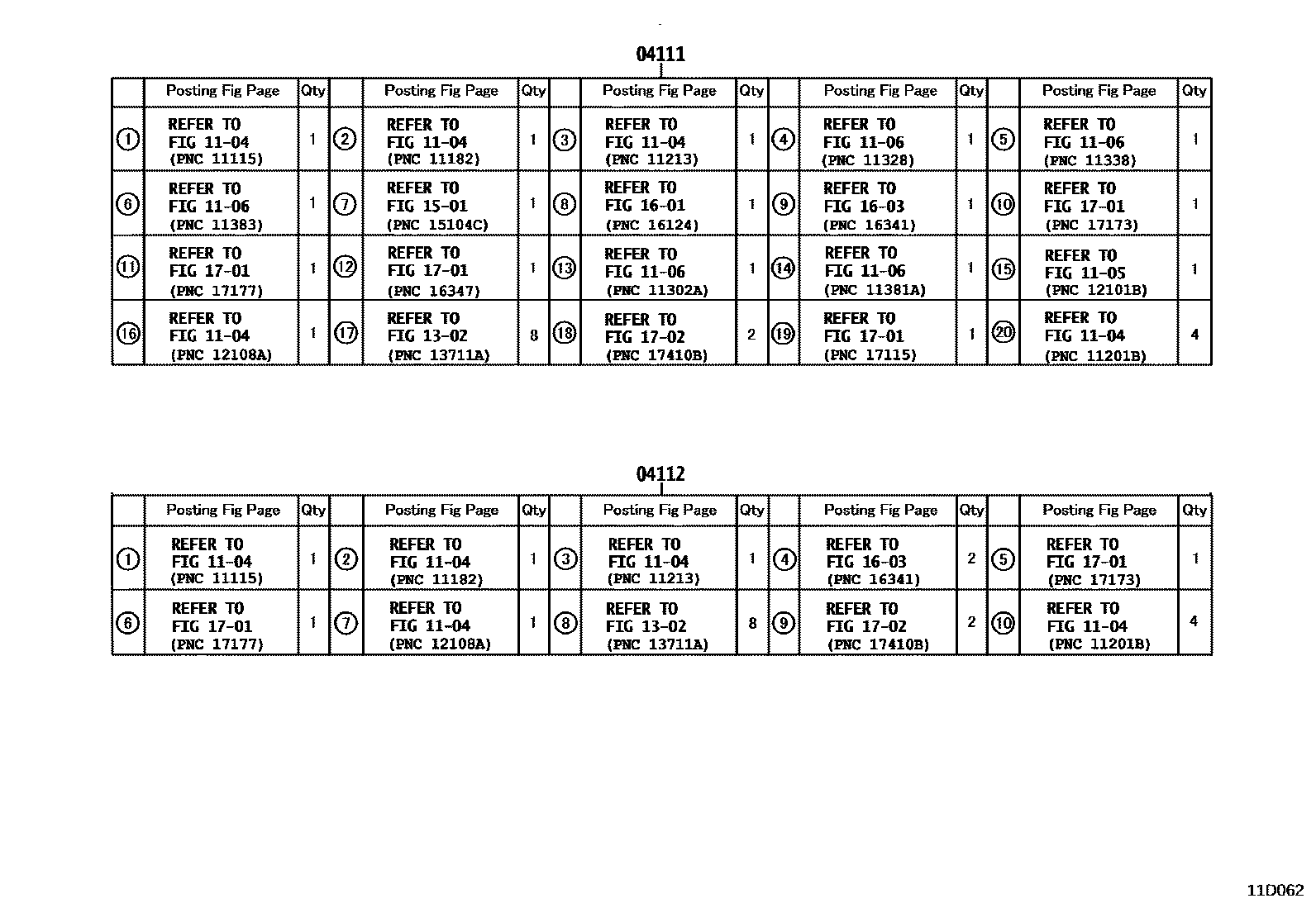

Engine Overhaul Gasket Kit — 11D062 (198808 – 199909)PNC and OE references
| PNC | Part name | OE numbers |
|---|
| 04111 | Engine overhaul gasket assembly | 04111-35330 · 04111-35340 · 04111-35341 · 04111-35342 · 04111-35350 · 04111-35351 · 04111-35352 · 04111-35360 · 04111-35390 · 04111-35400 · 04111-54080 · 04111-54081 · 04111-54082 · 04111-54083 · 04111-54084 · 04111-54092 · 04111-54093 · 04111-54094 · 04111-54095 · 04111-54340 · 04111-54470 · 04111-72013 · 04111-72014 · 04111-72015 · 04111-72016 · 04111-72040 · 04111-72041 · 04111-73023 · 04111-73024 · 04111-73025 · 04111-73026 · 04111-73027 · 04111-73042 · 04111-73043 · 04111-73044 · 04111-75102 · 04111-75770 |
| 04112 | Engine valve grinding pad assembly | 04112-35310 · 04112-35320 · 04112-35321 · 04112-35322 · 04112-35330 · 04112-35360 · 04112-35370 · 04112-54070 · 04112-54071 · 04112-54072 · 04112-54073 · 04112-54280 · 04112-54410 · 04112-72013 · 04112-72014 · 04112-72015 · 04112-72016 · 04112-72040 · 04112-73022 · 04112-73023 · 04112-73024 · 04112-73025 · 04112-73026 · 04112-73041 · 04112-73042 · 04112-73043 · 04112-75101 · 04112-75720 |
