Toyota HILUX Standard Tools — Figure 0901

Toyota HILUX EPC diagram 0901, Standard Tools, with 1 images and 14 PNC and OE references.

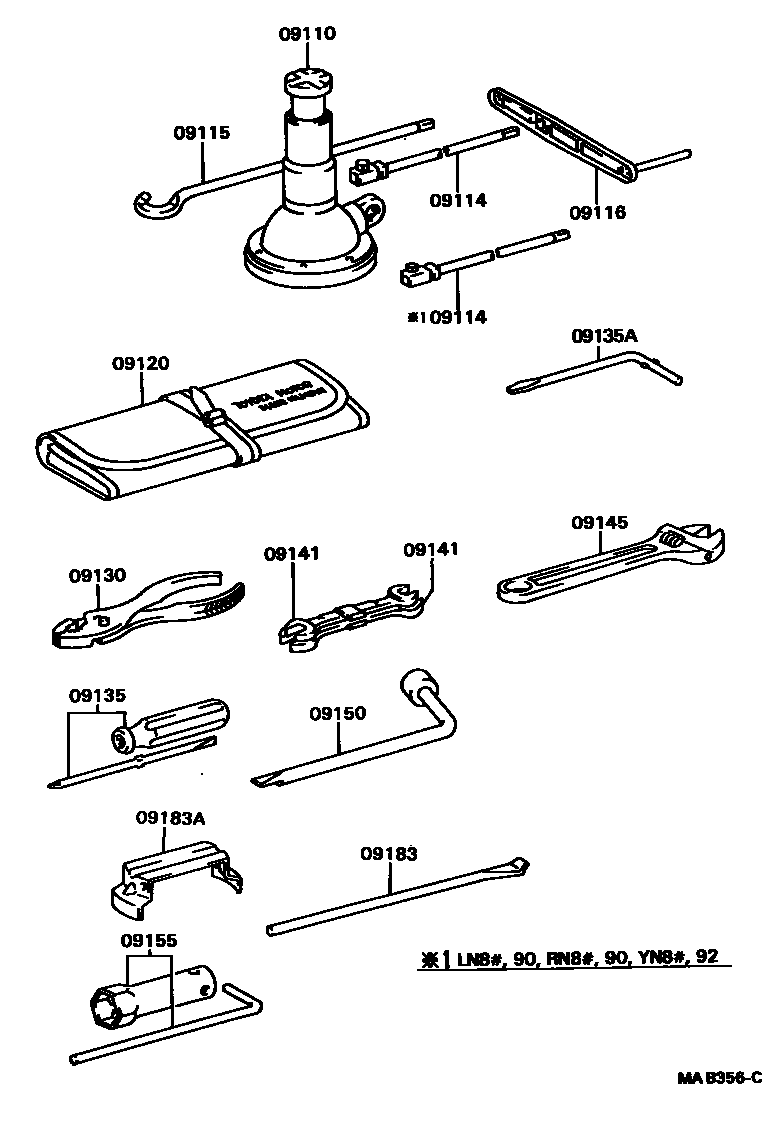

Toyota HILUX Standard Tools EPC diagram — MAB356C
Standard Tools — MAB356C (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
09110Jack Assembly09110-35180 · 09110-35181 · 09110-35200 · 09110-35210 · 09110-89102 · 09111-89101 · 09111-89102 · 09111-89104
09114Jack Handle Extension Sub-Assembly09114-28010 · 09114-35031 · 09114-60050 · 09114-89101
09115Jack Handle Rod Sub-Assembly09115-35070 · 09115-35080 · 09115-89101 · 09115-89102
09116Jack Handle Rod09116-35031 · 09116-35041 · 09116-35060
09120Tool Bag09120-26021 · 09120-35060 · 09120-35080 · 09120-35090 · 09120-35100 · 09120-35110 · 09120-35120
09130Pliers99913-11500
09135Screwdriver90080-99005 · 99915-10700
09135Ascrewdriver tip09135-00012
09141Wrench90080-99006 · 90080-99007 · 99914-10810 · 99914-11012 · 99914-11214 · 99914-11417
09145adjustable wrench99911-11200
09150Wheel Nut Wrench09150-35020 · 09150-35040 · 09150-40010 · 09150-60020
09155Spark Plug Wrench09155-26010 · 09155-41010
09183Wheel Cap Remover09183-00030
09183AWheel cover removal and assembly tools09183-35010 · 09183-60010
