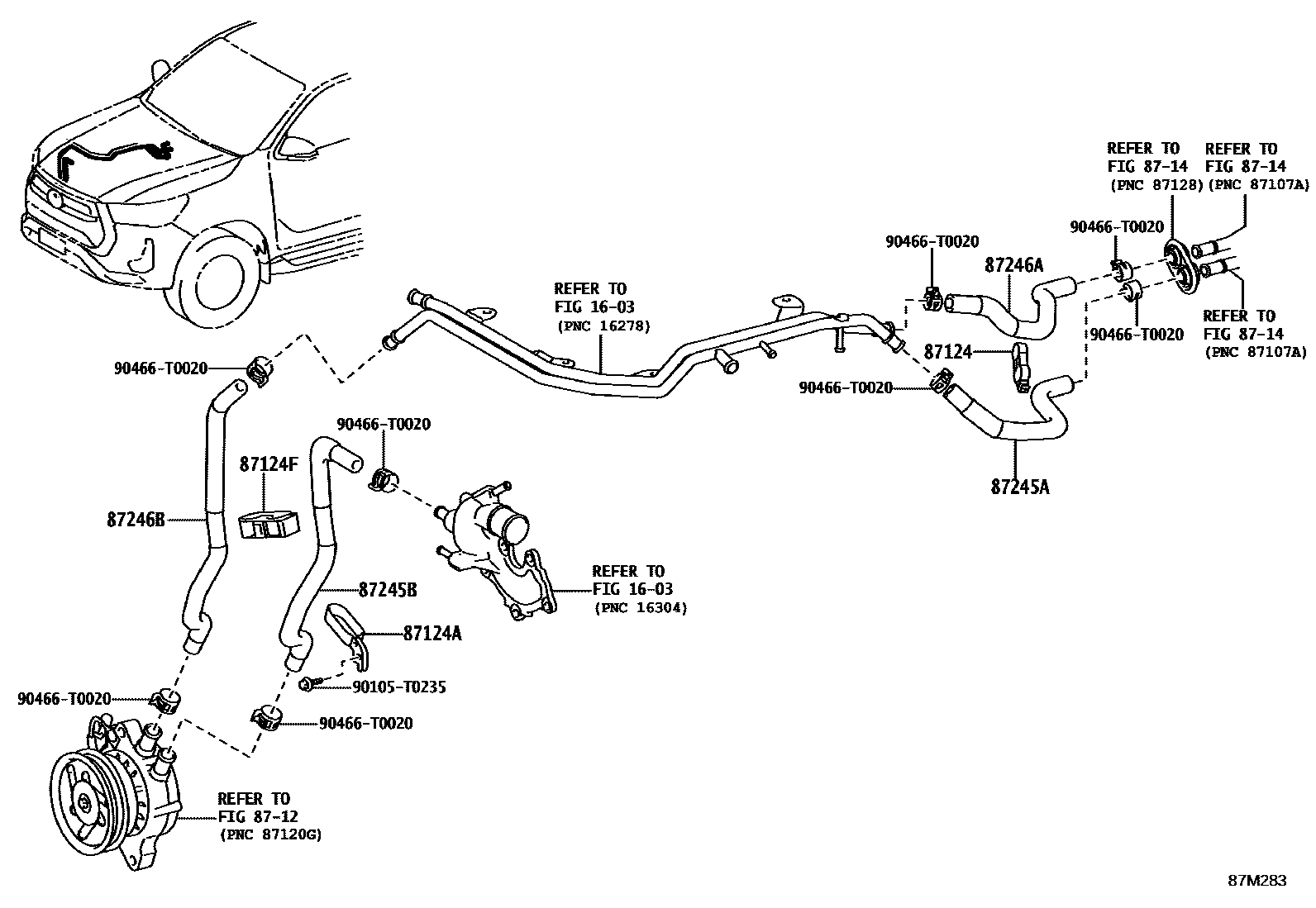

Toyota HILUX 暖风和空调系统 - 水管 — Figure 8716
Toyota HILUX EPC diagram 8716, 暖风和空调系统 - 水管, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87124 | heater clip | 87124-0K150 |
| 87124A | heater clip | 87124-0K200 |
| 87124F | No. 1 heater hose clamp | 87124-60110 |
| 87245A | Heater water inlet hose A | 87245-0KD10 |
| 87245B | Heater water inlet hose B | 87245-0KE80 |
| 87246A | Heater outlet hose A | 87245-0KF00 |
| 87246B | Heater outlet hose B | 87245-0KE90 |
