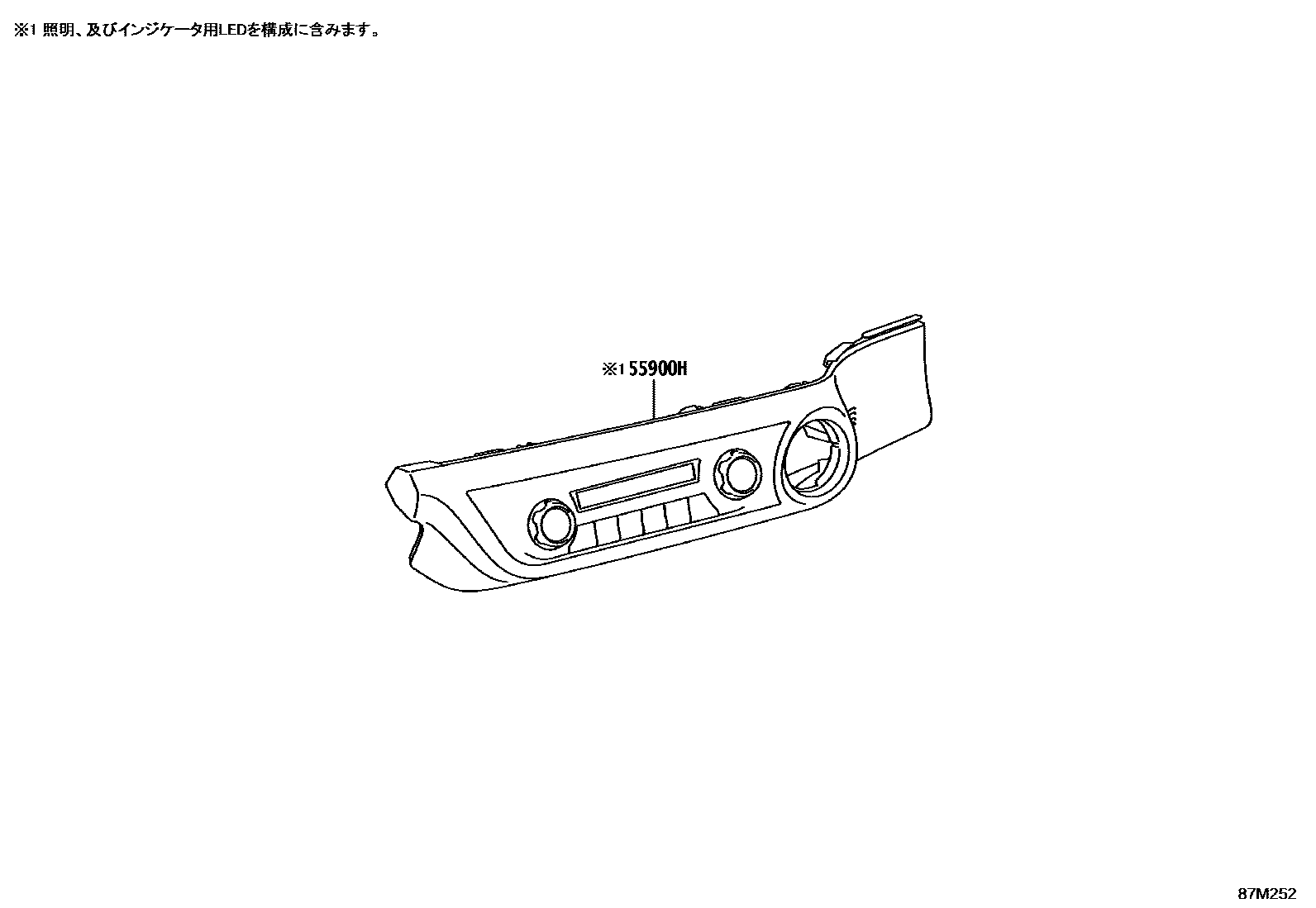

Toyota HILUX 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota HILUX EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

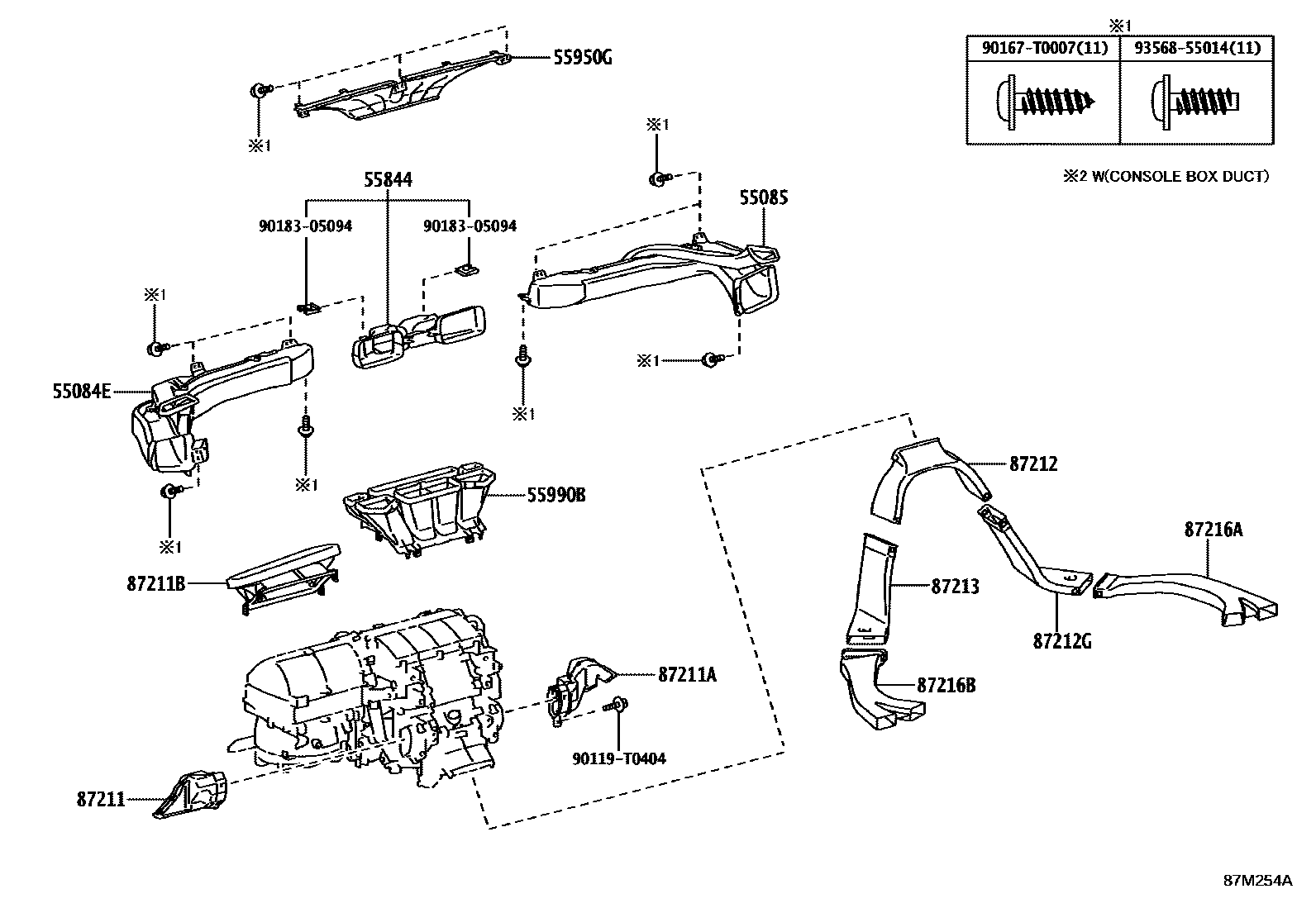

| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55085-KK120 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55084-KK010 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-KK030 |
| 55950G | Defroster nozzle assembly | 55950-KK030 |
| 55990B | Lower defroster nozzle assembly | 55990-KK020 |
| 87211 | No. 1 air duct | 87211-0K820 |
| 87211A | Duct No. 2 | 87211-0K800 |
| 87211B | No. 3 air duct | 87211-0K540 |
| 87212 | No. 1 rear air duct | 87214-KK010 |
| 87212G | No. 3 rear air duct | 87212-KK010 |
| 87213 | No. 2 rear air duct | 87213-KK010 |
| 87216A | No. 5 rear air duct | 87215-KK010 |
| 87216B | No. 4 rear air duct | 87216-KK010 |
| 88505 | Air conditioning duct sub-assembly | 88505-0K770 |

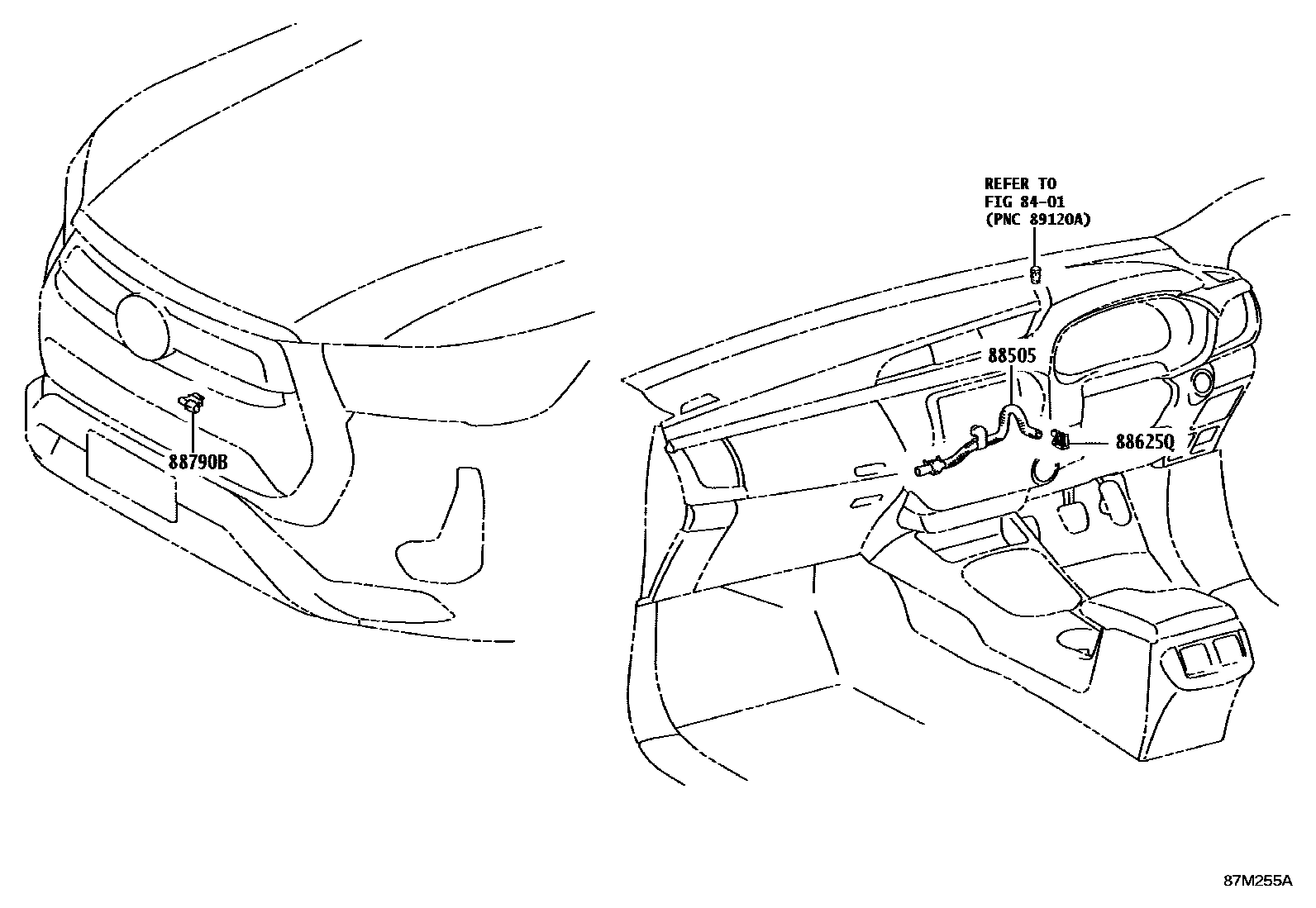

| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-0K020 · 88625-47021 |
| 88790B | Thermistor assembly | 88790-0K010 · 88790-28100 |
