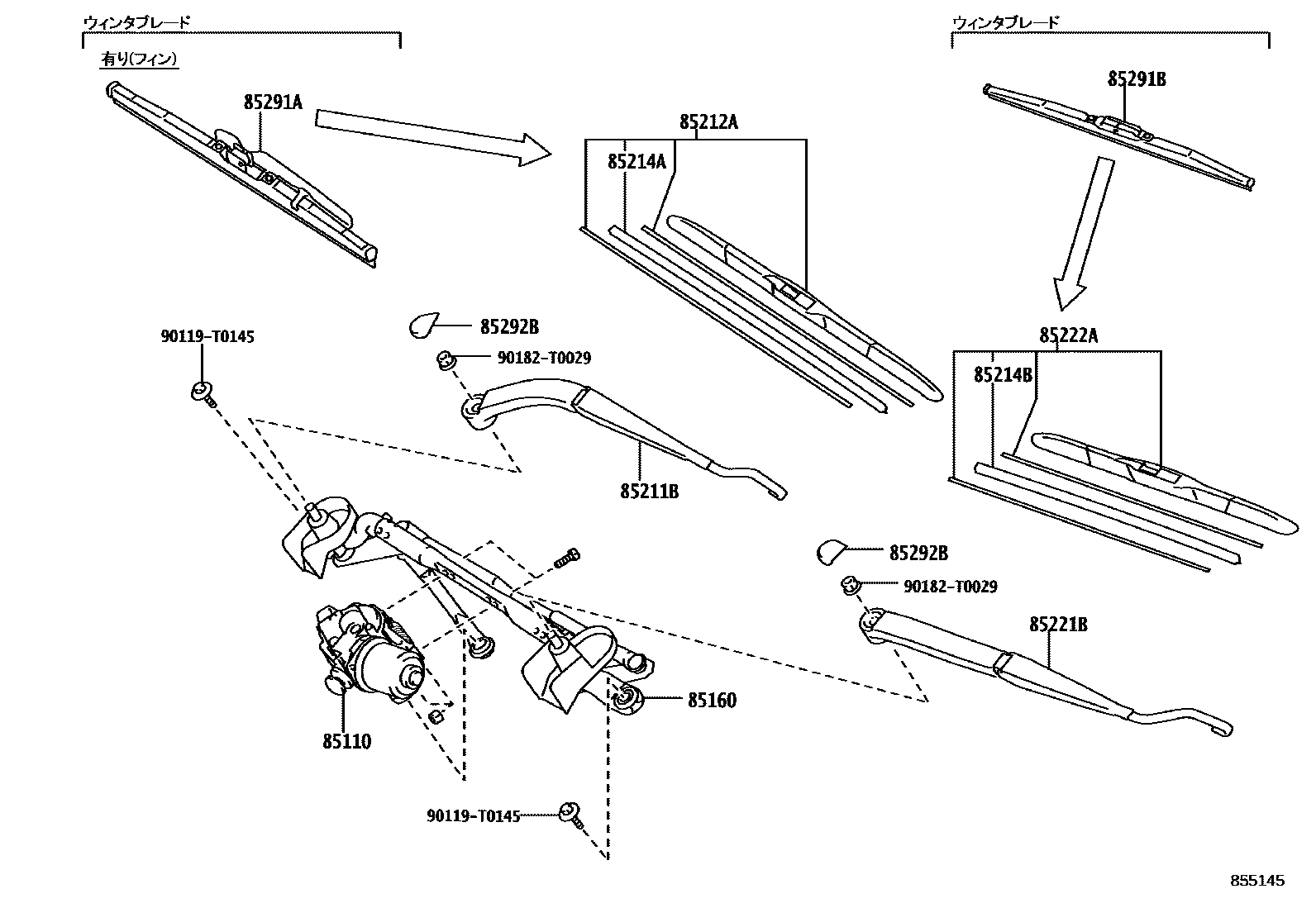

Toyota HILUX 挡风玻璃刮水器 — Figure 8501
Toyota HILUX EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-0K100 |
| 85160 | Windshield wiper connecting rod assembly | 85150-0K100 |
| 85211B | Right front wiper arm | 85211-0K110 |
| 85212A | Right front wiper blade | 85212-71010 |
| 85214A | Right wiper rubber strip | 85214-53080 |
| 85214B | Left wiper rubber strip | 85214-28090 |
| 85221B | Left front wiper arm | 85221-0K130 |
| 85222A | Left front wiper blade | 85222-42130 |
| 85291A | Right front wiper blade for winter use | 85291-71010 |
| 85291B | Left front wiper blade for winter use | 85291-71020 |
| 85292B | Front wiper arm cap | 85292-0D030 |
