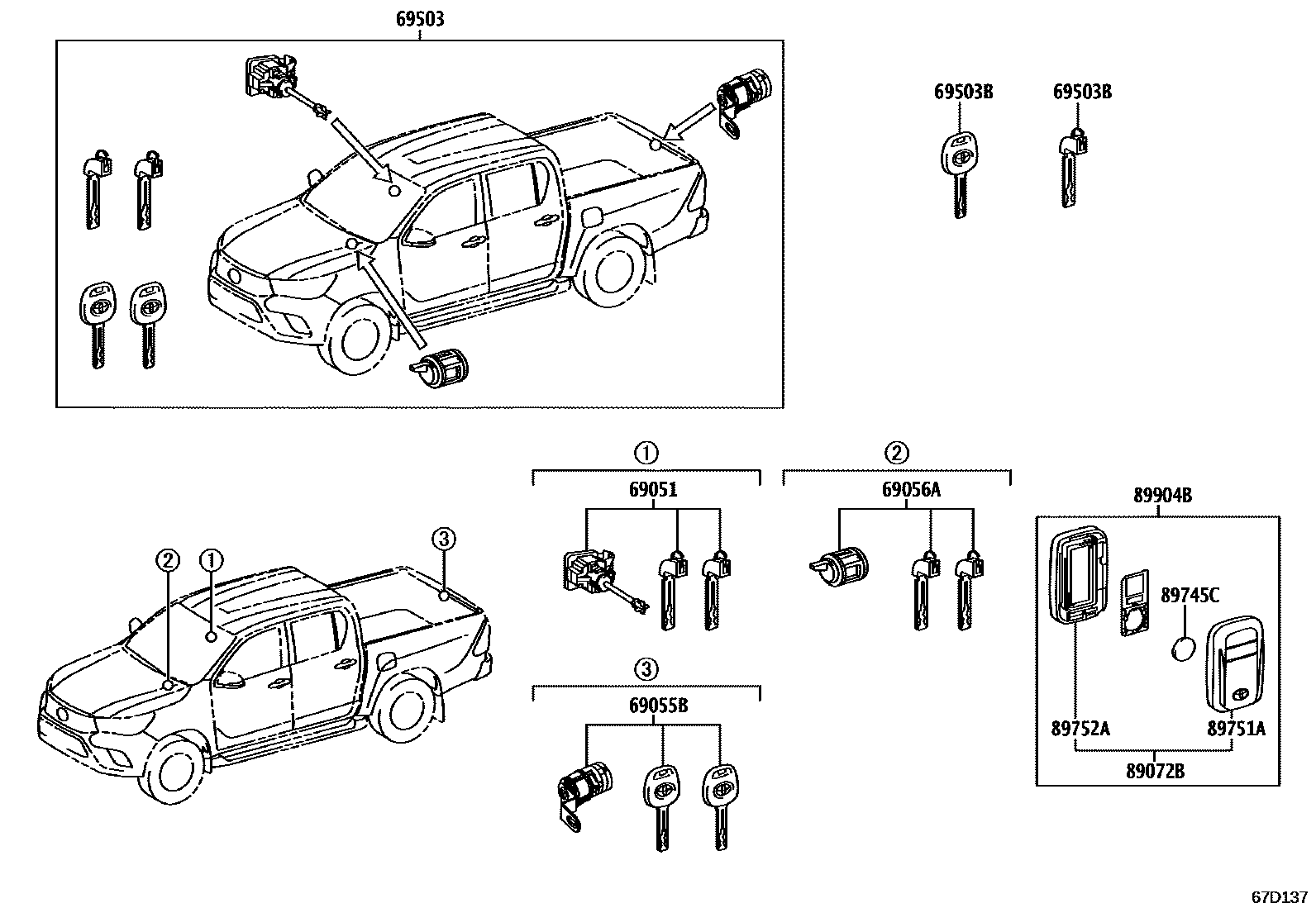

Toyota HILUX 锁芯组件 — Figure 6765
Toyota HILUX EPC diagram 6765, 锁芯组件, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-0K230 |
| 69055B | Rear door lock cylinder and key assembly | 69055-0K080 |
| 69056A | Glove box lock cylinder and key assembly | 69056-0K060 |
| 69503 | Door lock cylinder components | 69005-0K400 |
| 69503B | internal tooth key | 69515-0K120 · 69515-33110 |
| 89072B | Remote key shell assembly (for smart key) | 89072-0K790 · 89072-0KG40 |
| 89745C | Transmitter battery | 89745-0K010 |
| 89751A | Transmitter housing cover | 89751-0K120 |
| 89752A | transmitter housing | 89752-0K390 · 89752-0K840 |
| 89904B | Electronic key transmitter sub-assembly | 89904-0K820 · 89904-0KM50 |
