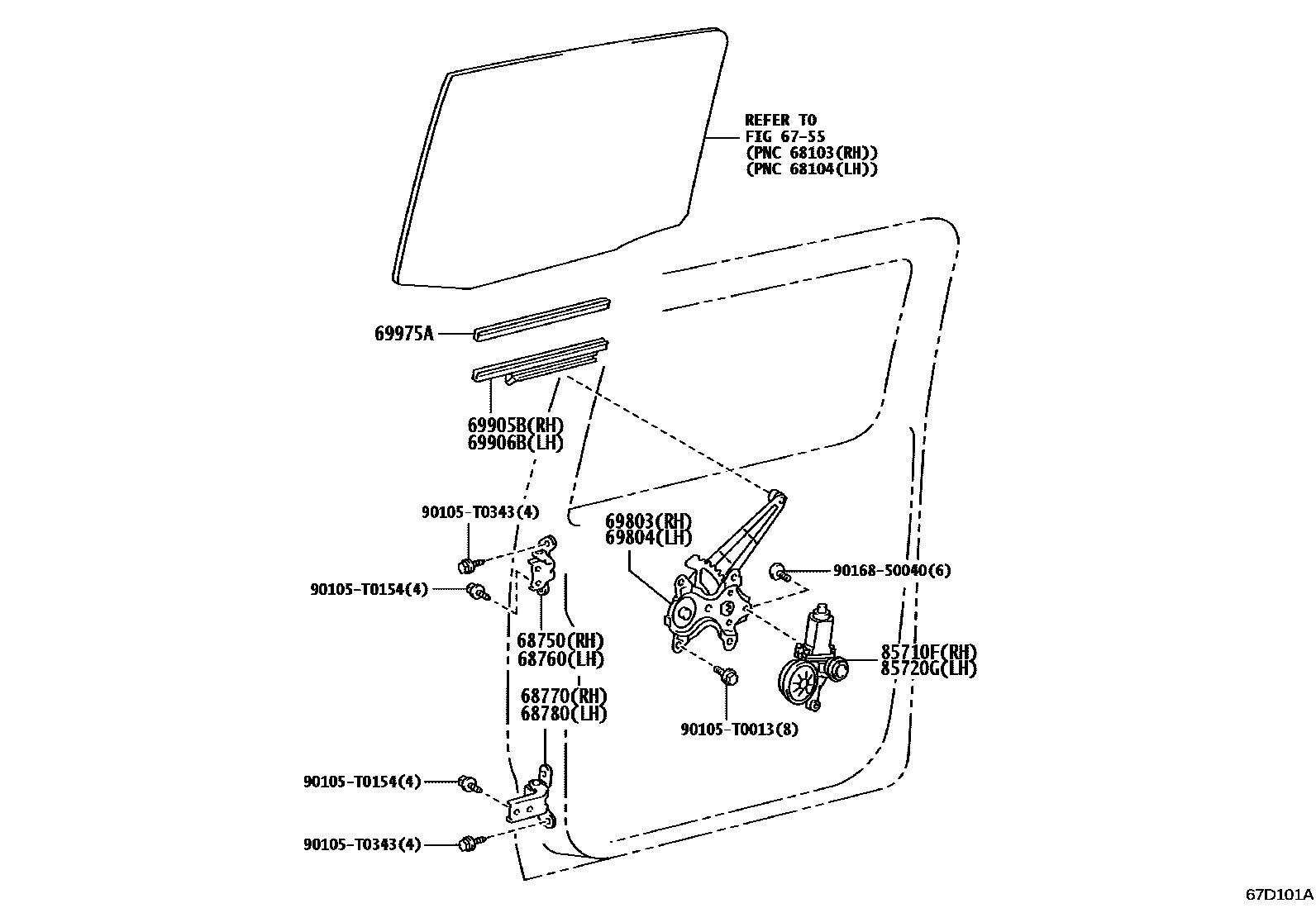

Toyota HILUX 后门车窗升降器和合页 — Figure 6757
Toyota HILUX EPC diagram 6757, 后门车窗升降器和合页, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-0D030 |
| 68760 | Left rear door upper hinge assembly | 68760-0D030 |
| 68770 | Right rear door lower hinge assembly | 68770-0D030 |
| 68780 | Left rear door lower hinge assembly | 68780-0D030 |
| 69803 | Right rear door window lifter sub-assembly | 69803-0K110 |
| 69804 | Left rear door window lifter sub-assembly | 69804-0K110 |
| 69905B | Right rear door glass groove sub-assembly | 69905-0K071 |
| 69906B | Left rear door glass groove sub-assembly | 69906-0K071 |
| 69975A | Rear door glass channel filler | 69975-0D130 |
| 85710F | Right power window lift motor assembly | 85720-0K270 |
| 85720G | Left electric window lift motor assembly | 85710-0K270 |
