Toyota HILUX 后车身防护架和背门 — Figure 6553

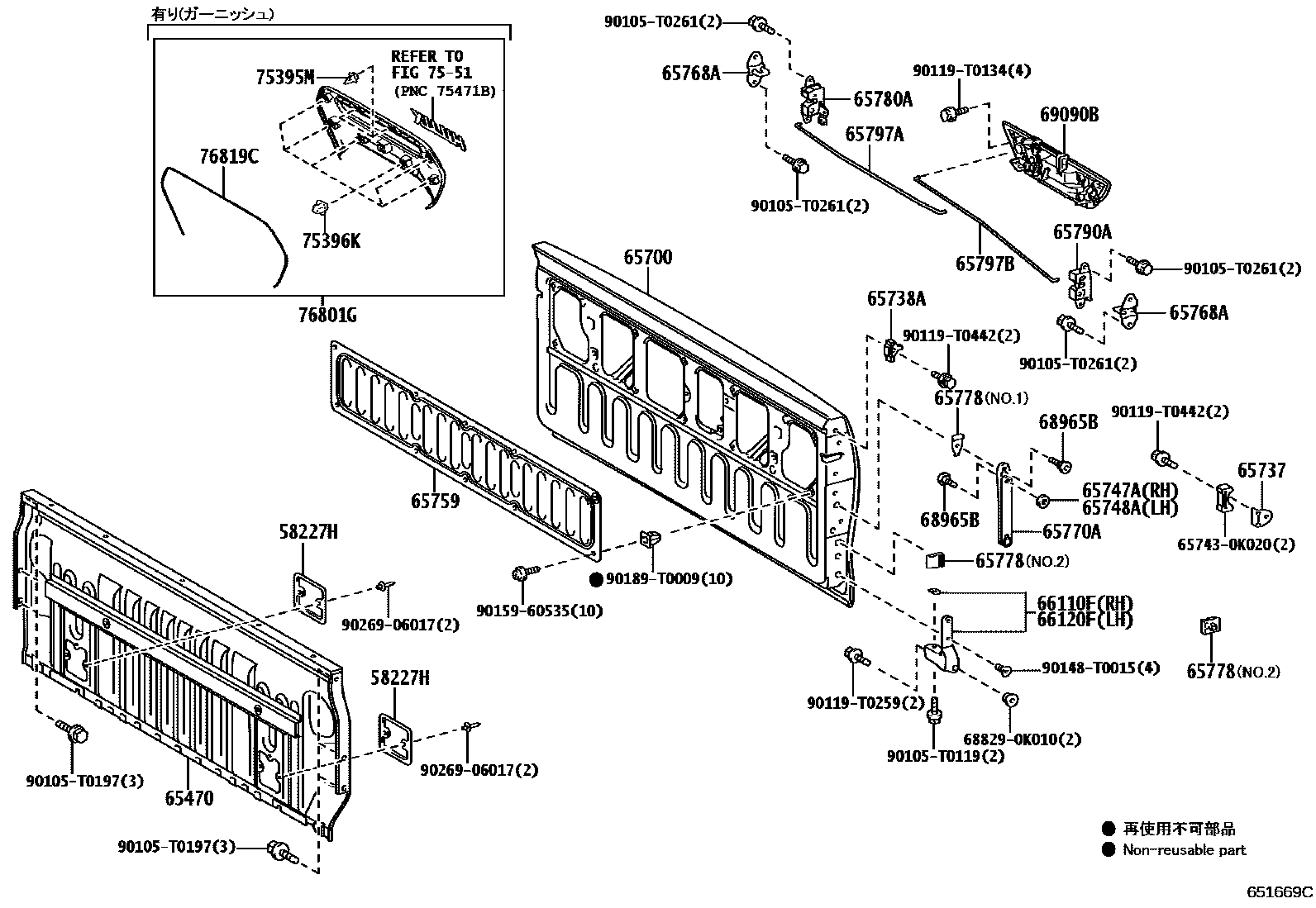

Toyota HILUX EPC diagram 6553, 后车身防护架和背门, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58227H | Top cover No. 1 | 58227-0K031 |
| 65470 | Top plate assembly | 65470-KK010 |
| 65700 | Rear body back door assembly | 65700-KK010 · 65700-YP010 |
| 65737 | Back door stopper | 65737-0K020 |
| 65738A | Back door lock No. 1 hinge stop | 65738-KK010 |
| 65747A | Back door right seal plate | 65747-0K020 |
| 65748A | Rear door left seal plate | 65747-0K020 |
| 65759 | Rear door access hole cover | 65759-KK010 |
| 65768A | Back door latch | 65768-0K010 |
| 65770A | Back door support rod assembly | 65770-0K030 |
| 65778 | Back door support rod stop | 65778-0K020 · 65778-0K030 |
| 65780A | Back door right lock assembly | 65780-0K010 |
| 65790A | Back door left lock assembly | 65790-0K010 |
| 65797A | Rear door lock control linkage | 65797-0K070 |
| 65797B | Rear door lock control linkage | 65797-0K080 |
| 66110F | Back door right hinge assembly | 66110-0K020 |
| 66120F | Back door left hinge assembly | 66120-0K020 |
| 68965B | Back door support rod shaft | 68965-0K020 |
| 69090B | Rear door handle assembly | 69090-0K110 · 69090-0K350 |
| 75395M | Toyota part | 75395-0K010 |
| 75396K | Toyota part | 75396-35020 |
| 76801G | Toyota part | 76801-YP030 |
| 76819C | Toyota part | 76819-YP010 |
