Toyota HILUX 车顶内衬和消声垫 — Figure 6452

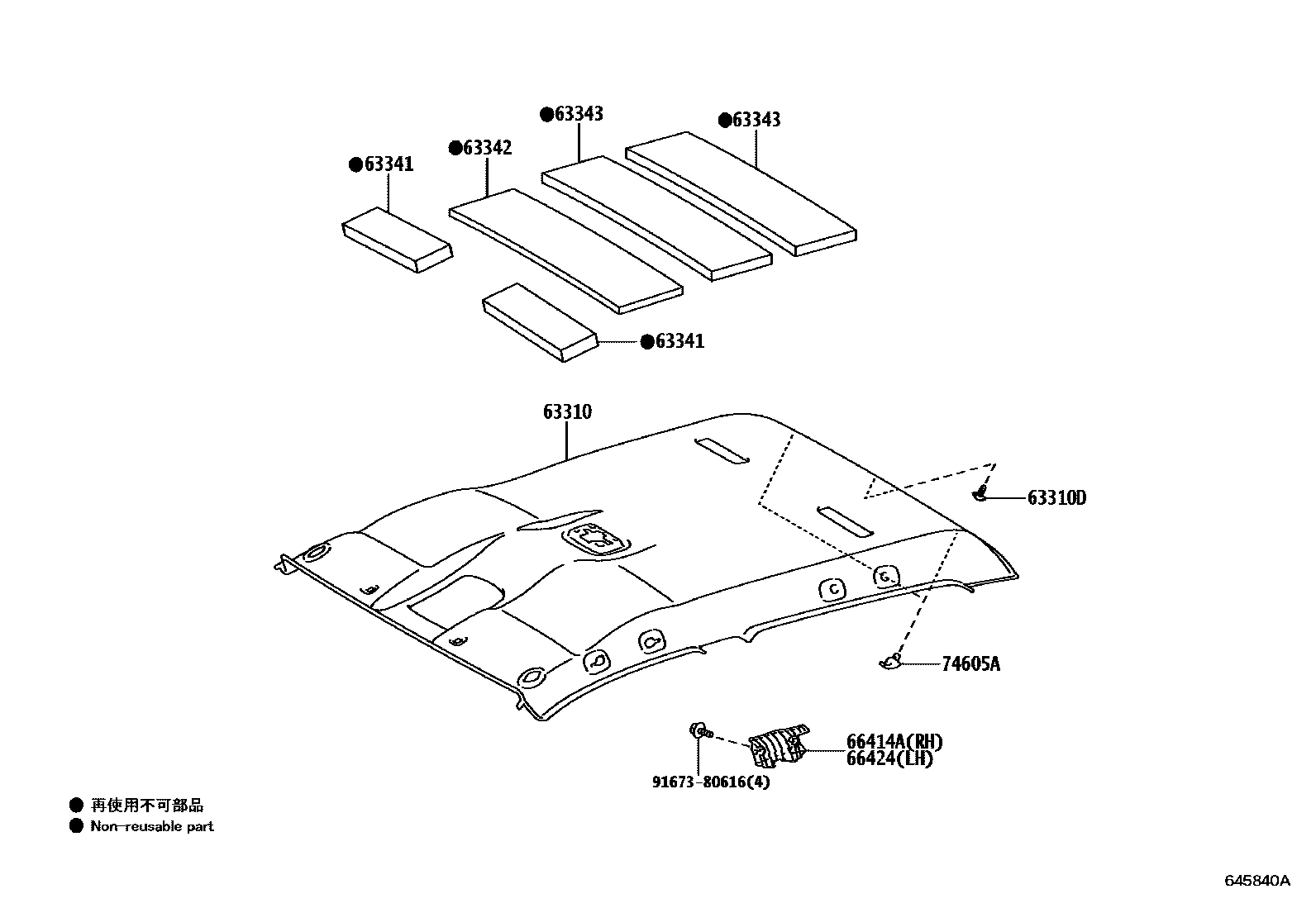

Toyota HILUX EPC diagram 6452, 车顶内衬和消声垫, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63342-0K230 |
| 63342 | No. 2 roof muffler pad | 63342-0K240 |
| 63343 | No. 3 roof muffler pad | 63342-0K460 |
| 66414A | Right rear longitudinal member spacer | 66414-KK010 |
| 66424 | Left rear longitudinal member spacer | 66424-KK010 |
