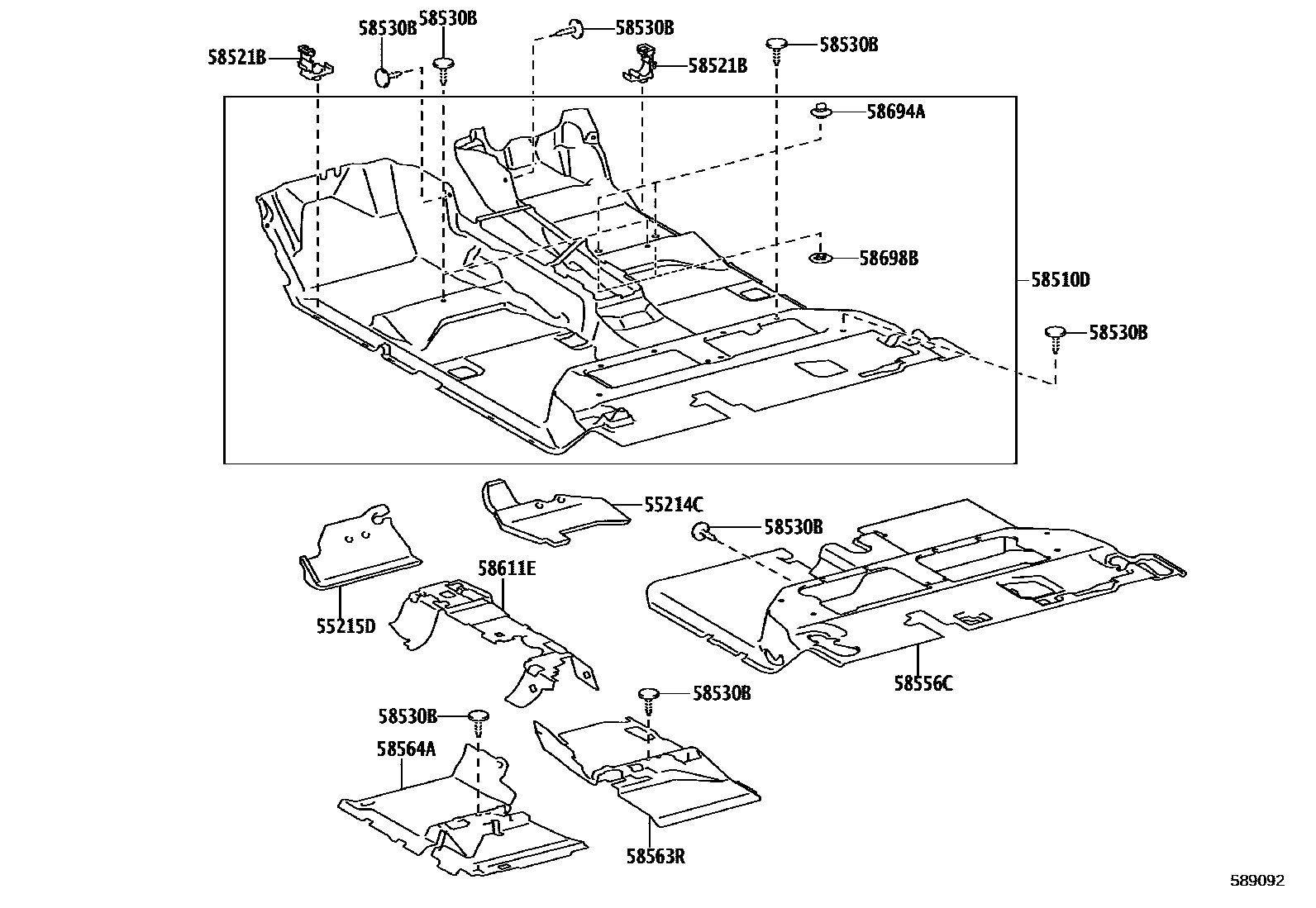

Toyota HILUX 地板垫和消声垫 — Figure 5854
Toyota HILUX EPC diagram 5854, 地板垫和消声垫, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55214C | No. 2 insulation pad for front wall panel | 55214-KK050 |
| 55215D | No. 3 insulation pad for front wall panel | 55215-KK020 |
| 58521B | carpet hook | 58521-0K120 |
| 58556C | Rear floor silencer | 58569-0K030 |
| 58563R | Front floor silencer No. 3 | 58563-0K120 |
| 58564A | Front floor silencer No. 4 | 58564-0K120 |
| 58611E | Front floor silencer panel | 58661-0K030 |
| 58694A | Pad the fixing plate | 58694-0K010 |
| 58698B | Fixing plate under the pad | 58698-0K070 |
