Toyota HILUX radiator grille — Figure 5351

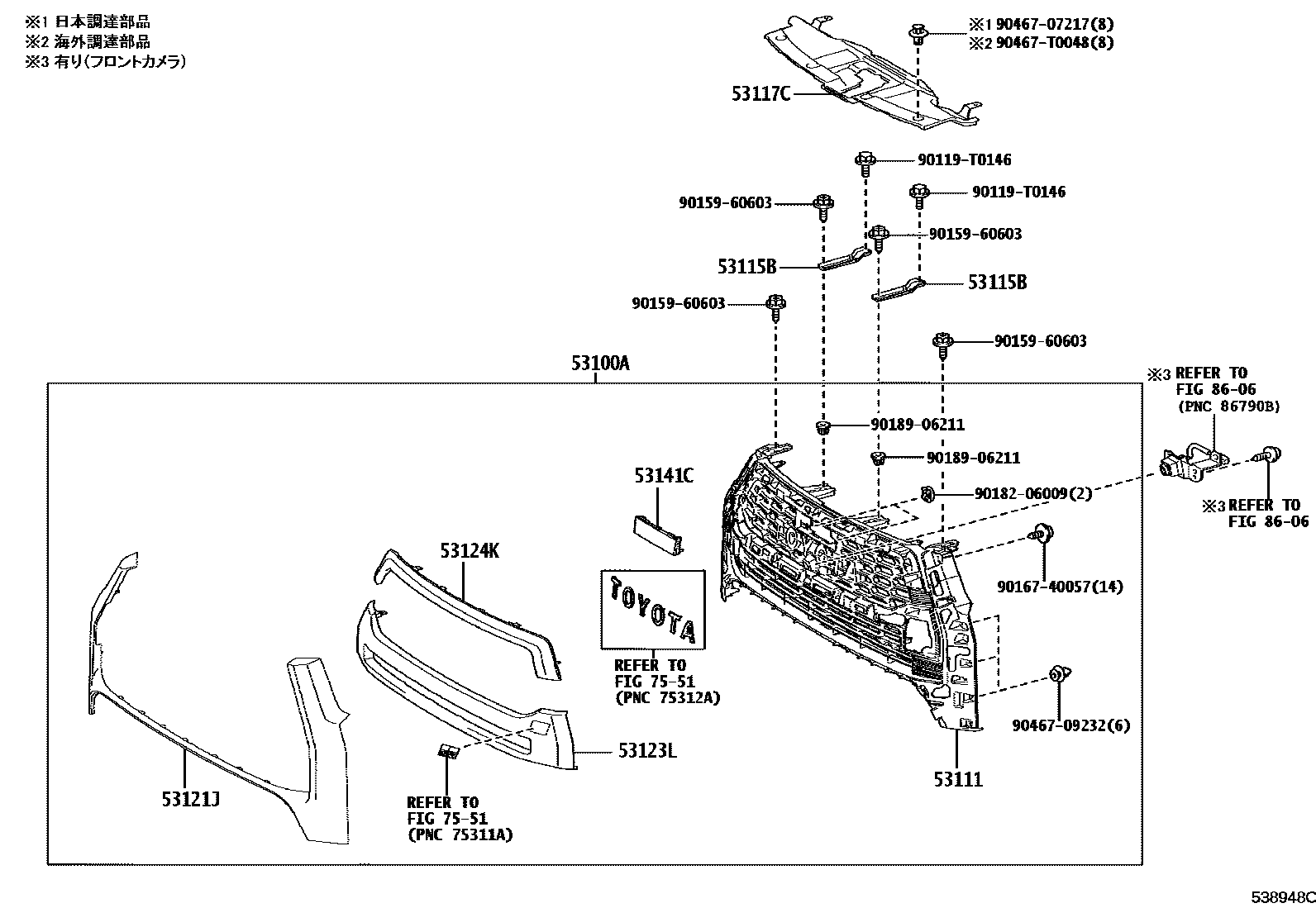

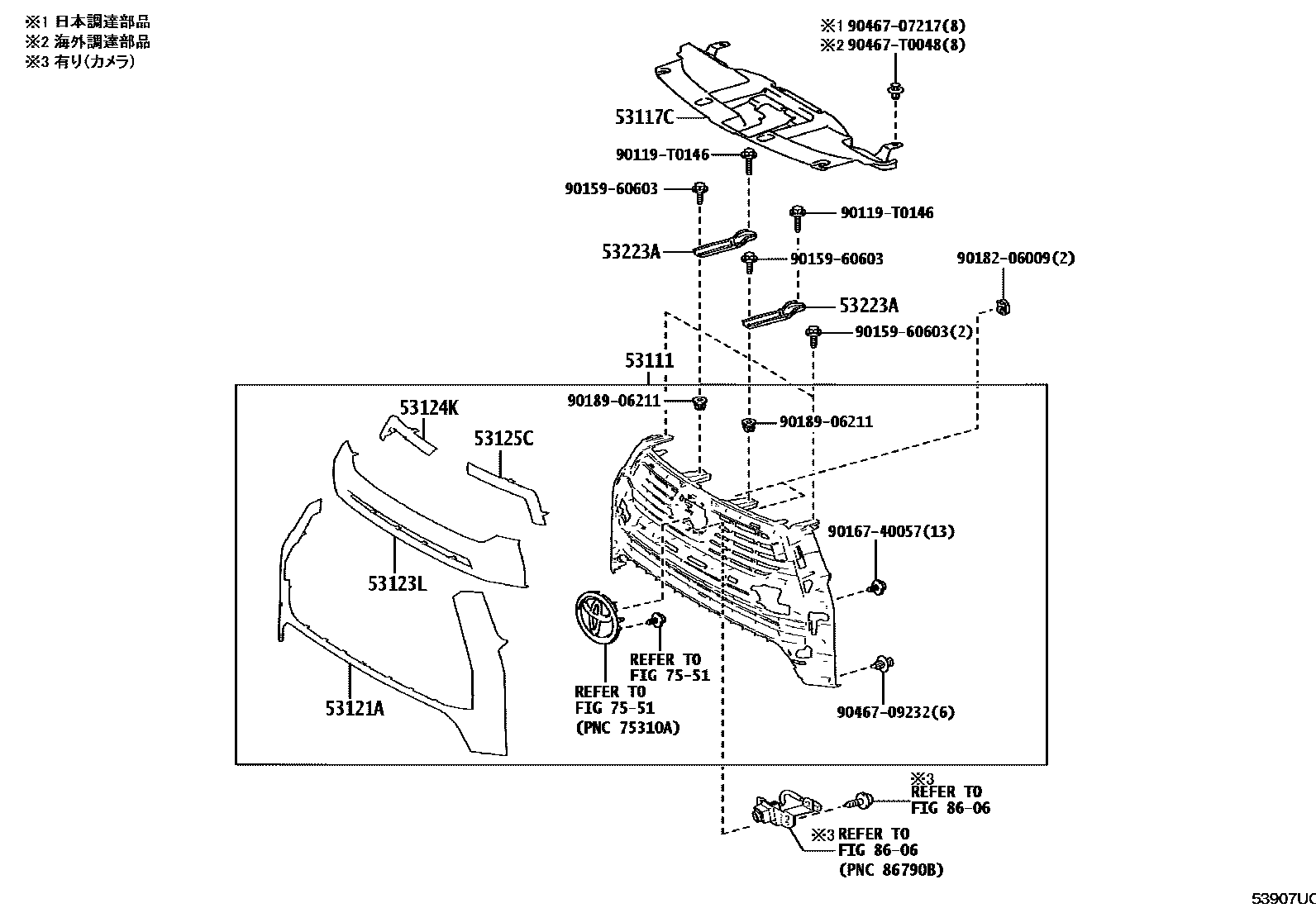

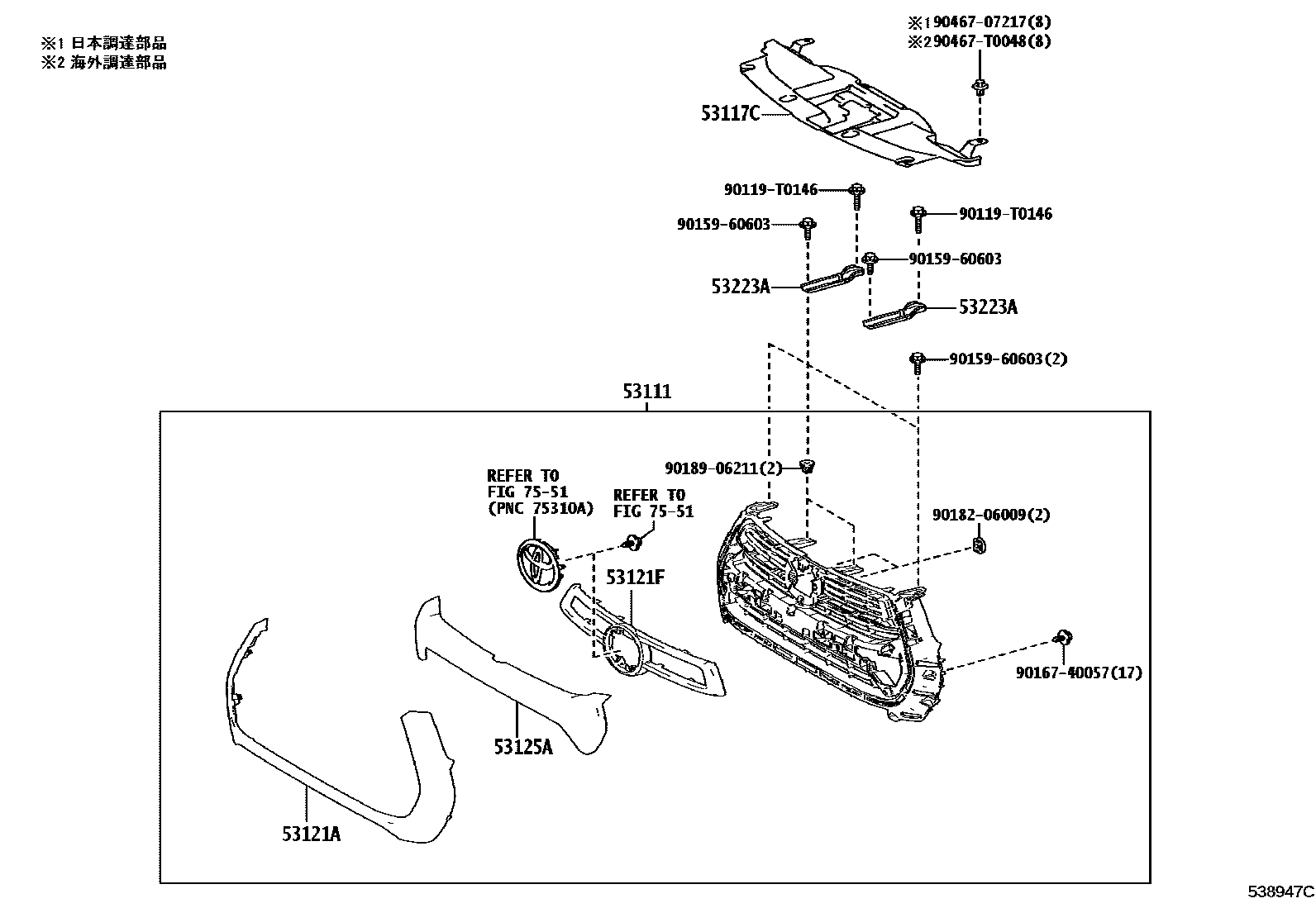

Toyota HILUX EPC diagram 5351, radiator grille, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53111 | radiator grille | 53100-0KW81 · 53100-YP691 · 53111-YP460 |
| 53115B | Radiator grille bracket | 53115-0K080 |
| 53117C | Radiator grille fixing No. 1 | 53117-0K120 |
| 53121A | Radiator grille protection strip | 53121-0K870 · 53121-YP160 |
| 53121F | Radiator grille upper right protective strip | 53125-0K490 |
| 53121J | Toyota part | 53121-YP180 |
| 53123L | Toyota part | 53123-YP010 · 53123-YP290 |
| 53124K | Toyota part | 53124-YP010 · 53124-YP290 |
| 53125A | Radiator grille right center protective strip | 53123-0K560 |
| 53125C | Radiator grille No. 5 protective strip | 53125-YP010 |
| 53141C | Radiator grille trim | 53141-26030 |
| 53223A | Radiator grille mounting bracket | 53115-0K080 |
