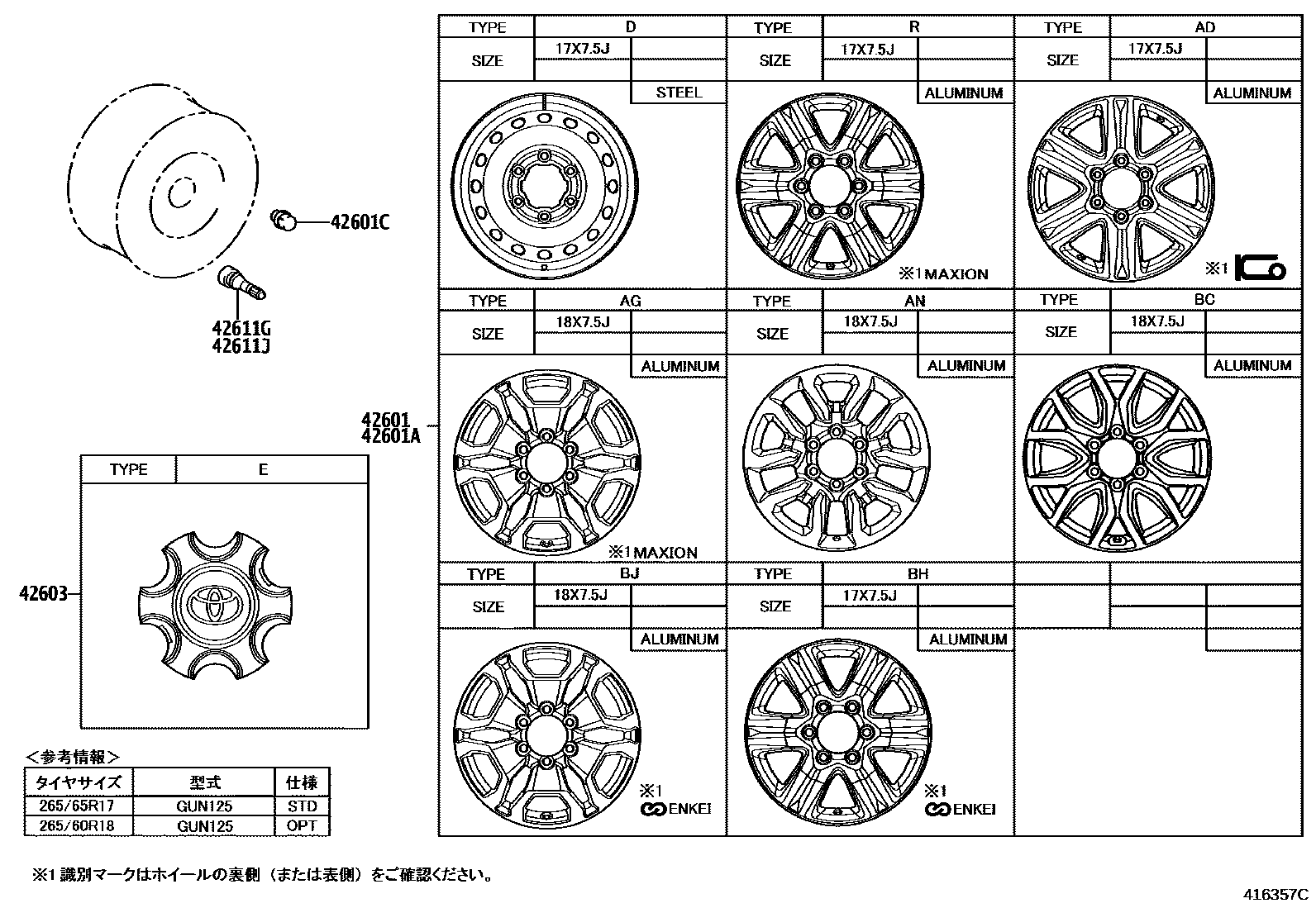

Toyota HILUX 车轮和车轮盖 — Figure 4103
Toyota HILUX EPC diagram 4103, 车轮和车轮盖, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-0KG10 · 42611-0KP90 · 42611-0KQ00 · 42611-0KR30 · 42611-0KT10 · 42611-YP070 · 42611-YP390 |
| 42601A | Spoke wheel (for spare tire) | 42611-0KG10 · 42611-0KG60 · 42611-0KP90 · 42611-0KQ00 · 42611-0KR30 · 42611-0KT10 · 42611-YP070 |
| 42601C | Hub nut (for axle) | 90942-01109 · 90942-T1005 |
| 42603 | Wheel hub decorative parts sub-assembly | 4260B-0K350 · 4260B-0K360 |
| 42611G | Valve (for tubeless tires) | 90080-94031 |
| 42611J | Valve (for tubeless spare tire) | 90080-94031 |
