Toyota HILUX Shift Lever & Retainer — Figure 3312

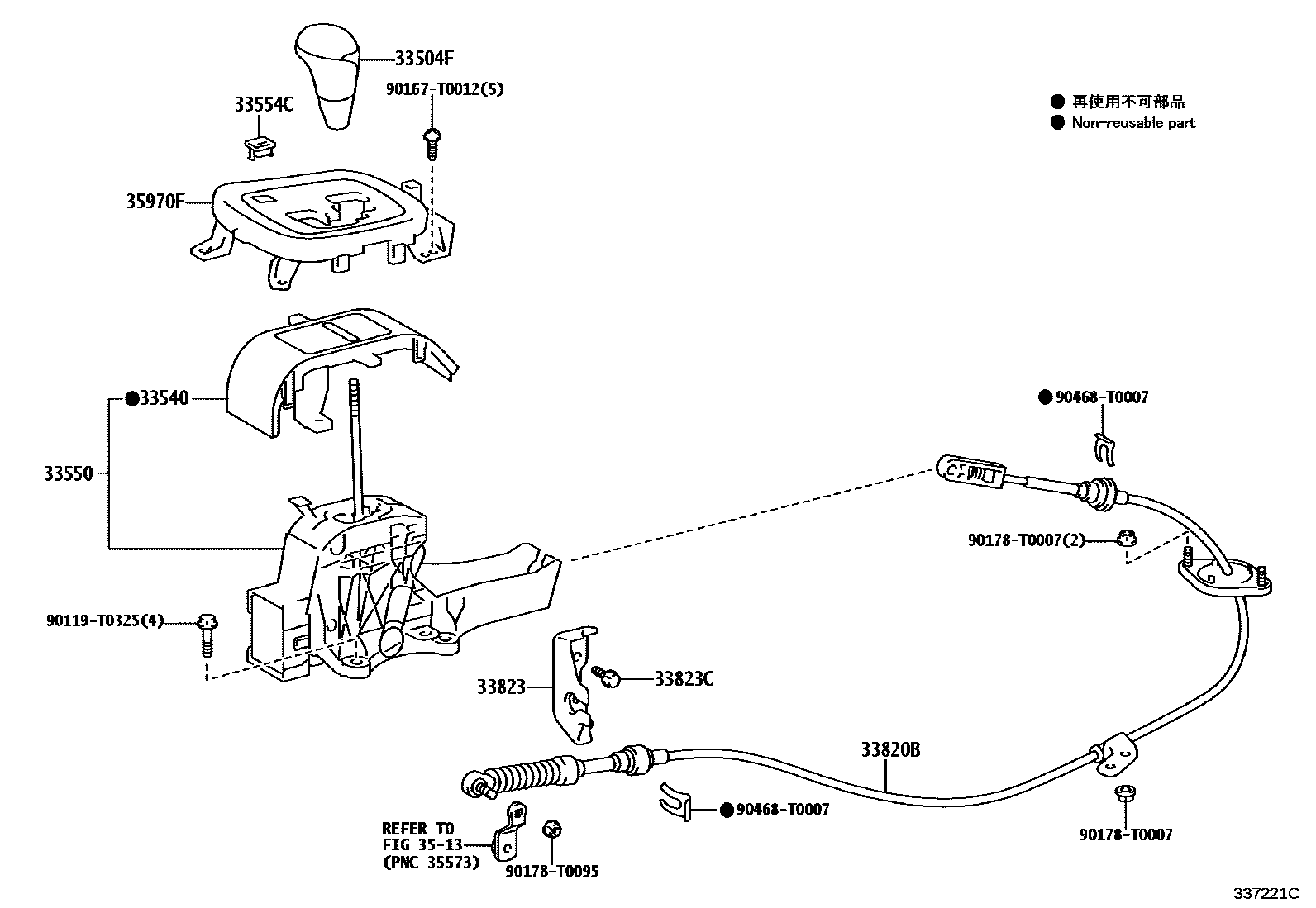

Toyota HILUX EPC diagram 3312, Shift Lever & Retainer, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33540 | Shift lever base plate assembly | 33540-0K040 |
| 33550 | Transmission floor shift assembly | 33550-0K170 |
| 33554C | Shift lock release button cover | 33554-0K020 |
| 33820B | Transmission control cable assembly | 33820-0K171 |
| 33823 | No. 1 transmission control cable bracket | 33823-KK010 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-T0102 |
| 35970F | Position indicator light housing assembly | 35970-0K310 · 35970-YP030 |
