Toyota HILUX RADIATOR & WATER OUTLET — Figure 1603

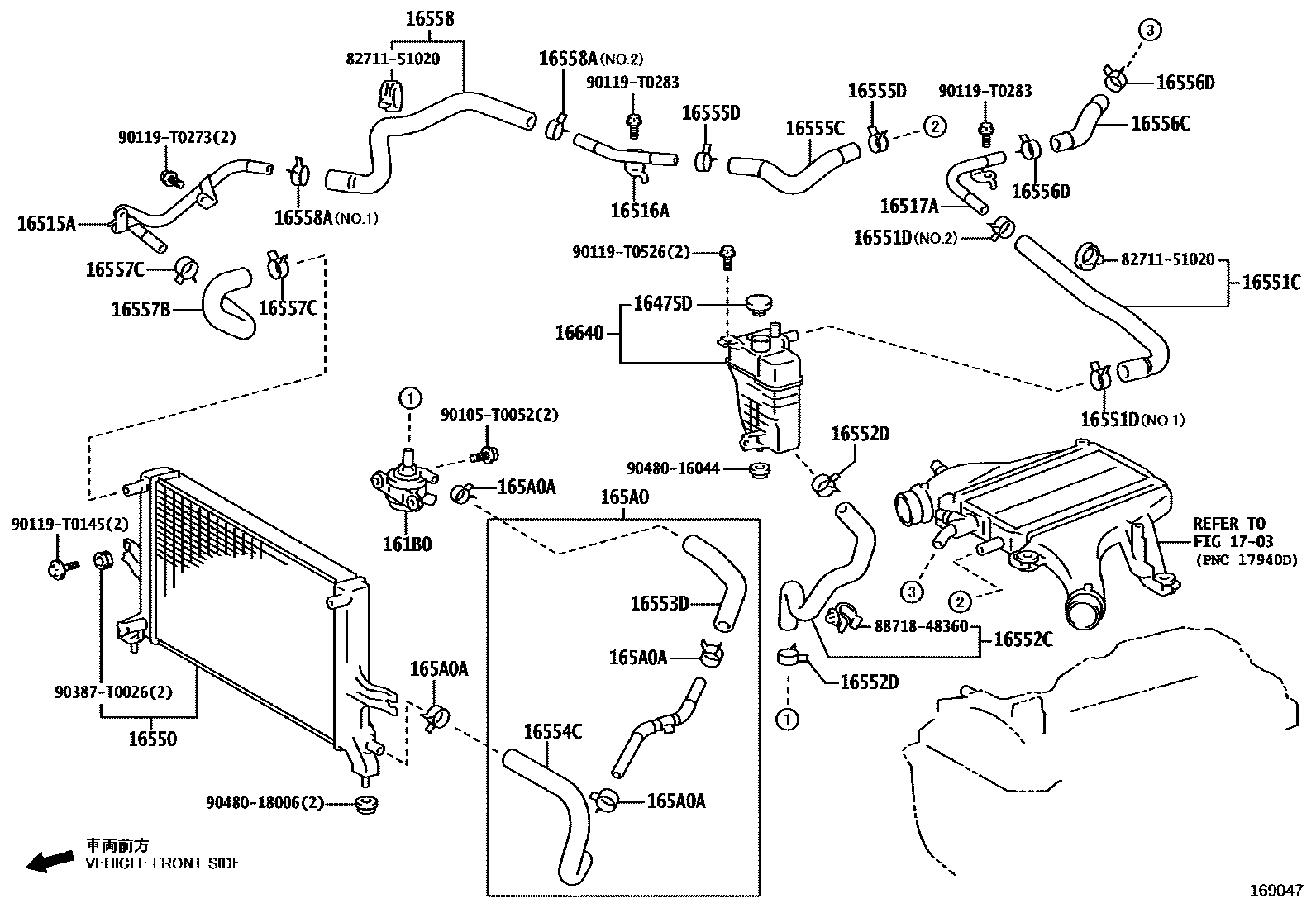

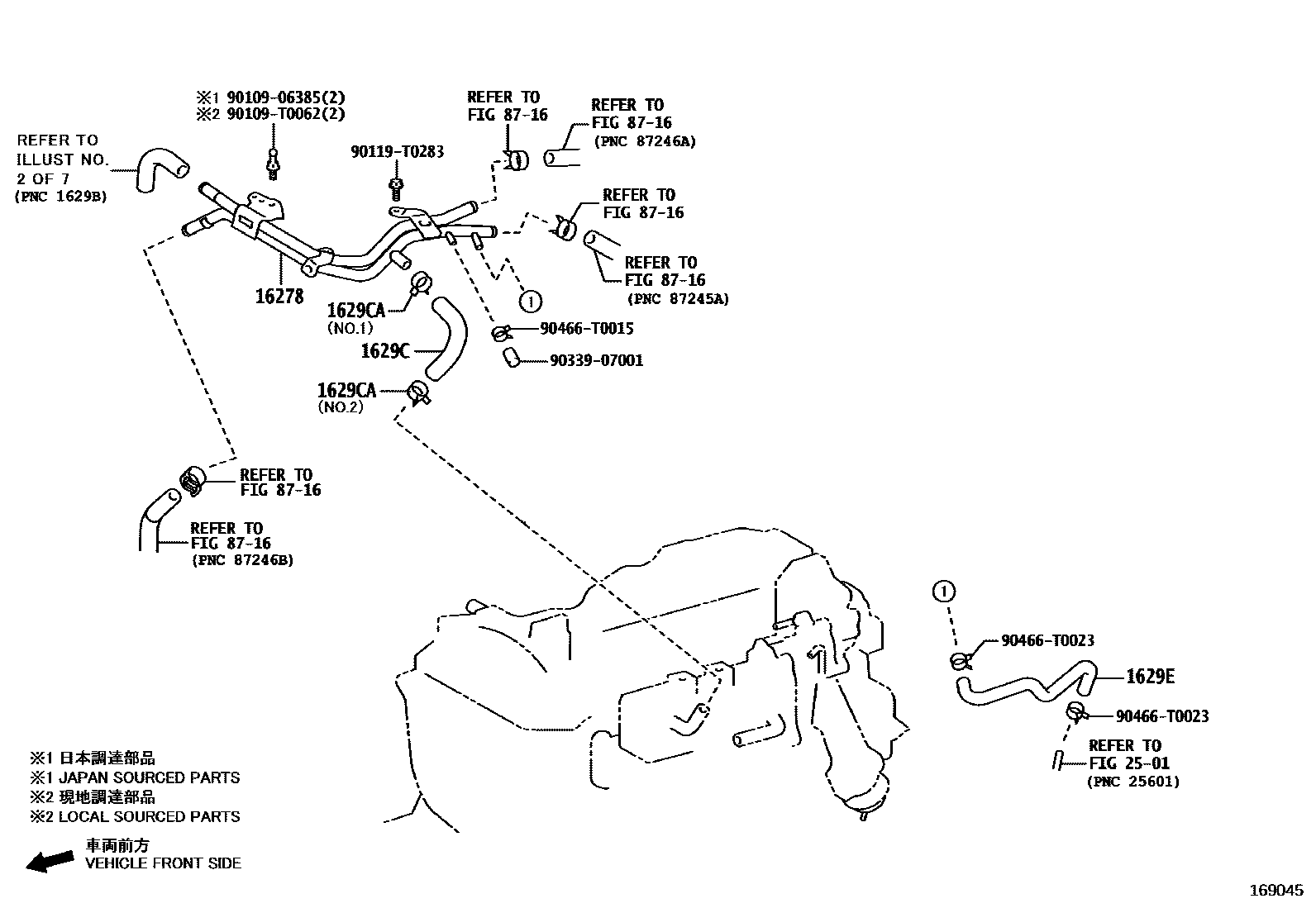

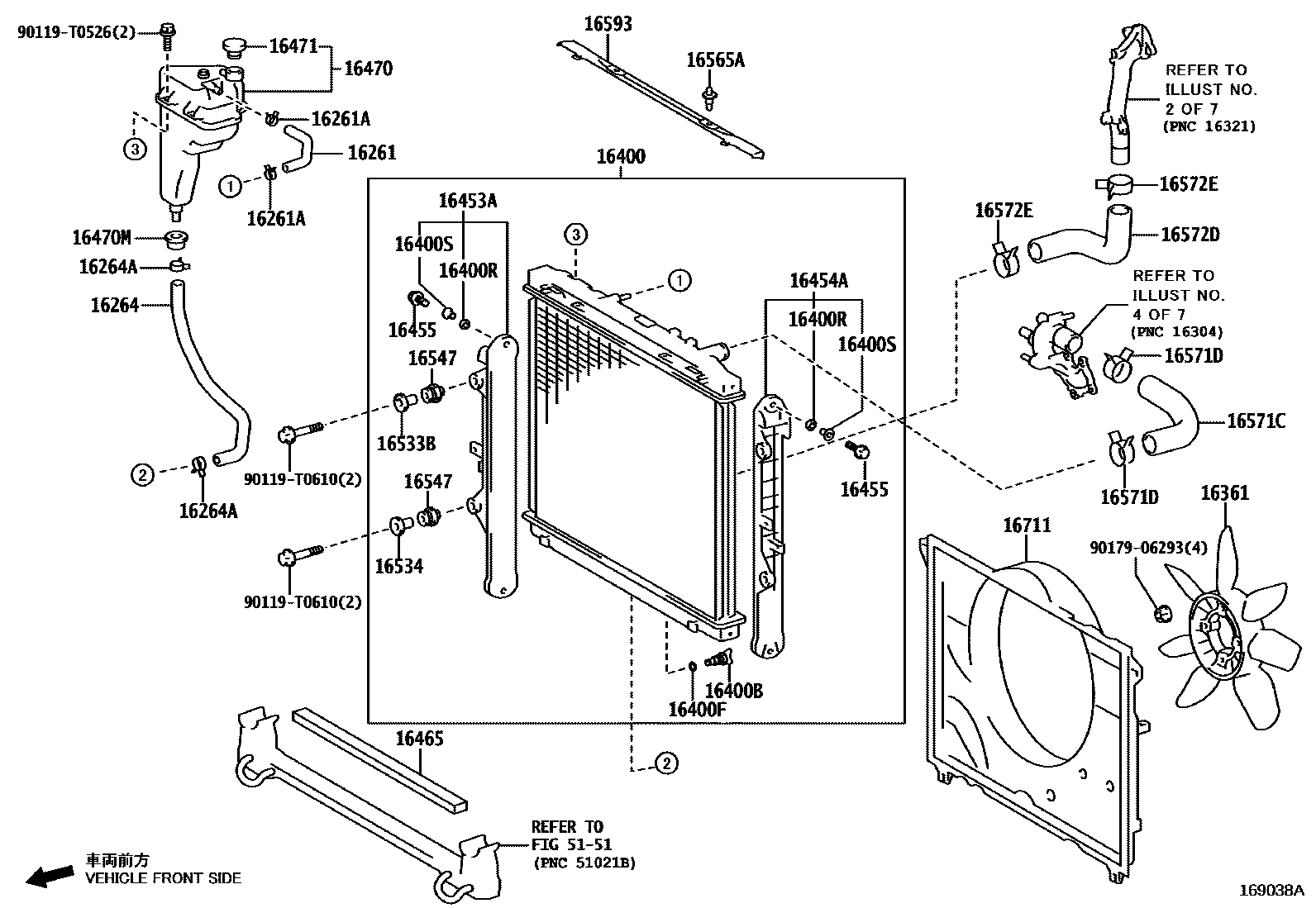

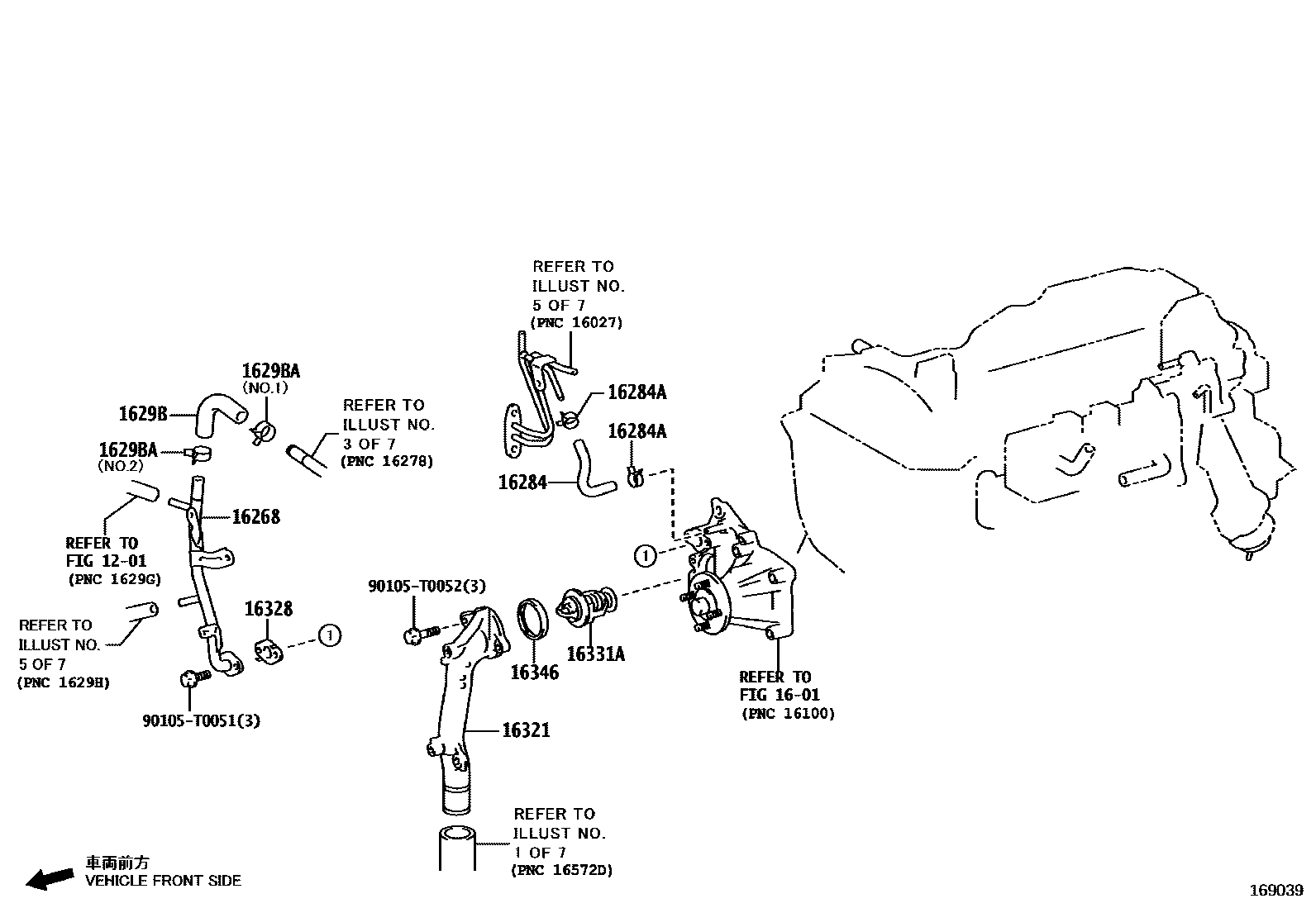

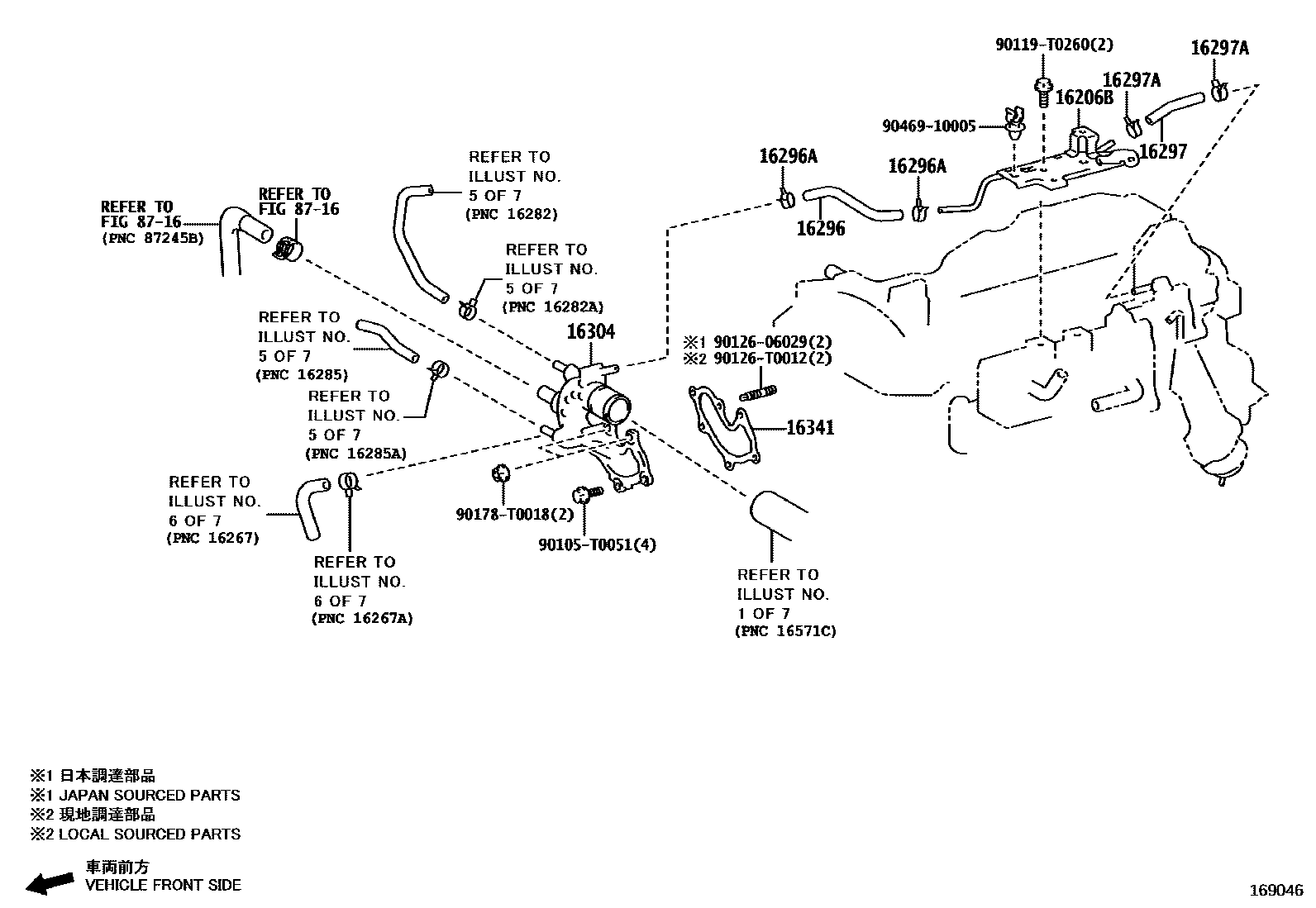

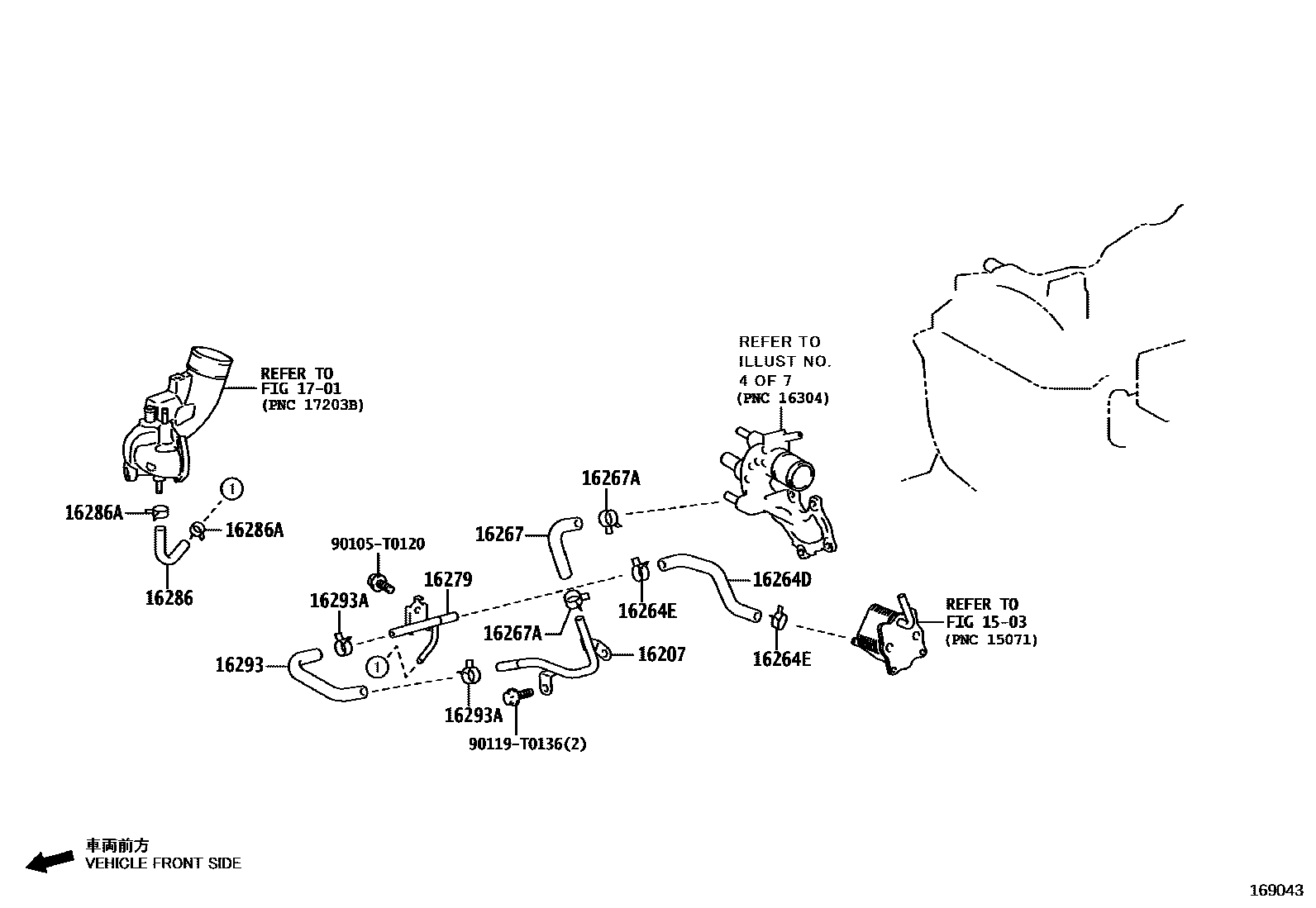

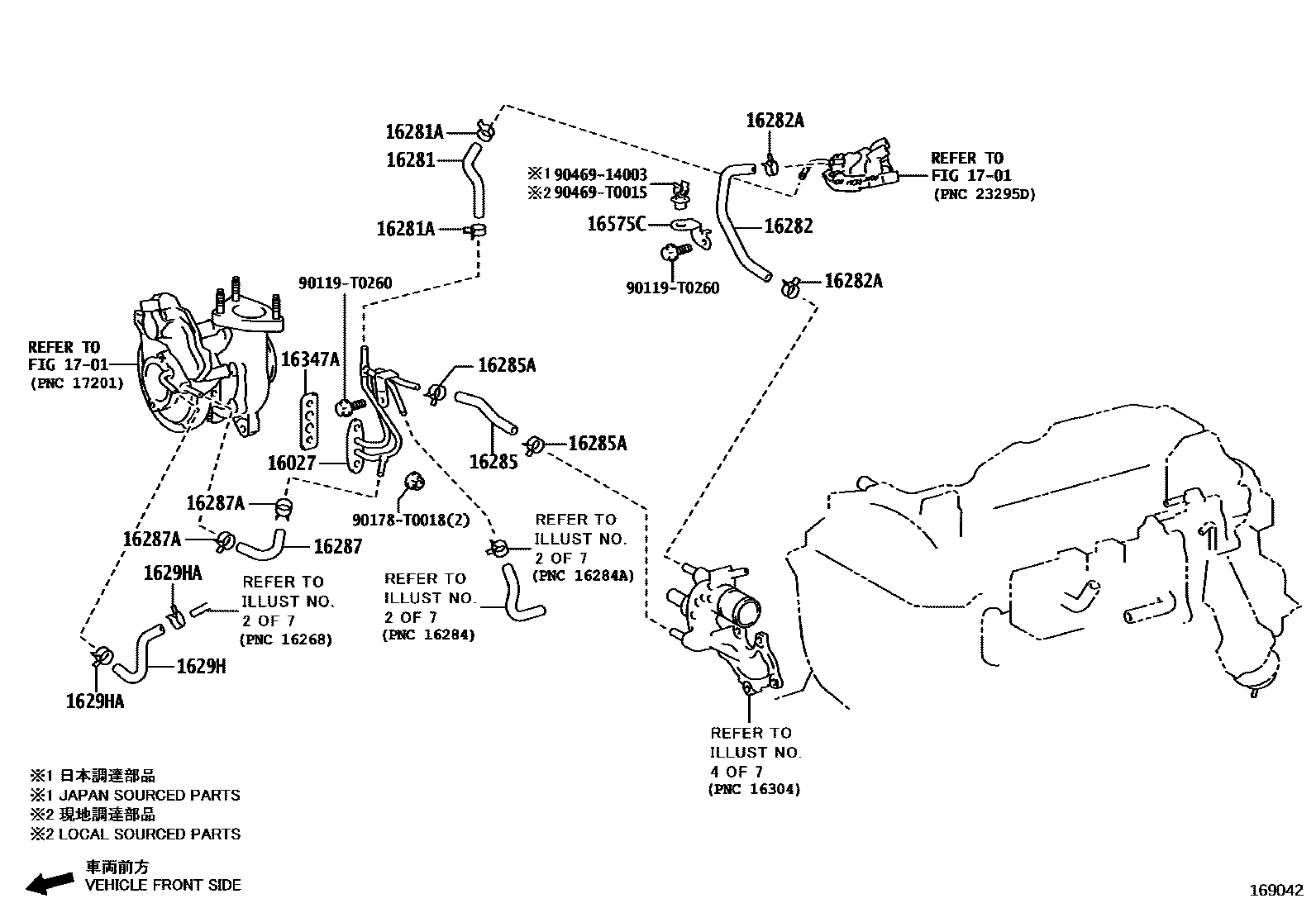

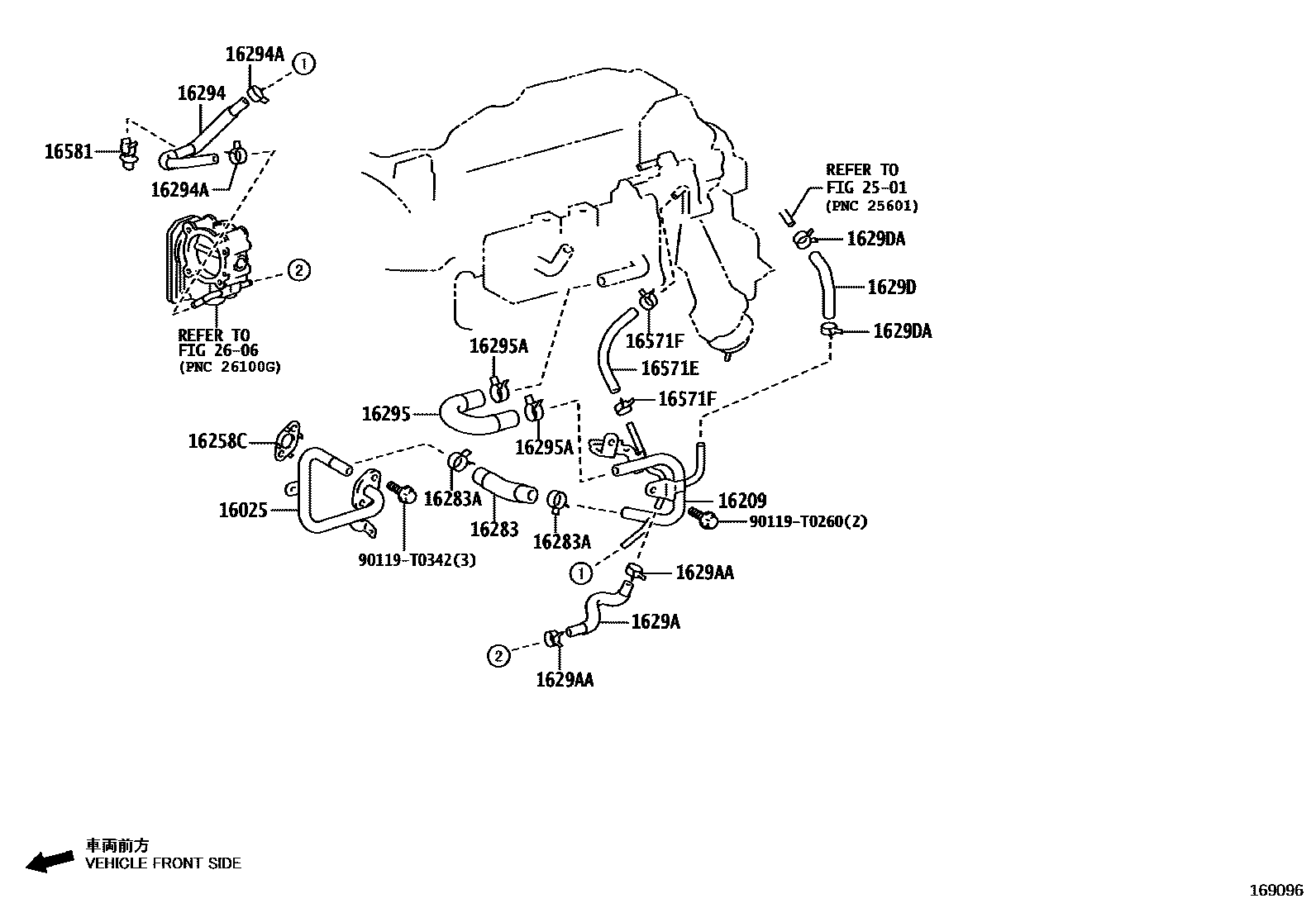

Toyota HILUX EPC diagram 1603, RADIATOR & WATER OUTLET, with 8 images and 107 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16025 | No. 5 water bypass pipe sub-assembly | 16025-0E010 |
| 16027 | No. 1 turbine water pipe sub-assembly | 16027-0E080 |
| 161B0 | Toyota part | 161B0-47010 |
| 16206B | No. 3 water bypass pipe sub-assembly | 16208-0E050 |
| 16207 | No. 2 water bypass pipe sub-assembly | 16207-0E011 |
| 16209 | No. 4 water bypass pipe sub-assembly | 16209-0E100 |
| 16258C | Gasket (for water bypass pipe) | 16258-0E010 |
| 16261 | HOSE, WATER BY-PASS | 16261-0L121 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-T0069 · 96136-51901 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0L110 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-T0031 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-0E011 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90466-T0017 · 96136-42101 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0E010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-T0017 · 96136-42101 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0E050 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-0E041 |
| 16279 | No. 3 water bypass pipe | 16279-0E020 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-0E010 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90466-T0059 · 96137-41501 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-0E010 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90466-T0059 · 96137-41501 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-0E010 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90466-T0020 · 96136-42501 |
| 16284 | Turbine Water Hose No. 1 | 16284-0E010 |
| 16284A | Clamp (for No. 1 turbine water hose) | 90466-T0059 |
| 16285 | Turbine Water Hose No. 2 | 16285-0E010 |
| 16285A | Clamp (for No. 2 turbine water hose) | 90466-T0059 |
| 16286 | No. 3 turbine water hose | 16286-0E010 |
| 16286A | Clamp (for No. 3 turbine water hose) | 90466-T0015 |
| 16287 | No. 4 turbine water hose | 16287-0E010 |
| 16287A | Clamp (for No. 4 turbine water hose) | 90466-T0059 |
| 16293 | No. 10 water bypass hose | 16293-0E011 |
| 16293A | Clamp (for No. 10 water bypass hose) | 90466-T0017 · 96136-42101 |
| 16294 | HOSE, WATER BY-PASS, NO.11 | 16294-0E010 |
| 16294A | Toyota part | 90466-T0015 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-0E010 |
| 16295A | CLIP, WATER BY-PASS HOSE NO.7 | 90466-T0020 · 96136-42501 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-0E010 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 90466-T0015 |
| 16297 | No. 9 water bypass hose | 16297-0E010 |
| 16297A | Clamp (for No. 9 water bypass hose) | 90466-T0015 |
| 1629A | Toyota part | 1629A-0E010 |
| 1629AA | Toyota part | 90466-T0015 |
| 1629B | Toyota part | 1629B-0E010 |
| 1629BA | Toyota part | 90466-T0020 · 96136-42501 |
| 1629C | Toyota part | 1629C-0E030 |
| 1629CA | Toyota part | 90466-T0020 · 96138-42501 |
| 1629D | Toyota part | 1629D-0E011 |
| 1629DA | Toyota part | 90466-T0042 |
| 1629E | Toyota part | 1629E-0E020 |
| 1629H | Toyota part | 1629H-0E010 |
| 1629HA | Toyota part | 90466-T0015 |
| 16304 | Water outlet sub-assembly | 16304-0E030 |
| 16321 | water inlet | 16321-0E010 |
| 16328 | Inlet pipe gasket | 16328-0E010 |
| 16331A | thermostat | 90916-03118 |
| 16341 | GASKET, WATER OUTLET | 16341-0E010 · 16341-0E020 · 16341-11010 |
| 16346 | thermostat gasket | 16346-0K010 |
| 16347A | Liners (for turbine water pipes) | 16347-0E010 |
| 16361 | Fan | 16361-0L020 |
| 16400 | Radiator assembly | 16400-0L363 |
| 16400B | Radiator drain switch screw plug | 16417-0C180 |
| 16400F | Seal (for radiator drain switch) | 16492-0L060 |
| 16400R | Bushing (for radiator) | 16444-0L060 |
| 16400S | Collar (for radiator) | 16445-0C180 |
| 16453A | Toyota part | 16454-0L361 |
| 16454A | Toyota part | 16453-0L430 |
| 16455 | Radiator side support plate bolts | 91651-B0820 |
| 16465 | Radiator seal | 88619-0K010 |
| 16470 | Radiator reservoir assembly | 16470-0L083 |
| 16470M | gasket | 90480-T0004 |
| 16471 | Liquid storage tank cover sub-assembly | 16475-28140 |
| 16475D | Toyota part | 16475-28140 |
| 16515A | Toyota part | 16516-0E020 |
| 16516A | Toyota part | 16516-0E010 |
| 16517A | Toyota part | 16517-0E010 |
| 16533B | Radiator bracket No. 1 | 16533-0L010 |
| 16534 | Radiator bracket No. 2 | 16534-0L010 |
| 16547 | Radiator bracket bushing No. 1 | 16547-0L010 |
| 16550 | Toyota part | 16550-0E010 |
| 16551C | Toyota part | 16551-0E010 |
| 16551D | Toyota part | 90466-T0017 · 90466-T0031 |
| 16552C | Toyota part | 16552-0E010 |
| 16552D | Toyota part | 90466-T0031 |
| 16553D | Toyota part | 16553-0E010 |
| 16554C | Toyota part | 16554-0E010 |
| 16555C | Toyota part | 16555-0E010 |
| 16555D | Toyota part | 90466-T0017 |
| 16556C | Toyota part | 16556-0E010 |
| 16556D | Toyota part | 90466-T0017 |
| 16557B | Toyota part | 16555-0E020 |
| 16557C | Toyota part | 90466-T0031 |
| 16558 | Toyota part | 16556-0E020 |
| 16558A | Toyota part | 90466-T0017 · 90466-T0031 |
| 16571C | Radiator hose No. 1 | 16571-0L150 |
| 16571D | No. 1 radiator hose clip | 90466-T0024 |
| 16571F | Clamps or clips (for water hoses) | 90466-T0015 |
| 16572D | Radiator hose No. 2 | 16572-0L150 |
| 16572E | No. 2 radiator hose clip | 90466-T0024 |
| 16575C | No. 1 water hose clamp bracket | 16575-0E010 |
| 16581 | Hose clamp (for water hose) | 16581-0E010 |
| 16593 | Radiator deflector No. 1 | 16593-0L040 |
| 165A0 | Toyota part | 165A0-0E010 |
| 165A0A | Toyota part | 90466-T0031 |
| 16640 | Toyota part | 16640-0E010 |
| 16711 | fan cover | 16711-0E010 |
