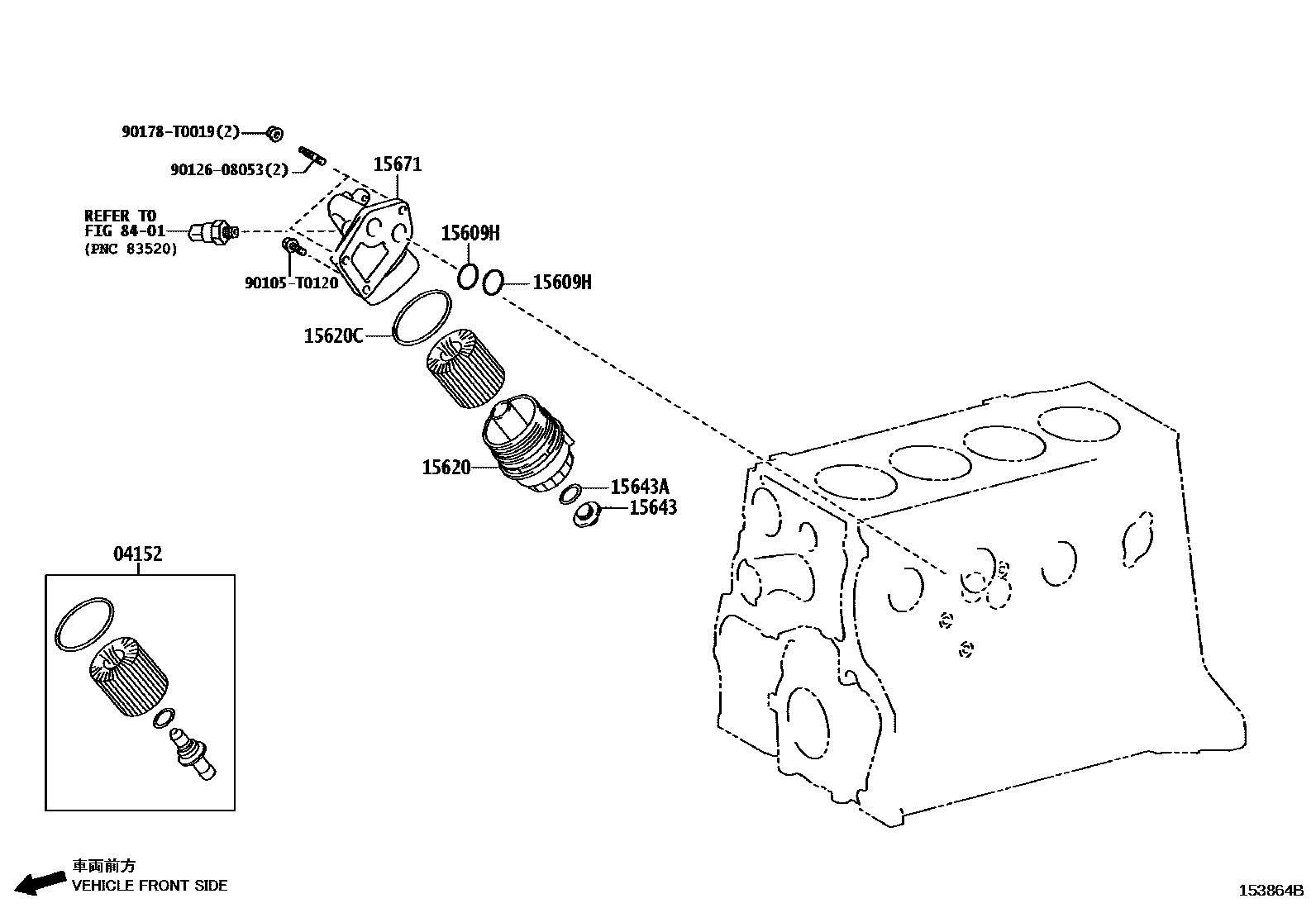

Toyota HILUX Oil Filter — Figure 1502
Toyota HILUX EPC diagram 1502, Oil Filter, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04152 | Oil Filter Element Kit | 04152-38010 |
| 15609H | O-ring (for oil filter bracket) | 90301-T0046 |
| 15620 | Oil filter cover assembly | 15620-31050 |
| 15620C | Gasket (for oil filter cover) | 90301-79006 |
| 15643 | Oil filter drain plug | 15643-31050 |
| 15643A | O-ring (for oil filter drain plug) | 96723-35028 |
| 15671 | Oil filter bracket | 15671-35010 |
