Toyota HILUX Engine Oil Pump — Figure 1501

Toyota HILUX EPC diagram 1501, Engine Oil Pump, with 2 images and 3 PNC and OE references.

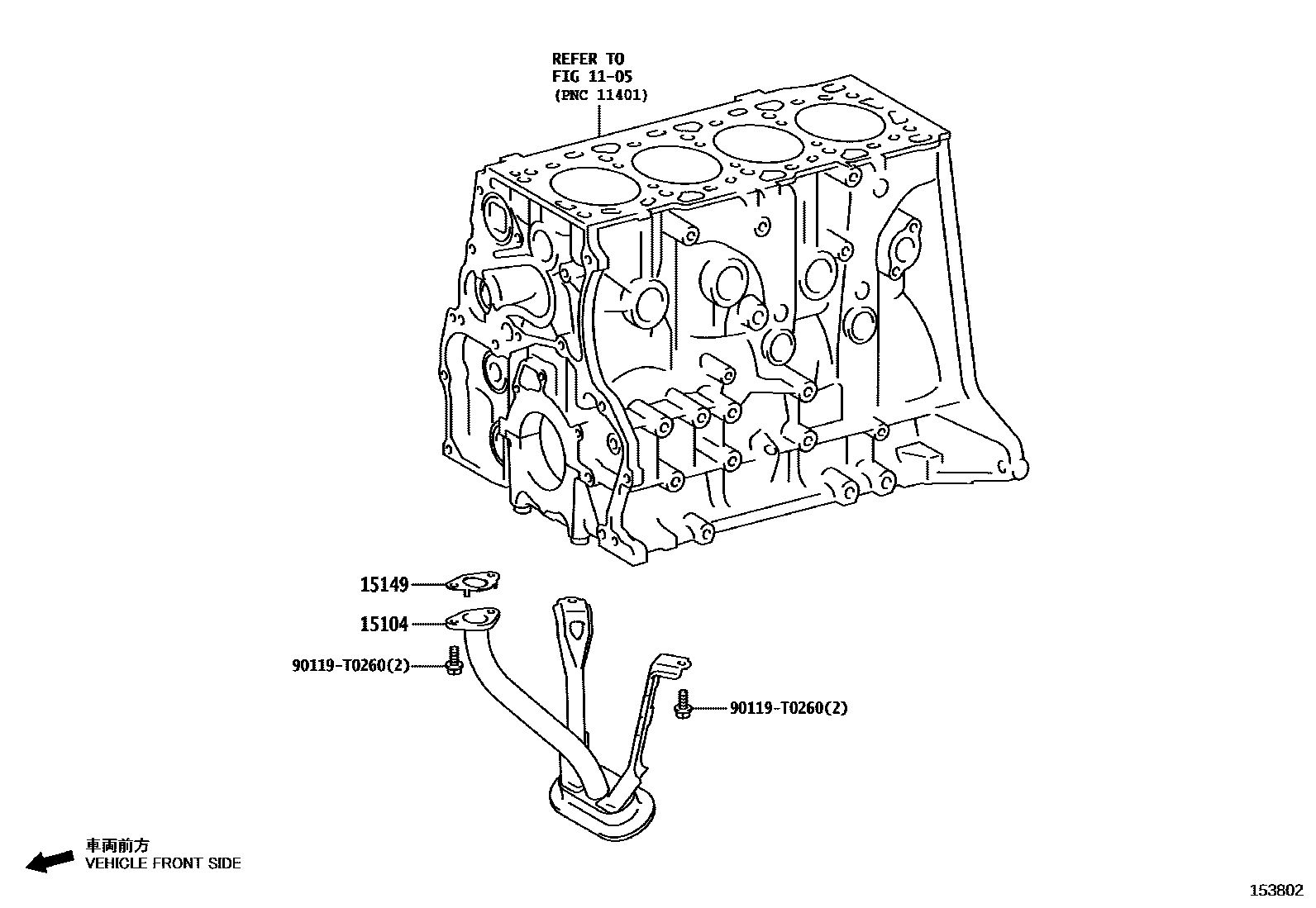

Toyota HILUX Engine Oil Pump EPC diagram — 153802
Engine Oil Pump — 153802 (202308 – 202401)

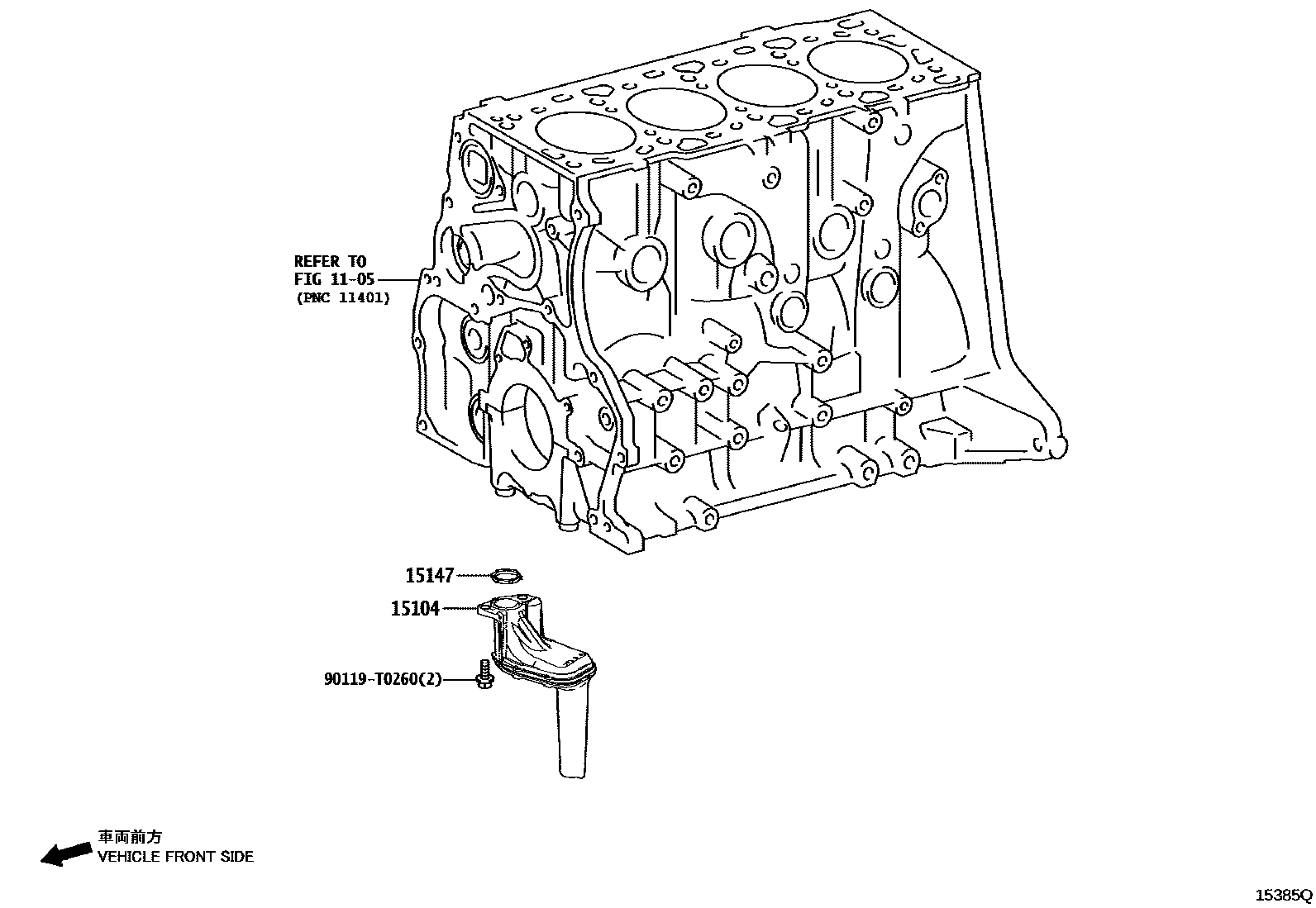

Toyota HILUX Engine Oil Pump EPC diagram — 15385Q
Engine Oil Pump — 15385Q (202401 – 999999)

PNC and OE references

PNCPart nameOE numbers
15104Oil filter sub-assembly15104-08020 · 15104-0E040
15147Oil filter gasket15147-0C020
15149Oil filter flange gasket15149-0E010
