Toyota HILUX Ventilation Hose — Figure 1201

Toyota HILUX EPC diagram 1201, Ventilation Hose, with 1 images and 6 PNC and OE references.

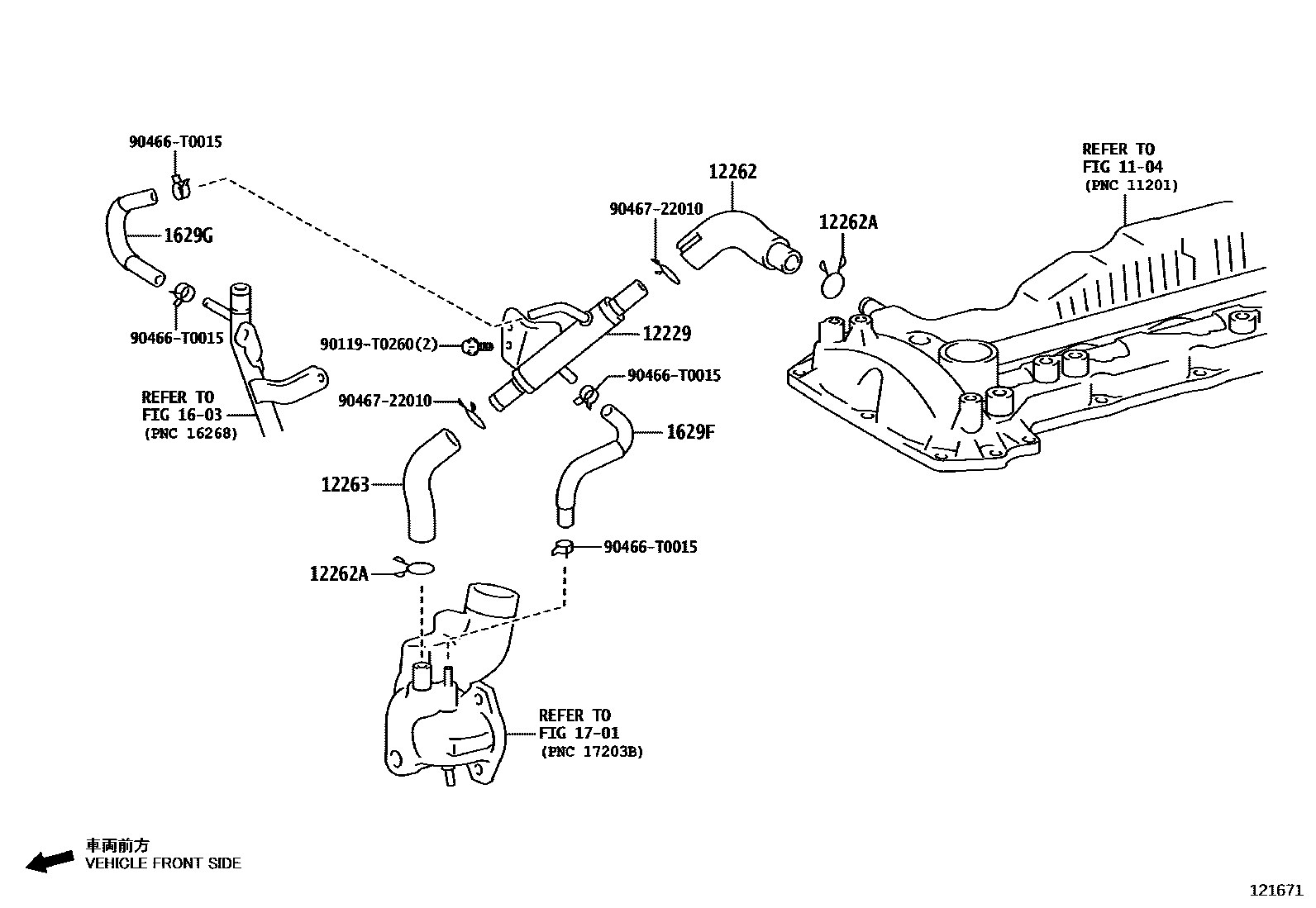

Toyota HILUX Ventilation Hose EPC diagram — 121671
Ventilation Hose — 121671 (202308 – 999999)

PNC and OE references

PNCPart nameOE numbers
12229ventilation duct12229-0E020
12262Ventilation hose No. 212262-0E020
12262AClamp (for vent hose No. 2)90466-22005
12263No. 3 ventilation hose12263-0E020
1629FToyota part1629F-0E020
1629GToyota part1629G-0E020
