Toyota HILUX Cylinder Block — Figure 1105

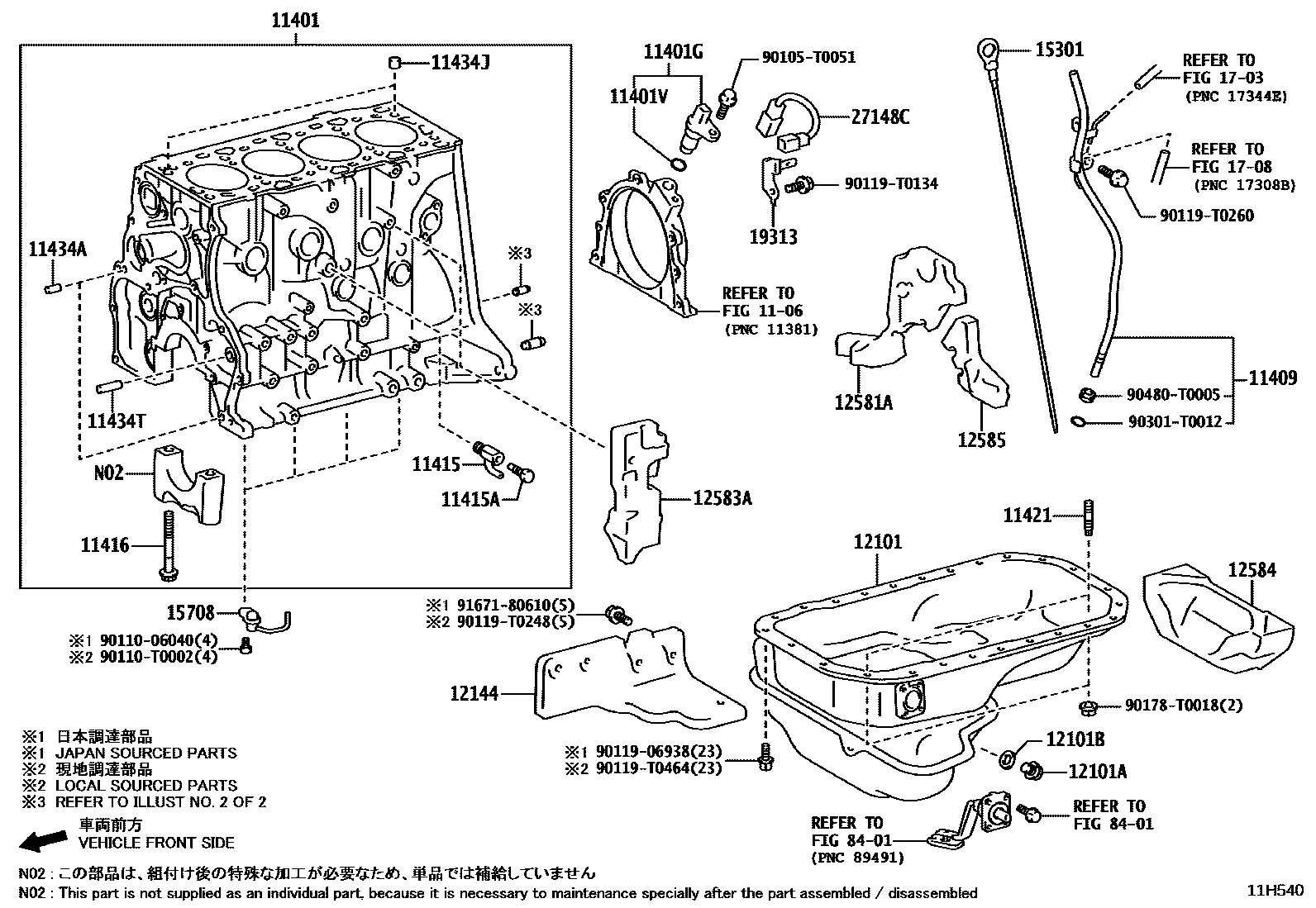

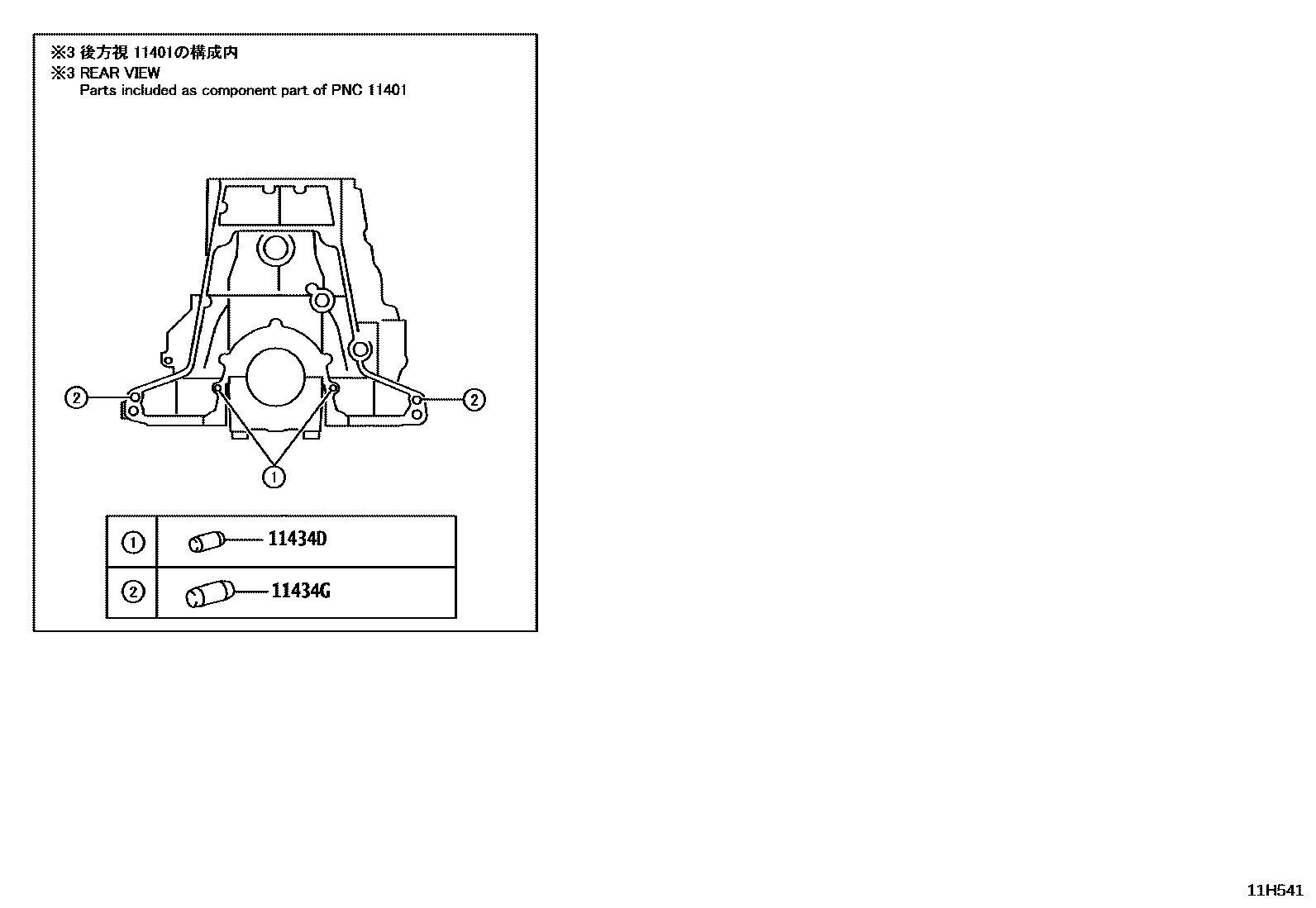

Toyota HILUX EPC diagram 1105, Cylinder Block, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11401 | Cylinder block sub-assembly | 11401-09841 |
| 11401G | crankshaft position sensor | 90919-05073 |
| 11401V | Toyota part | 90301-14016 |
| 11409 | Engine oil level gauge guide sub-assembly | 11409-0E011 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09128 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90910-09087 · 90910-T9001 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-T2009 |
| 11421 | Stud bolts (for oil pan) | 90126-06028 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-T0007 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-T0012 |
| 11434G | Direct sales (for end plates) | 90250-T0008 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-T0002 |
| 11434T | Ring pin (for timing belt idler bracket assembly) | 90250-10030 · 90250-T0019 |
| 12101 | Oil pan sub-assembly | 12101-0E010 · 12101-11120 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-T0004 |
| 12101B | Gasket (for oil pan drain plug) | 90080-43030 |
| 12144 | Oil pan cover muffler | 12144-0E010 · 12144-11010 |
| 12581A | No. 1 cylinder block vibration isolation pad | 12581-0E010 |
| 12583A | No. 3 cylinder block vibration isolation pad | 12583-0E010 |
| 12584 | No. 4 cylinder block vibration isolation pad | 12584-0E011 |
| 12585 | No. 5 cylinder block vibration isolation pad | 12585-0E010 |
| 15301 | Engine oil level scoring assembly | 15301-0E011 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-0E010 |
| 19313 | Toyota part | 19313-0E010 |
| 27148C | Toyota part | 27148-0E010 |
