Toyota HILUX antenna — Figure 8604

Toyota HILUX EPC diagram 8604, antenna, with 1 images and 7 PNC and OE references.

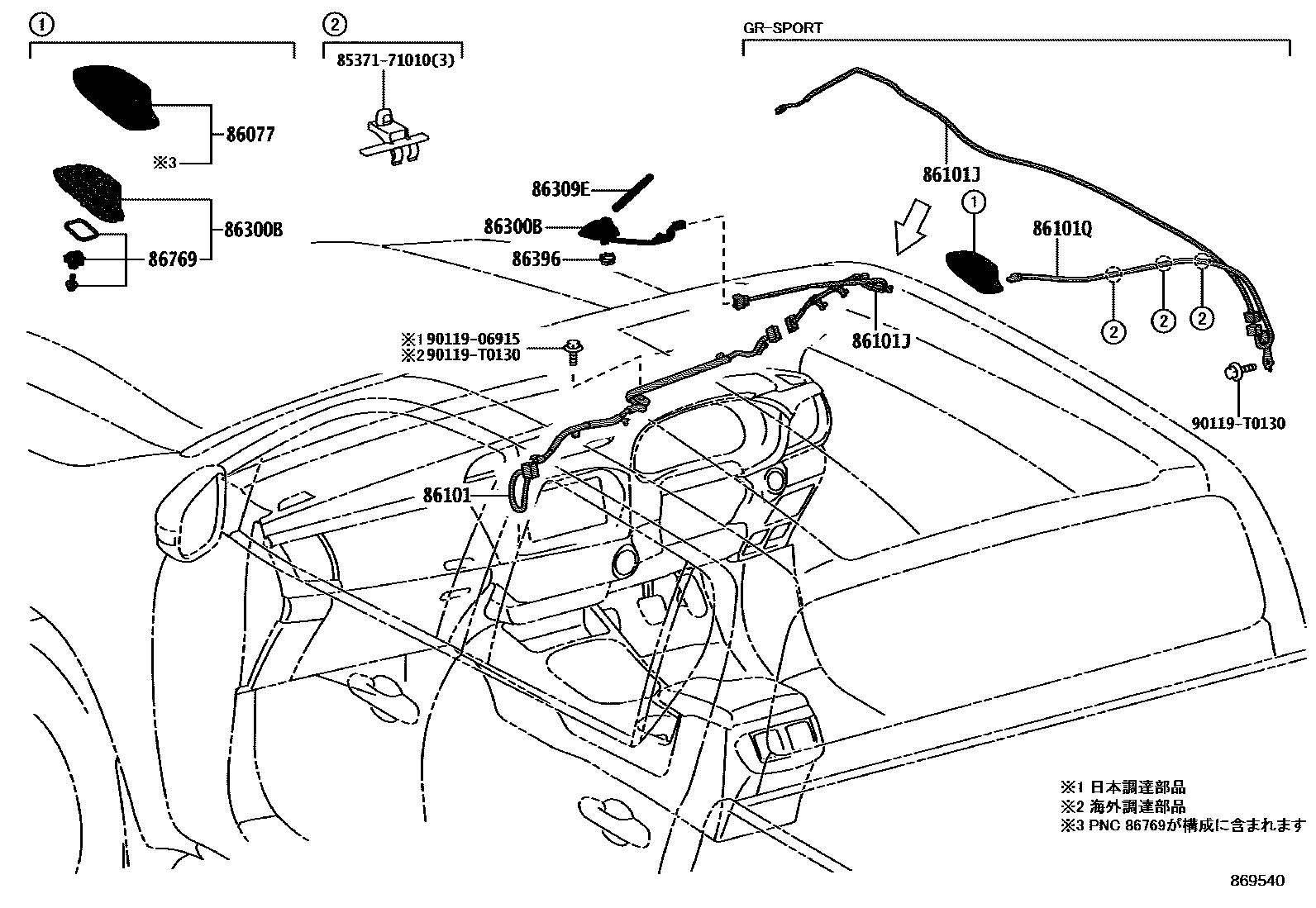

Toyota HILUX antenna EPC diagram — 869540
antenna — 869540 (202208 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-0KF31 · 86101-0KG81
86101JNo. 2 antenna wire sub-assembly86101-0K711 · 86101-0KN20
86101QNo. 4 antenna wire sub-assembly86101-0KN40
86300BAmplifier antenna assembly86300-0K130 · 86300-0K300
86309ERoof antenna sub-assembly86309-0K010
86396Antenna nut86396-47010
86769Toyota part86769-12010
