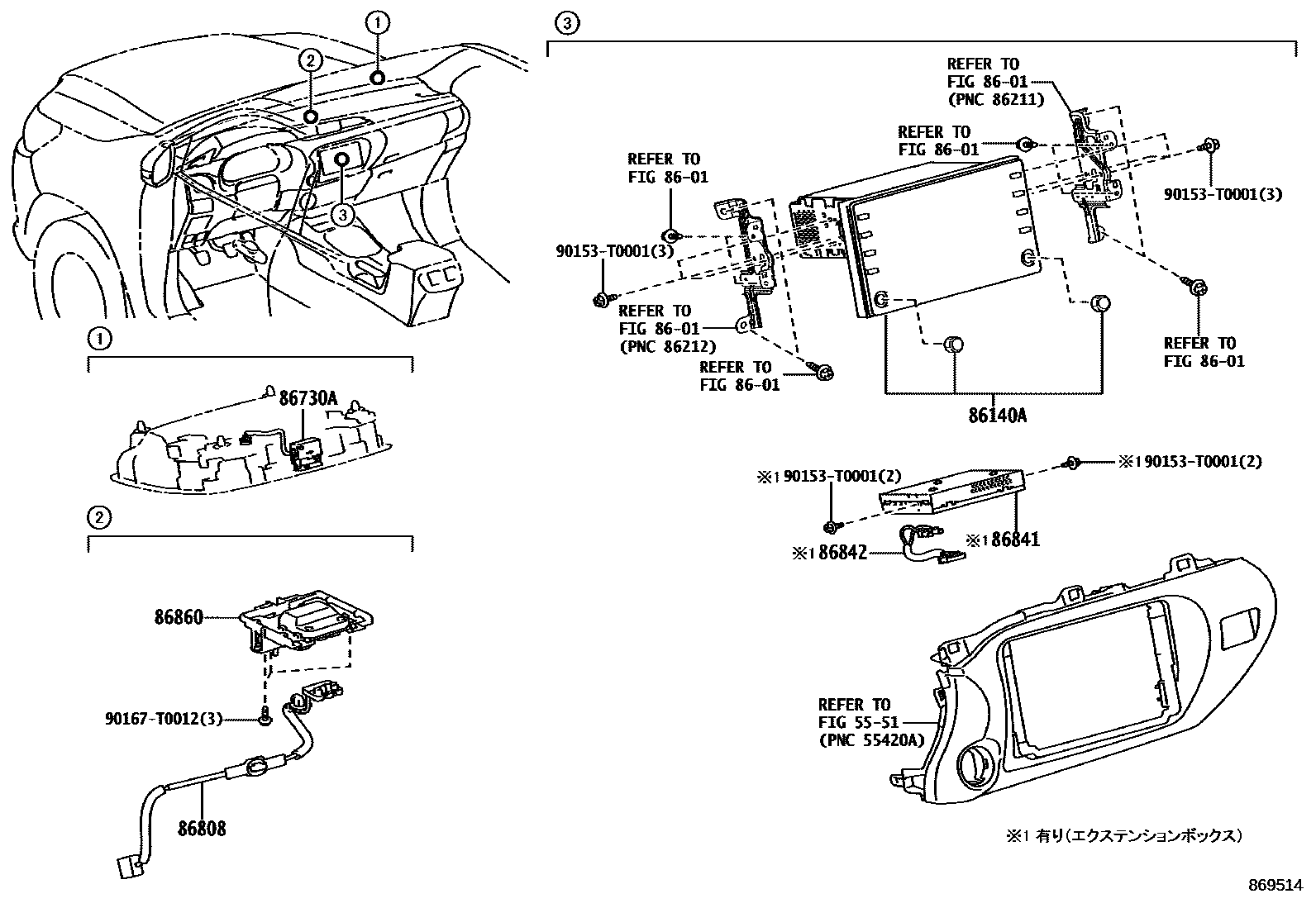

Toyota HILUX 导航和前监视器显示屏 — Figure 8603
Toyota HILUX EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86140-71030 |
| 86730A | Telephone amplifier assembly | 86730-20060 |
| 86808 | No. 1 navigation antenna wire sub-assembly | 86808-0K051 |
| 86841 | Navigation ECU | 86840-33224 · 86840-33225 |
| 86842 | Navigation harness No. 1 | 86842-33150 |
| 86860 | Navigation antenna assembly | 86860-0K040 |
