Toyota HILUX 线束和卡夹 — Figure 8202
Toyota HILUX EPC diagram 8202, 线束和卡夹, with 10 images and 65 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

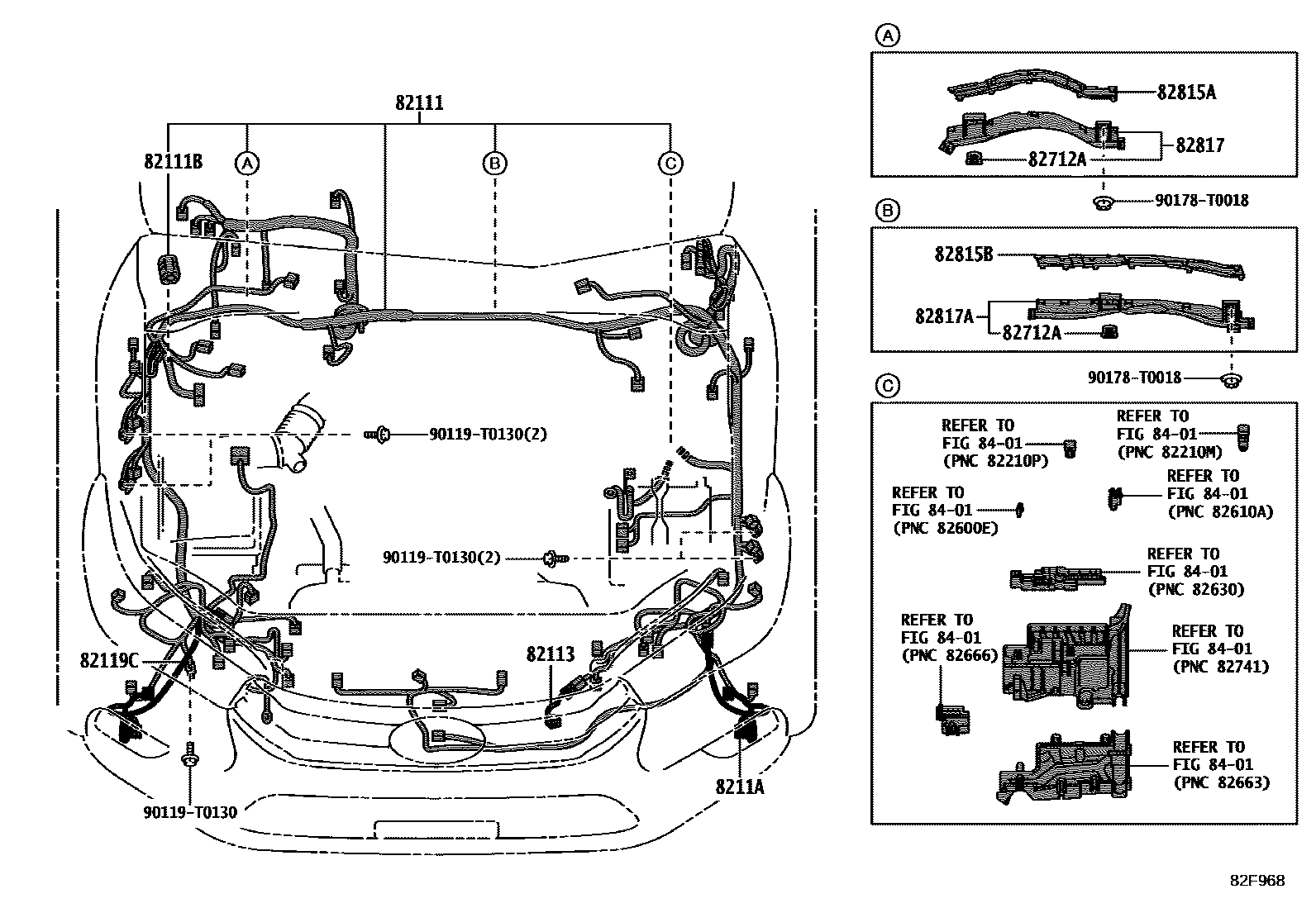

| 82111 | Engine room main wiring harness | 8211F-KKW90 · 8211G-KK840 · 8211G-KK850 |
| 82111B | condenser | 90980-04206 |
| 82113 | Engine room wiring harness No. 3 | 82113-KK020 |
| 82119C | Toyota part | 82119-KK050 · 82119-KK060 · 82119-KK130 |
| 8211A | Toyota part | 8211A-KK050 · 8211A-KK060 · 8211A-KK140 |

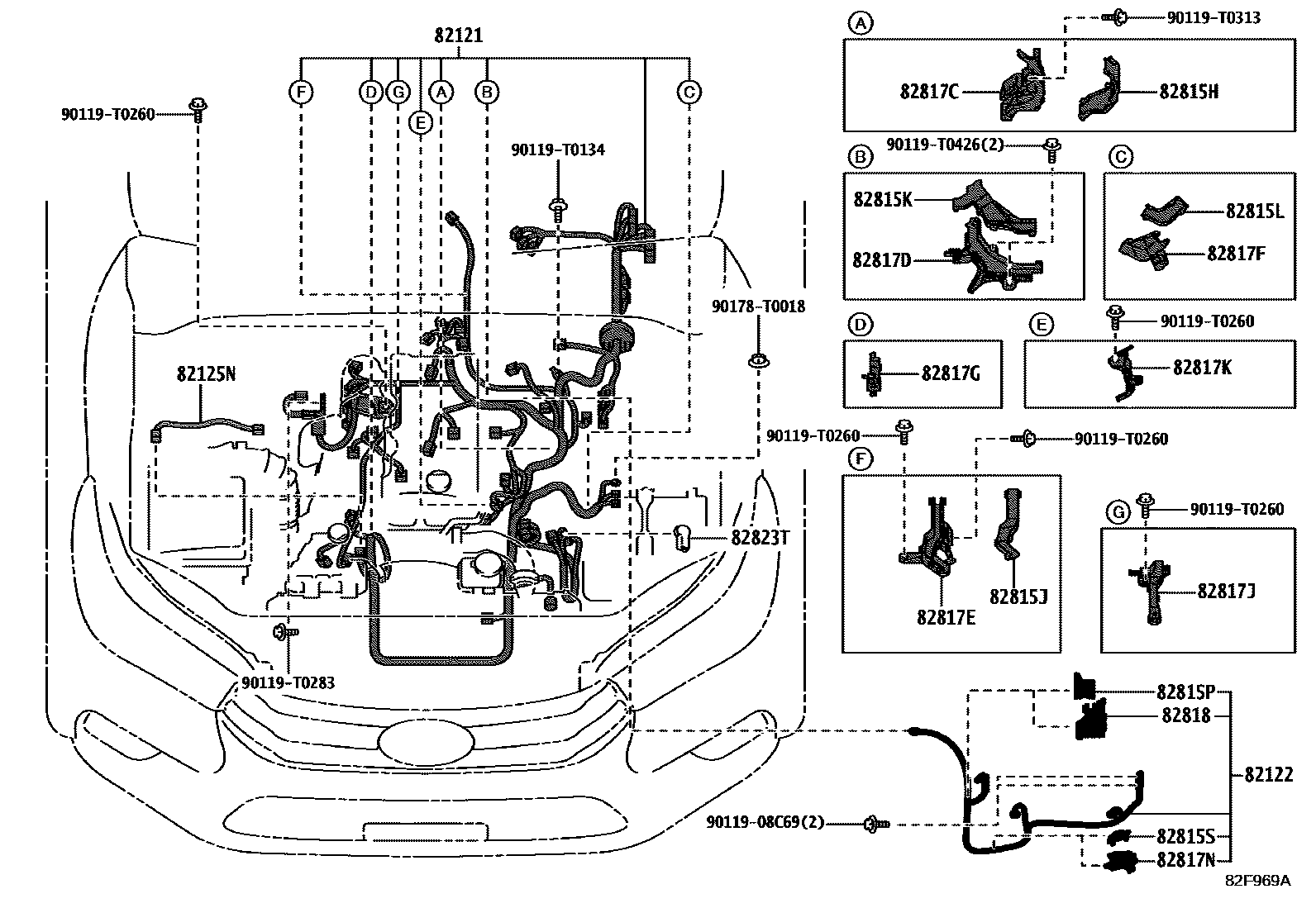

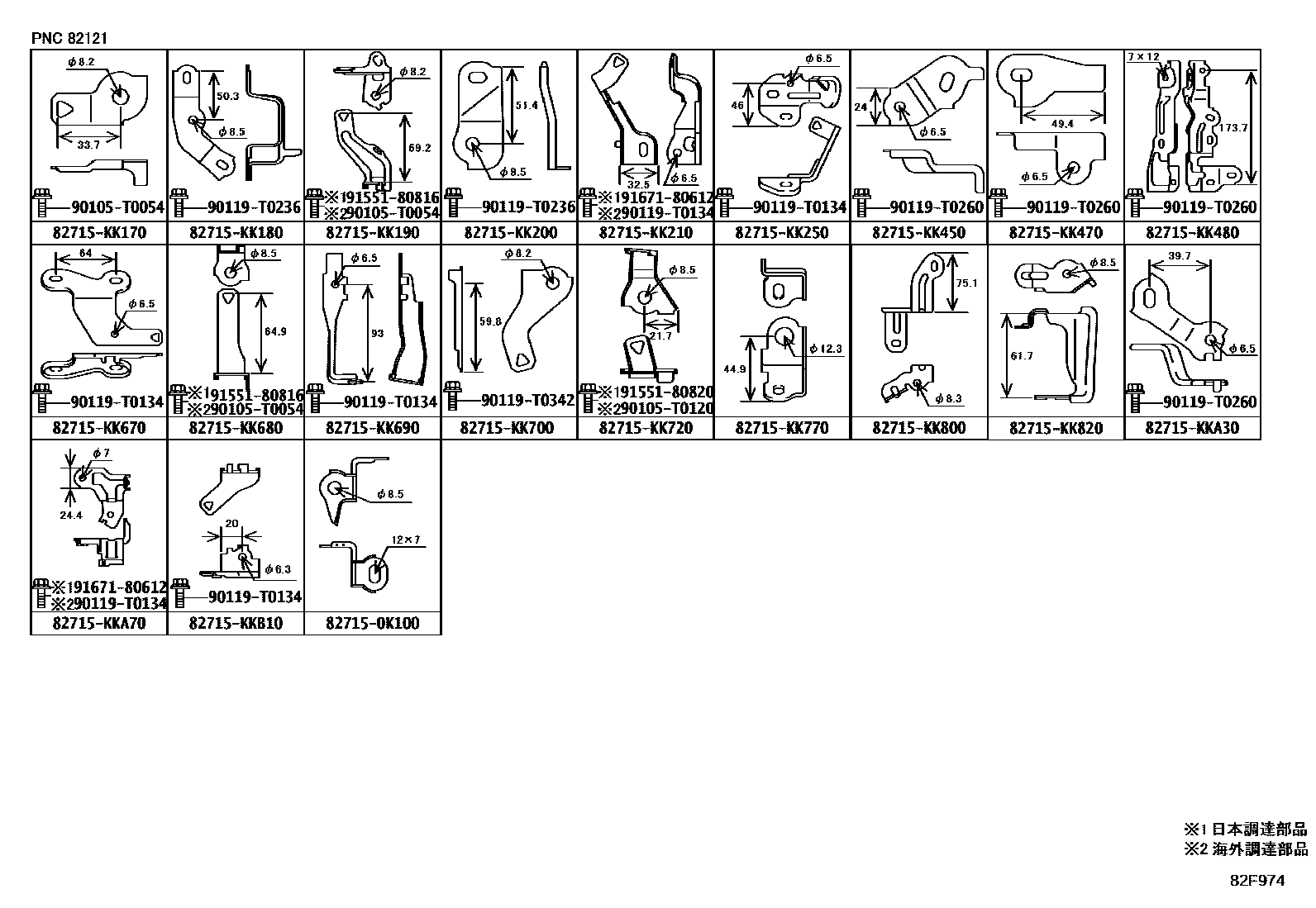

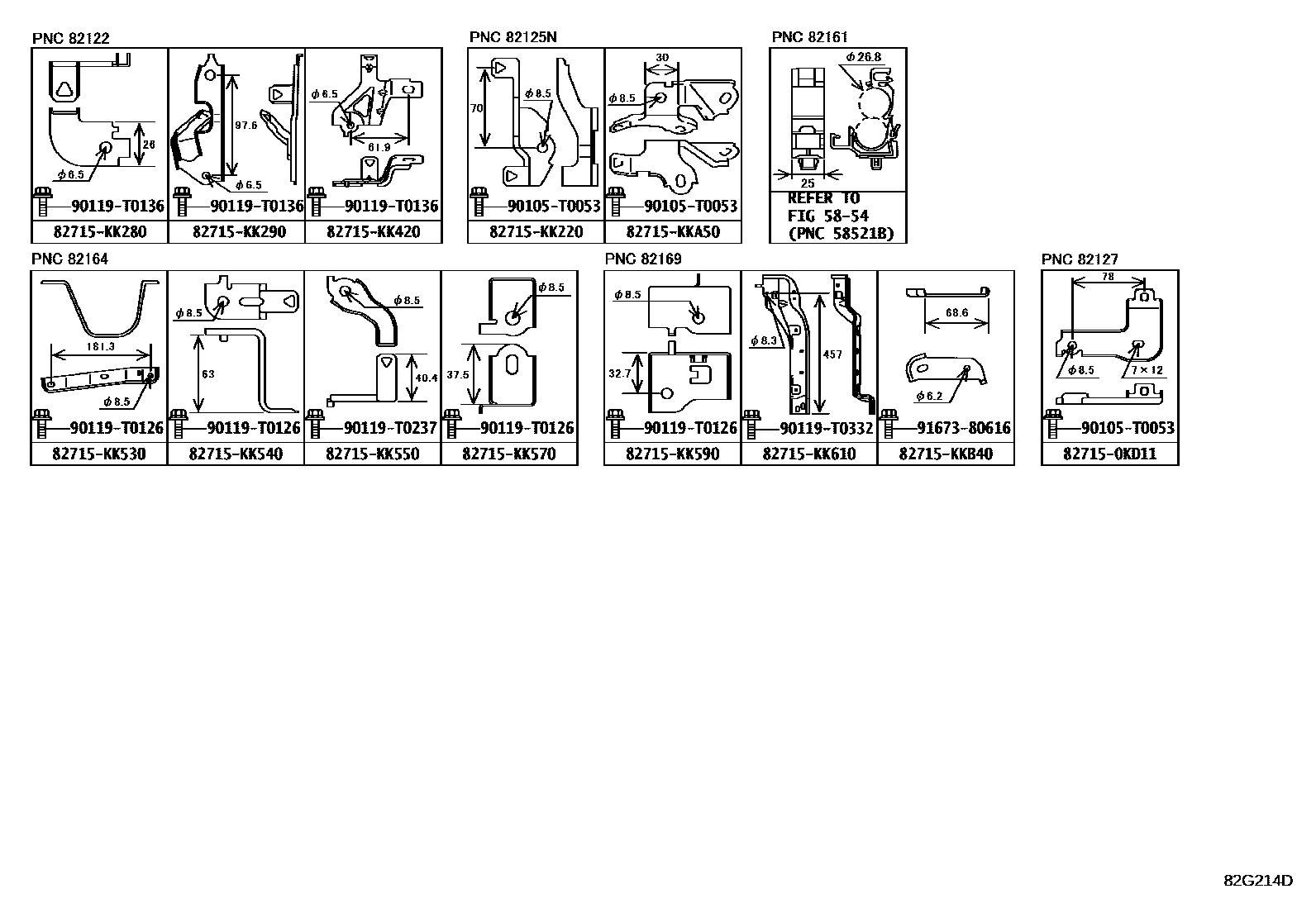

| 82121 | Engine wiring harness | 8213C-KK060 |
| 82122 | Engine No. 2 wiring harness | 82122-KK430 |
| 82125N | Engine No. 5 wiring harness | 82125-KK010 |
| 82127 | Differential harness | 82127-0K011 |

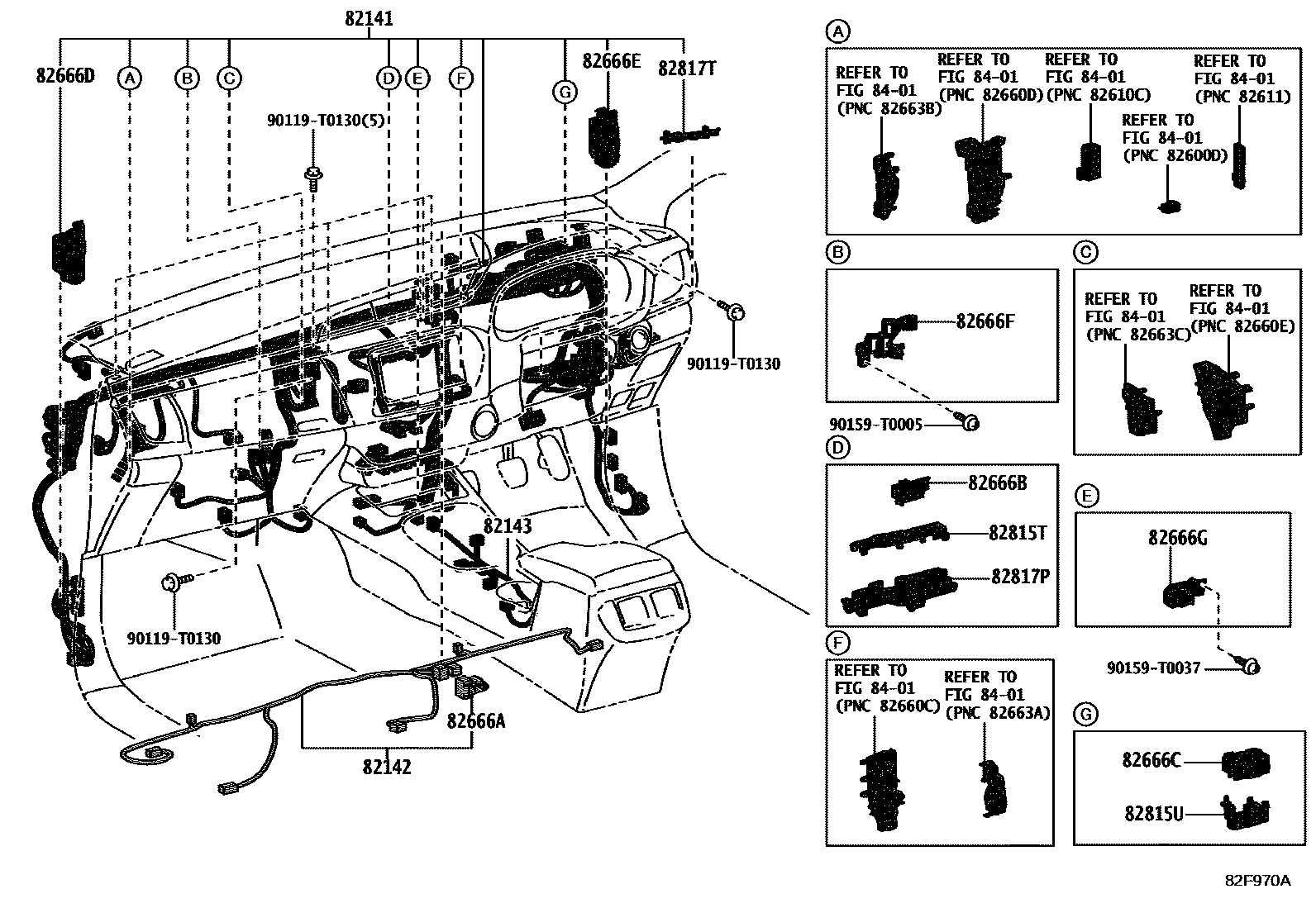

| 82141 | Dashboard wiring harness | 8214P-KKL80 · 8214P-KKL90 · 8214P-KKM00 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-KKA50 |
| 82143 | Instrument panel wiring harness No. 3 | 82143-KKB90 · 82143-KKC00 |

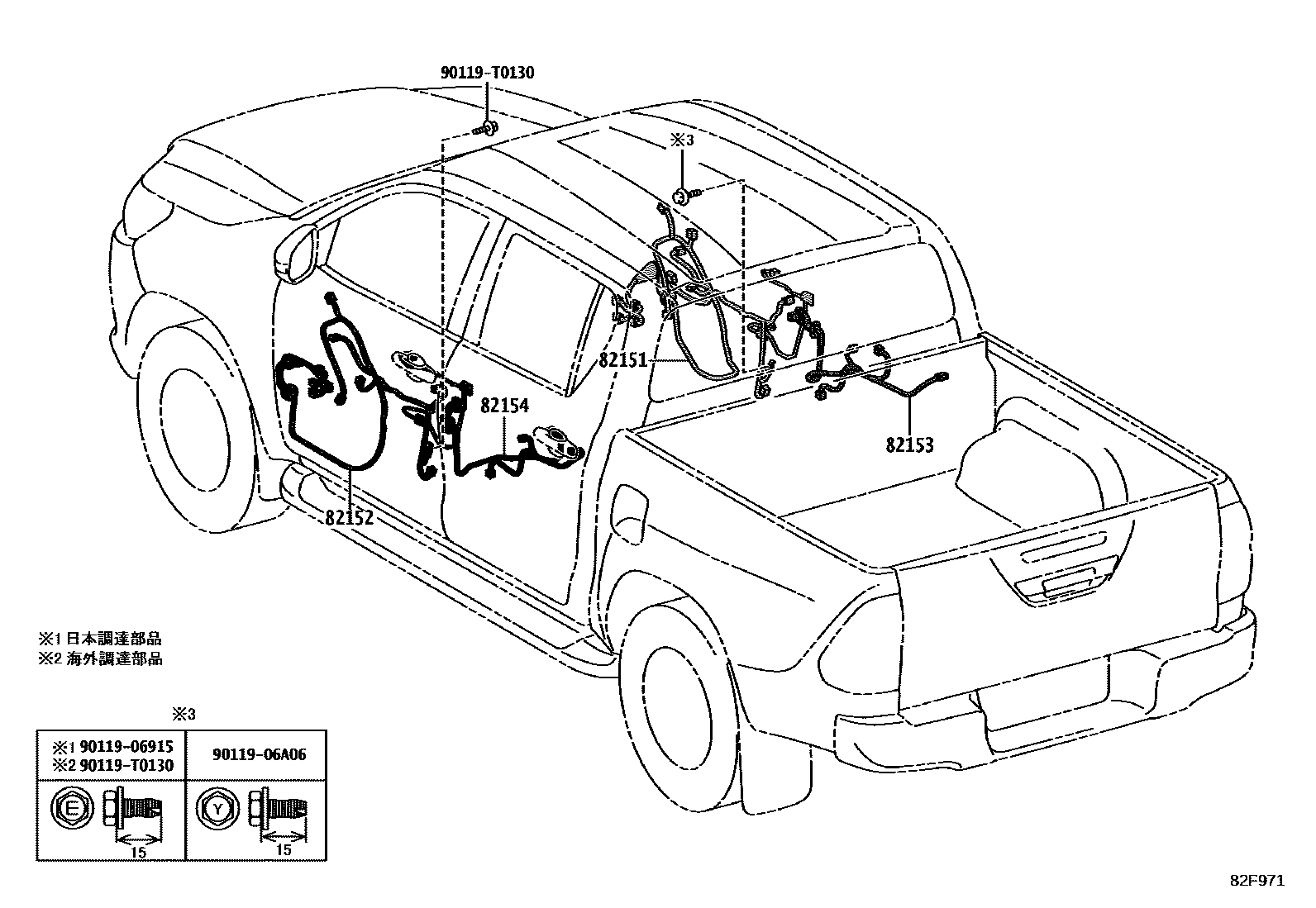

| 82151 | Right front door wiring harness | 82197-KKY20 · 82197-KKY40 · 821A7-KK660 |
| 82152 | Left front door wiring harness | 821A8-KKD50 · 821A8-KKD60 · 821A8-KKL10 |
| 82153 | Rear door wiring harness No. 1 | 82153-KK390 · 82153-KK400 |
| 82154 | Rear door wiring harness No. 2 | 82154-KK430 · 82154-KK440 |
| 82161 | floor wiring harness | 8219J-KK420 · 8219J-KK430 |
| 82164 | Frame wiring harness set | 82164-KKJ80 · 82164-KKN10 |
| 82165 | No. 2 frame wiring harness | 82165-KK120 · 82165-KK200 |
| 82169 | No. 3 frame wiring harness | 82169-KK100 |

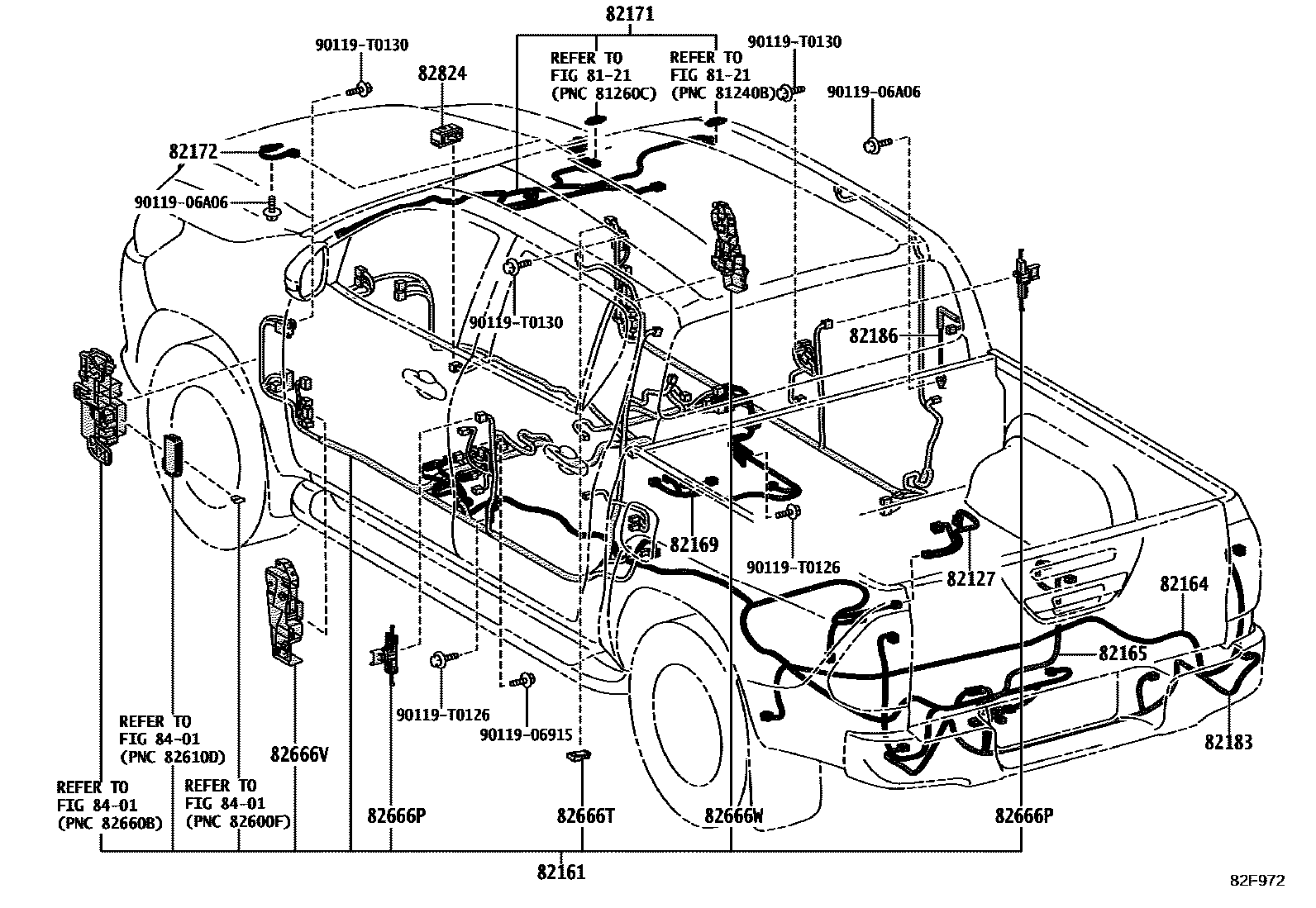

| 82171 | Roof No. 1 wiring harness | 82171-KKG60 · 82171-KKN20 |
| 82172 | Roof No. 2 wiring harness | 82172-KK010 |
| 82183 | Luggage No. 3 wiring harness | 82183-KK090 |
| 82186 | Rear window wiring harness No. 1 | 82186-KK060 |

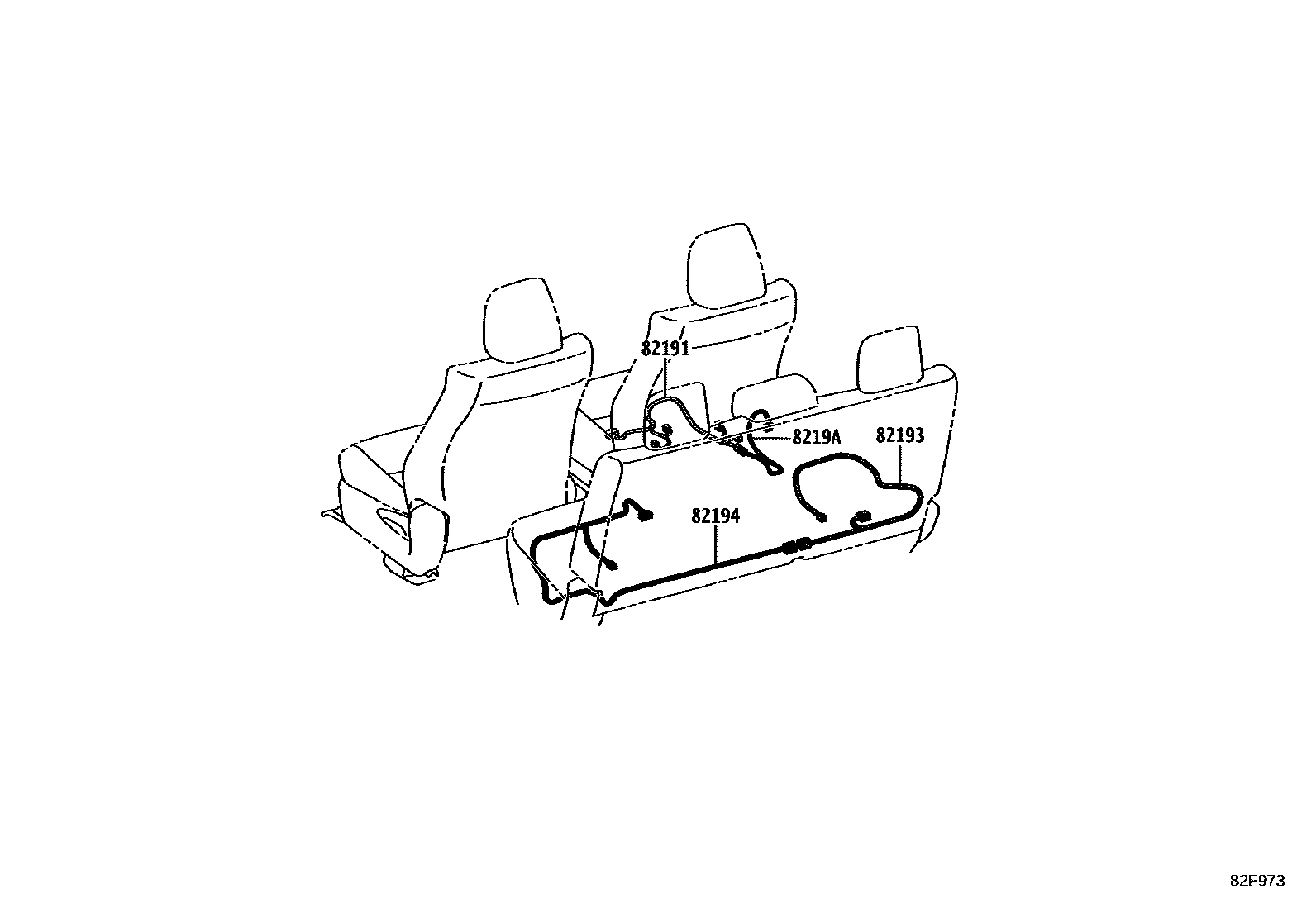

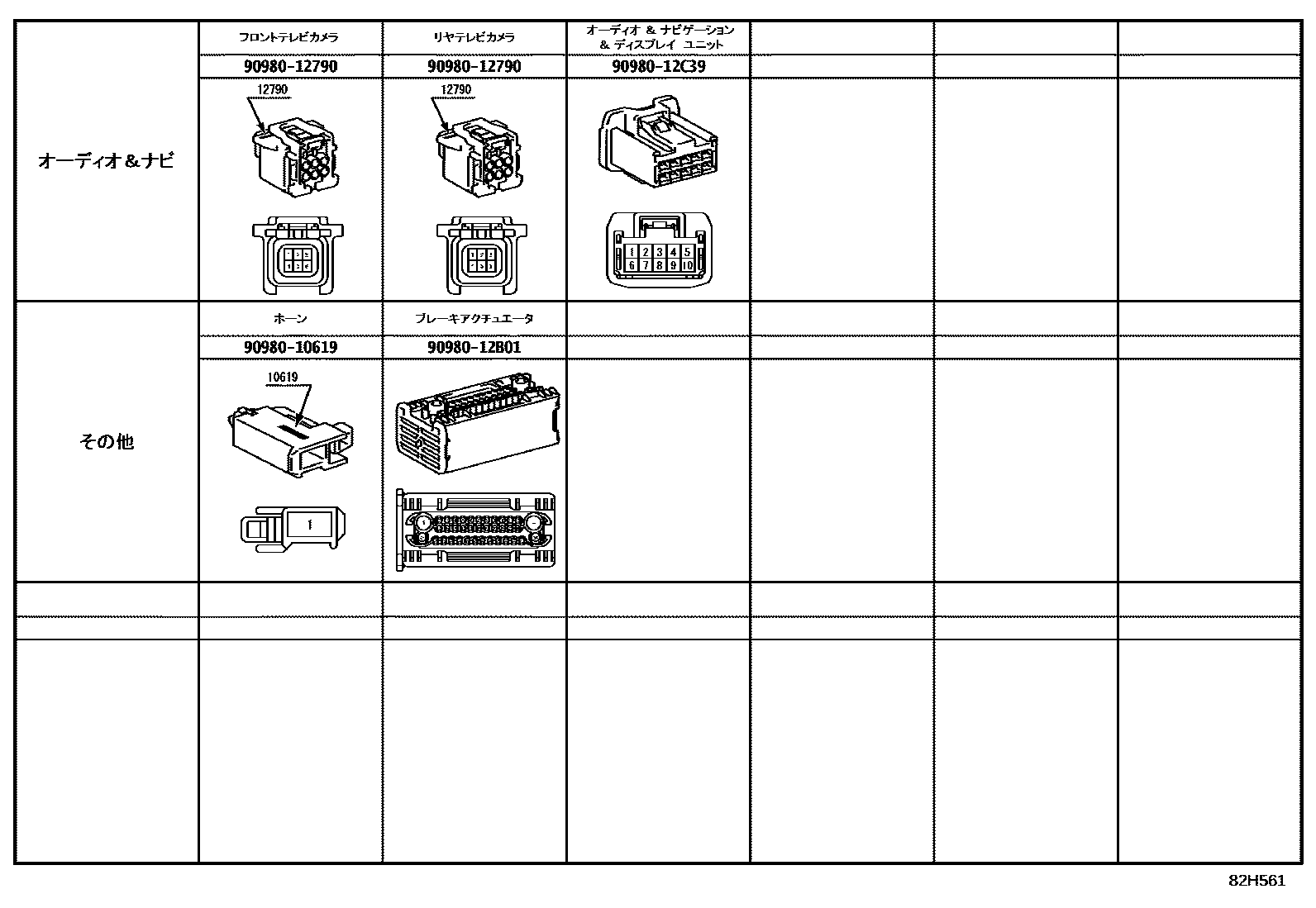

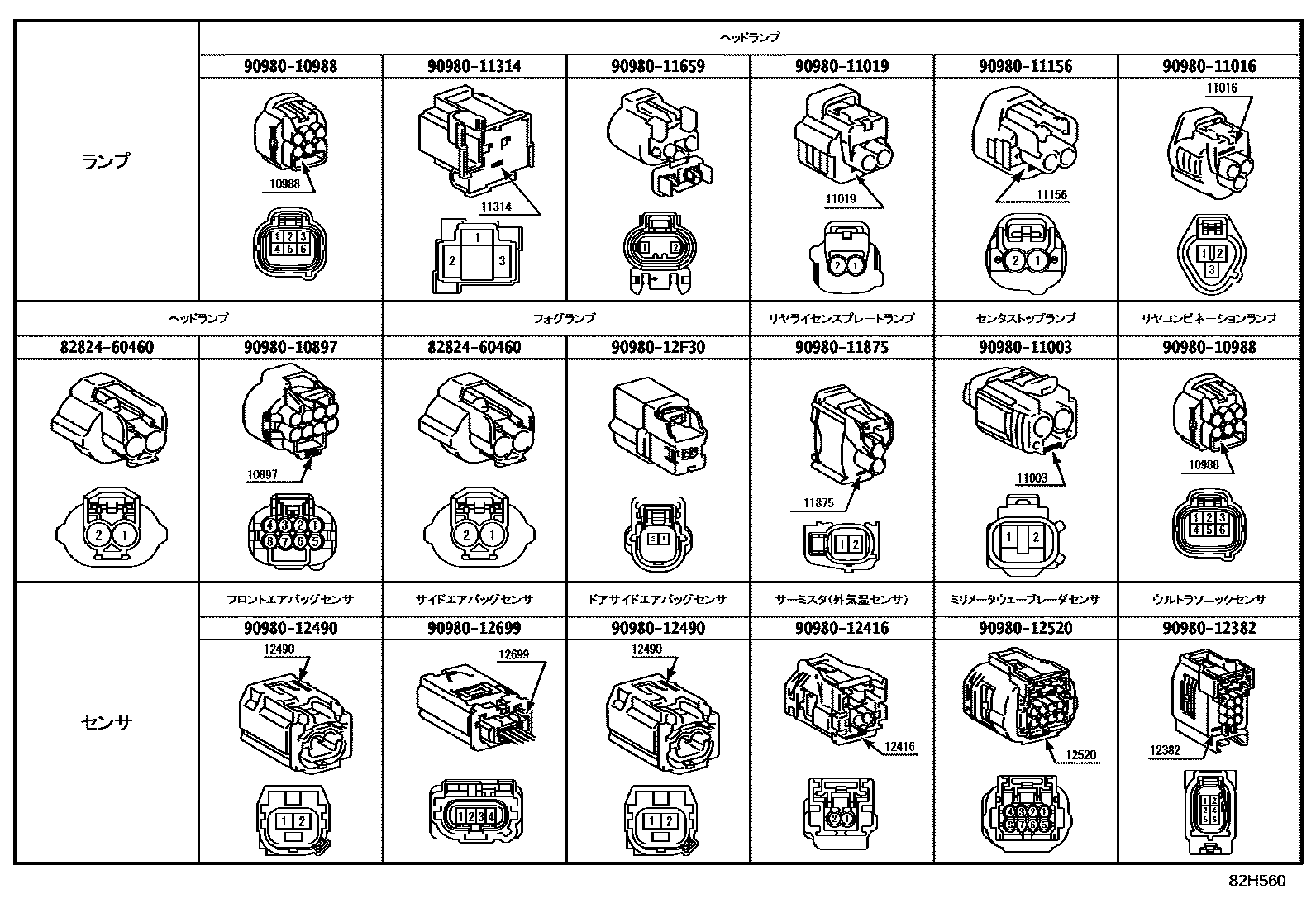

| 82191 | Front right seat wiring harness | 82191-0K050 |
| 82193 | Rear right seat wiring harness | 82193-0K010 |
| 82194 | Rear left seat wiring harness | 82194-0K010 |
| 8219A | Wire harness No. 2, right side of front seat | 8219A-0K050 |
| 82666A | Connector holder No. 2 | 82666-0K200 |
| 82666B | No. 3 connector holder | 82666-0K160 |
| 82666C | No. 4 connector holder | 82666-0K180 |
| 82666D | No. 5 connector holder | 82666-0K210 |
| 82666E | No. 6 connector holder | 82666-0K220 |
| 82666F | No. 7 connector holder | 82666-0K240 |
| 82666G | No. 8 connector holder | 82666-0K300 |
| 82666P | No. 11 Connector Block | 82666-0K280 |
| 82666T | No. 14 connector socket | 82666-20270 |
| 82666V | No. 15 connector holder | 82666-0K470 |
| 82666W | No. 16 connector socket | 82666-0K480 |
| 82712A | Wire harness bracket | 82712-33190 |
| 82815A | Wiring harness protector cover | 82815-0K560 |
| 82815B | Wiring harness protector cover | 82815-0K550 |
| 82815H | Wiring harness protector cover | 82815-0K270 |
| 82815J | No. 7 wire harness protector cover | 82815-0K350 |
| 82815K | No. 8 wire harness protector cover | 82815-0K250 |
| 82815L | No. 9 wire harness protector cover | 82815-0K510 |
| 82815P | No. 12 wire harness protector cover | 82815-0K070 |
| 82815S | No. 15 wire harness protector cover | 82815-0K400 |
| 82815T | No. 16 wire harness protector cover | 82815-0K420 |
| 82815U | No. 17 wire harness protector cover | 82815-0K480 |
| 82817 | No. 1 wire harness protection device | 82817-0K560 |
| 82817A | No. 2 wire harness protection device | 82817-0K550 |
| 82817C | No. 4 wire harness protection device | 82817-0K270 |
| 82817D | No. 5 wire harness protection device | 82817-0KB50 |
| 82817E | No. 6 wire harness protection device | 82817-0K350 |
| 82817F | No. 7 wire harness protection device | 82817-0K510 |
| 82817G | No. 8 wire harness protection device | 82817-0K300 |
| 82817J | No. 9 wire harness protection device | 82817-60W20 |
| 82817K | No. 10 wire harness protection device | 82817-60U70 |
| 82817N | No. 13 wire harness protection device | 82817-0K400 |
| 82817P | No. 14 wire harness protection device | 82817-0K420 |
| 82817T | No. 15 wire harness protection device | 82817-0K800 |
| 82818 | No. 2 wire harness protection device | 82817-0K290 |
| 82823T | Toyota part | 82823-22050 |
| 82824 | Harness connector | 90980-12448 |
