Toyota HILUX 徽标和铭牌 — Figure 7551

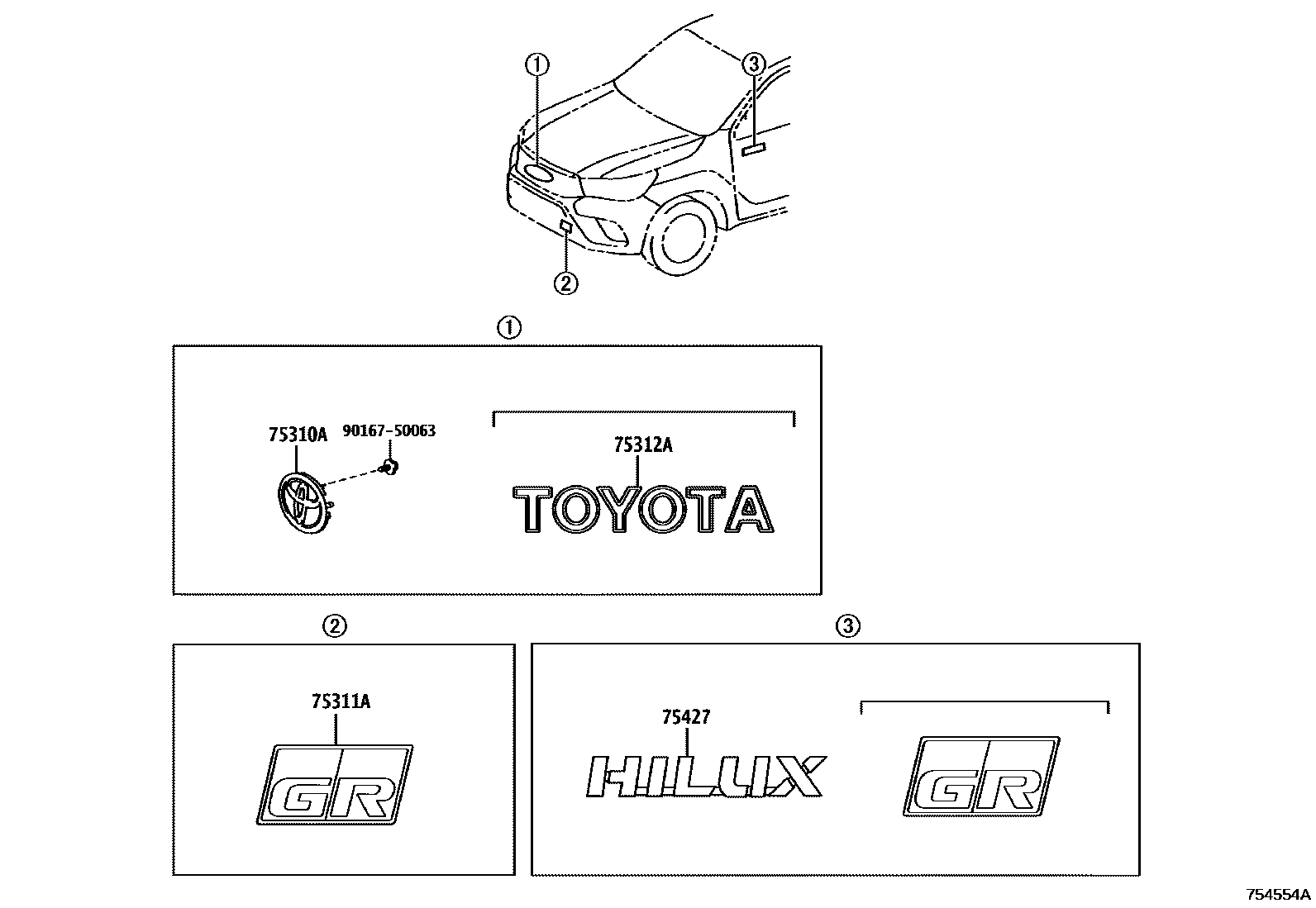

Toyota HILUX EPC diagram 7551, 徽标和铭牌, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75310A | Radiator grille plate assembly | 90975-T2030 |
| 75311A | Front No. 1 nameplate | 75361-52070 |
| 75312A | Front No. 2 nameplate | 75310-YP040 |
| 75427 | front door nameplate | 75361-52070 · 75427-0K060 |
| 75459 | Back door mark | 75441-28830 |
| 75459B | No. 2 back door mark | 75469-0K040 |
| 75471D | rear nameplate | 75427-0K110 |
| 75472A | No. 2 nameplate on rear body | 75472-60030 |
