Toyota HILUX warning nameplate — Figure 7455

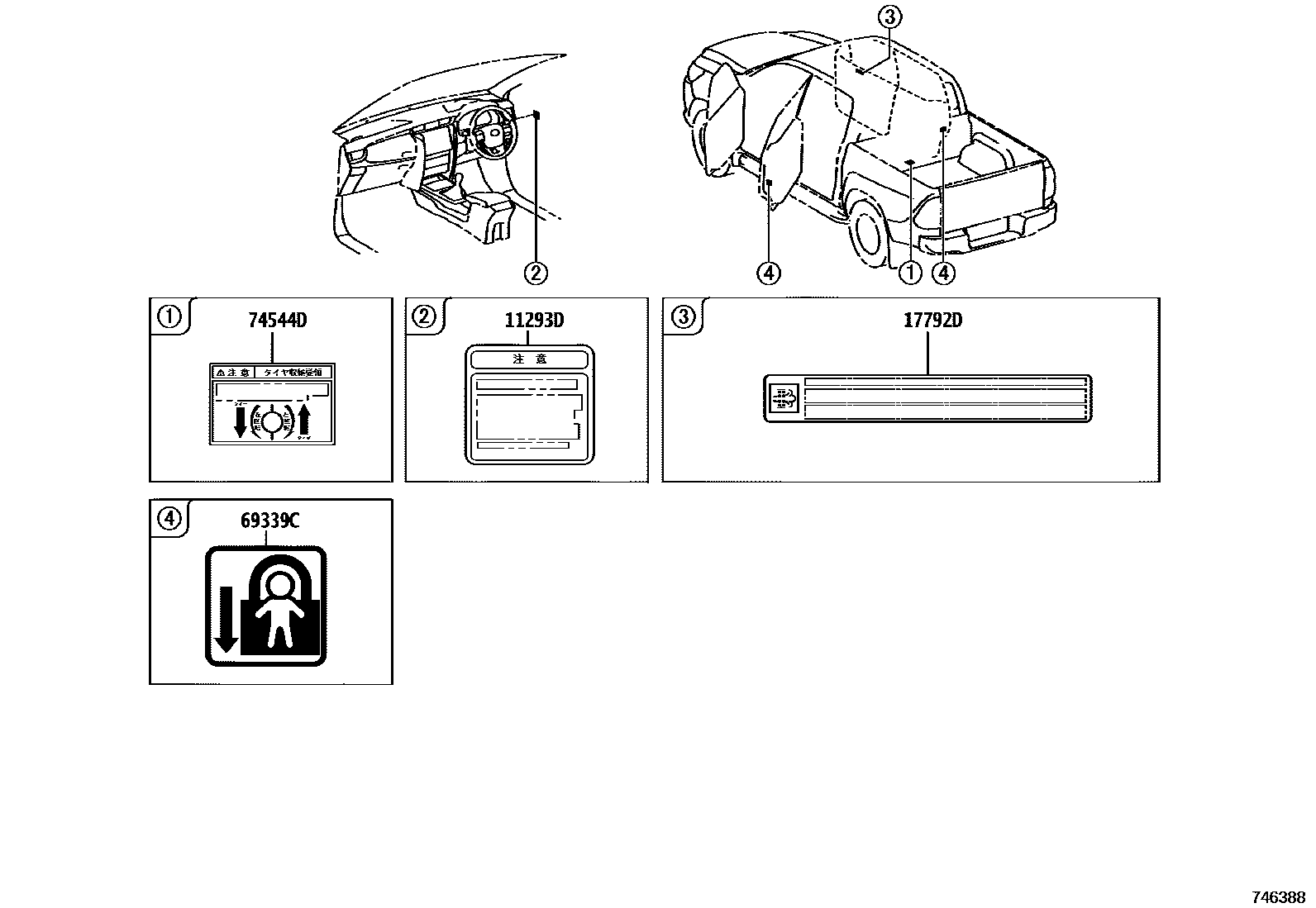

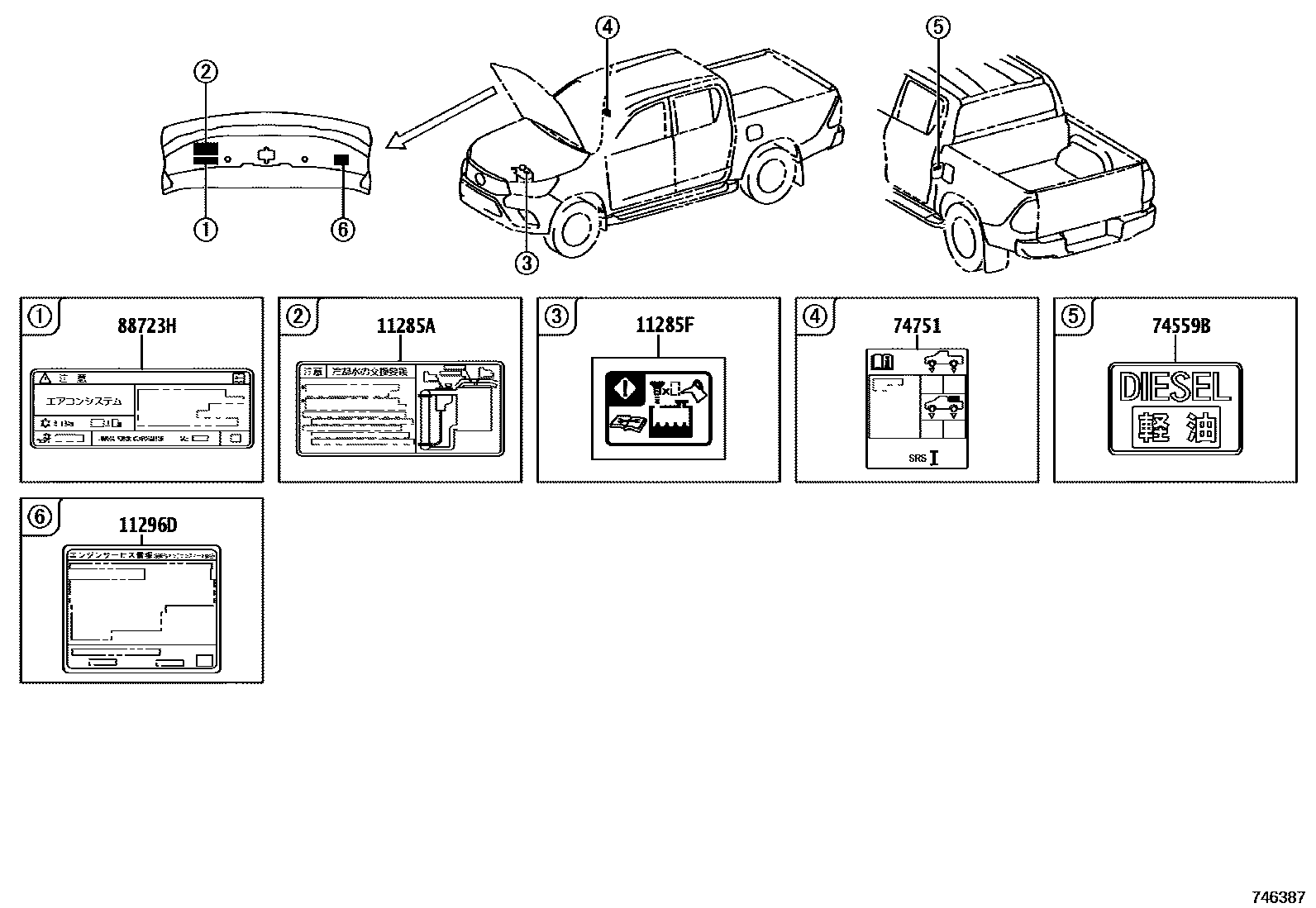

Toyota HILUX EPC diagram 7455, warning nameplate, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-0E020 |
| 11285F | Toyota part | 11285-0E030 · 11285-0E040 |
| 11293D | engine warning label | 11293-11270 |
| 11296D | Engine maintenance information label | 11296-0E030 |
| 17792D | Emission control device information label | 17792-11740 |
| 69339C | Child Restraint Information Label | 69339-06060 |
| 74544D | Tire carrier warning nameplate | 74544-36050 |
| 74559B | fuel information label | 74559-14030 |
| 74751 | tire pressure information label | 42661-0KP20 · 42661-0KP30 · 42661-YP041 |
| 88723H | Cooler maintenance warning label | 88723-30181 |
