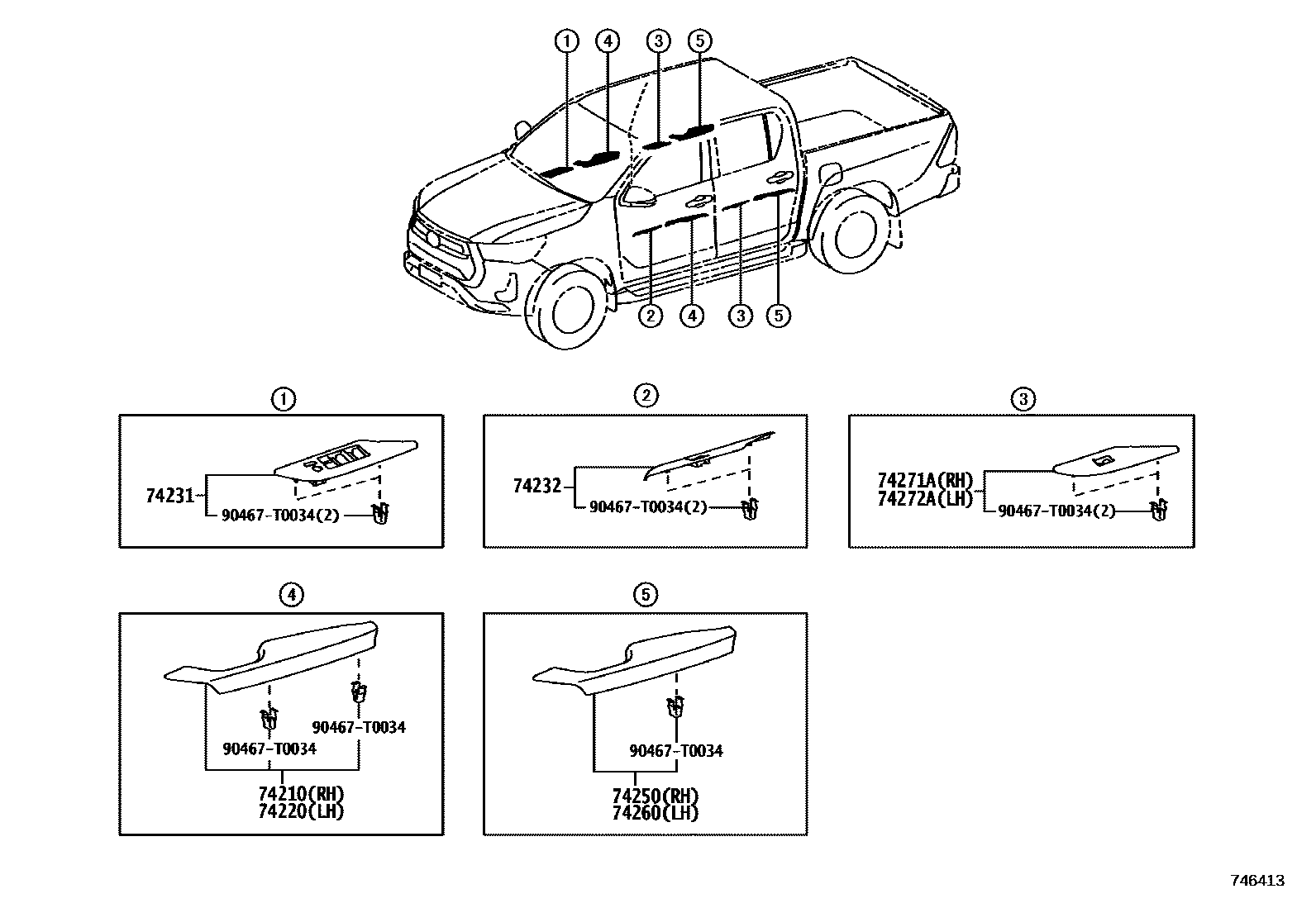

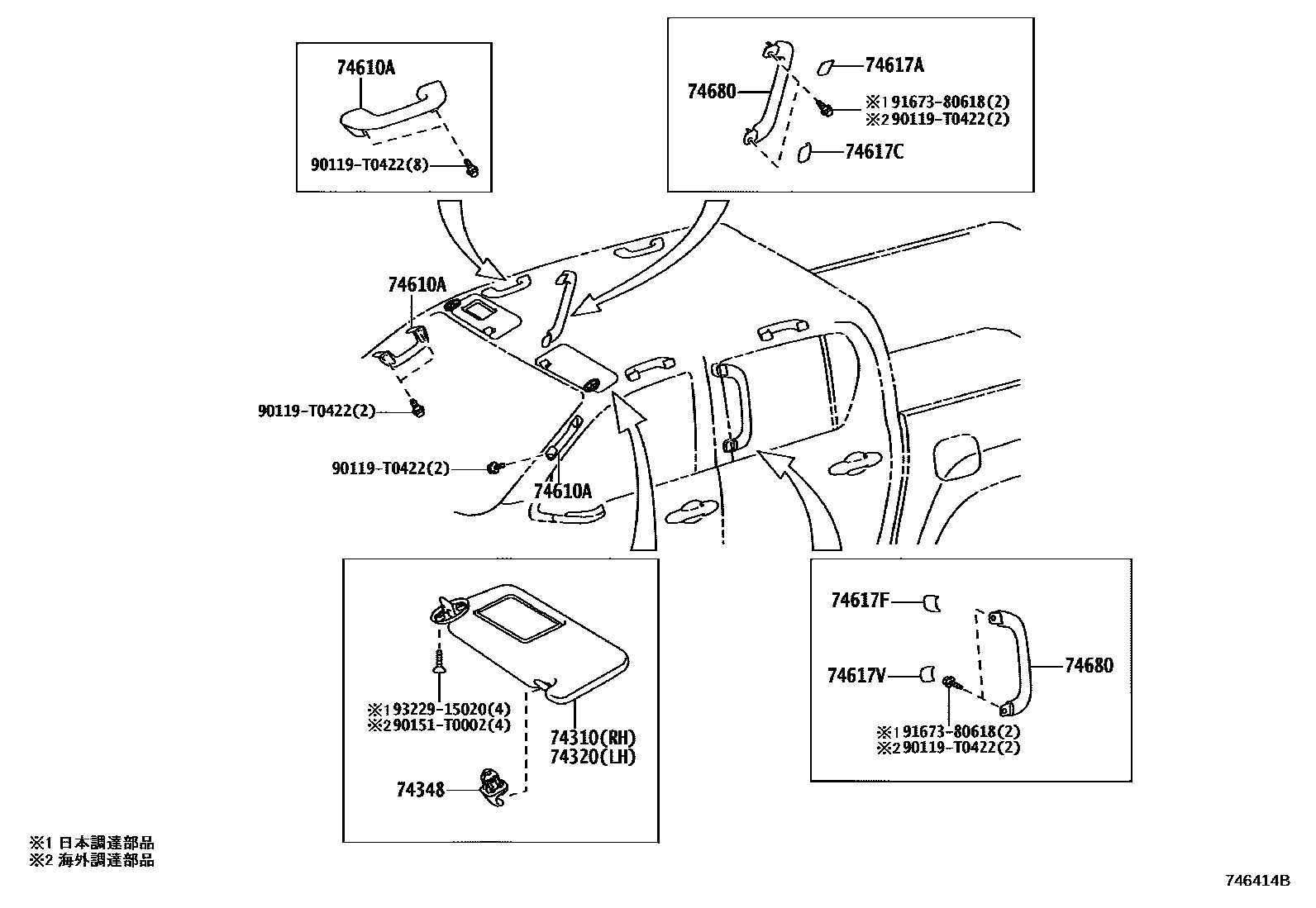

Toyota HILUX 扶手和遮阳板 — Figure 7451
Toyota HILUX EPC diagram 7451, 扶手和遮阳板, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-0K651 · 74231-0K660 |
| 74232 | Left front armrest upper panel | 74232-0K600 · 74232-0K611 |
| 74271A | Right rear door armrest upper panel | 74271-0K310 · 74271-0K321 |
| 74272A | Left rear door armrest upper panel | 74272-0K310 · 74272-0K321 |
