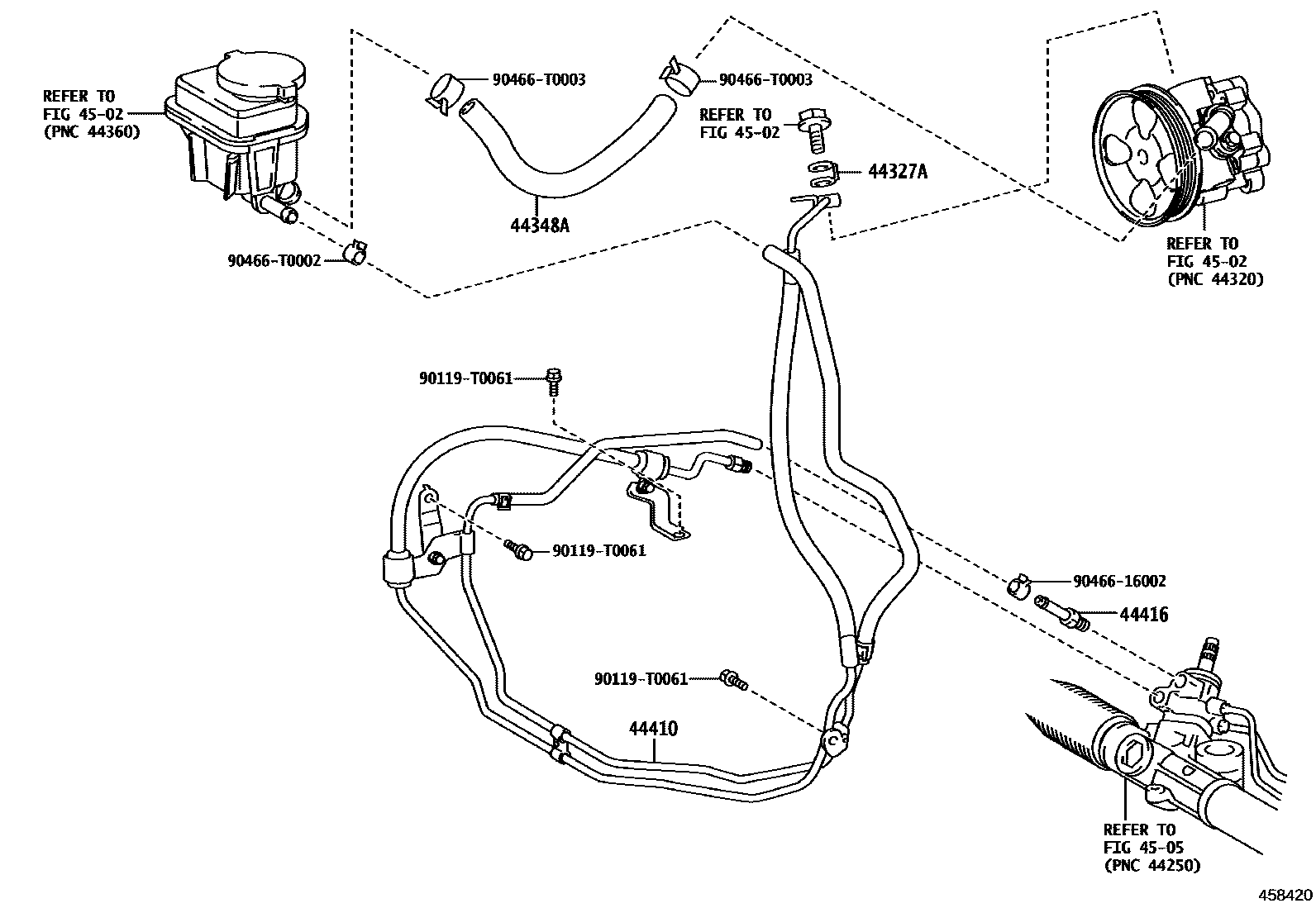

Toyota HILUX 动力转向配管 — Figure 4503
Toyota HILUX EPC diagram 4503, 动力转向配管, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-30030 |
| 44348A | No. 1 hose (tank to pump) | 44348-0K110 |
| 44410 | Pressure supply pipe assembly | 44410-0K311 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-0K040 |
