VOCR EPC

Toyota HILUX 尿素罐和管 — Figure 2502

Toyota HILUX EPC diagram 2502, 尿素罐和管, with 1 images and 13 PNC and OE references.

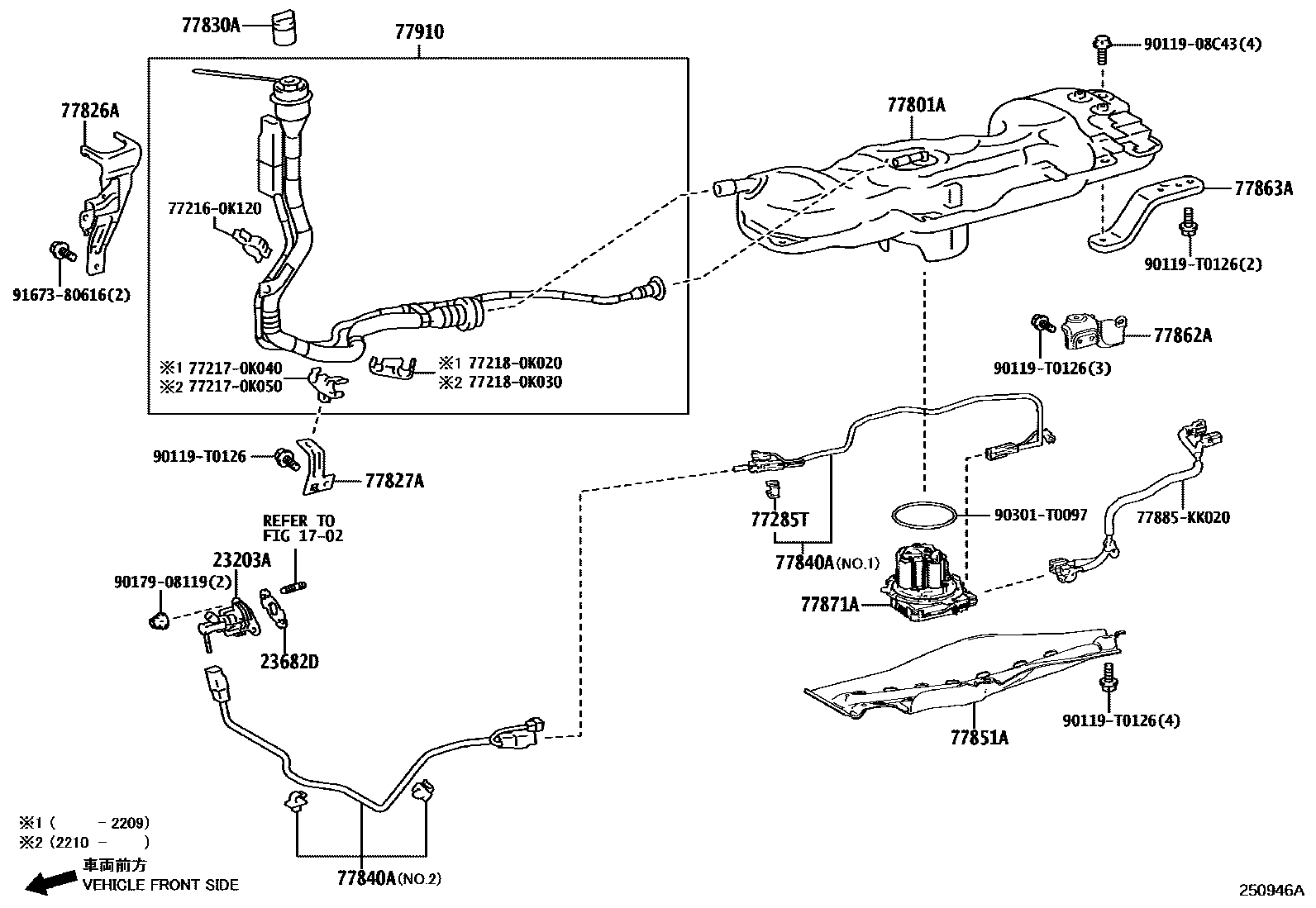

Toyota HILUX 尿素罐和管 EPC diagram — 250946A
尿素罐和管 — 250946A (202208 – 999999)

PNC and OE references

PNCPart nameOE numbers
23203AToyota part23203-11021
23682DToyota part23682-11010
77285TToyota part77285-0K140
77801AToyota part77801-0K150
77826AToyota part77826-KK010
77827AToyota part77827-KK010
77830AToyota part77830-0K050
77840AToyota part77840-0K021 · 77841-0K030
77851AToyota part77851-KK050
77862AToyota part77862-KK030
77863AToyota part77863-KK050
77871AToyota part77870-0K010
77910Toyota part77910-0K060
