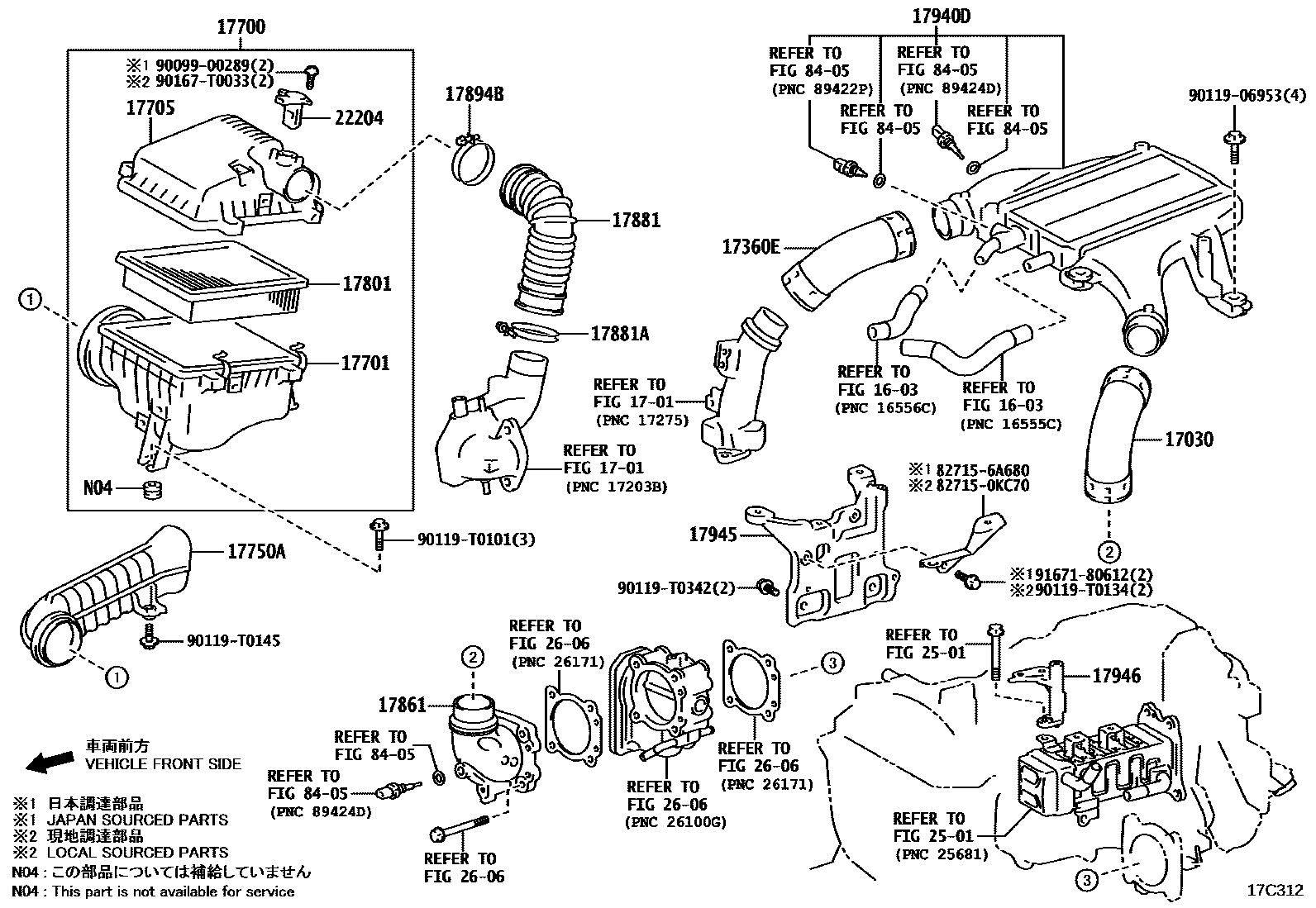

Toyota HILUX Air Cleaner — Figure 1703
Toyota HILUX EPC diagram 1703, Air Cleaner, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17030 | air hose assembly | 17030-11040 |
| 17360E | No. 1 air pipe assembly | 17360-11090 |
| 17700 | air filter assembly | 17700-0L350 |
| 17701 | Air filter housing sub-assembly | 17701-0C170 |
| 17705 | Air filter cover sub-assembly | 17705-0L290 |
| 17750A | Air filter air inlet assembly | 17750-0E010 |
| 17801 | Air filter element sub-assembly | 17801-0L040 |
| 17861 | Intake connecting pipe | 17861-0E020 |
| 17881 | No. 1 air cleaner hose | 17881-0E020 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-T0005 |
| 17894B | Hose clamp (for intake resonator No. 2) | 90460-T0020 |
| 17940D | Intercooler assembly | 17940-11100 |
| 17945 | intercooler bracket | 17945-0E011 · 17945-11050 |
| 17946 | No. 2 intercooler bracket | 17946-0E010 |
| 22204 | Intake air flow meter assembly | 22204-30030 |
