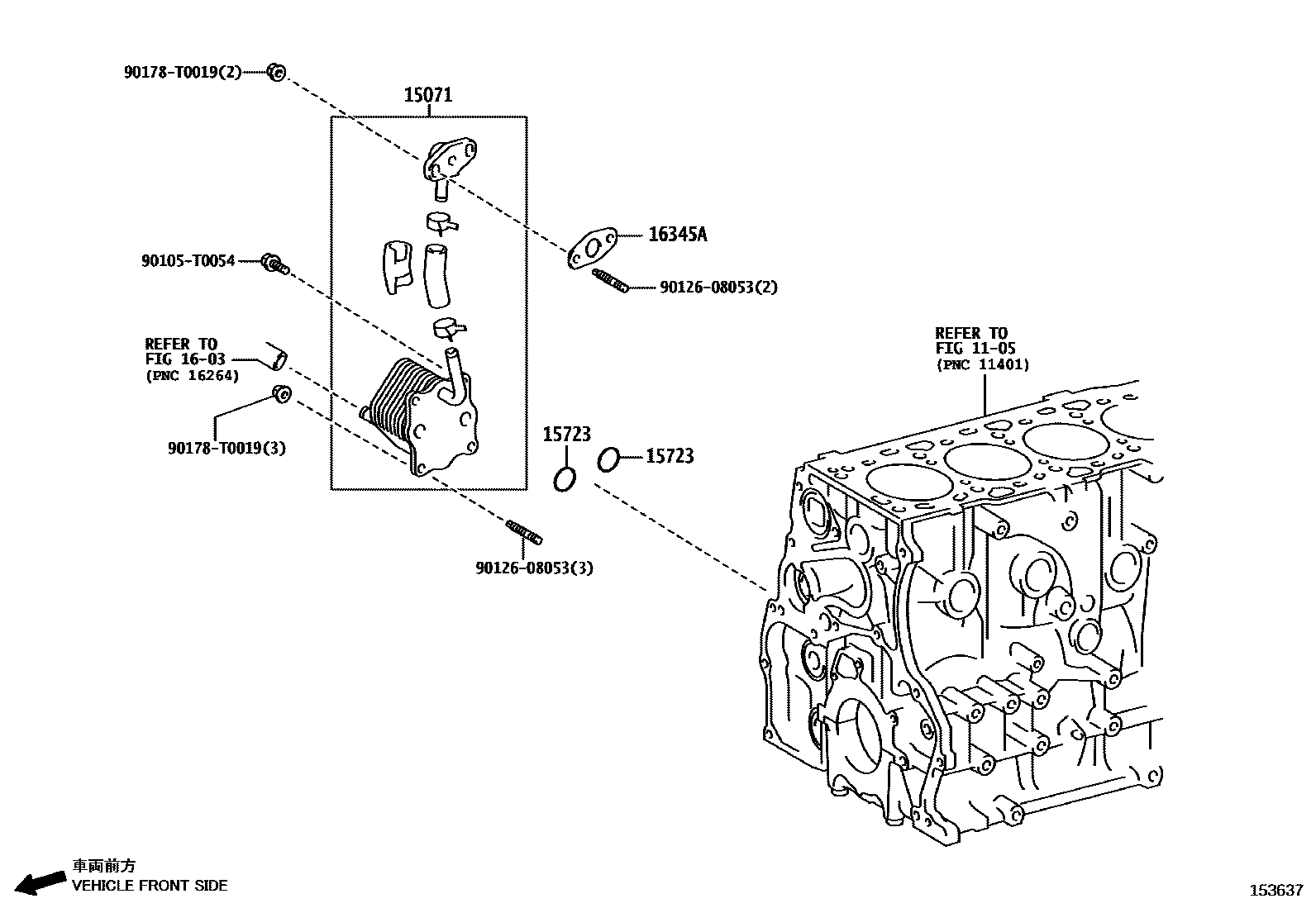

Toyota HILUX Engine Oil Cooler — Figure 1503
Toyota HILUX EPC diagram 1503, Engine Oil Cooler, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15071 | Toyota part | 15071-08010 · 15071-0E010 |
| 15723 | O-ring | 90301-T0010 |
| 16345A | Toyota part | 16345-0E010 |
