Toyota HILUX Timing Gear Cover & Rear End Plate — Figure 1106

Toyota HILUX EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 15 PNC and OE references.

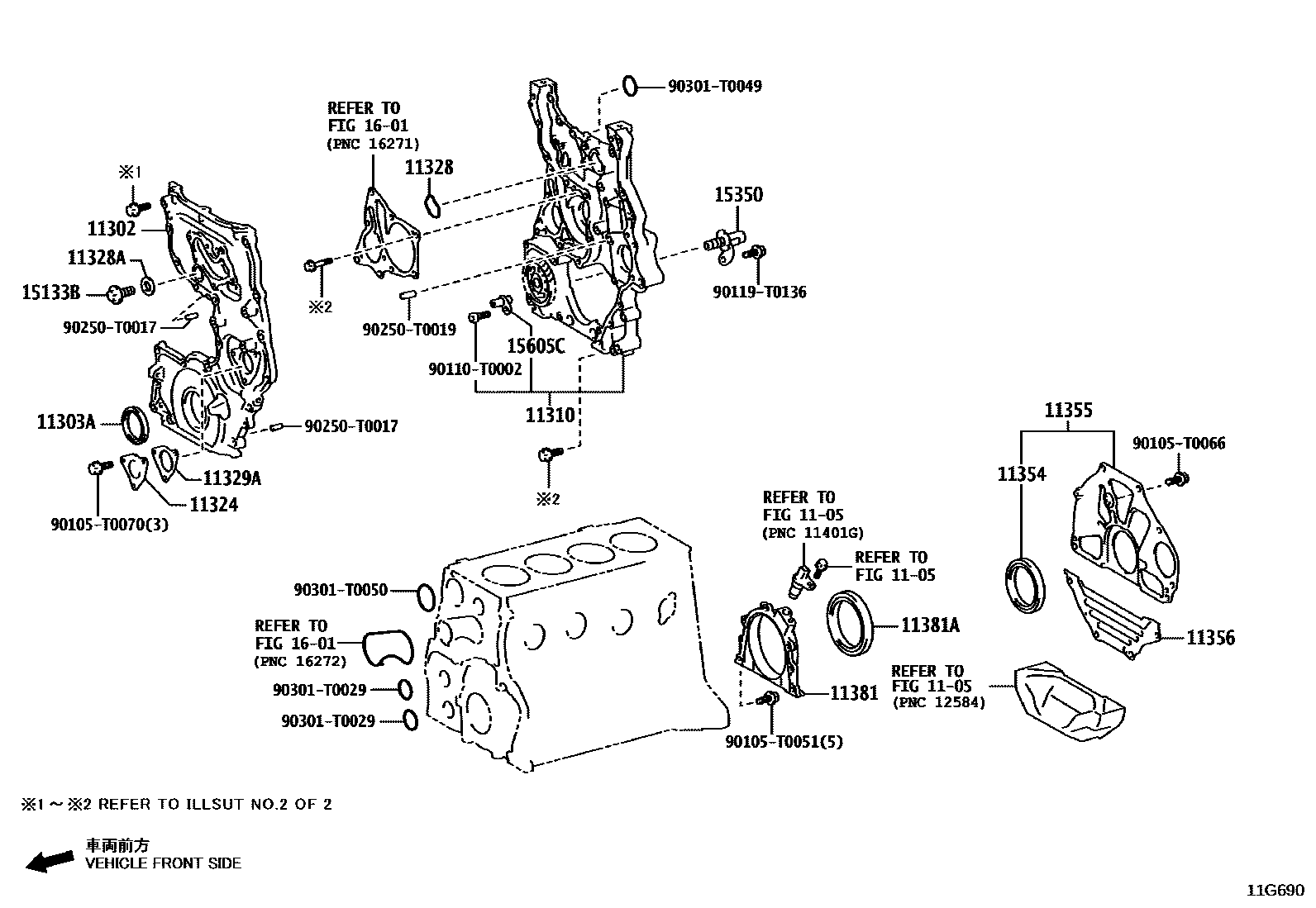

Toyota HILUX Timing Gear Cover & Rear End Plate EPC diagram — 11G690
Timing Gear Cover & Rear End Plate — 11G690 (202208 – 999999)

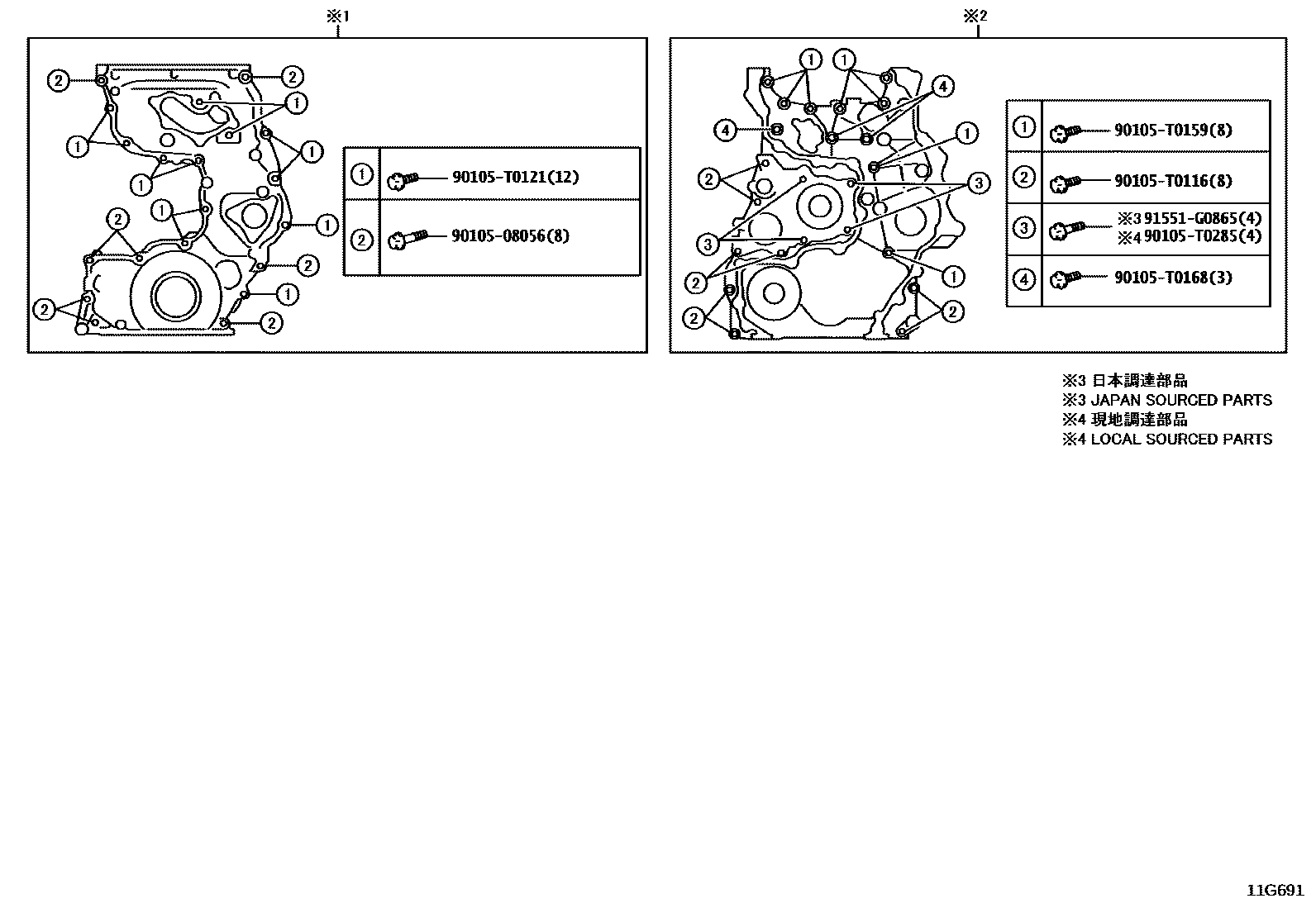

Toyota HILUX Timing Gear Cover & Rear End Plate EPC diagram — 11G691
Timing Gear Cover & Rear End Plate — 11G691 (202208 – 999999)

PNC and OE references

PNCPart nameOE numbers
11302TIMING CHAIN OR BELT COVER SUB-ASSY11321-0E010
11303AFront oil seal (for crankshaft)90311-T0054
11310Toyota part11310-0E040
11324Timing chain cover11324-0E010
11328GASKET, TIMING GEAR OR CHAIN COVER11328-0E010
11328ANo. 1 timing belt cover gasket11328-11080
11329ANo. 2 timing belt or chain cover gasket11329-0E010
11354Flywheel housing dust seal11354-0L020
11355rear end plate11355-0E010
11356No. 2 rear end plate11356-0L012
11381RETAINER, ENGINE REAR OIL SEAL11381-0E010
11381ASEAL, ENGINE REAR OIL90311-T0046
15133BPLUG, OIL PUMP RELIEF VALVE15133-38071
15350Oil pressure switch valve assembly15350-11010
15605COil check valve sub-assembly15605-30040
