Toyota HILUX Engine Overhaul Gasket Kit — Figure 1103

Toyota HILUX EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.

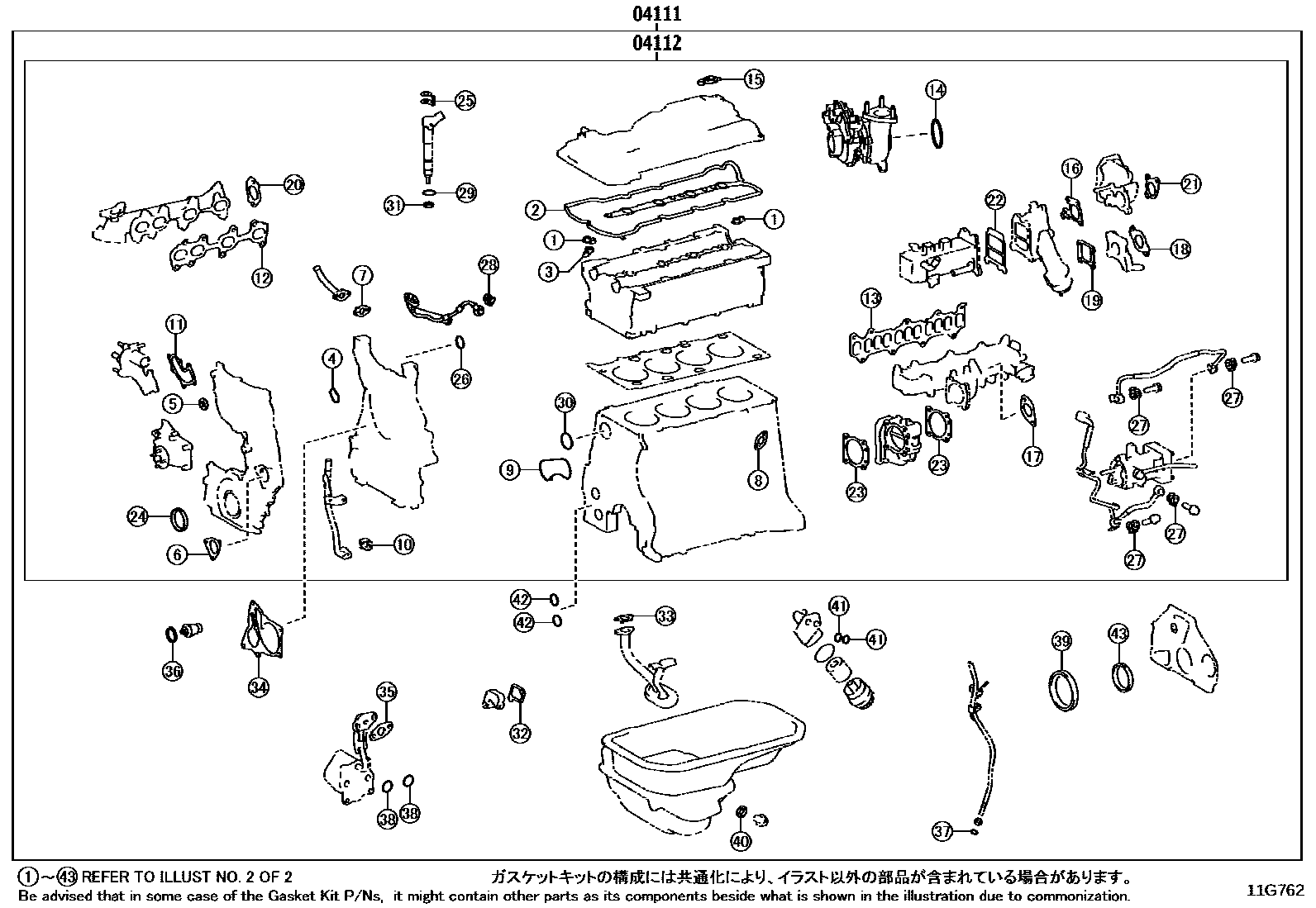

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 11G762
Engine Overhaul Gasket Kit — 11G762 (202208 – 999999)

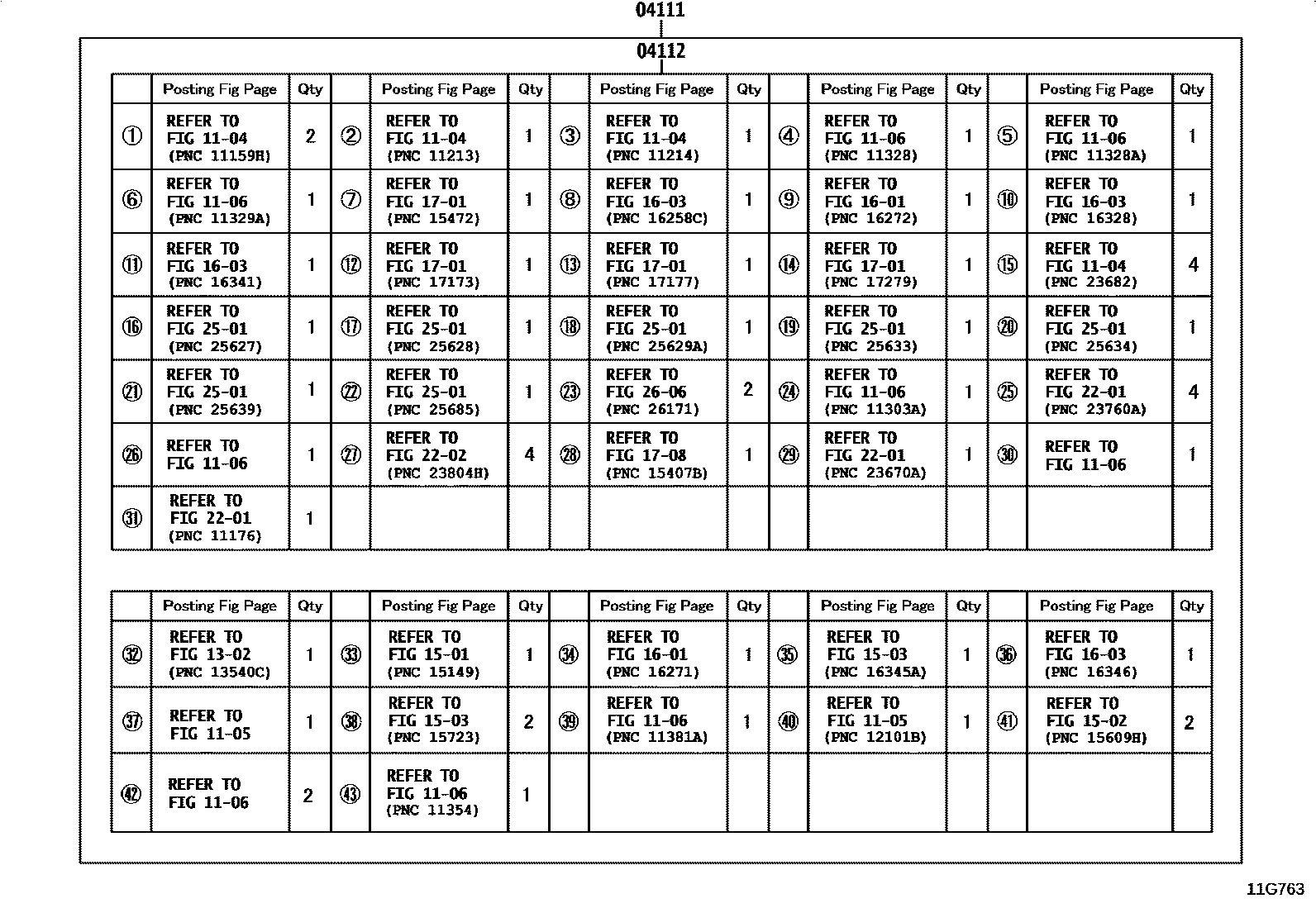

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 11G763
Engine Overhaul Gasket Kit — 11G763 (202208 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0E171
04112Engine valve grinding pad assembly04112-0E171
