Toyota HILUX 后视镜 — Figure 8701

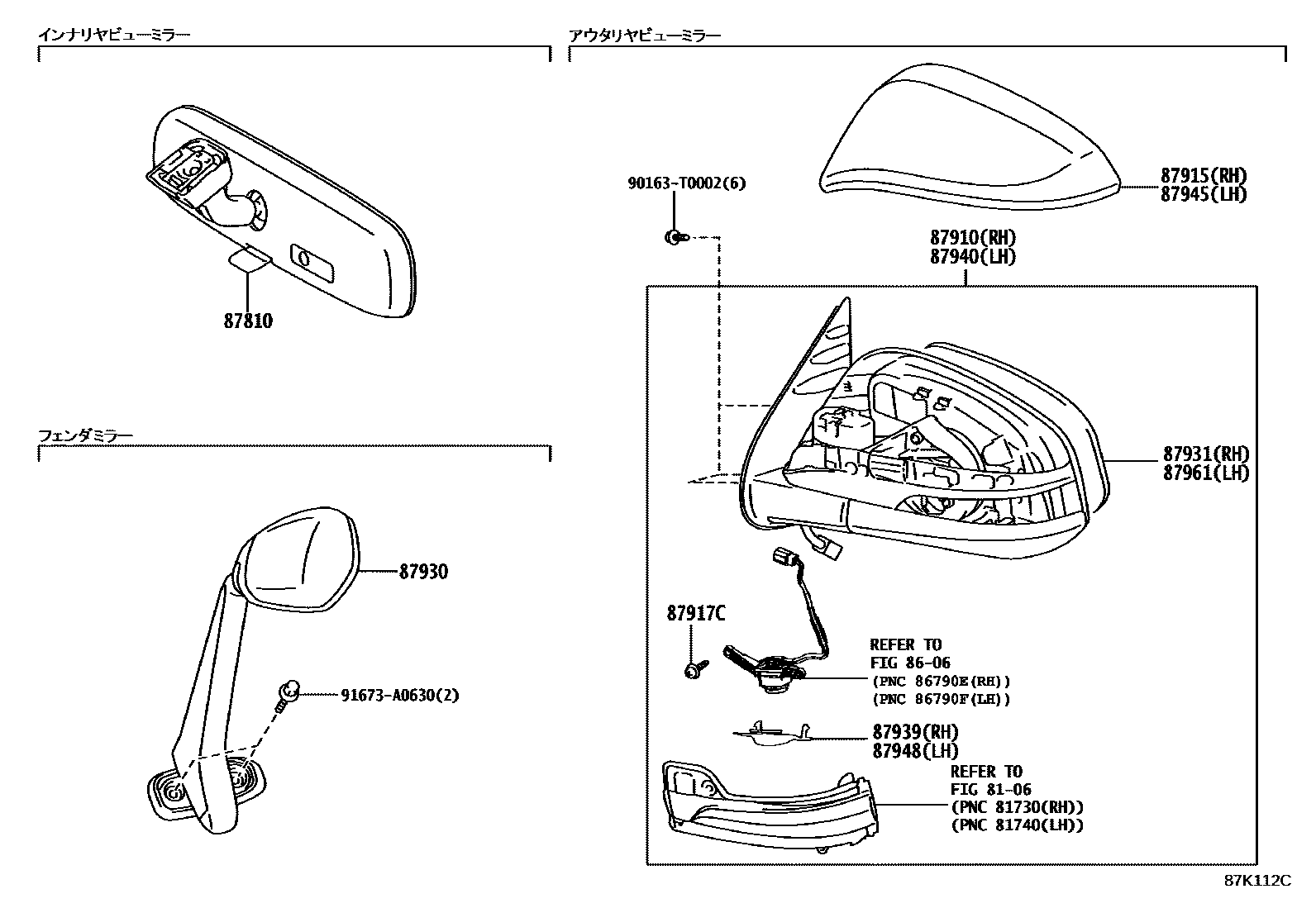

Toyota HILUX EPC diagram 8701, 后视镜, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-06041 |
| 87910 | Right exterior rearview mirror assembly | 87910-0KP01 · 87910-0KP10 · 87910-0KP40 |
| 87915 | Right exterior rearview mirror cover | 87915-0K390 · 87915-0K400 |
| 87917C | Exterior rearview mirror screws | 87917-0KM00 |
| 87931 | Right exterior rearview mirror | 87931-0KC80 |
| 87939 | Right exterior rearview mirror hole cover | 87939-0KM00 |
| 87940 | Left exterior rearview mirror assembly | 87940-0KP01 · 87940-0KP10 · 87940-0KP40 |
| 87945 | Left exterior rearview mirror cap | 87945-0K390 · 87945-0K400 |
| 87948 | Left exterior rearview mirror hole cover | 87948-0KM00 |
| 87961 | Left exterior rearview mirror | 87961-0KB40 |
