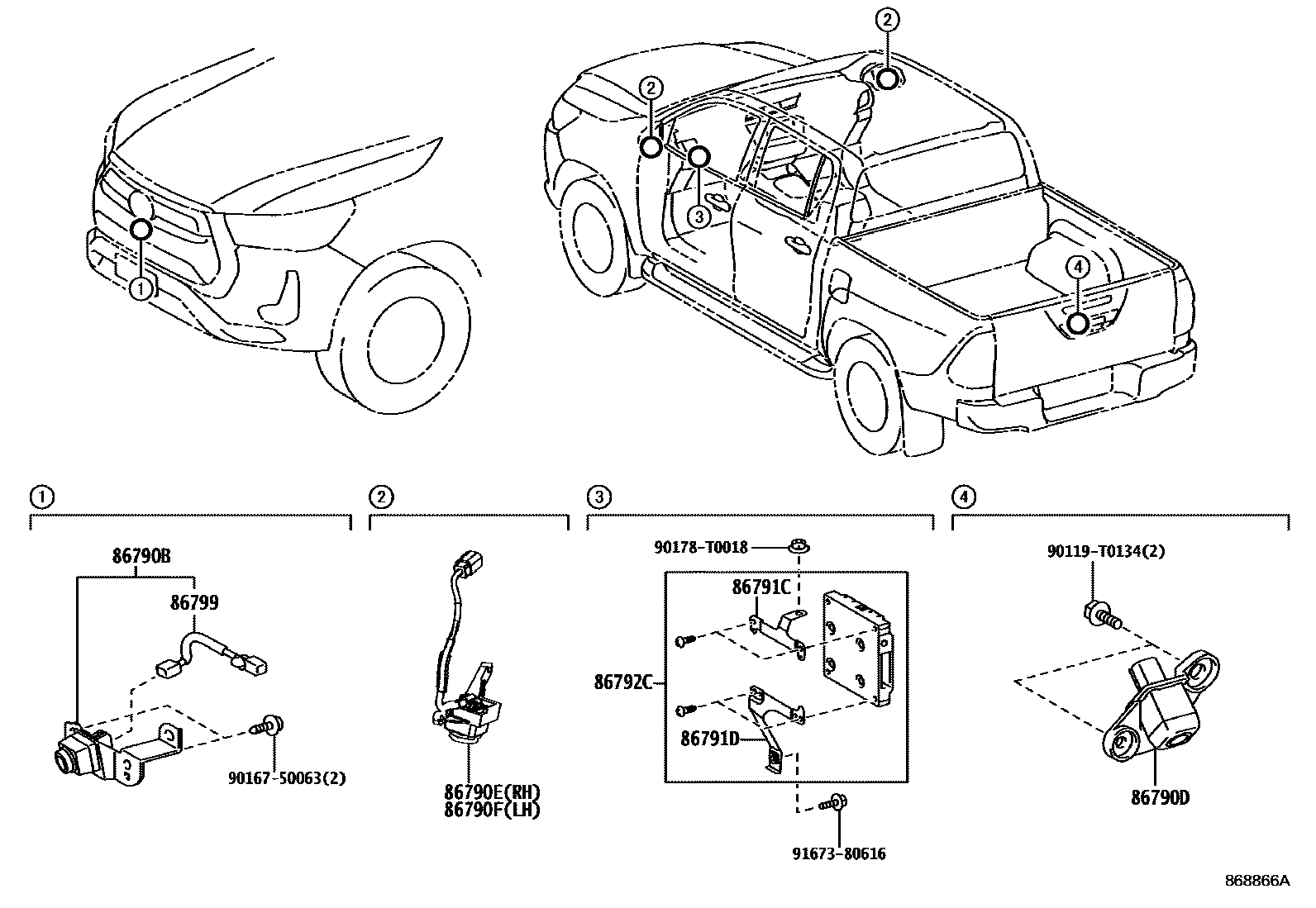

Toyota HILUX 倒车影像和摄像头 — Figure 8606
Toyota HILUX EPC diagram 8606, 倒车影像和摄像头, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790B | Front image camera assembly | 86790-0K170 · 86790-0K171 |
| 86790D | Rear reversing image camera assembly | 86790-0K050 |
| 86790E | Toyota part | 86790-0K160 |
| 86790F | Toyota part | 86790-0K150 |
| 86791C | Toyota part | 86791-71010 |
| 86791D | Toyota part | 86791-71020 |
| 86792C | Parking assist ECU | 86792-71100 |
| 86799 | Reversing image camera wiring harness | 86799-0K040 |
