Toyota HILUX 收音机、放大器和冷凝器 — Figure 8601

Toyota HILUX EPC diagram 8601, 收音机、放大器和冷凝器, with 1 images and 5 PNC and OE references.

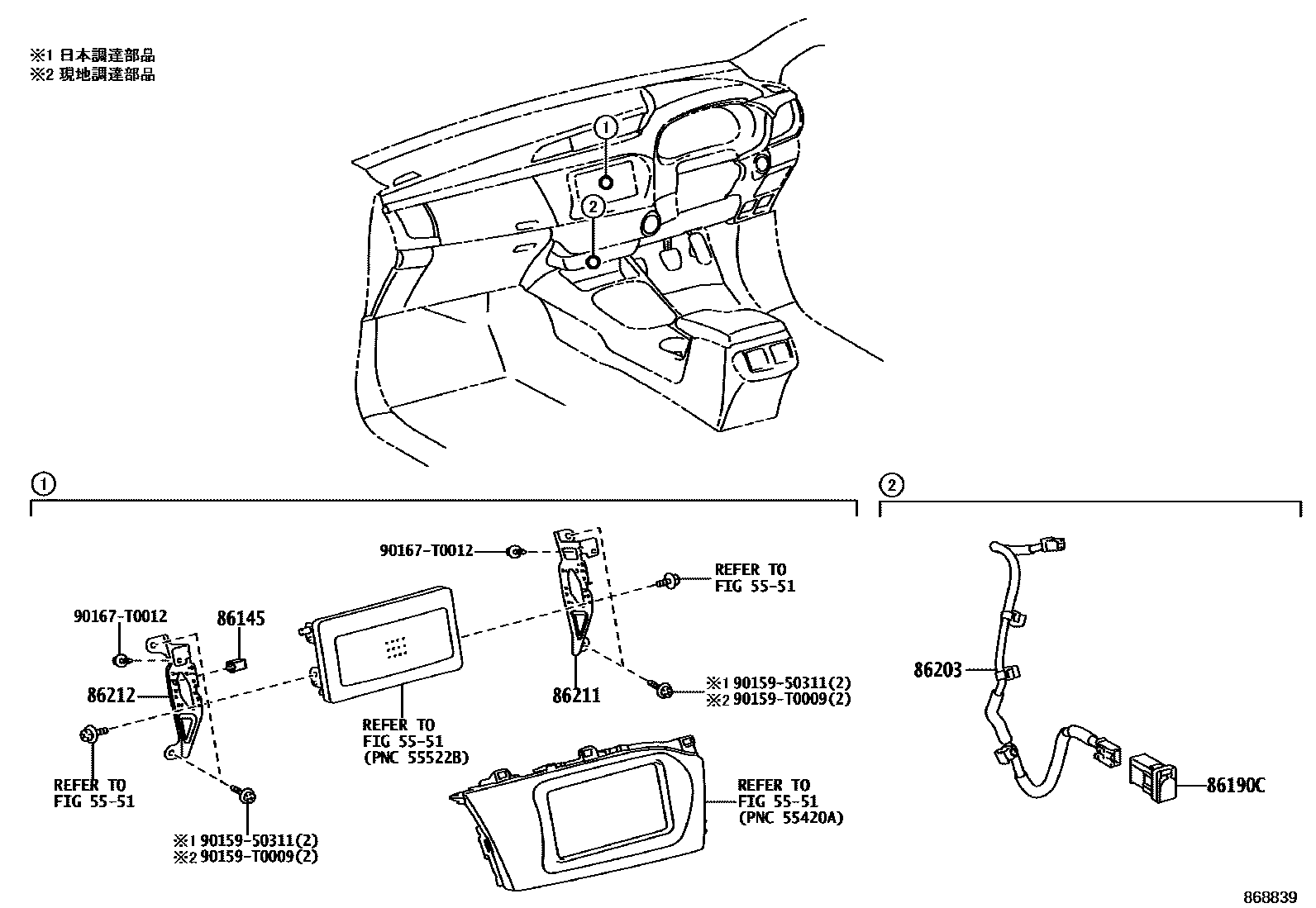

Toyota HILUX 收音机、放大器和冷凝器 EPC diagram — 868839
收音机、放大器和冷凝器 — 868839 (202108 – 999999)

PNC and OE references

PNCPart nameOE numbers
86145Antenna connector86145-52010
86190CStereo socket connector assembly No. 186190-0K100
86203radio wiring harness86203-71190
86211No. 1 radio bracket86211-KK050 · 86211-KK100
86212No. 2 radio bracket86212-KK050 · 86212-KK100
