Toyota HILUX 测距雷达和倒车雷达 — Figure 8417

Toyota HILUX EPC diagram 8417, 测距雷达和倒车雷达, with 1 images and 8 PNC and OE references.

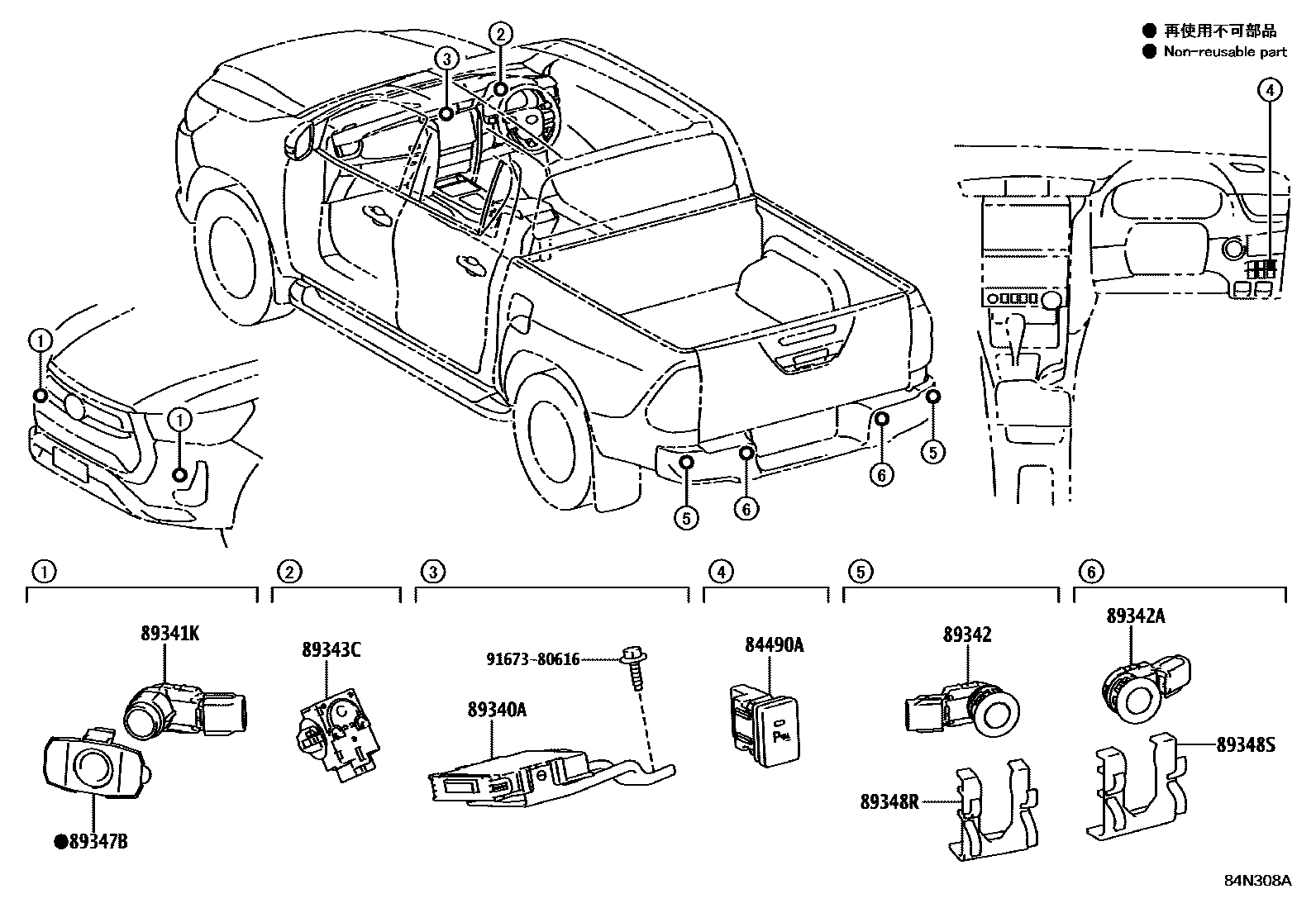

Toyota HILUX 测距雷达和倒车雷达 EPC diagram — 84N308A
测距雷达和倒车雷达 — 84N308A (202108 – 999999)

PNC and OE references

PNCPart nameOE numbers
84490AReversing radar or ranging radar switch assembly84490-0K030
89340ADistance warning ECU assembly89340-0K090
89342Toyota part89341-71040
89342AToyota part89341-71030
89343CNo. 1 distance warning buzzer89343-48010
89347BToyota part89348-06110 · 89348-0K020
89348RToyota part89348-71020
89348SToyota part89348-71030
