Toyota HILUX Headlamp — Figure 8101

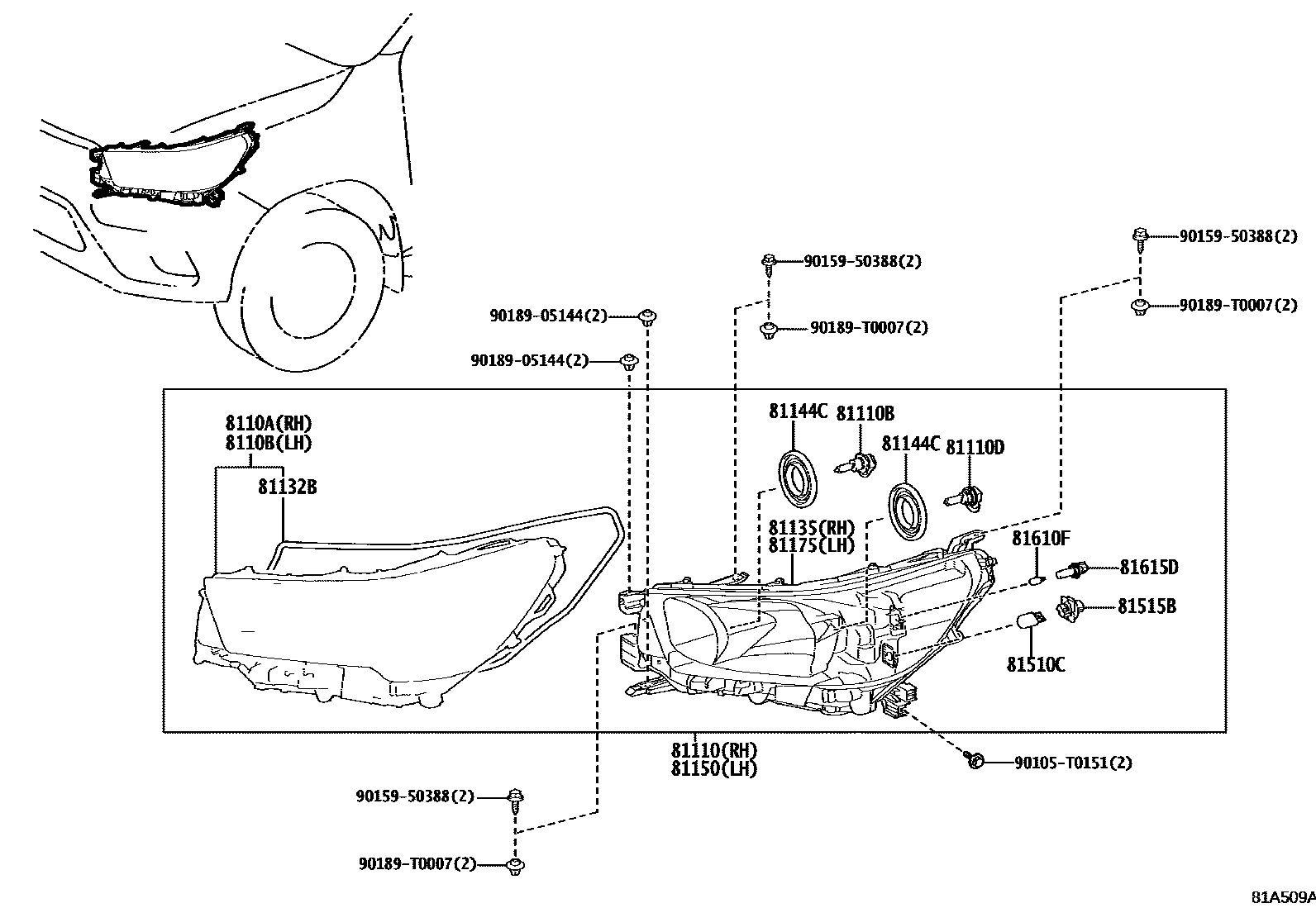

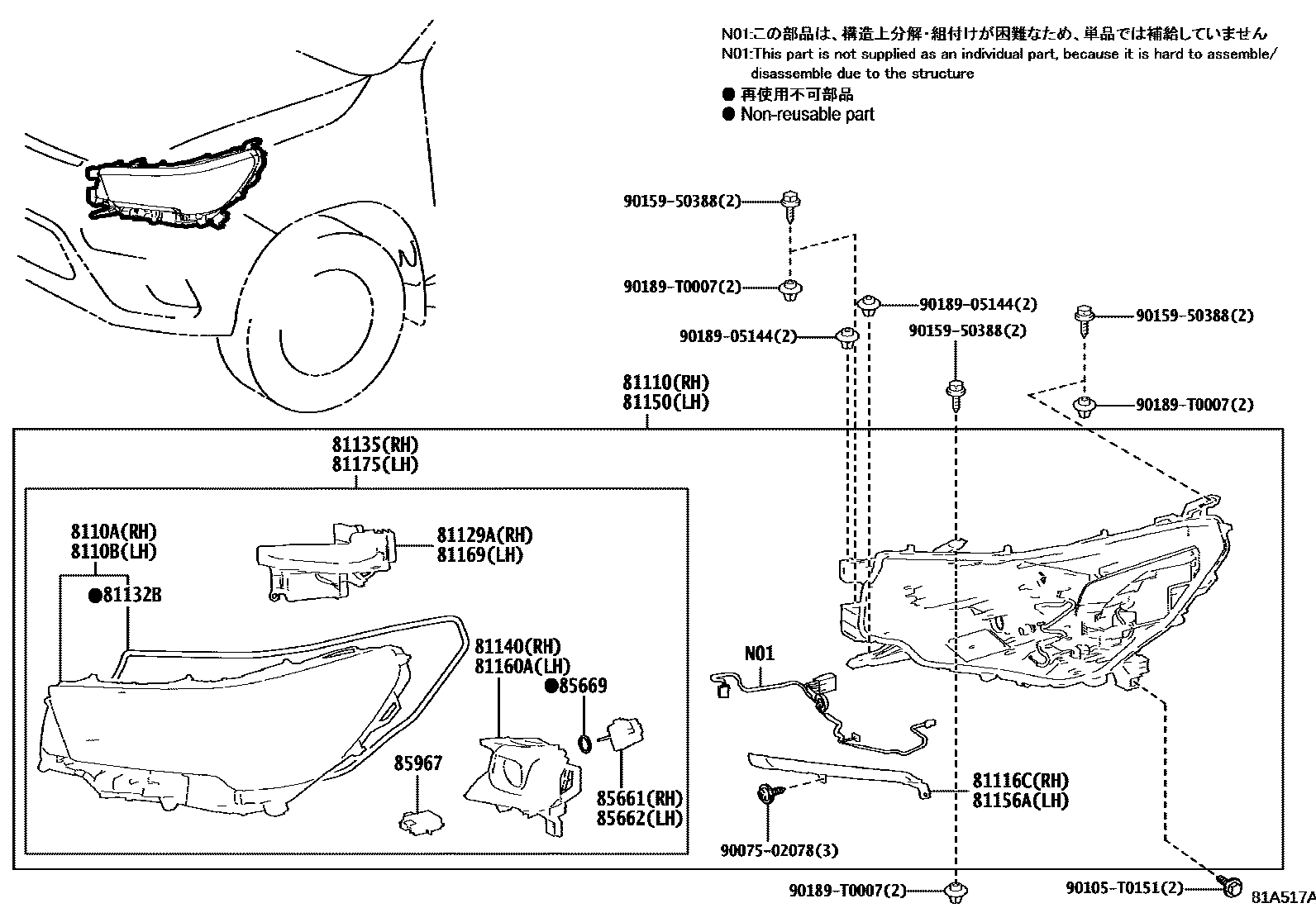

Toyota HILUX EPC diagram 8101, Headlamp, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 8110A | Toyota part | 8110A-0KE80 · 8110A-0KJ80 · 8110A-YP090 |
| 8110B | Toyota part | 8110B-0KE80 · 8110B-0KJ80 · 8110B-YP090 |
| 81110 | Right headlight assembly | 81110-0KJ90 · 81110-0KJ91 · 81110-0KQ60 · 81110-0KQ61 · 81110-YP310 · 81110-YP311 |
| 81110B | Bulb (for headlight No. 1) | 90981-13099 |
| 81110D | Bulb (for headlight No. 2) | 90981-13075 |
| 81116C | Right headlight bracket | 81116-0KE80 |
| 81129A | Right headlight reflector | 81129-0KE80 |
| 81132B | Headlight cover gasket | 81132-48C30 |
| 81135 | Right headlight assembly | 81130-0KJ90 · 81145-0KQ60 · 81145-YP310 |
| 81140 | Right headlight LED assembly assembly | 81140-0KE80 |
| 81144C | Headlight lamp holder cover | 90075-65006 |
| 81150 | Left headlight assembly | 81150-0KJ90 · 81150-0KJ91 · 81150-0KQ60 · 81150-0KQ61 · 81150-YP310 · 81150-YP311 |
| 81156A | Left headlight bracket | 81156-0KE80 |
| 81160A | Left headlight LED assembly assembly | 81160-0KE80 |
| 81169 | Left headlight reflector | 81169-0KE80 |
| 81175 | Left headlight assembly | 81170-0KJ90 · 81185-0KQ60 · 81185-YP310 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 90981-11069 |
| 81615D | Width light lamp holder | 90075-60089 |
| 85661 | Right headlight beam height adjustment motor | 85661-02040 |
| 85662 | Left headlight beam height adjustment motor | 85661-02040 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
| 85967 | Light control ECU | 85967-12050 |
