Toyota HILUX 防护条 — Figure 7552

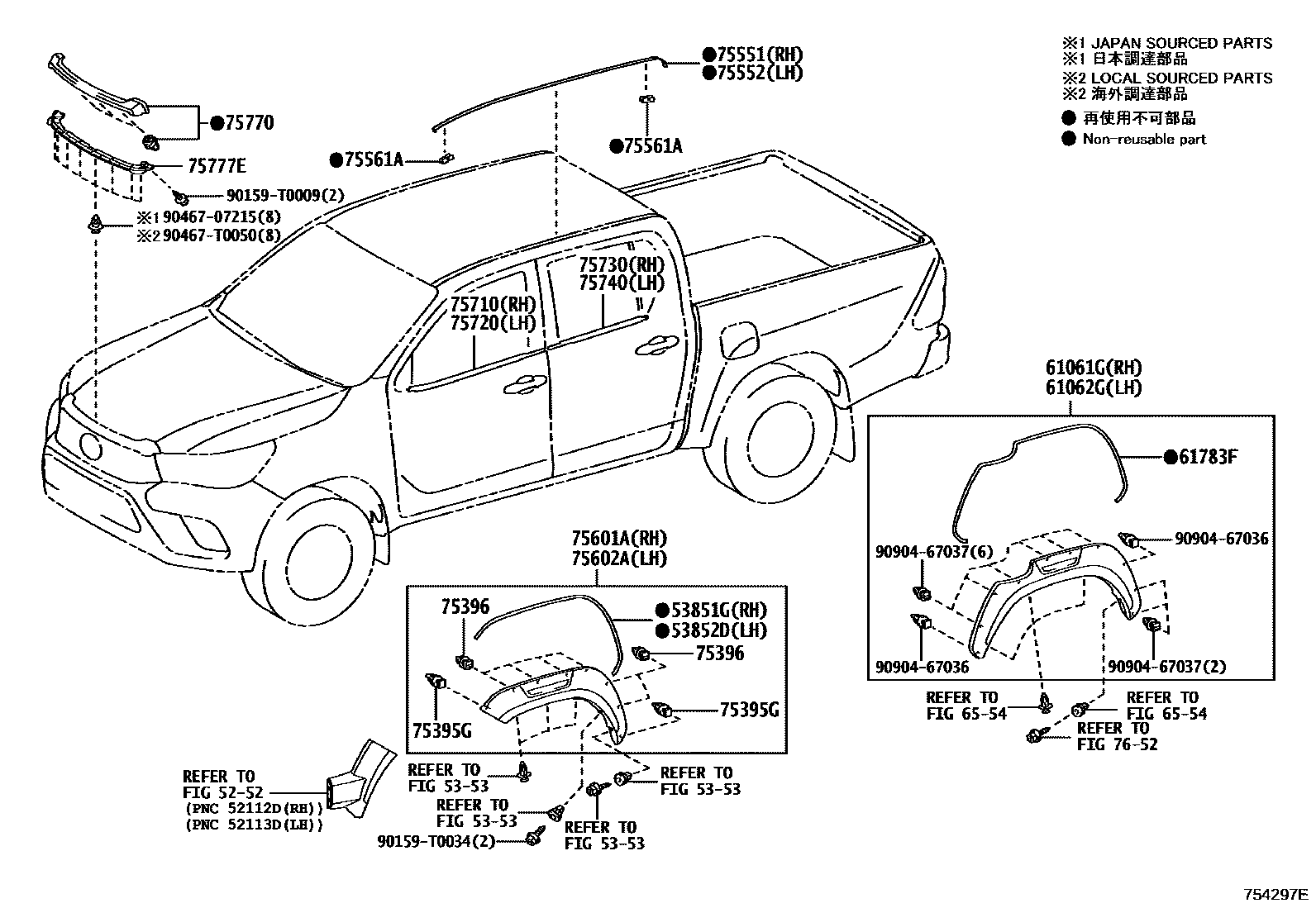

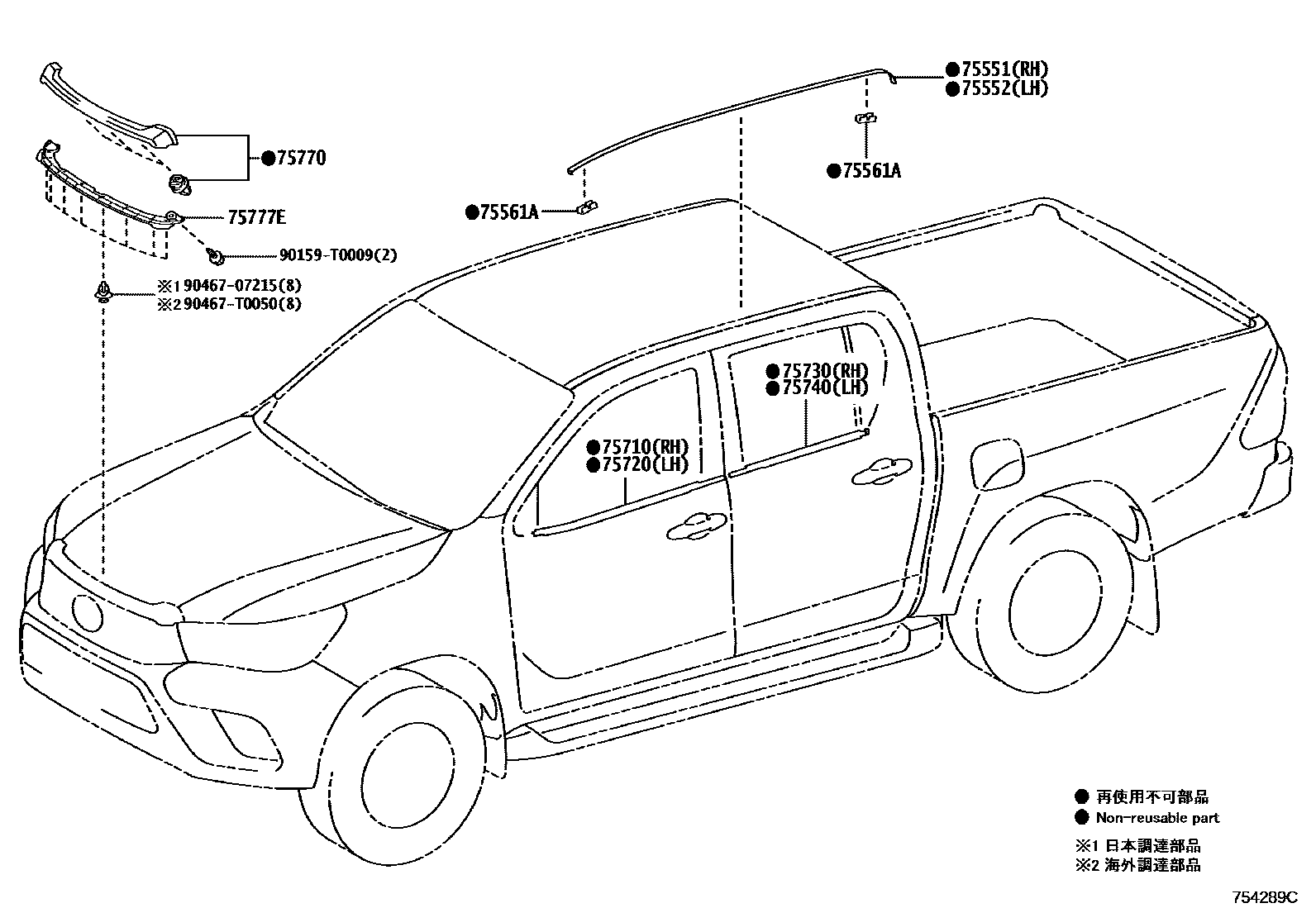

Toyota HILUX EPC diagram 7552, 防护条, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75395G | No. 1 outer protective strip clip | 75395-0K010 |
| 75396 | No. 2 outer protective strip clip | 75396-35020 |
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-0K160 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-0K160 |
| 75561A | Roof drain channel side decorative strip clip | 75561-33030 |
| 75710 | Right front door waistline protection strip assembly | 68160-0K010 · 68160-0K070 |
| 75720 | Left front door waistline protection strip assembly | 68210-0K010 · 68210-0K070 |
| 75730 | Right rear door waistline protection strip assembly | 68180-0K010 · 68180-0K120 |
| 75740 | Left rear door waistline protection strip assembly | 68230-0K010 · 68230-0K120 |
| 75770 | Engine cover front protective strip assembly | 75770-0K380 · 75770-0K430 |
| 75777E | Engine cover front protective strip liner | 53393-0K041 |
