Toyota HILUX radiator grille — Figure 5351

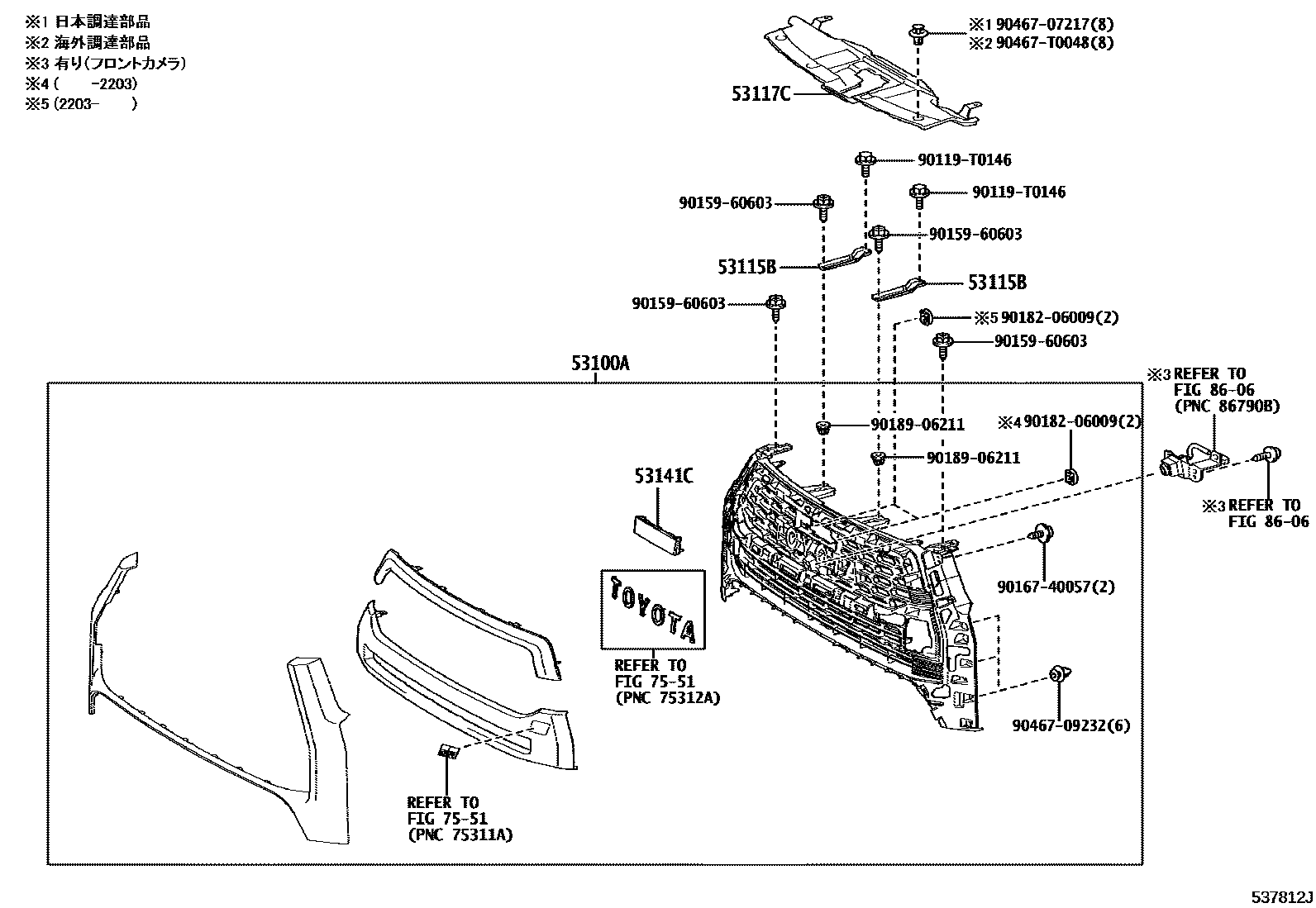

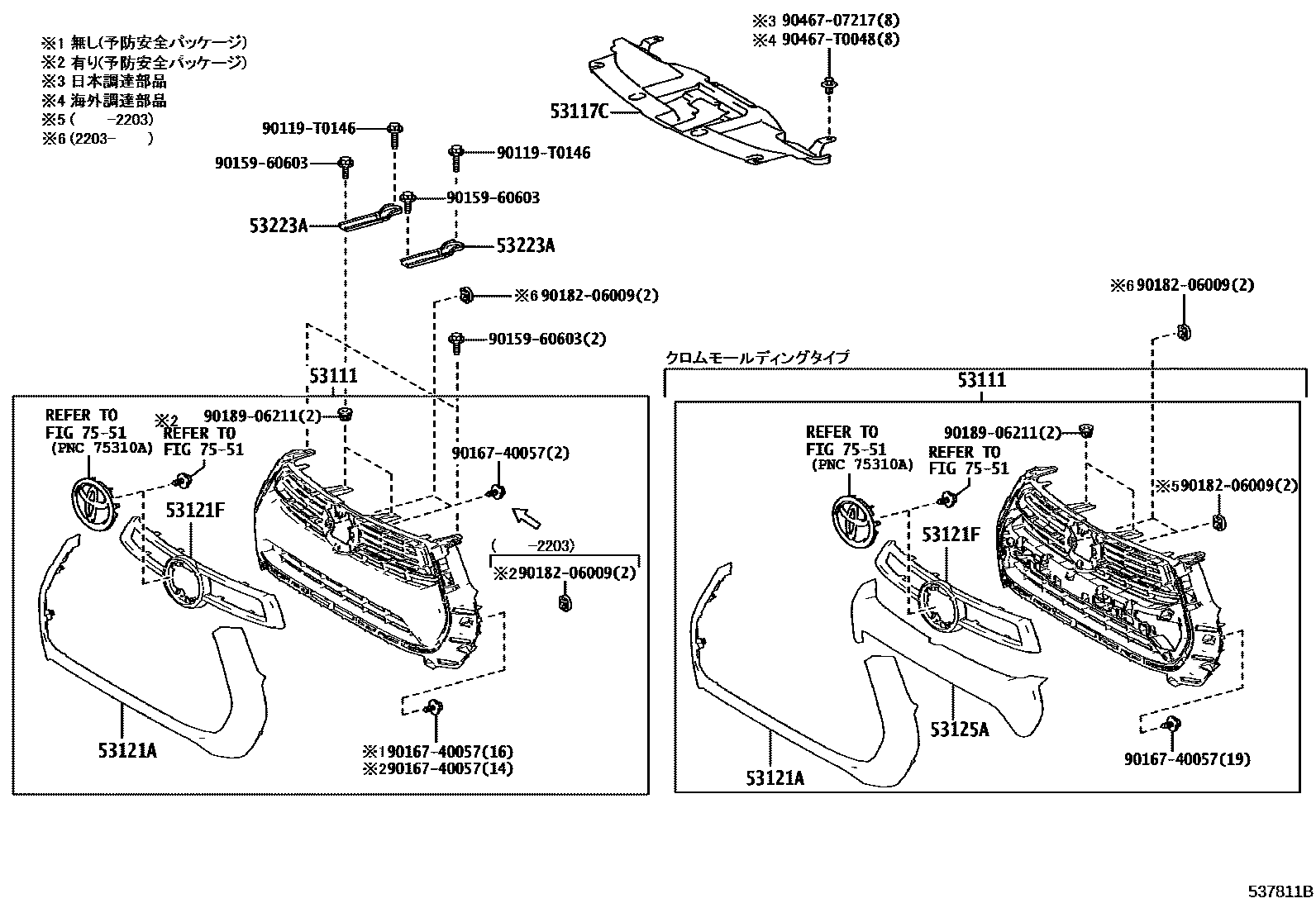

Toyota HILUX EPC diagram 5351, radiator grille, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53111 | radiator grille | 53100-0KG80 · 53100-0KG81 · 53100-0KU00 · 53100-0KU01 · 53100-0KU10 |
| 53115B | Radiator grille bracket | 53115-0K080 |
| 53117C | Radiator grille fixing No. 1 | 53117-0K120 |
| 53121A | Radiator grille protection strip | 53121-0K870 · 53121-0KC50 |
| 53121F | Radiator grille upper right protective strip | 53125-0K490 · 53125-0K570 |
| 53125A | Radiator grille right center protective strip | 53123-0K560 |
| 53141C | Radiator grille trim | 53141-26030 |
| 53223A | Radiator grille mounting bracket | 53115-0K080 |
