Toyota HILUX 悬架横梁和发动机底罩 — Figure 5152

Toyota HILUX EPC diagram 5152, 悬架横梁和发动机底罩, with 1 images and 3 PNC and OE references.

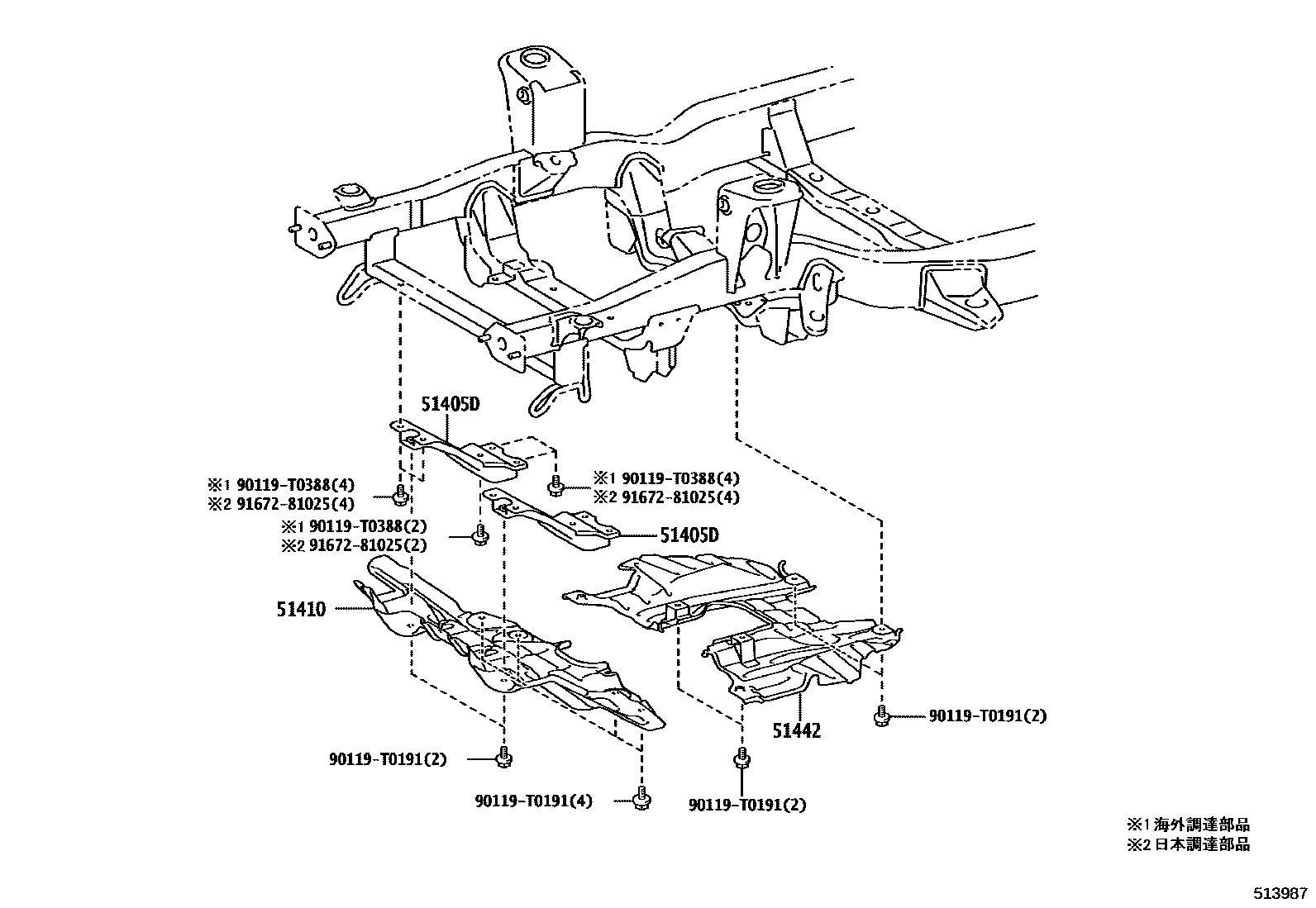

Toyota HILUX 悬架横梁和发动机底罩 EPC diagram — 513987
悬架横梁和发动机底罩 — 513987 (202108 – 999999)

PNC and OE references

PNCPart nameOE numbers
51405DEngine bottom bracket sub-assembly51405-KK030
51410Engine No. 1 bottom cover assembly51410-KK010
51442No. 2 engine bottom cover51420-KK010
