Toyota HILUX 变速器油冷却器和配管(ATM) — Figure 3514

Toyota HILUX EPC diagram 3514, 变速器油冷却器和配管(ATM), with 1 images and 10 PNC and OE references.

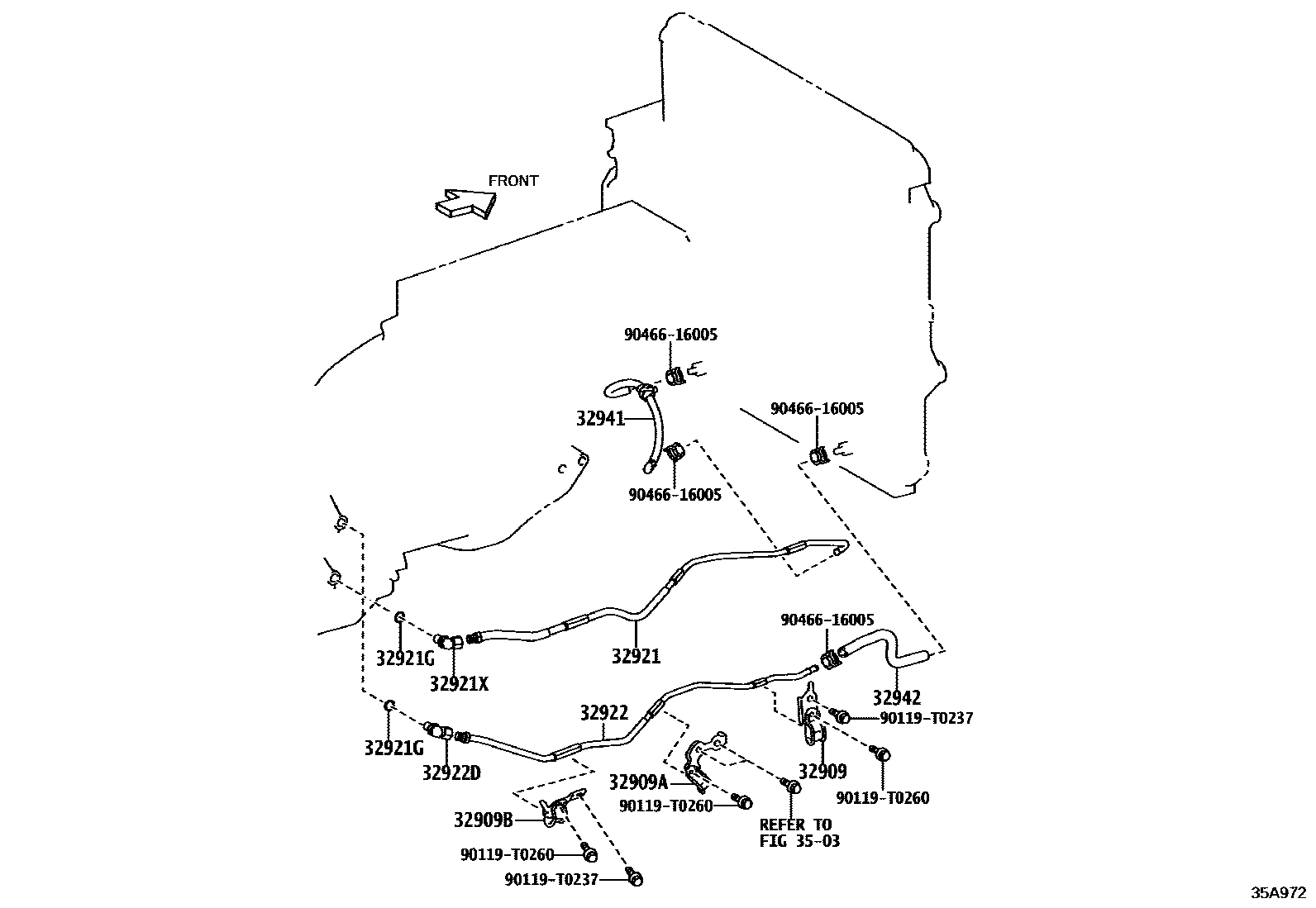

Toyota HILUX 变速器油冷却器和配管(ATM) EPC diagram — 35A972
变速器油冷却器和配管(ATM) — 35A972 (202108 – 999999)

PNC and OE references

PNCPart nameOE numbers
32909Toyota part32909-KK030
32909AToyota part32909-KK020
32909BToyota part32909-KK010
32921No. 1 transmission oil cooler oil inlet pipe32921-0K090
32921GO-ring (for transmission oil cooler pipe joint)90301-T0069
32921XToyota part90407-16009
32922No. 1 transmission oil cooler oil outlet pipe32922-0K090
32922DToyota part90407-16009
32941No. 1 transmission oil cooler oil inlet hose32941-0K010
32942No. 1 transmission oil cooler oil outlet hose32942-0K010
