Toyota HILUX 阀体和滤油网(ATM) — Figure 3512

Toyota HILUX EPC diagram 3512, 阀体和滤油网(ATM), with 2 images and 17 PNC and OE references.

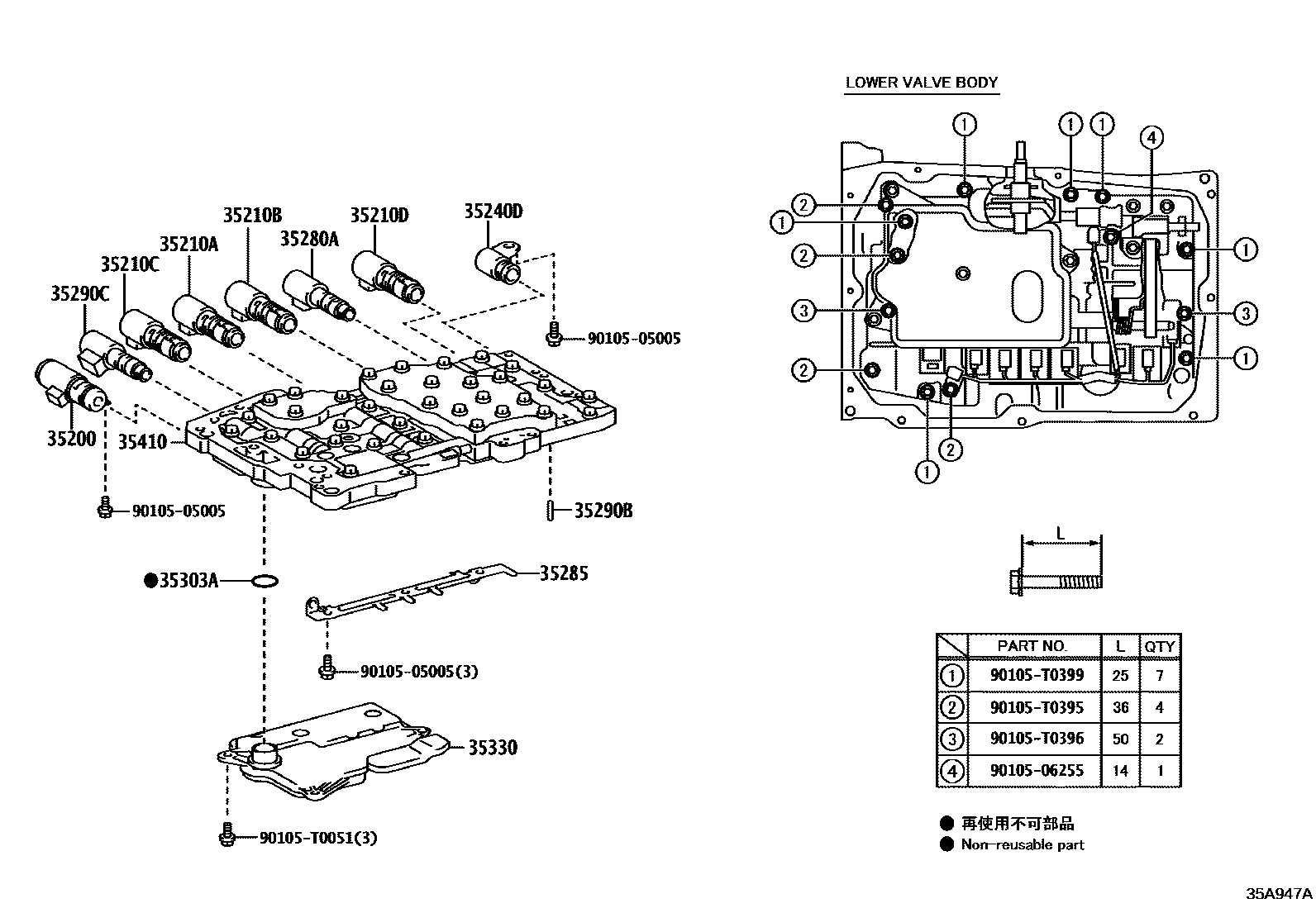

Toyota HILUX 阀体和滤油网(ATM) EPC diagram — 35A947A
阀体和滤油网(ATM) — 35A947A (202108 – 999999)
Toyota HILUX 阀体和滤油网(ATM) EPC diagram — 35A948B
阀体和滤油网(ATM) — 35A948B (202108 – 999999)

PNC and OE references

PNCPart nameOE numbers
35200Toyota part35200-71010
35210AToyota part35210-71010
35210BToyota part35210-71010
35210CToyota part35210-71010
35210DToyota part35210-71010
35240DToyota part35240-71010
35280AToyota part35280-0K010
35285Solenoid valve lock plate35285-0K010
35290BDirect sales (for pipeline pressure control solenoid valve)90250-03045
35290CToyota part35290-0K010
35303AO-ring (for oil filter)90301-T0071
35330Valve body oil filter assembly35330-0K010
35410Transmission valve body assembly35410-0K040
35482Btemperature sensor clip35482-0K010
82125JTransmission wiring harness82125-0K020
82125LO-ring (for transmission wiring harness)90301-36014
89429KToyota part90301-06004
