Toyota HILUX 喷油泵总成 — Figure 2202

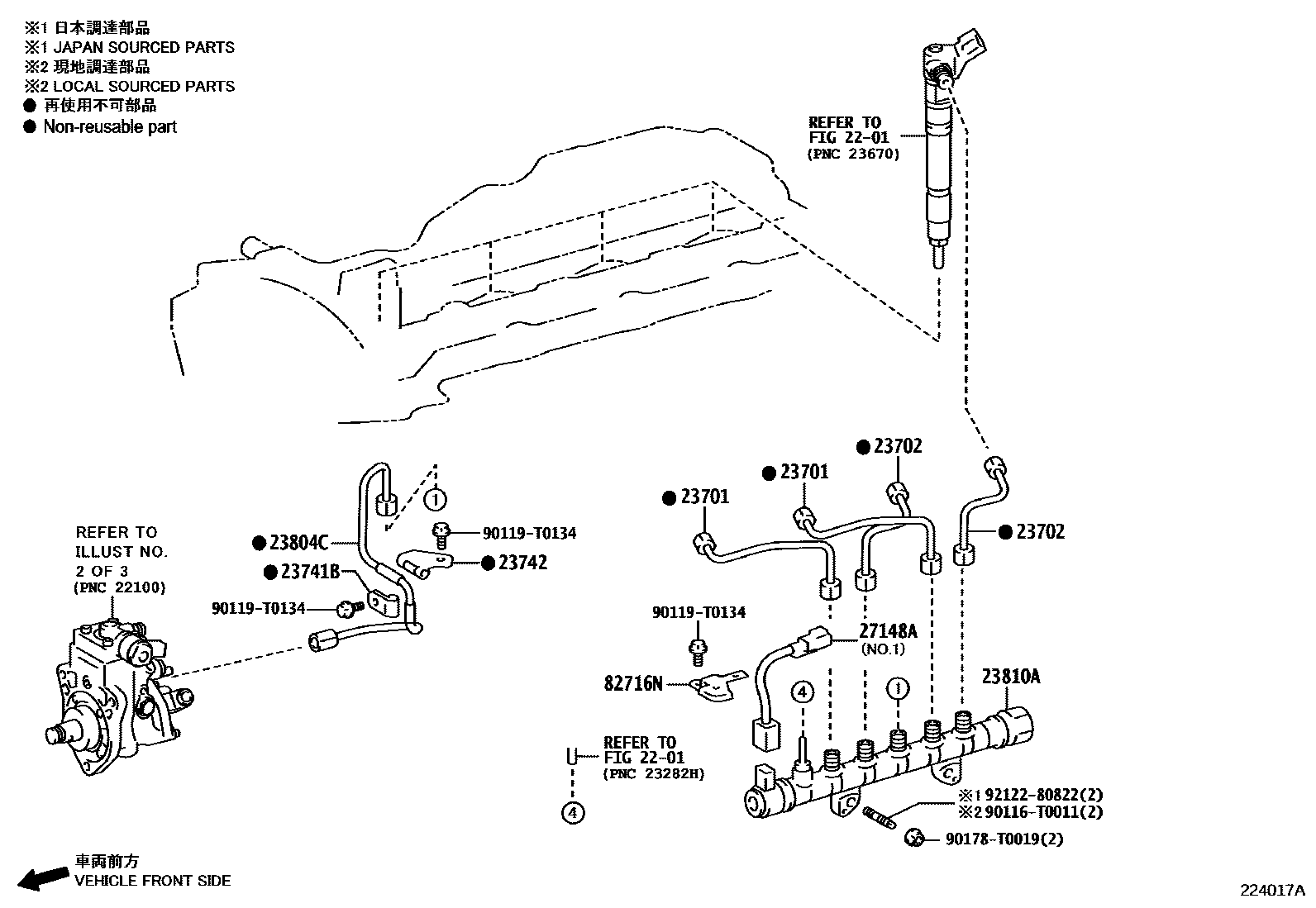

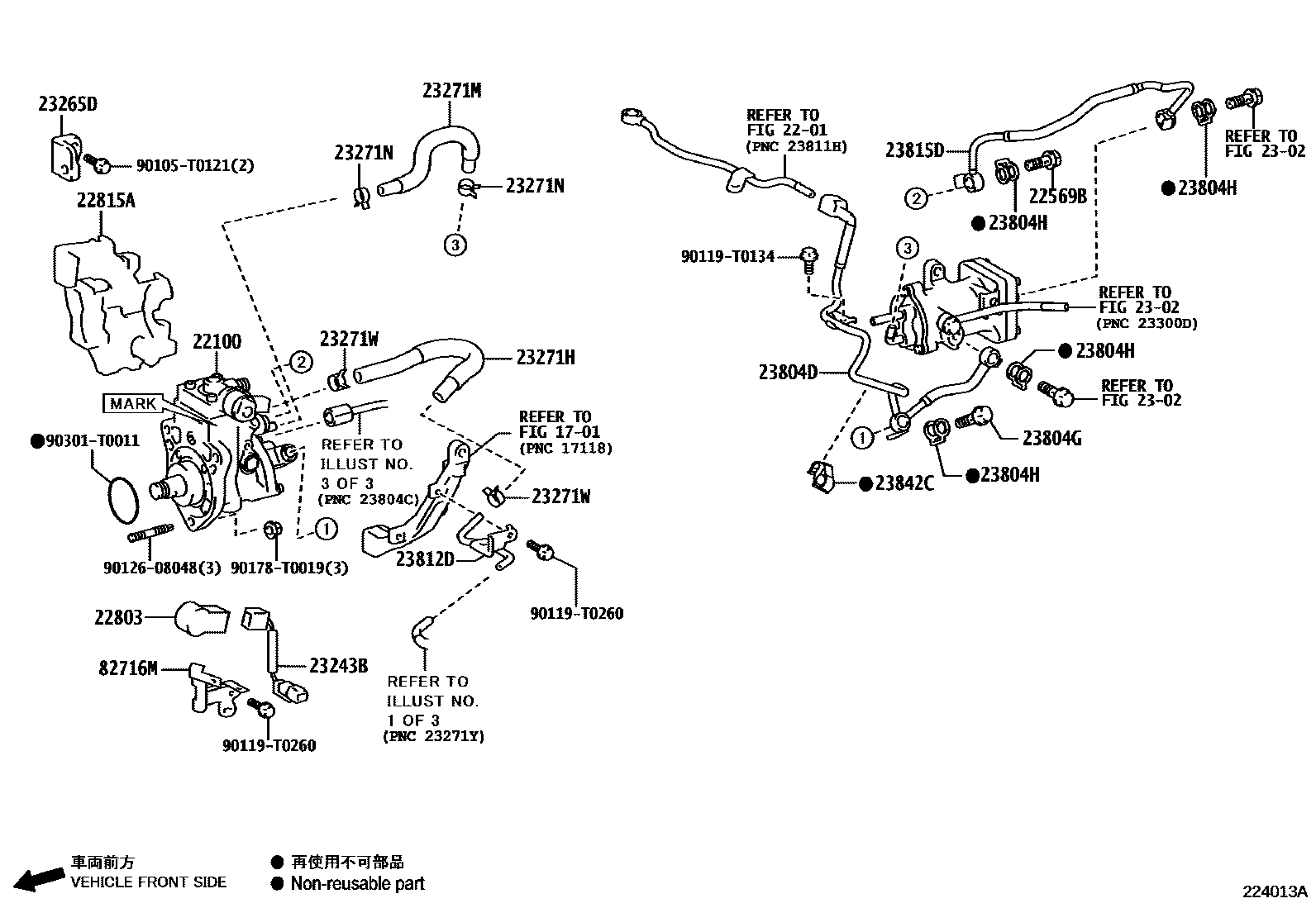

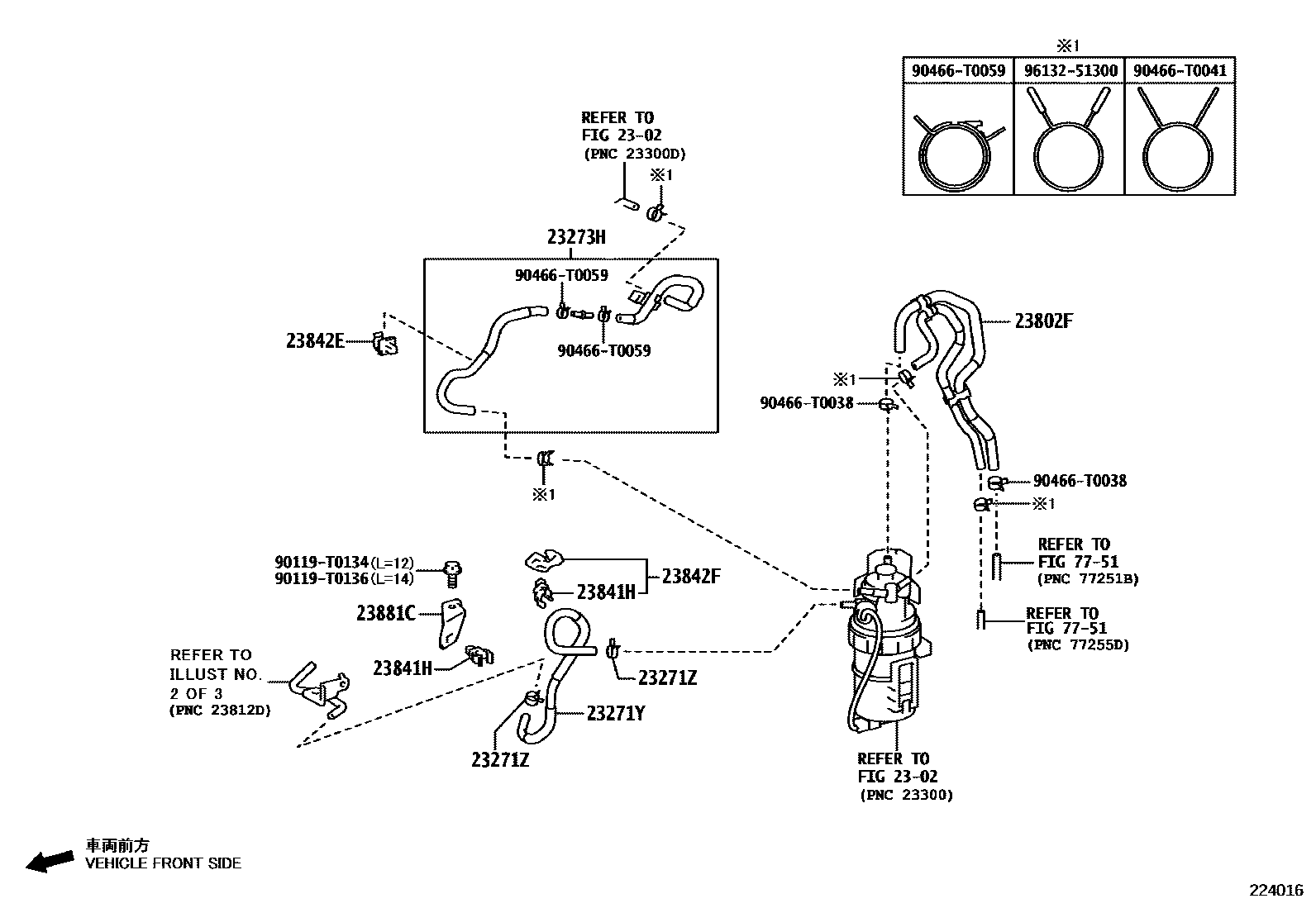

Toyota HILUX EPC diagram 2202, 喷油泵总成, with 3 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-0E010 |
| 22569B | Toyota part | 22569-0E010 |
| 22803 | Fuel injection pump cover sub-assembly | 22803-0E010 |
| 22815A | Fuel injection pump vibration isolation pad | 22815-0E011 |
| 23243B | Fuel pump motor wiring harness | 23243-0E010 |
| 23265D | No. 1 fuel pump bracket | 23265-0E010 |
| 23271H | No. 1 fuel hose | 23271-0E011 |
| 23271M | fuel hose | 23273-0E010 |
| 23271N | Hose clip | 90466-T0015 · 96136-41501 |
| 23271W | Clamp (for No. 1 fuel hose) | 96136-51801 |
| 23271Y | Toyota part | 23271-0E031 |
| 23271Z | Toyota part | 90466-T0023 |
| 23273H | No. 2 fuel hose | 23273-0L132 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-0E031 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23702-0E031 |
| 23741B | Fuel injection pipe clamp | 23741-0E010 |
| 23742 | No. 2 fuel injection pipe clamp | 23742-0E010 |
| 23802F | fuel hose | 23801-0E020 |
| 23804C | Fuel inlet pipe sub-assembly | 23804-0E041 |
| 23804D | No. 4 fuel pipe sub-assembly | 23816-0E013 · 23816-0E014 |
| 23804G | Toyota part | 90401-T0006 |
| 23804H | Toyota part | 90430-T0018 |
| 23810A | Common rail assembly | 23810-0E020 |
| 23812D | No. 2 fuel pipe | 23812-0E011 |
| 23815D | No. 3 fuel pipe | 23815-0E014 |
| 23841H | fuel hose clamp | 23841-0L010 |
| 23842C | No. 2 fuel pipe clamp (for fuel injection pump) | 23842-11071 |
| 23842E | Toyota part | 23841-0L041 |
| 23842F | Toyota part | 23842-0E010 |
| 23881C | fuel hose bracket | 23881-0E011 |
| 27148A | Connection harness | 27148-0E070 |
| 82716M | Toyota part | 82715-0KC90 |
| 82716N | Toyota part | 82715-0KD60 |
